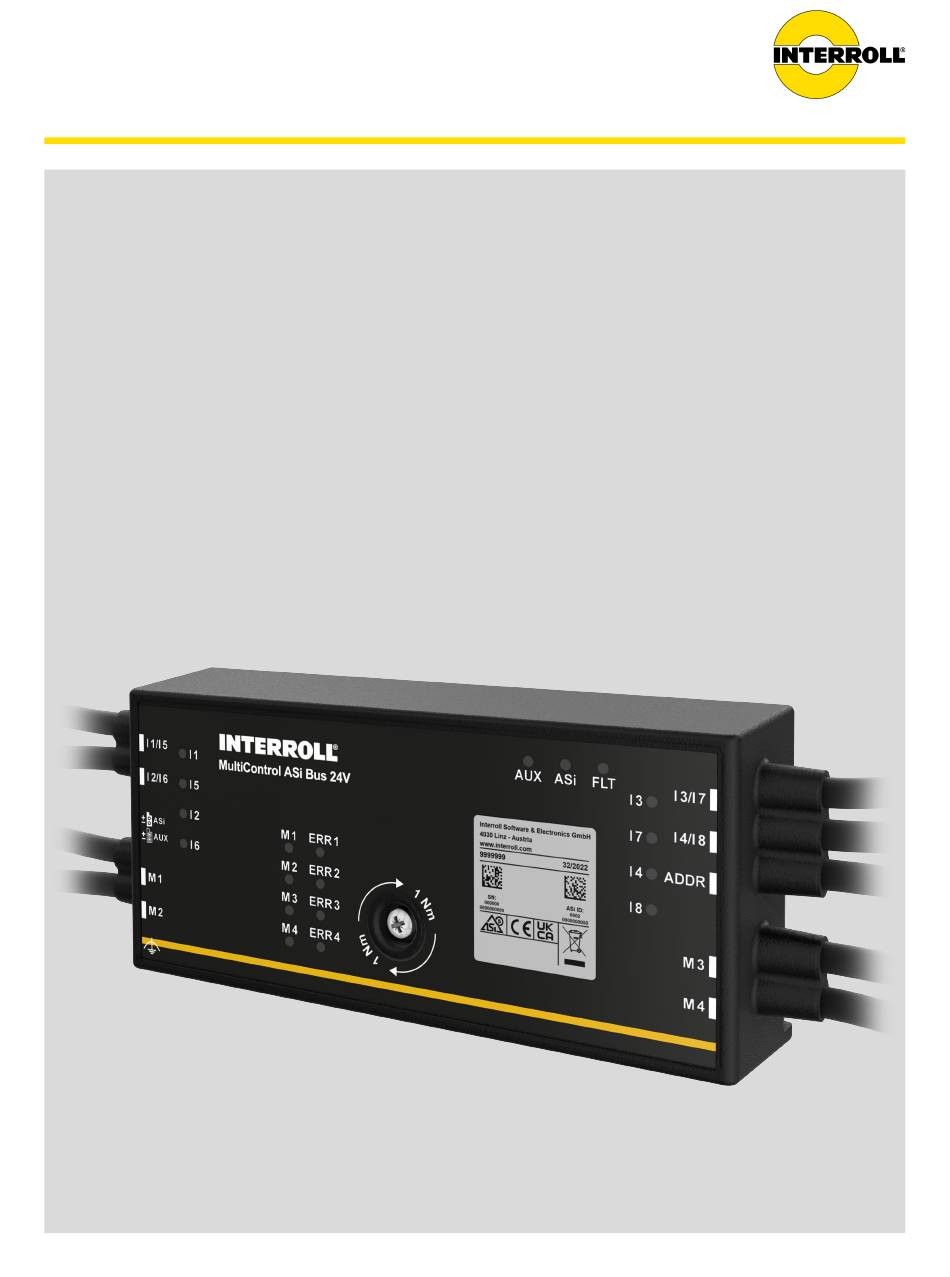

- Page 1 INSPIRED BY EFFICIENCY Operating manual Interroll MultiControl ASi Bus 24V...
- Page 2 All signs contained in this document (protected marks, such as logos and trade names) are the property of Interroll Holding AG, CH or of third parties and must not be used, copied or distributed without prior written consent.
-
Page 3: Table Of Contents
Contents Information Information about this operating manual Warning notices in this document Symbols Interroll MultiControl ASi Bus 24V Safety notes 2.2 Technical specifications Front view and connections LED status indicator Dimensions Montage Mounting types 2.8 L ine termination with sealing profiles Addressing with ASi Master and ASIMON 2.10... - Page 4 Version 1.0 (10/2022) Online 4 von 24 Translation of the original operating manual...
-
Page 5: Information
Information Information about this operating manual The operating instructions are part of the Interroll product(s) mentioned in the title and contain important notes and information on the various operating phases of the product(s) mentioned. Like all our products, the operating instructions are also subject to constant monitoring and will be adjusted if necessary. -
Page 6: Warning Notices In This Document
Information Warning notices in this document Warning notices are provided in the context in which danger can occur and describe the nature of the danger in question. They are structured according to the following examples: SIGNAL WORD Type and source of hazard Consequence(s) in the event of non-compliance Measure(s) for avoiding hazard ¾... -
Page 7: Symbols
Information NOTE Denotes a situation that can lead to material damage. Preventive measures ¾ Symbols This symbol indicates useful and important information. ü This symbol indicates a requirement that must be fulfilled before carrying out assembly or repair work. This symbol indicates general information relating to safety. ¾ This symbol indicates an action that needs to be performed. •... -
Page 8: Interroll Multicontrol Asi Bus 24V
Interroll MultiControl ASi Bus 24V Interroll MultiControl ASi Bus 24V INTERROLL ® AUX ASi FLT I1/I5 I3/I7 MultiControl ASi Bus 24V I2/I6 I4/I8 ADDR Interroll Software & Electronics GmbH 4030 Linz - Austria www.interroll.com ERR1 9999999 ERR2 ERR3 ERR4 Read instruction: Before working with this unit: read these instructions carefully and completely. - Page 9 Interroll MultiControl ASi Bus 24V WARNUNG HAZARDOUS VOLTAGE! Before any installation, maintenance or modification work: Disconnect your system from the supply network. ¾ Ensure that it cannot be reconnected inadvertently! Short circuits between the pins of the motor socket can lead to a device defect! Observe operating voltage! 48 VDC must not be connected to • Devices with 24 VDC operating voltage (observe data sheet of the manufacturer) •...
-
Page 10: Technical Specifications
Interroll MultiControl ASi Bus 24V Technical specifications General Motor rollers 4 x Interroll (EC5000 AI, 24 V, 20 W / 35 W / 50 W) Address 1 ASi-5 Required ASi specification of the master ASi-5 Rated operational voltage 30 V (18 … 31,6 V) Max. current consumption 320 mA Max. -
Page 11: Front View And Connections
Interroll MultiControl ASi Bus 24V Front view and connections INTERROLL ® I3 / I7 I1 / I5 AUX ASi FLT I1/I5 I3/I7 MultiControl ASi Bus 24V I4 / I8 I2 / I6 I2/I6 I4/I8 ADDR ADDR Interroll Software & Electronics GmbH 4030 Linz - Austria www.interroll.com... - Page 12 Interroll MultiControl ASi Bus 24V Signal Description 24 V out of Power supply, out of ASi, positive pole (sensor supply) 0 V out of ASi Power supply, out of ASi, negative pole (sensor supply) Digital input x 24 V ext out...
-
Page 13: Led Status Indicator
Interroll MultiControl ASi Bus 24V LED status indicator Description ASi voltage on Address „000” See Peripheral fault ASi / FLT Flashing pattern for identification of the device (e.g. can be activated from ASIMON360) Warning message, see diagnostics software for further details Firmware update is running I1 ... Ix Status of inputs External supply voltage on M1 ... - Page 14 Interroll MultiControl ASi Bus 24V Peripheral fault • Overload output • AUX voltage is missing • Overload sensor supply • Motor fuse blown or motor in fault condition or not connected to the module Version 1.0 (10/2022) Online 14 von 24...
-
Page 15: Dimensions
Interroll MultiControl ASi Bus 24V Dimensions Version 1.0 (10/2022) Online Translation of the original operating manual 15 von 24... -
Page 16: Montage
Interroll MultiControl ASi Bus 24V Montage Mounting types On ASi substructure module Use copper conductors only! CAUTION Risk of stab wound! The housing includes sharp parts - handle with care! ¾ NOTE Verify functionality correct placement of the gaskets! Avoid direct sunlight. Version 1.0 (10/2022) Online 16 von 24... -
Page 17: Line Termination With Sealing Profiles
Interroll MultiControl ASi Bus 24V Line termination with sealing profiles To improve interference resistance, it is recommended to connect the ground connection of the module to the system ground via a suitable flat plug sleeve (2.8 mm x 0.8 mm). Version 1.0 (10/2022) Online Translation of the original operating manual 17 von 24... -
Page 18: Addressing With Asi Master And Asimon
Interroll MultiControl ASi Bus 24V Addressing with ASi Master and ASIMON The addressing of the device can be set via the display menu. For further information, please refer to the documentation of the gateway. Addressing is possible also with hand addressing devices. -
Page 19: Process Images
Interroll MultiControl ASi Bus 24V 2.10 Process images 4 Byte Process image Inputs Byte 0, Bit 0 I1 Standard Input Byte 0, Bit 1 I2 Standard Input Byte 0, Bit 2 I3 Standard Input Byte 0, Bit 3 I4 Standard Input... -
Page 20: Byte Process Image
Interroll MultiControl ASi Bus 24V 8 Byte Process image Inputs Byte 0, Bit 0 I1 Standard Input Byte 0, Bit 1 I2 Standard Input Byte 0, Bit 2 I3 Standard Input Byte 0, Bit 3 I4 Standard Input Byte 0, Bit 4... -
Page 21: Byte Process Image
Interroll MultiControl ASi Bus 24V 14 Byte Process image Inputs Byte 0, Bit 0 I1 Standard Input Byte 0, Bit 1 I2 Standard Input Byte 0, Bit 2 I3 Standard Input Byte 0, Bit 3 I4 Standard Input Byte 0, Bit 4... -
Page 22: Translation Of The Original Declaration Of Conformity
EN 61000-6-2:2005/AC:2005 EN 61000-6-4:2007/A1:2011 EN 61131-2:2007 EN IEC 63000:2018 Authorised for compiling technical documentation: Interroll Software & Electronics GmbH, Im Südpark 183, 4030 Linz Andreas Eglseer Managing Director, Interroll Software & Electronics GmbH Linz, 01.10.2022 Version 1.0 (10/2022) Online 22 von 24... -
Page 23: Ukca Declaration Of Conformity
UKCA marking in accordance with the aforementioned Directives. Authorised for compiling technical documentation: Interroll Software & Electronics GmbH, Im Suedpark 183, 4030 Linz Andreas Eglseer Managing Director, Interroll Software & Electronics GmbH Linz, 01.10.2022... - Page 24 INSPIRED BY EFFICIENCY © 2022 INTERROLL...
