Page 1 MUKOMNS kÉï=~ë=çÑW= fkqbdl=L=fkqbdl=éêç= fkqbdl=^ãÄáÇÉñíêçìë= fkqbdl=éêç=^ãÄáÇÉñíêçìë léÉê~íáåÖ=fåëíêìÅíáçåë båÖäáëÜ båÖäáëÜ Operating Instructions INTEGO / INTEGO turn, INTEGO pro / INTEGO pro turn...
Page 3: Table Of Contents
Sirona Dental Systems GmbH Table of Contents Operating Instructions INTEGO Table of Contents General Information....................Dear customer, .................... Contact information ..................Notes on these operating Instructions............1.3.1 General information on the operating Instructions ......1.3.2 Scope of these operating Instructions ..........
Page 4 Operating Instructions INTEGO Unit description......................Standards/Approvals ..................Technical data....................System overview INTEGO ................System overview INTEGO pro ..............System overview of INTEGO / INTEGO pro with Ambidextrous option ..Patient chair ....................Head support....................3.7.1 Flat headrest ..................3.7.2 Double-jointed head support ............
Page 5 Sirona Dental Systems GmbH Table of Contents Operating Instructions INTEGO Concept of the user interface ............... 4.2.1 Standard EasyPad user interface............ 4.2.2 Comfort EasyTouch user interface..........4.2.2.1 Virtual function keys ............4.2.2.2 Sub-screens and settings screens ........4.2.2.3 Status column..............
Page 6 Table of Contents Sirona Dental Systems GmbH Operating Instructions INTEGO 4.5.8 Electric motor ................... 4.5.8.1 Motor versions..............4.5.8.2 Setting the speed on the EasyPad ........100 4.5.8.3 Setting the speed on the EasyTouch ........ 102 4.5.8.4 Setting the direction of rotation.......... 104 4.5.9...
Page 7 Adjusting the water amount for flushing ......4.7.4 Stand-alone water supply..............4.7.4.1 Water supply for the INTEGO........... 4.7.4.2 Water supply for the INTEGO pro ........4.7.5 Converting the Turn water unit for right and left-handed people ..Swiveling tray holder ..................X-ray image viewer..................4.10 Operating light ....................
Page 8 Table of Contents Sirona Dental Systems GmbH Operating Instructions INTEGO 4.14.1.3 Presetting the timer ............193 4.14.1.4 Switching the key sound on/off.......... 194 4.14.1.5 Coupling suction to the 4-way foot switch......194 4.14.1.6 Switching the water heater on/off ........194 4.14.1.7 Setting the purging time for the purge function ....
Page 9 Sirona Dental Systems GmbH Table of Contents Operating Instructions INTEGO 5.3.4 Purging water lines manually ............5.3.5 Lubricate, disinfect/sterilize the treatment instruments ....5.3.5.1 Treatment instruments............5.3.5.2 Cleaning and sterilizing the standard 3-way syringe ..5.3.5.3 Clean and disinfect/sterilize the components of the ApexLocator 5.3.5.4...
Page 10 Table of Contents Sirona Dental Systems GmbH Operating Instructions INTEGO 5.6.3 Display sanitation report..............290 5.6.4 Biofilm removal by the service technician ........290 Fuse of the external device connection............291 Maintenance by the service engineer............... 292 Inspection and maintenance ................. 292 Safety checks ....................
Page 11: General Information
These Operating Instructions are designed to assist you prior to initial use and whenever you require information later on. We wish you a great deal of success and pleasure with INTEGO / INTEGO pro. ®...
Page 12: Notes On These Operating Instructions
● INTEGO TS (Compact water unit and dentist element with hanging hoses) ● INTEGO CS (Compact water unit and dentist element with swivel arms) ● INTEGO pro TS (Comfort water unit and dentist element with hanging hoses) ● INTEGO pro CS (Comfort water unit and dentist element with swivel arms) The treatment centers can be delivered from the factory with the Ambidextrous option.
Page 13: Other Valid Documents
The instructions as well as any warning and safety information contained therein also must be observed. There are separate operating instructions for each of the following Sirona products: ● Treatment instruments and accessories...
Page 14: Formats And Symbols Used
1 General Information Sirona Dental Systems GmbH 1.7 Formats and symbols used Operating Instructions INTEGO Formats and symbols used The formats and symbols used in this document have the following meaning: Prerequisite Prompts you to do something. 1. First action step 2. Second action step Alternative action ➢...
Page 15: Safety Instructions
Sirona Dental Systems GmbH 2 Safety instructions Operating Instructions INTEGO 2.1 Identification of the danger levels Safety instructions Identification of the danger levels To prevent personal injury and material damage, please observe the warning and safety information provided in these operating instructions.
Page 16: On-Site Installation
If the bacterial count is too high, the building water system must be checked and the cause of contamination eliminated. Alternatively, a self- sufficient water supply can also be installed. In addition, with the INTEGO an optional fresh water bottle, or with the INTEGO pro the empty disinfectant tank can be used as a water container.
Page 17: Maintenance And Repair
It can be connected directly to the public drinking water system. The INTEGO treatment center, provided it is equipped with a fresh water bottle not connected to the public drinking water supply, also complies with the requirements of EN 1717 and the DVGW German Gas and Water Association).
Page 18: Trouble-Free Operation
No restrictions apply when using salt blasting devices in connection with Suction of steel abrasives permissible Sirona treatment centers. However, in such cases, make sure that the system is subsequently flushed with an adequate amount of water. 2.10 Patient chair Please observe the maximum load capacity for the patient chair.
Page 19: Ventilation Slots
Care, cleaning, and disinfecting agents Unsuitable care and cleaning agents may corrode the surface of the unit or impair function. Use only care, cleaning and disinfecting agents approved by Sirona! For more information, see "Care, cleaning, and disinfecting agents" [ → 205]. 2.16...
Page 20: Modifications And Extensions Of The System
For reasons of product safety, this product may be operated only with original Sirona accessories or third-party accessories expressly approved by Sirona. The user is responsible for any damage resulting from the use of non-approved accessories. If any units not approved by Sirona are connected, they must comply with the applicable standards, e.g.:...
Page 21: Electrostatic Discharge
Sirona Dental Systems GmbH 2 Safety instructions Operating Instructions INTEGO 2.19 Electrostatic discharge SIVISION digital and USB interface The presence of electromagnetic interference in the vicinity of the treatment center may cause image degradation and interruptions in the data transmission via the USB interface to the PC. In such cases, repeat the image recording or other operations.
Page 22: Dismantling/Installation
2 Safety instructions Sirona Dental Systems GmbH 2.20 Dismantling/Installation Operating Instructions INTEGO The following rule of thumb can be applied to assess the transient voltages resulting from an electrostatic discharge. An electrostatic discharge is: ● perceptible at 3,000 V or higher ● audible at 5,000 V or higher (cracking, crackling) ●...
Page 23: Unit Description
"Connection to the public drinking water supply" [ → 16] Original language of this document: German INTEGO / INTEGO pro bear the CE marking in accordance with the CE marking, INTEGO / INTEGO pro provisions of Council Directive 93/42/EEC of June 14, 1993 concerning medical devices.
Page 24 W540. The unit thus also meets the requirements of standard EN 1717; see also the chapter entitled "Connection to the public drinking water system" [ → 16]. ® INTEGO is a registered trademark of Sirona Dental Systems GmbH. Product name is a registered trademark, INTEGO 64 57 498 D3543 D3543.201.01.05.02 08.2016...
Page 25: Technical Data
Sirona Dental Systems GmbH 3 Unit description Operating Instructions INTEGO 3.2 Technical data Technical data Model designation: INTEGO / INTEGO pro Model designation, power ratings Power connection: 100 – 240 V AC ± 10% 50/60 Hz Rated current: 3.3 A – 1.5 A at 100 – 240 V also max.
Page 26 3 Unit description Sirona Dental Systems GmbH 3.2 Technical data Operating Instructions INTEGO Transport and storage Temperature: -40 °C – +70 °C Operating and transport conditions 1060 conditions: (-40 °F – 158 °F) Relative humidity: 10% – 95% Air pressure: 500 hPa – 1,060 hPa Operating conditions: Ambient temperature: 10 °C –...

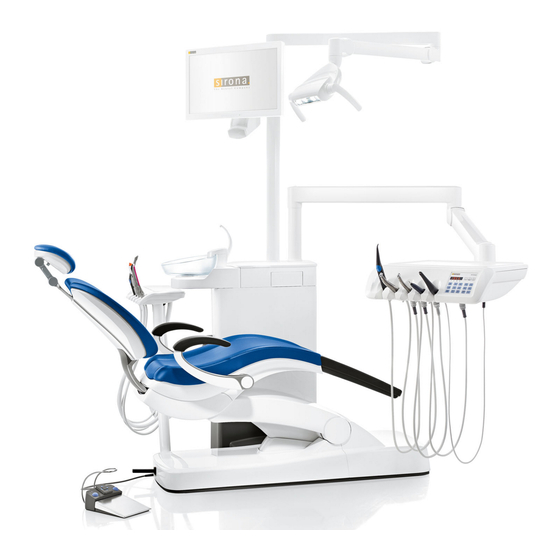

Page 27: System Overview Intego
3 Unit description Operating Instructions INTEGO 3.3 System overview INTEGO System overview INTEGO The INTEGO treatment center comprises the following main components: INTEGO TS treatment center Patient chair Flat headrest (shown here) or double articulating headrest Pneumatic foot switch (shown here) or C...
Page 28 Flat headrest or double articulating headrest (shown here) Pneumatic foot switch or C electronic foot switch (shown here) INTEGO CS dentist element with swivel arms Compact or Comfort (shown here) assistant element Compact water unit Main switch and external device connection (optional) 64 57 498 D3543 D3543.201.01.05.02 08.2016...
Page 29: System Overview Intego Pro
Sirona Dental Systems GmbH 3 Unit description Operating Instructions INTEGO 3.4 System overview INTEGO pro System overview INTEGO pro The INTEGO pro treatment center comprises the following main components: INTEGO pro TS treatment center Patient chair Flat headrest (shown here) or double articulating headrest...
Page 30 Patient chair Flat headrest or double articulating headrest (shown here) Pneumatic foot switch or C electronic foot switch (shown here) INTEGO pro CS dentist element with swivel arms Comfort assistant element Comfort water unit Main switch and external device connection (optional) 64 57 498 D3543 D3543.201.01.05.02 08.2016...
Page 31: System Overview Of Intego / Intego Pro With Ambidextrous Option
Ambidextrous option The INTEGO and INTEGO pro treatment centers with the Ambidextrous option comprise the following main components: INTEGO TS / INTEGO pro TS treatment center with Ambidextrous option Patient chair Flat headrest (shown here) or double articulating headrest Pneumatic foot switch (shown here) or C...
Page 32 3 Unit description Sirona Dental Systems GmbH 3.5 System overview of INTEGO / INTEGO pro with Turn option Operating Instructions INTEGO INTEGO CS / INTEGO pro CS treatment center with Ambidextrous option Patient chair Flat headrest or double articulating headrest (shown here) Pneumatic foot switch or C...
Page 33: Patient Chair
Sirona Dental Systems GmbH 3 Unit description Operating Instructions INTEGO 3.6 Patient chair Patient chair The patient chair features a variety of adjustment options to optimally adjust the patient's position during treatment. Flat headrest (shown here) or double articulating headrest Backrest Seat...
Page 34: Head Support
3 Unit description Sirona Dental Systems GmbH 3.7 Head support Operating Instructions INTEGO Head support 3.7.1 Flat headrest The headrest extension can be pulled in or out depending on the patient's height. For upper jaw treatment, the magnetic head pad can be rotated and used as a neck rest.
Page 35: Foot Control
Sirona Dental Systems GmbH 3 Unit description Operating Instructions INTEGO 3.8 Foot control Foot control 3.8.1 Pneumatic foot switch With a pneumatic foot switch, the compressed air valve for activating the high-speed handpieces is integrated into the foot switch. The high-speed handpieces are therefore continuously adjustable. For electric motors and the SIROSONIC L scaler, the foot switch is operated as a direct starter (i.e.
Page 36: C + Electronic Foot Switch
3 Unit description Sirona Dental Systems GmbH 3.8 Foot control Operating Instructions INTEGO 3.8.2 electronic foot switch The C electronic foot control can be set as a speed foot control or direct starter for electric motors and the SIROSONIC L scaler. The compressed air for turbines cannot be adjusted.
Page 37: Dentist Element
Operating Instructions INTEGO 3.9 Dentist element Dentist element INTEGO and INTEGO pro can be equipped with a TS dentist element (with hanging hoses) or a CS dentist element (with whip arms). All functions of the treatment center can be controlled via the control panel on the dentist element.
Page 38: Cs Dentist Element With Swivel Arms
The instrument hoses are placed above the dentist element over the whip arms. Instrument holder (max. 5 instruments) EasyTouch for INTEGO and INTEGO pro Swiveling tray holder on the CS dentist element for one or two (shown here) standard trays...
Page 39: Instrument Positions
• SiroCam AF The Standard 3-way syringe is only available for INTEGO. The INTEGO / INTEGO pro treatment centers can be fitted with a maximum of two motors. A maximum of one SIROSONIC L scaler and one intraoral camera can be connected.
Page 40: Standard Easypad User Interface
3 Unit description Sirona Dental Systems GmbH 3.9 Dentist element Operating Instructions INTEGO 3.9.4 Standard EasyPad user interface EasyPad display Status displays Fixed keys (membrane keyboard) Favorite key pad (membrane keyboard) EasyPad display and status displays 3.9.4.1 EasyPad display For indicating speed, intensity, and torque and for configuring and servicing the treatment center.
Page 41: Fixed Keys
Sirona Dental Systems GmbH 3 Unit description Operating Instructions INTEGO 3.9 Dentist element Fixed keys 3.9.4.2 Favorite key pad Resets the speed of the electric motor or intensity of the scaler Setup SIROSONIC L. For saving the instrument settings speed or intensity, maximum torque if...
Page 42 3 Unit description Sirona Dental Systems GmbH 3.9 Dentist element Operating Instructions INTEGO Counterclockwise rotation/user profile With the motor removed: switching counterclockwise rotation on/off, see "Setting the rotation on the EasyPad" [ → 104]. With instruments in place: changing the user profile, see "Selecting a user profile"...
Page 43: Comfort Easytouch User Interface
Sirona Dental Systems GmbH 3 Unit description Operating Instructions INTEGO 3.9 Dentist element 3.9.5 Comfort EasyTouch user interface The EasyTouch option is available for the INTEGO and INTEGO pro EasyTouch for INTEGO and INTEGO pro treatment centers. INTEGO 10:45:03 Clean Touchscreen (pressure-sensitive user interface)
Page 44: Touch Screen
3 Unit description Sirona Dental Systems GmbH 3.9 Dentist element Operating Instructions INTEGO Touch screen 3.9.5.1 The touchscreen displays virtual function keys according to the program selected. A list of all function keys is provided in the Appendix of this document, see "Overview of all function keys".
Page 45: Fixed Keys Of The Easytouch User Interface
Sirona Dental Systems GmbH 3 Unit description Operating Instructions INTEGO 3.9 Dentist element Fixed keys of the EasyTouch user interface 3.9.5.2 Clean key Clean Pressing this key deactivates the complete user interface of the dentist element. Pressing it again > 3 s reactivates the user interface.
Page 46: Assistant Element
The INTEGO treatment center and INTEGO pro with Ambidextrous option can be equipped with the Compact or Comfort assistant element. INTEGO pro without the Ambidextrous option is available only with the Comfort assistant element. The user interface on the assistant element is optional.
Page 47 Sirona Dental Systems GmbH 3 Unit description Operating Instructions INTEGO 3.10 Assistant element Comfort assistant element with treatment centers without Ambidextrous option The Comfort assistant element is attached to the base of the patient chair by a support arm. It can be positioned so that the instruments can be reached by the dentist if he/she is performing treatment on his/her own.
Page 48 3 Unit description Sirona Dental Systems GmbH 3.10 Assistant element Operating Instructions INTEGO Comfort assistant element with treatment centers with Ambidextrous option The Comfort assistant element is attached to the water unit with a support arm. It can be positioned so that the instruments can be reached by the dentist if he/she is performing treatment on his/her own.
Page 49: Instrument Positions
• SiroCam F • SiroCam AF • SiroCam AF The Standard 3-way syringe is only available for INTEGO. A Mini L.E.D. curing light, an intraoral camera or an additional spray aspirator can be connected to the treatment center. Changes to holder 2 can only be made by your service engineer.
Page 50: User Interface
3 Unit description Sirona Dental Systems GmbH 3.10 Assistant element Operating Instructions INTEGO 3.10.2 User interface 3.10.3 Fixed keys on the assistant element Chair program S Fixed keys on the assistant element Mouth rinsing position with last-position memory function (programmable), seeProgramming chair positions" [ → 79]...
Page 51: Water Unit
The Compact water unit can be operated with an air jet pump (Air Venturi) instead of a suction device. The heater for the treatment water is in the water unit. For the INTEGO, the water heater is optional.
Page 52: Compact Water Unit
3 Unit description Sirona Dental Systems GmbH 3.11 Water unit Operating Instructions INTEGO 3.11.1 Compact water unit The Compact water unit is available only without a disinfection system. However, it can be equipped with a fresh water bottle for stand-alone water supply. Another option is switching between the fresh water bottle and the public drinking water supply.
Page 53: Comfort Water Unit
Sirona Dental Systems GmbH 3 Unit description Operating Instructions INTEGO 3.11 Water unit 3.11.2 Comfort water unit The water unit can be optionally equipped with a disinfection system. It automatically adds a disinfectant to the water that comes in contact with patients. This reduces the amount of bacteria in the water lines. If you operate the treatment center without the disinfection system, please refer to the information in chapters "Media quality"...
Page 54 3 Unit description Sirona Dental Systems GmbH 3.11 Water unit Operating Instructions INTEGO Suction hose connection for assistant element only tumbler filler Manually swiveling cuspidor (removable) Tumbler filler Cover of the storage tank for disinfectant or stand-alone water supply Cleaning adaptor for water-carrying instruments of the dentist element for sanitizing and auto purge.
Page 55: Ambidextrous Water Unit
Ambidextrous water unit. Cleaning adapter for the SPRAYVIT E and for a suction hose of the assistant element Fresh water bottle (only with the INTEGO) Foot pedal for unlocking the water unit Suction hose connection to the Comfort assistant element 64 57 498 D3543 D3543.201.01.05.02 08.2016...
Page 56 Operating Instructions INTEGO Ambidextrous water unit with INTEGO With the INTEGO, the Ambidextrous water unit is available only without a disinfection system. However, it can be equipped with a fresh water bottle for stand-alone water supply. Switching between the fresh water bottle and public drinking water supply is another equipment option.
Page 57: External Device Connection
Sirona Dental Systems GmbH 3 Unit description Operating Instructions INTEGO 3.12 External device connection 3.12 External device connection External medical accessories can be connected to external device connection. They must comply with the requirements of the Medical Device Directive 93/42/EEC. NOTICE Additional devices, hydrogen peroxide up to 0.2‰, disinfection system, and fresh water bottle are optional...
Page 58 3 Unit description Sirona Dental Systems GmbH 3.12 External device connection Operating Instructions INTEGO IEC outlet socket with power supply (max. 6 A) Fuse for inlet connector (6.3 A slow-blow) Quick coupling for air Quick coupling for water Pressure Flow rate Water 2.2 ±...
Page 59: Operation
Sanitizing must be performed prior to initial startup of your treatment center if the treatment center is equipped with this option. In the INTEGO, the purging and sanitizing functions and the fresh water bottle are available as options. Both options must be present to sanitize the water lines.
Page 60: Switching The Treatment Center On/Off
4 Operation Sirona Dental Systems GmbH 4.1 Starting up the treatment center Operating Instructions INTEGO 4.1.2 Switching the treatment center on/off The treatment center has a main switch with integrated fuse on the base of the chair. At the end of the working day, the treatment center should be switched off to save energy and for safety reasons.
Page 61: Selecting A User Profile
Sirona Dental Systems GmbH 4 Operation Operating Instructions INTEGO 4.1 Starting up the treatment center 4.1.3 Selecting a user profile If your treatment center is equipped with the EasyPad standard user interface, it can manage up to two user profiles. The EasyTouch comfort user interface can manage up to four user profiles.
Page 62: Concept Of The User Interface
4 Operation Sirona Dental Systems GmbH 4.2 Concept of the user interface Operating Instructions INTEGO Concept of the user interface 4.2.1 Standard EasyPad user interface EasyPad displays The EasyPad user interface is equipped with seven-segment displays. Five digits or letters can appear on the display. Depending on the operating context, they are used to display speed, intensity, and torque and for configuration and maintenance of the treatment center.
Page 63 Sirona Dental Systems GmbH 4 Operation Operating Instructions INTEGO 4.2 Concept of the user interface The integrated torque control cannot be activated in this case. Purge Toggling between speed and torque display is not possible. Clean Accessing functions Functions are triggered using the fixed keys on the user interface.
Page 64: Comfort Easytouch User Interface
4 Operation Sirona Dental Systems GmbH 4.2 Concept of the user interface Operating Instructions INTEGO 4.2.2 Comfort EasyTouch user interface Virtual function keys 4.2.2.1 The touchscreen displays virtual function keys according to the program selected. Required functions can be activated by touching the function keys with your finger.
Page 65: Status Column
Sirona Dental Systems GmbH 4 Operation Operating Instructions INTEGO 4.2 Concept of the user interface Settings screens In many cases, functions not only can be switched on or off, but also can 10:45:03 be set. If a function key is pressed and held (> 2 s), the corresponding settings screen appears.
Page 66: Foot Control
4 Operation Sirona Dental Systems GmbH 4.3 Foot control Operating Instructions INTEGO Foot control The treatment center can be operated with a pneumatic foot switch or the electronic foot switch. 4.3.1 Pneumatic foot switch When the instrument is removed from the holder, the speed or intensity are automatically displayed on the EasyPad.
Page 67: Electronic Foot Switch
Sirona Dental Systems GmbH 4 Operation Operating Instructions INTEGO 4.3 Foot control 4.3.2 electronic foot switch The C electronic foot switch operating elements are assigned different functions depending on whether the instruments are all in place or an instrument is removed from its holder.
Page 68 4 Operation Sirona Dental Systems GmbH 4.3 Foot control Operating Instructions INTEGO 4-way foot control plate ✔ All instruments are in place. ➢ Move the 4-way foot switch plate to the left or right.  Left: Chair program 1 is started. Right: Chair program 2 is started.
Page 69: Patient Chair
Sirona Dental Systems GmbH 4 Operation Operating Instructions INTEGO 4.4 Patient chair Patient chair 4.4.1 Safety instructions ü û Patient chair, chair movements CAUTION The free space under the patient couch and up to the water unit can be decreased due to chair movements.
Page 70: Safety Stop
4 Operation Sirona Dental Systems GmbH 4.4 Patient chair Operating Instructions INTEGO 4.4.2 Safety stop The treatment center is equipped with various safety stops to prevent crushing and damage. The cutoff trigger points are shown in the following illustration: Display of triggered safety switch 2 on the EasyPad...
Page 71: Triggering An Immediate Movement Stop
Sirona Dental Systems GmbH 4 Operation Operating Instructions INTEGO 4.4 Patient chair 4.4.3 Triggering an immediate movement stop You can stop the movement of the chair to a programmed position as follows: ➢ Touch one of the patient chair keys on the EasyPad or EasyTouch.
Page 72: Armrests
4 Operation Sirona Dental Systems GmbH 4.4 Patient chair Operating Instructions INTEGO 4.4.4 Armrests Armrests are available for the patient chair. The right armrest can be swiveled forward to facilitate getting in and out Both armrests can be swiveled of the chair. In treatment centers with the Ambidextrous option, both armrests can be swiveled.
Page 73: Adjusting The Flat Headrest
Sirona Dental Systems GmbH 4 Operation Operating Instructions INTEGO 4.4 Patient chair 4.4.6 Adjusting the flat headrest The headrest extension can be pulled in or out manually depending on the patient's height. ➢ Pull the headrest out of the backrest or push it back in at the recessed grip A.
Page 74: Moving The Patient Chair Via Chair Programs
IMPORTANT Cuspidor, manual, starting position Chair movements with cuspidor swiveled in INTEGO With the cuspidor bowl swiveled in, the chair cannot be moved. This prevents the patient from colliding with the cuspidor. Swing the cuspidor outward before initiating chair movement.
Page 75: Moving The Patient Chair To The Mouth Rinsing Position
Sirona Dental Systems GmbH 4 Operation Operating Instructions INTEGO 4.4 Patient chair Via the assistant element ➢ Press the key on the assistant element briefly (< 2 s). 4.4.8.2 Moving the patient chair to the mouth rinsing position The following functions are factory preset to be activated in the mouth rinsing position: ●...
Page 76: Activating Other Chair Programs
4 Operation Sirona Dental Systems GmbH 4.4 Patient chair Operating Instructions INTEGO Activating other chair programs 4.4.8.4 Via fixed keys on the EasyPad ➢ Press the key briefly (< 2 s). Via the touchscreen on the EasyTouch ✔ Start Instrument dialog is displayed on the touchscreen.
Page 77: Moving The Chair Manually
IMPORTANT Cuspidor, manual, starting position Chair movements with cuspidor swiveled in INTEGO With the cuspidor bowl swiveled in, the chair cannot be moved. This prevents the patient from colliding with the cuspidor. Swing the cuspidor outward before initiating chair movement.
Page 78: Adjusting The Chair Height
4 Operation Sirona Dental Systems GmbH 4.4 Patient chair Operating Instructions INTEGO Adjusting the chair height 4.4.9.2 Via fixed keys on the EasyPad Adjust the chair height ➢ Press the key. Via the touchscreen on the EasyTouch ✔ Start Instrument dialog is displayed on the touchscreen.
Page 79: Programming Chair Programs
Sirona Dental Systems GmbH 4 Operation Operating Instructions INTEGO 4.4 Patient chair 4.4.10 Programming chair programs The four chair programs preset in the factory: ● Mouth rinsing position S ● Entry/exit position 0 ● 1 and 2 can be individually programmed for both user profiles (A and B) on the EasyPad and each of the four user profiles (A to D) on the EasyTouch.
Page 80: Dentist Element
4 Operation Sirona Dental Systems GmbH 4.5 Dentist element Operating Instructions INTEGO Dentist element 4.5.1 Maximum load capacity TS dentist element The maximum load on the TS dentist element without a tray holder is 1 kg (2.2 lbs). max. 1 kg 2.2 lbs The maximum load on the TS dentist element with a tray holder is 2 kg (4.4 lbs).
Page 81: Positioning The Dentist Element
Sirona Dental Systems GmbH 4 Operation Operating Instructions INTEGO 4.5 Dentist element 4.5.2 Positioning the dentist element Dentist element on support arm, collision, manual movement WARNING The dentist element could be positioned within the movement range of the patient chair. Moving the patient chair may cause the patient to collide with the dentist element or its support arm.
Page 82 4 Operation Sirona Dental Systems GmbH 4.5 Dentist element Operating Instructions INTEGO Positioning the CS dentist element (standard position) In the standard position, the support arm of the CS dentist element is attached to the right mount of the Compact water unit and to the rear mount of the Comfort water unit.
Page 83 Sirona Dental Systems GmbH 4 Operation Operating Instructions INTEGO 4.5 Dentist element Positioning the CS dentist element (special position) Alternatively, the support arm of the CS dentist element can be attached to the left mount on the Compact water unit (special position) and with the Comfort water unit to the front mount.
Page 84: Fixed Keys On The Dentist Element
4 Operation Sirona Dental Systems GmbH 4.5 Dentist element Operating Instructions INTEGO 4.5.3 Fixed keys on the dentist element An overview of the fixed keys on the EasyPad and EasyTouch can be found in the Description of Device, see "EasyPad standard user interface"...
Page 85: Placing The Instruments In Their Holders
Sirona Dental Systems GmbH 4 Operation Operating Instructions INTEGO 4.5 Dentist element 4.5.4 Placing the instruments in their holders Automatic opening of instrument dialogs On the EasyPad, the speed or intensity is shown automatically on the display depending on which instrument is removed from the holder. On the EasyTouch, the respective instrument program appears on the touchscreen.
Page 86 4 Operation Sirona Dental Systems GmbH 4.5 Dentist element Operating Instructions INTEGO Cover for TS dentist element A cover can be purchased as an accessory for an instrument holder Cover which is not used. Insert the cover into an unassigned instrument holder. This prevents accidental deposit of an instrument in this holder.
Page 87: General Instrument Functions
Sirona Dental Systems GmbH 4 Operation Operating Instructions INTEGO 4.5 Dentist element 4.5.5 General instrument functions EasyPad Settings for the coolant, instrument light, and foot switch can be made for the instrument removed from the holder. EasyTouch Settings for the coolant, instrument light, and foot switch can be made in the sub-screen of the instrument removed from the holder.
Page 88 4 Operation Sirona Dental Systems GmbH 4.5 Dentist element Operating Instructions INTEGO On the C electronic foot switch ✔ An instrument is removed from the holder. ➢ Press the left button of the C electronic foot switch. Spray  When the status display lights up on the EasyPad, spray is switched on when the instrument is activated.
Page 89: Instrument Functions On The Easytouch
Sirona Dental Systems GmbH 4 Operation Operating Instructions INTEGO 4.5 Dentist element Instrument functions on the EasyTouch 4.5.5.2 4.5.5.2.1 Opening the sub-screen ✔ An instrument is removed from the holder. ✔ Instrument program of the removed instrument is displayed on the touchscreen.
Page 90 4 Operation Sirona Dental Systems GmbH 4.5 Dentist element Operating Instructions INTEGO 4.5.5.2.3 Preset and switch coolant on/off by the C electronic foot switch. Selecting a coolant Air or spray can be preselected as the instrument coolant in the sub- dialog. The preselected coolant can be switched on/off via the left button on the C electronic foot switch.
Page 91 Sirona Dental Systems GmbH 4 Operation Operating Instructions INTEGO 4.5 Dentist element 4.5.5.2.5 Setting the ApexLocator If your treatment center is equipped with the ApexLocator option, you can Apex Auto Motor configure this in the first and second sub-dialog. For more Stop information, refer to the chapter "ApexLocator", section "Endodontic...
Page 92: Saving Instrument Settings
4 Operation Sirona Dental Systems GmbH 4.5 Dentist element Operating Instructions INTEGO Saving instrument settings 4.5.5.3 DropMode When placing an instrument back in the holder, the instrument settings made are always saved in the user profile (DropMode). The next time the instrument is removed, the last settings made are available again.
Page 93: 3-Way Standard And Sprayvit E Syringe
The 3-way syringe is used to clean the treatment areas and blow them dry. It supplies air and preheated water media. The heater for the treatment water is in the water unit. For the INTEGO, the water heater is optional. IMPORTANT Also note the SPRAYVIT operating instructions as well as the infomation on care of the 3-way syringe Standard in the section "Sterilizing the standard 3-way syringe"...
Page 94: Using The Standard 3-Way Syringe
4 Operation Sirona Dental Systems GmbH 4.5 Dentist element Operating Instructions INTEGO Using the standard 3-way syringe 4.5.6.2 ➢ Press the key A.  Air flows out of the instrument tip. Water ➢ Press the key B.  Water flows out of the instrument tip.
Page 95: Turbine / Air Motor / Other Air-Driven Instruments
Operation of a highspeed handpiece with the pneumatic foot switch drive air for the turbine can be regulated by the foot pedal. If instruments with a high air flow rate (e.g., SIROBoost from Sirona) are operated with the pneumatic foot switch, the operating pressure is reduced from 2.9 bar to 2.7 bar.
Page 96 4 Operation Sirona Dental Systems GmbH 4.5 Dentist element Operating Instructions INTEGO 4.5.7.2.1 Setting the highspeed handpiece lamp on the EasyPad Accessing the turbine light operating context 1. Detach the turbine to be set from the holder. 2 / Setup 2. Press and hold the function key (>...
Page 97 Sirona Dental Systems GmbH 4 Operation Operating Instructions INTEGO 4.5 Dentist element 3. Use favorite keys 1 and 3 to set the current A for the lamp in the handpiece removed in amperes (0.12 A = 120 mA). Setup 2 / Setup 4.
Page 98 4 Operation Sirona Dental Systems GmbH 4.5 Dentist element Operating Instructions INTEGO 4.5.7.2.2 Setting the highspeed handpiece light on the EasyTouch 1. Detach the turbine to be set from the holder. Sub-dialog 2. Press the fixed key. Highspeed handpiece  The sub-dialog is displayed on the touchscreen.
Page 99: Electric Motor
(without carbon brushes). They are characterized by their precise controllability and durability. The speed range of the motors for INTEGO / INTEGO pro is between 1,200 and 40,000 rpm. If the treatment center features the eControl option, the motor can be down-regulated to 100 rpm.
Page 100: Setting The Speed On The Easypad
4 Operation Sirona Dental Systems GmbH 4.5 Dentist element Operating Instructions INTEGO Setting the speed on the EasyPad 4.5.8.2 Speeds are stored on the favorite keys 1, 2, and 3 that can be accessed by pressing them. Individual speeds can be saved for each user profile on the favorite keys.
Page 101 Sirona Dental Systems GmbH 4 Operation Operating Instructions INTEGO 4.5 Dentist element Saving the speed ✔ The desired speed is set. ✔ Via the C electronic foot switch: The spray is switched on or off (will be saved). 2 / Setup (> 2 s).
Page 102: Setting The Speed On The Easytouch
4 Operation Sirona Dental Systems GmbH 4.5 Dentist element Operating Instructions INTEGO Setting the speed on the EasyTouch 4.5.8.3 Speeds are saved on the three favorite keys that can be accessed by pressing them. Individual speeds can be saved for each user profile on the favorite keys.
Page 103 Sirona Dental Systems GmbH 4 Operation Operating Instructions INTEGO 4.5 Dentist element IMPORTANT Electric motor, increments with favorite keys Increments The size of the increments depends on the speed range setting. From 100 to 1,000 rpm = 100 rpm increments (with eControl option)
Page 104: Setting The Direction Of Rotation
4 Operation Sirona Dental Systems GmbH 4.5 Dentist element Operating Instructions INTEGO Setting the direction of rotation 4.5.8.4 The direction of rotation can be changed only when the motor is at a standstill. Tip: After starting the electric motor with the foot switch, an audible warning signal sounds 6 times if counterclockwise rotation is activated.
Page 105: Integrated Torque Control
Instruments from other manufacturers can lead to malfunctions. Third- party instruments may be improperly calibrated for endodontics. ➢ Use the Sirona ENDO 6:1 (from SN 6407 / July 2010) contra-angle handpiece for integrated torque control. 64 57 498 D3543...
Page 106: Integrated Torque Control On The Easypad
4 Operation Sirona Dental Systems GmbH 4.5 Dentist element Operating Instructions INTEGO Integrated torque control on the EasyPad 4.5.9.1 4.5.9.1.1 Switching integrated torque control on/off Switching torque control on Torque control is assigned to the burr drive removed from the holder. ✔...
Page 107 This includes a measurement of motor current at different speeds to assess the properties of the system. Calibration only with Sirona instruments CAUTION Use only Sirona instruments to guarantee correct calibration. ✔ torque Integrated torque control is switched on. The status display control lights up.
Page 108 4 Operation Sirona Dental Systems GmbH 4.5 Dentist element Operating Instructions INTEGO 4.5.9.1.3 Setting the torque With the torque control switched on, torque and speed of the contra-angle handpiece are indicated, but not of the motor. The control electronics of the burr drive calculate the motor control based on the specified contra- handpiece gear reduction and the set torque and speed.
Page 109 Sirona Dental Systems GmbH 4 Operation Operating Instructions INTEGO 4.5 Dentist element The torque can also be increased or reduced by moving the 4-way switch plate of the C electronic foot switch up or down. Saving torque ✔ The desired torque is set.
Page 110 4 Operation Sirona Dental Systems GmbH 4.5 Dentist element Operating Instructions INTEGO 4.5.9.1.4 Setting the speed When the torque control is switched on, the EasyPad display can be toggled between torque and speed to set the speed. To differentiate between torque and speed settings, the display shows burr drive calibrated/not calibrated and AutoReverse function on/off only for the torque.
Page 111 Sirona Dental Systems GmbH 4 Operation Operating Instructions INTEGO 4.5 Dentist element 4.5.9.1.5 Switching AutoReverse ON/OFF If the auto-reverse function is switched on, the burr drive automatically switches to counterclockwise rotation when the torque set is reached. If the foot pedal is pressed again, the burr drive switches back to clockwise rotation.
Page 112: Integrated Torque Control On The Easytouch
4 Operation Sirona Dental Systems GmbH 4.5 Dentist element Operating Instructions INTEGO Integrated torque control on the EasyTouch 4.5.9.2 4.5.9.2.1 Switching integrated torque control on/off Switching torque control on Torque control is assigned to the burr drive removed from the holder. ✔...
Page 113 Sirona Dental Systems GmbH 4 Operation Operating Instructions INTEGO 4.5 Dentist element ✔ Endodontics dialog is displayed on the touchscreen. 1.00 Endo 3 Sub-dialog 1. Press the fixed key. Endodontics  The sub-dialog is displayed. 1.00 Endo 3 Integrated torque control 2. Press the key.
Page 114 The contra-angle handpiece is automatically checked during calibration. This includes a measurement of motor current at different speeds to assess the properties of the system. Calibration only with Sirona instruments CAUTION Use only Sirona instruments to guarantee correct calibration. ✔ Endodontics dialog Endodontics or the sub-dialog is displayed on the touchscreen.
Page 115 Sirona Dental Systems GmbH 4 Operation Operating Instructions INTEGO 4.5 Dentist element 4.5.9.2.3 Changing direction of rotation The direction of rotation can be changed only with the motor stopped. Counterclockwise rotation is performed without torque limitation. The torque setting keys are hidden when counterclockwise rotation is selected.
Page 116 4 Operation Sirona Dental Systems GmbH 4.5 Dentist element Operating Instructions INTEGO IMPORTANT Treatment, torque adjustment Torque adjustment The maximum adjustable torque depends on the system motor and the speed settings. ✔ Endodontics sub-dialog is displayed on the touchscreen. ✔ The working step with which the speed and torque are to be changed is selected.
Page 117 Sirona Dental Systems GmbH 4 Operation Operating Instructions INTEGO 4.5 Dentist element 4.5.9.2.6 Using the ApexLocator ✔ The treatment center is prepared for apex measurements using the instrument, see section "Preparing to use the ApexLocator" [ → 121]. ✔ Endodontics dialog Endodontics sub-dialog...
Page 118 4 Operation Sirona Dental Systems GmbH 4.5 Dentist element Operating Instructions INTEGO 2. Use the – and + keys to set the required apex distance from 1.5 to 0. Stop If the distance is 0, the motor does not stop until it reaches the physiological apex.
Page 119 Sirona Dental Systems GmbH 4 Operation Operating Instructions INTEGO 4.5 Dentist element Endodontics  The second sub-dialog is displayed. Torque signal and apex acoustic signals 2. Press the key.  If the key is marked in orange, the torque signal and the apex acoustic signals are switched on.
Page 120: Apexlocator
4 Operation Sirona Dental Systems GmbH 4.5 Dentist element Operating Instructions INTEGO 4.5.10 ApexLocator The ApexLocator is available only with the EasyTouch Comfort user interface. The ApexLocator can be used to measure the working length of the root canal file in endodontic treatments using electrical impedance.
Page 121: Preparing To Use The Apexlocator
Sirona Dental Systems GmbH 4 Operation Operating Instructions INTEGO 4.5 Dentist element Preparing to use the ApexLocator 4.5.10.1 Apex adapter, mucosal electrode and file clamp The mucosal electrode and the file clamp are connected to the socket of the dentist element using the apex adapter. The socket is located on the left and to the rear, below the dentist element.
Page 122 ENDO 6:1 (from SN 6407 / July 2010) is required; in the motor dialog (without torque control), the Sirona handpiece SIRONiTi Apex is required. One apex instrument hose exists for each of the motor BL E A and BL ISO E B, in which the Apex cable runs.
Page 123: Distance Display
Sirona Dental Systems GmbH 4 Operation Operating Instructions INTEGO 4.5 Dentist element Distance display 4.5.10.2 The measured root canal depth is shown in the distance display on the touchscreen. A bar with 11 display levels shows the distance from the root canal file to the physiological apex (apical constriction). The root canal is divided into four colored sections in the distance display.
Page 124 4 Operation Sirona Dental Systems GmbH 4.5 Dentist element Operating Instructions INTEGO Green region The tip of the root canal file has reached the physiological apex. Red region The tip of the root canal file has pierced the physiological apex. The instrument overshoot is displayed.
Page 125: Beeps
Sirona Dental Systems GmbH 4 Operation Operating Instructions INTEGO 4.5 Dentist element Beeps 4.5.10.3 In addition to the graphical distance display on the touchscreen, the position of the file in the root canal can also be indicated as an acoustic signal. Apex acoustic signals The ApexLocator always plays the following acoustic signals: ●...
Page 126: Performing Manual Measurements With The File Clamp
4 Operation Sirona Dental Systems GmbH 4.5 Dentist element Operating Instructions INTEGO Performing manual measurements with the file clamp 4.5.10.4 For endodontic examination, a manual measurement can be performed using the file clamp and a root canal file. ✔ The treatment center is prepared for manual measurements using the file clamp, see section "Preparing to use the ApexLocator"...
Page 127: Endodontic Treatment With Apexlocator And Torque
IMPORTANT ApexLocator, SIRONiTi APEX SIRONiTi APEX Only Sirona SIRONiTi APEX must be used to perform apex measurement using a torque-limiting handpiece! The electrical conductivity can only be ensured using this handpiece. The SIRONiTi handpiece can also be used to perform endodontic treatments without the ApexLocator.
Page 128 4 Operation Sirona Dental Systems GmbH 4.5 Dentist element Operating Instructions INTEGO  The set distance is displayed to the left of the – and + keys. The Stop Motor dialog preset motor stop position is displayed in the as a black triangle to the right of the distance display under the text "Stop".
Page 129 Sirona Dental Systems GmbH 4 Operation Operating Instructions INTEGO 4.5 Dentist element CAUTION Preventing incorrect measurements When performing the apex measurement, wear non-conductive gloves to avoid measurement errors caused by unwanted leakage current. During the measurement, the instrument must not come into contact with the patient's mucosa, metallic tooth restorations, or the mucosal electrode.
Page 130: Sirosonic L Scaler
CAUTION In some cases, ultrasonic tips from other manufacturers do not guarantee safe operation. ➢ Use only ultrasonic tips from Sirona. 4.5.11.2 Setting the intensity on the EasyPad Intensities are saved on the favorite keys 1, 2, and 3, which can be accessed by pressing them.
Page 131 Sirona Dental Systems GmbH 4 Operation Operating Instructions INTEGO 4.5 Dentist element Changing the intensity ➢ Press and hold the favorite key 1 or 3 (> 1 s). Setup  The intensity is increased or reduced. The intensity can also be increased or reduced by moving the 4-way switch plate of the C electronic foot switch up or down.
Page 132 4 Operation Sirona Dental Systems GmbH 4.5 Dentist element Operating Instructions INTEGO Endodontics / Purge 1. Press the key. Purge  The endodontics intensity (endo mode) is displayed instead of ultrasonic intensity (ultrasonic mode). 2. Use favorite keys 1 and 3 to set the desired endodontics intensity (En 1 to En 5).
Page 133: Setting The Intensity On The Easytouch
Sirona Dental Systems GmbH 4 Operation Operating Instructions INTEGO 4.5 Dentist element Setting the intensity on the EasyTouch 4.5.11.3 Intensities are saved on the three favorite keys that can be accessed by pressing them. Individual intensities can be saved on the favorite keys for each user profile.
Page 134 4 Operation Sirona Dental Systems GmbH 4.5 Dentist element Operating Instructions INTEGO Switching on the endodontics function The intensity of the endodontics function is limited for safety reasons, e.g., in order to prevent broken needles. IMPORTANT Ultrasonic handpiece, Endo intensity values Endo intensity values The intensity can be adjusted from 1e to 5e.
Page 135: Mini Led Curing Light
Sirona Dental Systems GmbH 4 Operation Operating Instructions INTEGO 4.5 Dentist element 4.5.12 Mini L.E.D. curing light The function is described in the chapter on the assistant element, see "Mini L.E.D. curing light" [ → 144]. 4.5.13 SiroCam F / AF / AF intraoral camera Functionality is described in the "SIVISION digital video system"...
Page 136: Timer Function
4 Operation Sirona Dental Systems GmbH 4.5 Dentist element Operating Instructions INTEGO 4.5.14 Timer function Timer function on the EasyPad 4.5.14.1 function key is assigned to the timer function. Presetting the timer A set time can be counted down to zero with the timer function.
Page 137 Sirona Dental Systems GmbH 4 Operation Operating Instructions INTEGO 4.5 Dentist element Back 4. Close the setting dialog with the key.  The setting is automatically saved when the dialog is closed. Starting the timer Timer ➢ Press the key on the touchscreen briefly.
Page 138: Assistant Element
4 Operation Sirona Dental Systems GmbH 4.6 Assistant element Operating Instructions INTEGO Assistant element 4.6.1 Maximum load capacity Compact assistant element The Compact assistant element has no tray. Assistant element, support arm CAUTION To prevent injuries caused by falling objects, never place anything on the support arm of the assistant element.
Page 139: Fixed Keys On The Assistant Element
Sirona Dental Systems GmbH 4 Operation Operating Instructions INTEGO 4.6 Assistant element 4.6.3 Fixed keys on the assistant element The functions assigned to the keys can be switched on/off on the assistant element. The operating contexts or setting screens can be accessed only on the dentist element. To make settings, see "Fixed keys on the dentist element"...
Page 140: Flushing The Cuspidor
4 Operation Sirona Dental Systems GmbH 4.6 Assistant element Operating Instructions INTEGO Flushing the cuspidor 4.6.3.3 The flushing function can be used for rough cleaning of the cuspidor during treatment. Flushing ➢ Press the fixed key.  The flushing function is activated for the preset flushing time.
Page 141: Suction Handpieces
➢ Make sure that you hold the suction tip in such a way that the opening cannot accidentally attach to the oral mucous membranes. Sirona recommends using spray aspirator cannulas with additional air intake, see "Spare parts, Consumables" [ → 299].
Page 142 4 Operation Sirona Dental Systems GmbH 4.6 Assistant element Operating Instructions INTEGO Saliva ejector A curved tip that can be placed in the corner of the mouth is provided for saliva ejection. The suction flow can be stopped and regulated using the A rotating knob.
Page 143: 3-Way Standard And Sprayvit E Syringe
Sirona Dental Systems GmbH 4 Operation Operating Instructions INTEGO 4.6 Assistant element 4.6.5 3-way standard and SPRAYVIT E syringe The function is described in the chapter on the assistant element, see "Standard and SPRAYVIT E 3-way syringe" [ → 93]. 64 57 498 D3543...
Page 144: Mini L.e.d. Curing Light
4 Operation Sirona Dental Systems GmbH 4.6 Assistant element Operating Instructions INTEGO 4.6.6 Mini L.E.D. curing light The curing light is used to cure composite material with short-wave light. 4.6.6.1 Safety instructions Curing light, laser radiation CAUTION The curing light contains powerful LEDs. In accordance with IEC 62471, they are classified in risk group 2 with the light bar removed.
Page 145: Connecting The Mini L.e.d
Sirona Dental Systems GmbH 4 Operation Operating Instructions INTEGO 4.6 Assistant element Connecting the Mini L.E.D. 4.6.6.3 The Mini L.E.D. is connected to the assistant element in holder 2. Mini LED in holder 2 1. Connect the supply cable A to the treatment center.
Page 146: Operating The Mini L.e.d
4 Operation Sirona Dental Systems GmbH 4.6 Assistant element Operating Instructions INTEGO Quick curing mode In the quick curing mode, the Mini L.E.D. operates at full power for 10 seconds. In this mode, the light intensity output is as follows: Sec. ²...
Page 147: Technical Data
Sirona Dental Systems GmbH 4 Operation Operating Instructions INTEGO 4.6 Assistant element Technical data 4.6.6.6 General Technical Data on Mini L.E.D. Model: Mini L.E.D. Weight of handpiece without hose: 105 g Dimensions: Dia. 23mm x 240mm Current consumption of handpiece: 5 V DC / 0.65 A...
Page 148: Water Unit
4.7.2 Tumbler filling The heater for the treatment water is in the water unit. The water heater Water heater in the water unit, optional with INTEGO is optional in the INTEGO. 4.7.2.1 Tumbler filling on the EasyPad Filling the tumbler 1.
Page 149: Tumbler Filling On The Easytouch
Sirona Dental Systems GmbH 4 Operation Operating Instructions INTEGO 4.7 Water unit Filling time  The setting focus flashes. 3. Set the filling time in seconds. Press the left or right arrow on the favorite key field to prolong or shorten the filling time.
Page 150: Tumbler Filling With Automatic Sensor Control
4 Operation Sirona Dental Systems GmbH 4.7 Water unit Operating Instructions INTEGO Tumbler filling with automatic sensor control 4.7.2.3 The automatic sensor control is an option on the Comfort water unit and Available only for the Comfort water unit and not in all countries is not available in all countries.
Page 151: Flushing The Cuspidor
Sirona Dental Systems GmbH 4 Operation Operating Instructions INTEGO 4.7 Water unit 4.7.3 Flushing the cuspidor The flushing function can be used for rough cleaning of the cuspidor during treatment. The cuspidor is always flushed using the public drinking water supply. It is not taken from the fresh water bottle or the tank for stand-alone water supply.
Page 152: Flushing The Cuspidor On The Easytouch
4 Operation Sirona Dental Systems GmbH 4.7 Water unit Operating Instructions INTEGO Flushing the cuspidor on the EasyTouch 4.7.3.2 Switching flushing on/off Flushing ➢ Press the fixed key.  The flushing function is activated for the preset flushing time. Setting the flushing time Flushing 1.
Page 153: Adjusting The Water Amount For Flushing
Sirona Dental Systems GmbH 4 Operation Operating Instructions INTEGO 4.7 Water unit Adjusting the water amount for flushing 4.7.3.3 The water quantity and water pressure for flushing can be set using a valve. 1. Open the maintenance flap A on the base of the water unit.
Page 154: Stand-Alone Water Supply
The stand-alone water supply functionality of the INTEGO is only available if the treatment center is equipped with a fresh water bottle. The INTEGO pro treatment center must be equipped with the integrated water disinfection system. In every mode, the cuspidor is flushed from the public drinking water supply.
Page 155: Water Supply For The Intego
The fresh water bottle is treated with compressed air when it is attached to the holder. Unsuitable bottles such as beverage bottles can burst. ➢ Use only Sirona fresh water bottles! ➢ Please also observe the general safety instructions, see section "Fresh water bottle" [ → 19].
Page 156 4 Operation Sirona Dental Systems GmbH 4.7 Water unit Operating Instructions INTEGO 1. For the water supply from the fresh water bottle, turn the lever clockwise to the bottle symbol. For operation with the public drinking water supply, turn the lever counterclockwise to the faucet symbol.
Page 157: Water Supply For The Intego Pro
Sirona Dental Systems GmbH 4 Operation Operating Instructions INTEGO 4.7 Water unit Water supply for the INTEGO pro 4.7.4.2 In the Comfort and Ambidextrous water units, the stand-alone water supply should be set only as a temporary operating state if the public drinking water is contaminated and not as a permanent operating state.
Page 158 4 Operation Sirona Dental Systems GmbH 4.7 Water unit Operating Instructions INTEGO 2 / Setup 4. Confirm your selection by pressing the favorite key Setup  Switching starts. A revolving element is shown on the EasyPad display. If there is still disinfectant in the tank, it is rinsed down the drain.
Page 159 Sirona Dental Systems GmbH 4 Operation Operating Instructions INTEGO 4.7 Water unit 4.7.4.2.2 Switching to stand-alone water supply with the EasyTouch Opening the Start sub-screen ✔ All instruments are in their holders. ✔ Start dialog is displayed on the touchscreen. Sub-dialog ➢ Press the fixed key.
Page 160 4 Operation Sirona Dental Systems GmbH 4.7 Water unit Operating Instructions INTEGO Start Aqua  In the sub-screen, the key is highlighted in orange. Auto The disinfection system is now changed to stand-alone water supply. Aqua Apex Dist Setup Resetting disinfection system for operation with public drinking water...
Page 161: Converting The Turn Water Unit For Right And Left-Handed People
Sirona Dental Systems GmbH 4 Operation Operating Instructions INTEGO 4.7 Water unit 4.7.5 Converting the Ambidextrous water unit for right and left- handed people CAUTION There must be no patient in the chair during conversion. The patient would otherwise collide with treatment center components.
Page 162 4 Operation Sirona Dental Systems GmbH 4.7 Water unit Operating Instructions INTEGO 2. If a tray is available on the dentist element: remove the tray from the holder. 3. If an additional holder has been installed on the dentist element: turn the additional holder inwards.
Page 163 Sirona Dental Systems GmbH 4 Operation Operating Instructions INTEGO 4.7 Water unit 6. Move the dentist element right to the top. 7. Swivel the dentist element so that it is positioned closely in the grip area of the light support bar. 8. Position the operating light above the dentist element. The joint of the support arm must now point towards the head rest.
Page 164 4 Operation Sirona Dental Systems GmbH 4.7 Water unit Operating Instructions INTEGO 9. If a Comfort assistant element is present; swivel the Comfort assistant element to the water unit underneath the cuspidor bowl. Turn the water unit CAUTION The water unit is now guided with a rotary motion to the opposite side of the treatment center.
Page 165 Sirona Dental Systems GmbH 4 Operation Operating Instructions INTEGO 4.7 Water unit 1. Press the foot pedal and move the water unit slightly upwards.  The patient chair will move automatically into a position in which the water unit can be rotated. An acoustic signal will also be given.
Page 166 4 Operation Sirona Dental Systems GmbH 4.7 Water unit Operating Instructions INTEGO 2. If a tray holder on the dentist element is present: remove the screw by hand and take the tray holder out of the dentist element. 3. Install both the tray holder and the additional holder on the other side of the dentist element.
Page 167: Swiveling Tray Holder
Sirona Dental Systems GmbH 4 Operation Operating Instructions INTEGO 4.8 Swiveling tray holder Swiveling tray holder Maximum load capacity The TS dentist element can be equipped with a tray. The holder has room Tray on the TS dentist element with Turn option max.
Page 168: X-Ray Image Viewer
4 Operation Sirona Dental Systems GmbH 4.9 X-ray image viewer Operating Instructions INTEGO X-ray image viewer The TS and CS dentist elements can be equipped with an X-ray viewer. The ON/OFF switch is on the X-ray viewer. It switches off automatically after 10 minutes.
Page 169: Operating Light
Sirona Dental Systems GmbH 4 Operation Operating Instructions INTEGO 4.10 Operating light 4.10 Operating light The operating light is attached to a multi-jointed support arm. It can be Operating lights LEDlight, LEDview and LEDviewPLUS easily adjusted to illuminate the treatment area using the handles. Brakes in the support arm hold the operating light in the position to which it has been adjusted.
Page 170: Switching The Operating Light On/Off
4 Operation Sirona Dental Systems GmbH 4.10 Operating light Operating Instructions INTEGO 4.10.1 Switching the operating light on/off Operating light Repeatedly press the fixed key to set the following switching positions at the assistant element: 1. Switched on: The operating light is switched on at the preset brightness level.
Page 171 Sirona Dental Systems GmbH 4 Operation Operating Instructions INTEGO 4.10 Operating light 4. Use the left and right arrows on the favorite key pad to adjust the operating distance of the contactless sensor (5 levels). The left arrow Setup key decreases the operating distance, the right arrow key increases it.
Page 172: Setting The Brightness, Light Temperature And Sensor Control Of The
4 Operation Sirona Dental Systems GmbH 4.10 Operating light Operating Instructions INTEGO 4.10.4 Setting the brightness, light temperature and sensor PLUS control of the LEDview The operating light is always switched on with the programmed brightness level. The setting is carried out using the user interface of the dentist element.
Page 173 Sirona Dental Systems GmbH 4 Operation Operating Instructions INTEGO 4.10 Operating light PLUS Setting LEDview on the EasyTouch Operating Light 1. Press and hold the fixed key on the dentist element (> 2 s).  The settings screen of the operating light is displayed on the touchscreen.
Page 174: X-Ray Tube Unit
4.11 X-ray tube unit Operating Instructions INTEGO 4.11 X-ray tube unit The treatment centers INTEGO and INTEGO pro can be equipped with PLUS the HELIODENT X-ray tube unit. No X-ray tube unit is available for treatment centers with the Ambidextrous option.
Page 175: Sivision Digital Video System
Sirona Dental Systems GmbH 4 Operation Operating Instructions INTEGO 4.12 SIVISION digital video system 4.12 SIVISION digital video system The SIVISION digital video system enables intraoral and extraoral images to be made. The SiroCam F / AF / AF intraoral camera generates digital image data which can be transmitted via a USB 2.0 port (high- speed Universal Serial Bus) to a connected PC and stored there.
Page 176: Sivision Monitor
4 Operation Sirona Dental Systems GmbH 4.12 SIVISION digital video system Operating Instructions INTEGO 4.12.1 SIVISION monitor 22" AC monitor The monitor is equipped with loudspeakers. There is an IEC socket on the back of the monitor for the power supply. Please refer to the operating instructions for the 22"...
Page 177: Sirocam F / Af / Af + Intraoral Camera
Sirona Dental Systems GmbH 4 Operation Operating Instructions INTEGO 4.12 SIVISION digital video system 4.12.2 SiroCam F / AF / AF intraoral camera Safety instructions 4.12.2.1 The SiroCam F / AF / AF intraoral camera is a sensitive optical instrument and must therefore always be handled with care.
Page 178: Connecting The Sirocam F / Af / Af + Intraoral Camera
4 Operation Sirona Dental Systems GmbH 4.12 SIVISION digital video system Operating Instructions INTEGO Connecting the SiroCam F / AF / AF intraoral camera 4.12.2.3 Connecting the intraoral camera to the TS dentist element Depending on the equipment version, the intraoral camera can be placed at instrument position five or in the additional holder.
Page 179 Sirona Dental Systems GmbH 4 Operation Operating Instructions INTEGO 4.12 SIVISION digital video system Connecting the intraoral camera to the assistant element The intraoral camera can be operated at the second instrument position of the assistant element. The camera connection is located underneath the assistant element instead of the connection for the curing light.
Page 180: Operating Sirocam F / Af / Af + Intraoral Camera
4 Operation Sirona Dental Systems GmbH 4.12 SIVISION digital video system Operating Instructions INTEGO Operating SiroCam F / AF / AF intraoral camera 4.12.2.4 An external or internal PC is required in order to display the video images of the SiroCam F / AF / AF intraoral camera on the SIVISION monitor.
Page 181 Sirona Dental Systems GmbH 4 Operation Operating Instructions INTEGO 4.12 SIVISION digital video system 4.12.2.4.3 Using the camera with SI Video Using SI Video, up to four still images can be generated with the SiroCam F / AF / AF intraoral camera. These can be displayed on the SIVISION monitor either as a sequence of single images or simultaneously as a quad image.
Page 182 4 Operation Sirona Dental Systems GmbH 4.12 SIVISION digital video system Operating Instructions INTEGO ✔ The intraoral camera must be removed to allow for operation via the foot switch. ➢ Press the left button of the C electronic foot control. Purge Endodontics / Purge...
Page 183 Sirona Dental Systems GmbH 4 Operation Operating Instructions INTEGO 4.12 SIVISION digital video system 4.12.2.4.4 Using the camera with SIDEXIS Besides the display and processing of X-ray images, SIDEXIS XG or SIDEXIS 4 can be used additionally as a video application for the SiroCam F / AF / AF intraoral camera.
Page 184: Technical Camera Data
4 Operation Sirona Dental Systems GmbH 4.12 SIVISION digital video system Operating Instructions INTEGO Generating a still image ✔ The live image is displayed on the SIVISION monitor. 1. Step on the foot pedal.  The display switches from live to still image.
Page 185: Operation With A Pc
/ SIVISION connect" manual. IT network CAUTION Integrating the INTEGO / INTEGO pro into an IT network that includes other devices can lead to previously unknown risks. The following changes to the IT network can lead to new risks: •...
Page 186: Sivision Program
4 Operation Sirona Dental Systems GmbH 4.13 Operation with a PC Operating Instructions INTEGO 4.13.1 SIVISION program Various PC applications of the PC can be started and operated in the SIVISION program. You can select the PC applications to be operable via the treatment center in SIUCOM plus.
Page 187: Communication With The Media Player
Sirona Dental Systems GmbH 4 Operation Operating Instructions INTEGO 4.13 Operation with a PC The treatment center starts the PC applications automatically. An orange square located in front of the respective PC application on the M.player touchscreen indicates whether the application has been started and is ready for operation on the PC.
Page 188: Communication With Sidexis
4 Operation Sirona Dental Systems GmbH 4.13 Operation with a PC Operating Instructions INTEGO Communication with SIDEXIS 4.13.1.4 The SIDEXIS PC application enables you e.g. to display X-ray and intraoral camera images and transmit them to the SIVISION monitor. The live image of the SiroCam F / AF / AF intraoral camera is displayed in SIDEXIS and can be saved as a still image in the patient database.
Page 189 Sirona Dental Systems GmbH 4 Operation Operating Instructions INTEGO 4.13 Operation with a PC Overview layout The opened image windows are scaled in the display area so that no scroll bars or as few scroll bars as possible must be displayed. The image windows are arranged without overlapping.
Page 190 4 Operation Sirona Dental Systems GmbH 4.13 Operation with a PC Operating Instructions INTEGO Filter black dots Single pixel errors may occur when taking digital X-rays. These pixel errors appear as individual black dots when the optimum resolution (100%) is selected. They are removed by SIDEXIS.
Page 191: Usb Interfaces
USB interface, only units of type BF CAUTION Only type BF medical devices and applied parts according to IEC 60601-1, e.g. the Sirona XIOS XG USB module intraoral X-ray system, may be connected to the USB interface. Type BF USB interface, only units without power supply unit CAUTION USB devices with their own voltage supply (e.g., via a power supply unit)
Page 192: Configuration Of The Treatment Center (Setup)
4 Operation Sirona Dental Systems GmbH 4.14 Configuration of the treatment center (setup) Operating Instructions INTEGO 4.14 Configuration of the treatment center (setup) Various treatment center functions can be individually configured via the Setup settings. The treatment center can therefore be adapted to match each user's personal method of treatment.
Page 193: Setting The Time And Date
Sirona Dental Systems GmbH 4 Operation Operating Instructions INTEGO 4.14 Configuration of the treatment center (setup) Setting the time and date 4.14.1.2 Setting the time Time is shown in the format hour.minute. ✔ hour setting focus flashes. 1. Use favorite keys 1 and 3 to set the hour.
Page 194: Switching The Key Sound On/Off
4 Operation Sirona Dental Systems GmbH 4.14 Configuration of the treatment center (setup) Operating Instructions INTEGO Switching the key sound on/off 4.14.1.4 A setting can be made to issue an acoustic signal when the operator presses a button on the dentist or assistant element.
Page 195: Setting The Purging Time For The Autopurge Function
4.14 Configuration of the treatment center (setup) Setting the purging time for the autopurge function 4.14.1.8 The autopurge function is only available on the INTEGO pro treatment center. The purging time for the autopurge function can be set between 60 and 180 seconds.
Page 196: 12Opening The Service Function
4 Operation Sirona Dental Systems GmbH 4.14 Configuration of the treatment center (setup) Operating Instructions INTEGO when the foot pedal is pressed down fully. The knob on the camera can still be used to focus the image. ✔ Focusing by foot switch The setting focus flashes.
Page 197: Configuring The Treatment Center On Easytouch
Sirona Dental Systems GmbH 4 Operation Operating Instructions INTEGO 4.14 Configuration of the treatment center (setup) 4.14.2 Configuring the treatment center on EasyTouch 4.14.2.1 Opening the setup dialogs ✔ All instruments are in place. The Start dialog is displayed on the 10:45:03 touchscreen.
Page 198: Setting The Time And Date
4 Operation Sirona Dental Systems GmbH 4.14 Configuration of the treatment center (setup) Operating Instructions INTEGO Setting the time and date 4.14.2.2 Date and time ➢ In the setup dialog touch the key  The sub-dialog opens. Setting the date The date is displayed in the format day/month/year.
Page 199: Configuring Control Options
Sirona Dental Systems GmbH 4 Operation Operating Instructions INTEGO 4.14 Configuration of the treatment center (setup) Configuring control options 4.14.2.3 Operation of the entire treatment center operation can be configured in this dialog. Control options ➢ Touch the key in the setup program.
Page 200 4 Operation Sirona Dental Systems GmbH 4.14 Configuration of the treatment center (setup) Operating Instructions INTEGO 4.14.2.3.4 Coupling suction to the 4-way foot switch. If the treatment center is equipped with a position selector valve for the suction system, it can be set so suction flow can be interrupted or restarted by moving the 4-way foot control switch at the base of the chair in any direction.
Page 201 Sirona Dental Systems GmbH 4 Operation Operating Instructions INTEGO 4.14 Configuration of the treatment center (setup) 4.14.2.3.8 Adjusting the cleaning agent mixture for chemical suction hose cleaning The chemical suction hose cleaning option is only available for the INTEGO pro. The suction system can be automatically cleaned by pumping water into a tank behind the receptacle of the suction hoses and extracting it from there.
Page 202: Configuring The Network Connection
MAC address of the center are shown. Intego Nr 2 Name Call in your data processing specialist for network configuration. Ethernet Network configuration is described in detail in the "INTEGO / INTEGO pro 13-E7-15-31-A3-0C installation instructions". 4.14.2.5 Opening the service function The Service domain is intended to be used only by service engineers.
Page 203: Care, Cleaning And Maintenance By The Practice Team
Sirona Dental Systems GmbH 5 Care, cleaning and maintenance by the practice team Operating Instructions INTEGO 5.1 Basics Care, cleaning and maintenance by the practice team Basics Handling mainly involves the following steps: ● Cleaning ● Disinfection ● Sterilization if possible It is recommended to clean the unit as soon as possible after use.
Page 204 [ → 266] Check the message system of the amalgam separator [ → 258] For a quick overview of the work involved, see the “Maintenance, cleaning, and disinfection schedule” for the INTEGO / INTEGO pro treatment center. 64 57 498 D3543...
Page 205: Care, Cleaning, And Disinfecting Agents
Approved care, cleaning, and disinfecting agents Approved care, cleaning, and disinfecting agents Use only care, cleaning and disinfecting agents approved by Sirona! For a continuously updated list of approved agents, please visit Care, cleaning, and disinfecting agents, with REF number "www.sirona.com"...
Page 206: General Handling Instructions
5 Care, cleaning and maintenance by the practice team Sirona Dental Systems GmbH 5.1 Basics Operating Instructions INTEGO 5. Immerse the tester in the filled container for 30 seconds.  The cardboard disk with the culture medium will now absorb 1 ml of the water sample.
Page 207: Inspection, Maintenance And Testing
Sterilization Sterilization may be done for components that are marked accordingly. Sirona recommends sterilization in a steam sterilizer (autoclave) according to ISO 13060, Class B (e.g., DAC PREMIUM/DAC PROFESSIONAL). The sterilization must be carried out with a multiple fractionated suction system (Class B sterilizer).
Page 208: Surfaces
5 Care, cleaning and maintenance by the practice team Sirona Dental Systems GmbH 5.2 Surfaces Operating Instructions INTEGO Surfaces 5.2.1 Clean/disinfect surfaces The surfaces can be disinfected by spraying and wiping with surface disinfectants. NOTICE Surfaces, medication Drugs have a chemical reaction with the surface of the unit.
Page 209: Disinfect User Interfaces
NOTICE Care, cleaning, and disinfecting agents Approved care, cleaning, and disinfecting agents Use only care, cleaning and disinfecting agents approved by Sirona, see "Care, cleaning, and disinfecting agents" [ → 205]. Switching functions on the EasyPad user interface off On the EasyPad, this function also protects the treatment center and the SIVISION monitor from disturbances from HF fields.
Page 210: Sterilize Silicone Mats And Handle Covers
Care, cleaning, and disinfecting agents Approved care, cleaning, and disinfecting agents Use only care, cleaning and disinfecting agents approved by Sirona, see "Care, cleaning, and disinfecting agents" [ → 205]. The dentist element features a removable silicone mat and silicone covers for the handles.
Page 211: Disinfect The Tray
The tray can be removed to facilitate cleaning or thermal disinfection. NOTICE Care, cleaning, and disinfecting agents Approved care, cleaning, and disinfecting agents Use only care, cleaning and disinfecting agents approved by Sirona, see "Care, cleaning, and disinfecting agents" [ → 205]. 1. Hold the tray tightly. 93°C 200°F...
Page 212: Care For, Clean, And Disinfect Upholstery
Operating Instructions INTEGO 5.2.5 Care for, clean, and disinfect upholstery Special care, cleaning, and disinfecting agents are recommended by Sirona for the care, cleaning, and disinfection of the upholstery. NOTICE Care, cleaning, and disinfecting agents, reference Approved care, cleaning, and disinfecting agents Use only agents approved by Sirona for the upholstery, see"Care,...
Page 213: Clean The Foot Switch
Sirona Dental Systems GmbH 5 Care, cleaning and maintenance by the practice team Operating Instructions INTEGO 5.2 Surfaces 5.2.7 Clean the foot switch Regular cleaning of the foot control improves its stability. ➢ Clean the bottom plate of the foot control with a moist cloth (water).
Page 214: Instruments And Instrument Hoses
● the used instruments after each patient ● At the end of the work day With the INTEGO pro treatment center, it is also possible to automatically purge the water lines, see "Automatically purge water lines (autopurge function)" [ → 220].
Page 215: Purge Function On The Easypad
Sirona Dental Systems GmbH 5 Care, cleaning and maintenance by the practice team Operating Instructions INTEGO 5.3 Instruments and instrument hoses 2. Set all of the instruments to be purged to their maximum water flow max. rate. The water regulators under the instrument holder must be turned counterclockwise.
Page 216 5 Care, cleaning and maintenance by the practice team Sirona Dental Systems GmbH 5.3 Instruments and instrument hoses Operating Instructions INTEGO 1. Remove the instruments to be purged from the holder and hold them max. max. over the cuspidor or over a watertight container with sufficient capacity.
Page 217: Purging Function On The Easytouch
Sirona Dental Systems GmbH 5 Care, cleaning and maintenance by the practice team Operating Instructions INTEGO 5.3 Instruments and instrument hoses Purging function on the EasyTouch 5.3.2.2 Opening the purging dialog ✔ All instruments are in their holders. ✔ Start dialog is displayed on the touchscreen.
Page 218 5 Care, cleaning and maintenance by the practice team Sirona Dental Systems GmbH 5.3 Instruments and instrument hoses Operating Instructions INTEGO ✔ Purge dialog is displayed on the touchscreen. 120 s 1. Use the – and + keys to set the purging time.
Page 219 Sirona Dental Systems GmbH 5 Care, cleaning and maintenance by the practice team Operating Instructions INTEGO 5.3 Instruments and instrument hoses  The water line purging procedure is finished. The treatment center is again ready for operation. Interrupting the purging process ➢ Press the foot pedal to interrupt the purging process. If the instrument is not put back in the holder, the purging process can be continued by pressing the foot pedal again up to the end of the set purging time.
Page 220: Automatically Purge Water Lines (Autopurge Function)
Operating Instructions INTEGO 5.3.3 Automatically purge water lines (autopurge function) The autopurge function is only available on the INTEGO pro treatment center. The autopurge function enables automatic purging of all water-carrying instruments in the dentist element, of the 3-way SPRAYVIT E syringe in the dentist and assistant elements and of the tumbler filling.
Page 221 Cleaning adapters for water-carrying instruments are integrated into the Comfort and Ambidextrous (with INTEGO pro) water units. These enable all instruments to be purged with water. For this purpose, water-carrying instruments must be inserted into adapters on the water unit.
Page 222 5 Care, cleaning and maintenance by the practice team Sirona Dental Systems GmbH 5.3 Instruments and instrument hoses Operating Instructions INTEGO 3. Dentist element side: Insert the couplings of all water-carrying treatment instruments into the adapter in the Comfort water unit (for SPRAYVIT E: valve lever in the up position, locking knob in the down position).
Page 223 Sirona Dental Systems GmbH 5 Care, cleaning and maintenance by the practice team Operating Instructions INTEGO 5.3 Instruments and instrument hoses ● Leave the instruments in the water unit The autopurge function remains activated. The instruments remain in the Comfort water unit and the treatment center can be switched off at the mains.
Page 224: Autopurge Function On The Easytouch
5 Care, cleaning and maintenance by the practice team Sirona Dental Systems GmbH 5.3 Instruments and instrument hoses Operating Instructions INTEGO Autopurge function on the EasyTouch 5.3.3.2 Opening the autopurge screen ✔ All instruments are in their holders. ✔ Start dialog is displayed on the touchscreen.
Page 225 SPRAYVIT E: valve lever in the up position, locking knob in the down position). Also for INTEGO pro CS: Move the swivel arm of the instruments to be purged into the operating position so that the weight of the instrument hoses keeps them in this position.
Page 226 5 Care, cleaning and maintenance by the practice team Sirona Dental Systems GmbH 5.3 Instruments and instrument hoses Operating Instructions INTEGO IMPORTANT Pinching the instrument hoses Be careful not to pinch the instrument hoses when inserting the instruments. With treatment centers with the Ambidextrous option: convert the water unit to the left side so that the adapters on the water unit point towards the patient chair, see "Converting the Turn water unit for right-handers /...
Page 227 Sirona Dental Systems GmbH 5 Care, cleaning and maintenance by the practice team Operating Instructions INTEGO 5.3 Instruments and instrument hoses ➢ Remove the instruments from the water unit and put them back in place.  When all of the instruments have been put in the holders, the Purge function activated display disappears.
Page 228: Purging Water Lines Manually
Operating Instructions INTEGO 5.3.4 Purging water lines manually With the INTEGO treatment center, the purge and sanitize function is optional. If this function is not available, purging of the water lines must be carried out manually. The water-carrying instruments of the dentist element, the 3-way syringe of the dentist and assistant element and the tumbler filling must be purged.
Page 229 Sirona Dental Systems GmbH 5 Care, cleaning and maintenance by the practice team Operating Instructions INTEGO 5.3 Instruments and instrument hoses 5. Activate the spray. Toggle the switch on the pneumatic foot switch to the right. Activate the left key on the C electronic foot control.
Page 230: Lubricate, Disinfect/Sterilize The Treatment Instruments
5 Care, cleaning and maintenance by the practice team Sirona Dental Systems GmbH 5.3 Instruments and instrument hoses Operating Instructions INTEGO 5.3.5 Lubricate, disinfect/sterilize the treatment instruments Treatment instruments 5.3.5.1 The procedures required for the following treatment instruments are described in the following separate operating instructions: ●...
Page 231: Clean And Disinfect/Sterilize The Components Of The
Care, cleaning, and disinfecting agents Approved care, cleaning, and disinfecting agents Use only care, cleaning and disinfecting agents approved by Sirona, see "Care, cleaning, and disinfecting agents" [ → 205]. Disconnect the mucosal electrode from the connection cable. The metal hook can be sterilized, and the connection cable can be disinfected by wiping.
Page 232: Disinfecting/Sterilizing Mini L.e.d. Curing Light
Care, cleaning, and disinfecting agents Approved care, cleaning, and disinfecting agents Use only care, cleaning and disinfecting agents approved by Sirona, see "Care, cleaning, and disinfecting agents" [ → 205]. 1. Remove the connection cable of the Mini L.E.D. by turning the 134°C 274°F...
Page 233: Change The Cotton Wool Roll On The Turbine Hose And Oil Collector
Sirona Dental Systems GmbH 5 Care, cleaning and maintenance by the practice team Operating Instructions INTEGO 5.3 Instruments and instrument hoses 5.3.6 Change the cotton wool roll on the turbine hose and oil collector Return air containing a small amount of highspeed handpiece oil is emitted at the unit end of the highspeed handpiece hose.
Page 234 5 Care, cleaning and maintenance by the practice team Sirona Dental Systems GmbH 5.3 Instruments and instrument hoses Operating Instructions INTEGO Oil collector The CS dentist element is also equipped with an oil collector. It is located below the instrument connections and collects any liquids that leak out.
Page 235: Vacuum System
Sirona Dental Systems GmbH 5 Care, cleaning and maintenance by the practice team Operating Instructions INTEGO 5.4 Vacuum system Vacuum system 5.4.1 Purge the vacuum system. If the treatment center is equipped with the suction hose cleaning option, proceed according to the instruction in section "Cleaning the suction hoses"...
Page 236 5 Care, cleaning and maintenance by the practice team Sirona Dental Systems GmbH 5.4 Vacuum system Operating Instructions INTEGO 3. Attach the open suction handpiece to the receptacle. 4. Press the button.  Water is pumped into the suction hose cleaning container and suctioned out of the suction hoses.
Page 237: Suction Hose Cleaning On The Comfort Water Unit
Sirona Dental Systems GmbH 5 Care, cleaning and maintenance by the practice team Operating Instructions INTEGO 5.4 Vacuum system Suction hose cleaning on the Comfort water unit 5.4.2.2 The Comfort water unit is always equipped with an adapter for the suction hose cleaning function. This can be used to purge the suction hoses consecutively.
Page 238 ➢ Do not fill DENTOSEPT P disinfectant into the cleaning agent tank for chemical suction hose cleaning! Use only "Agents for the suction 1d 41d lines" approved by Sirona, see Care, cleaning and disinfecting agents" [ → 205]. Amalg Aqua chem 1.
Page 239: Suction Hose Cleaning On The Turn Water Unit
Ambidextrous water unit is optional. Chemical suction hose cleaning for the INTEGO treatment center is not available. If the INTEGO treatment center is not equipped with the suction hose cleaning option, a large glass of cold, clear water must be regularly aspirated instead, see "Purging the suction system"...
Page 240 Sirona Dental Systems GmbH 5.4 Vacuum system Operating Instructions INTEGO Refill cleaning agent (for the INTEGO pro with chemical suction hose cleaning option) When the adjacent display appears on the EasyPad display or in the status column of the touchscreen, the cleaning agent for cleaning the suction system is almost all gone.
Page 241: Central Supply For Chemical Suction Hose Cleaning
Central supply for chemical suction hose cleaning 5.4.2.4 For clinical use, INTEGO / INTEGO pro treatment centers can be fitted with a central cleaning agent supply for chemical suction hose cleaning. The CDS 60 system of Dürr Dental is intended for this purpose.
Page 242: Cleaning Vacuum System Using Cleaning Adapter In The Cuspidor Or
NOTICE Care, cleaning, and disinfecting agents Approved care, cleaning, and disinfecting agents Use only care, cleaning and disinfecting agents approved by Sirona, see "Care, cleaning, and disinfecting agents" [ → 205]. NOTICE Vacuum system, foaming cleaning agents Domestic cleaning agents foam up.
Page 243 Sirona Dental Systems GmbH 5 Care, cleaning and maintenance by the practice team Operating Instructions INTEGO 5.4 Vacuum system 5. Remove the suction tips from the suction hoses. 6. Set maximum suction flow on the suction handpieces. 7. Attach the adapter C to the saliva ejector.
Page 244: Cuspidor
5 Care, cleaning and maintenance by the practice team Sirona Dental Systems GmbH 5.4 Vacuum system Operating Instructions INTEGO Rinsing the cleaning agent 1. Following the cleaning process, pour at least 1 liter of water into the cuspidor.  The water is drawn off, thus preventing any cleaning agent residues from remaining in the suction hoses.
Page 245: Sterilize/Disinfect The Suction Handpieces
Rubber materials such as e.g. O-rings are corroded by unsuitable greases. ➢ Do not under any circumstances use vaseline or silicone greases. ➢ Use only greases approved by Sirona. 1. Detach the handpiece of the spray aspirator and the saliva ejector No surgical suction device option from the suction hoses.
Page 246: Empty The Central Suction Sieve
5 Care, cleaning and maintenance by the practice team Sirona Dental Systems GmbH 5.4 Vacuum system Operating Instructions INTEGO 5.4.5 Empty the central suction sieve. Depending on the options, there is a central suction sieve in the Compact water unit or Comfort assistant element to retain solid materials (e.g.
Page 247: Cleaning And Disinfecting The Suction Hoses
Sirona Dental Systems GmbH 5 Care, cleaning and maintenance by the practice team Operating Instructions INTEGO 5.4 Vacuum system Emptying the central suction sieve in the Comfort assistant element 1. Open the cover on the suction sieve on the assistant element and remove it.
Page 248: Components Of The Water Unit
5 Care, cleaning and maintenance by the practice team Sirona Dental Systems GmbH 5.5 Components of the water unit Operating Instructions INTEGO Components of the water unit 5.5.1 Clean the gold trap The gold trap retains larger solid particles to prevent them from being washed down the drain in the cuspidor bowl.
Page 249: Clean/Disinfect The Cuspidor
Foaming cleaning agents often cause foam and water to be sucked into the dry suction system. This can cause damage to the suction machine. ➢ Use only care, cleaning and disinfecting agents approved by Sirona, see"Care, cleaning, and disinfecting agents" [ → 205].
Page 250: Cleaning The Outlet Lines Of The Cuspidor
Use the same agent as for the suction lines. NOTICE Care, cleaning, and disinfecting agents Approved care, cleaning, and disinfecting agents Use only care, cleaning and disinfecting agents approved by Sirona, see "Care, cleaning, and disinfecting agents" [ → 205]. NOTICE Vacuum system, foaming cleaning agents Domestic cleaning agents foam up.
Page 251 Sirona Dental Systems GmbH 5 Care, cleaning and maintenance by the practice team Operating Instructions INTEGO 5.5 Components of the water unit 2. Fill the cuspidor with the cleaning solution and leave it to take effect. Observe the reaction time specified for the cleaning solution by the manufacturer.
Page 252: Refilling Dentosept P Disinfectant
Disinfectants for water lines Approved care, cleaning, and disinfecting agents Use only disinfectants which have been approved for water lines by Sirona for the disinfection system; see "Care, cleaning, and disinfecting agents" [ → 205]. 64 57 498 D3543 D3543.201.01.05.02 08.2016...
Page 253: Change The Water And Air Filters
Sirona Dental Systems GmbH 5 Care, cleaning and maintenance by the practice team Operating Instructions INTEGO 5.5 Components of the water unit 5.5.5 Change the water and air filters If you notice any changes in media flows, check the water and air filters for permeability.
Page 254 5 Care, cleaning and maintenance by the practice team Sirona Dental Systems GmbH 5.5 Components of the water unit Operating Instructions INTEGO 5. Reinsert the rubber ring E in the screw-on cap B, C. Then plug on the filter D as shown in the drawing.
Page 255: Change The Amalgam Rotor
Sirona Dental Systems GmbH 5 Care, cleaning and maintenance by the practice team Operating Instructions INTEGO 5.5 Components of the water unit 5.5.6 Change the amalgam rotor Amalgam residues and other solid particles are trapped in the amalgam rotor according to the centrifugal principle.
Page 256 6. Place the container in the special packaging and ship it for disposal or authorize a certified waste management company. Installing the amalgam rotor Use only original Sirona accessories. Never use a used or recycled amalgam rotor. To reorder the amalgam rotor, see "Spare parts and consumables"...
Page 257 Sirona Dental Systems GmbH 5 Care, cleaning and maintenance by the practice team Operating Instructions INTEGO 5.5 Components of the water unit 3. Hold the lower part of the amalgam separator B so that the latching noses of the bayonet catch are positioned transverse to the water unit.
Page 258: Check The Message System Of The Amalgam Separator
5 Care, cleaning and maintenance by the practice team Sirona Dental Systems GmbH 5.5 Components of the water unit Operating Instructions INTEGO 5.5.7 Check the message system of the amalgam separator An electronic control monitors the function of the amalgam separator. SIt detects any mechanical blocking or failure of the drive motor.
Page 259 Sirona Dental Systems GmbH 5 Care, cleaning and maintenance by the practice team Operating Instructions INTEGO 5.5 Components of the water unit Testing the message system on the EasyTouch ✔ All instruments are in place. The Start dialog is displayed on the 10:45:03 touchscreen.
Page 260: Empty The Sediment Container
5 Care, cleaning and maintenance by the practice team Sirona Dental Systems GmbH 5.5 Components of the water unit Operating Instructions INTEGO 5.5.8 Empty the sediment container In addition to other solid particles, a large proportion of the amalgam residues are trapped in the sediment container by gravitational force.
Page 261 Sirona Dental Systems GmbH 5 Care, cleaning and maintenance by the practice team Operating Instructions INTEGO 5.5 Components of the water unit 1. Open the flap A on the base of the water unit. 2. Loosen the bayonet catch by turning the sediment container B counterclockwise.
Page 262 5 Care, cleaning and maintenance by the practice team Sirona Dental Systems GmbH 5.5 Components of the water unit Operating Instructions INTEGO 2. Hold the sediment container B so that the latching noses of the bayonet catch are positioned transverse to the water unit. Rotate the sediment container B clockwise.
Page 263: Cleaning The Filter Insert Of The Wet Suction Device With Cuspidor Valve
Sirona Dental Systems GmbH 5 Care, cleaning and maintenance by the practice team Operating Instructions INTEGO 5.5 Components of the water unit 5.5.9 Cleaning the filter insert of the wet suction device with cuspidor valve The automatic separator and amalgam separator / sediment container or air jet pump are not installed in the water unit for standard wet suction.
Page 264 5 Care, cleaning and maintenance by the practice team Sirona Dental Systems GmbH 5.5 Components of the water unit Operating Instructions INTEGO 1. Open the flap A on the base of the water unit. 2. Allow the remaining water to be extracted completely. Press button B on the standard wet suction.
Page 265 Sirona Dental Systems GmbH 5 Care, cleaning and maintenance by the practice team Operating Instructions INTEGO 5.5 Components of the water unit 5. Grease the O-ring C of the filter insert. Lubricants, see "Care, cleaning, and disinfecting agents" [ → 205]. 6. Reinsert the filter insert in the filter housing. Rotate the filter insert C clockwise.
Page 266: Emptying The Collector Of The Air Jet Pump
5 Care, cleaning and maintenance by the practice team Sirona Dental Systems GmbH 5.5 Components of the water unit Operating Instructions INTEGO 5.5.10 Emptying the collector of the air jet pump The air jet pump (Air Venturi) is an option available for the Compact water unit.
Page 267 Sirona Dental Systems GmbH 5 Care, cleaning and maintenance by the practice team Operating Instructions INTEGO 5.5 Components of the water unit 3. Pour the excess water out of the container and collect the amalgam residues. Properly dispose of the amalgam residues together with the amalgam residues collected from the cuspidor and from the central suction sieve, see Cleaning the gold trap"...
Page 268: Sanitizing
Without the fresh water bottle, only the purge function can be used. Sanitizing with the INTEGO pro With the INTEGO pro, the water lines can only be sanitized if the Comfort or Ambidextrous water unit is equipped with an integrated water disinfection system.
Page 269: Sanitizing With The Fresh Water Bottle
Sirona Dental Systems GmbH 5 Care, cleaning and maintenance by the practice team Operating Instructions INTEGO 5.6 Sanitizing 5.6.1 Sanitizing with the fresh water bottle If the Compact or the Ambidextrous water unit is fitted with a fresh water Sanitizing with the fresh water bottle with the Compact and Turn water unit bottle, manual sanitation must be performed: ●...
Page 270 5 Care, cleaning and maintenance by the practice team Sirona Dental Systems GmbH 5.6 Sanitizing Operating Instructions INTEGO 5. Unscrew the fresh water bottle from the holder on the water unit and empty the fresh water bottle completely. 6. Fill the fresh water bottle with approx. 0.4 to 0.5 liters of pure DENTOSEPT P.
Page 271: Sanitizing On The Easypad
Sirona Dental Systems GmbH 5 Care, cleaning and maintenance by the practice team Operating Instructions INTEGO 5.6 Sanitizing Sanitizing on the EasyPad 5.6.1.1 Displaying the sanitizing operating context ✔ All instruments are in their holders. Torque control/Purge 1. Press the fixed key.
Page 272 5 Care, cleaning and maintenance by the practice team Sirona Dental Systems GmbH 5.6 Sanitizing Operating Instructions INTEGO Allow 24 hours reaction time In order to effectively combat germs, you must allow the DENTOSEPT P disinfectant to act at least 24 hours, but for no longer than 3 days (maximum sanitation time).
Page 273 Sirona Dental Systems GmbH 5 Care, cleaning and maintenance by the practice team Operating Instructions INTEGO 5.6 Sanitizing 4. Afterward, return the instrument to the instrument holder. 5. Repeat the procedure for all other instruments. 6. After you have flushed the last instrument, press favorite key...
Page 274: Sanitizing On The Easytouch
5 Care, cleaning and maintenance by the practice team Sirona Dental Systems GmbH 5.6 Sanitizing Operating Instructions INTEGO Sanitizing on the EasyTouch 5.6.1.2 Opening the sanitation dialog via the touchscreen ✔ All instruments are in their holders. ✔ Start dialog is displayed on the touchscreen.
Page 275 Sirona Dental Systems GmbH 5 Care, cleaning and maintenance by the practice team Operating Instructions INTEGO 5.6 Sanitizing 2. Remove a single instrument from holder and hold it over the cuspidor max. or over a watertight container with sufficient capacity. For the CS dentist element, move the swivel arm of the instrument into the working position.
Page 276 5 Care, cleaning and maintenance by the practice team Sirona Dental Systems GmbH 5.6 Sanitizing Operating Instructions INTEGO 1. Hold the 3-way syringe over the cuspidor or over a watertight container with sufficient capacity and press the water key for at least 15 seconds.
Page 277: Sanitizing With Disinfection System
Sirona Dental Systems GmbH 5 Care, cleaning and maintenance by the practice team Operating Instructions INTEGO 5.6 Sanitizing 5.6.2 Sanitizing with disinfection system Sanitizing must be performed: ● Regularly every 4 weeks when operating with the public drinking water supply or if stand-alone water supply is used more than 28 days...
Page 278: Sanitizing On The Easypad
5 Care, cleaning and maintenance by the practice team Sirona Dental Systems GmbH 5.6 Sanitizing Operating Instructions INTEGO Sanitizing on the EasyPad 5.6.2.1 Displaying the sanitizing operating context ✔ All instruments are in their holders. Torque control/Purge 1. Press the fixed key.
Page 279 Sirona Dental Systems GmbH 5 Care, cleaning and maintenance by the practice team Operating Instructions INTEGO 5.6 Sanitizing Inserting instruments into the cleaning adapters of the water unit The Comfort water unit has integrated cleaning adapters for water- carrying instruments. This allows all instruments to be simultaneously treated with a high concentration of sanitation solution and then rinsed with water.
Page 280 5 Care, cleaning and maintenance by the practice team Sirona Dental Systems GmbH 5.6 Sanitizing Operating Instructions INTEGO IMPORTANT Pinching the instrument hoses Be careful not to pinch the instrument hoses when inserting the instruments. With treatment centers with the Ambidextrous option: convert the water unit to the left side so that the adapters on the water unit point towards the patient chair, see "Converting the Turn water unit for right-handers /...
Page 281 Sirona Dental Systems GmbH 5 Care, cleaning and maintenance by the practice team Operating Instructions INTEGO 5.6 Sanitizing Treating water lines with DENTOSEPT P disinfectant The water lines of the instrument hoses, SPRAYVIT hoses, and the tumbler filler are filled with pure DENTOSEPT P.
Page 282 5 Care, cleaning and maintenance by the practice team Sirona Dental Systems GmbH 5.6 Sanitizing Operating Instructions INTEGO  When sufficient water has been refilled, the sanitizing program will continue. Purging water lines with water The DENTOSEPT P disinfectant is rinsed out of the SPRAYVIT hoses, instrument hoses, and tumbler filling unit with water.
Page 283: Sanitizing On The Easytouch
Sirona Dental Systems GmbH 5 Care, cleaning and maintenance by the practice team Operating Instructions INTEGO 5.6 Sanitizing Sanitizing on the EasyTouch 5.6.2.2 Opening the sanitation dialog via the touchscreen ✔ All instruments are in their holders. ✔ Start dialog is displayed on the touchscreen.
Page 284 5 Care, cleaning and maintenance by the practice team Sirona Dental Systems GmbH 5.6 Sanitizing Operating Instructions INTEGO Starting sanitation Start ➢ Touch the key. Start  The sanitation process starts. Error message: Refill with DENTOSEPT P disinfectant Disinf If the display appears after the sanitation process is started, the...
Page 285 SPRAYVIT E: valve lever in the up position, locking knob in the down position). Also for INTEGO pro CS: Move the swivel arm of the instruments to be purged into the operating position so that the weight of the instrument hoses keeps them in this position.
Page 286 5 Care, cleaning and maintenance by the practice team Sirona Dental Systems GmbH 5.6 Sanitizing Operating Instructions INTEGO IMPORTANT Pinching the instrument hoses Be careful not to pinch the instrument hoses when inserting the instruments. With treatment centers with the Ambidextrous option: convert the water unit to the left side so that the adapters on the water unit point towards the patient chair, see "Converting the Turn water unit for right-handers /...
Page 287 Sirona Dental Systems GmbH 5 Care, cleaning and maintenance by the practice team Operating Instructions INTEGO 5.6 Sanitizing Sanitation phase 3 – Treating water lines with DENTOSEPT P disinfectant The water is pumped out of the water tank of the water unit via the tumbler filler.
Page 288 5 Care, cleaning and maintenance by the practice team Sirona Dental Systems GmbH 5.6 Sanitizing Operating Instructions INTEGO Error message: Inserting instruments in the water unit If an instrument is accidentally deposited in its holder during the reaction Insert instruments into water unit...
Page 289 Sirona Dental Systems GmbH 5 Care, cleaning and maintenance by the practice team Operating Instructions INTEGO 5.6 Sanitizing Displays in case of incomplete sanitation The sanitation dialog detects whether the sanitation of all instruments and the tumbler filling was completed. Errors that occurred during sanitation...
Page 290: Display Sanitation Report
5 Care, cleaning and maintenance by the practice team Sirona Dental Systems GmbH 5.6 Sanitizing Operating Instructions INTEGO 5.6.3 Display sanitation report If the treatment center is equipped with the EasyTouch comfort user Sanitation process with Comfort user interface interface, sanitation processes with a reaction time of at least 24 hours can also be displayed on the touchscreen.
Page 291: Fuse Of The External Device Connection
Sirona Dental Systems GmbH 5 Care, cleaning and maintenance by the practice team Operating Instructions INTEGO 5.7 Fuse of the external device connection Fuse of the external device connection The inlet connector remains live even when the power switch is turned off.
Page 292: Maintenance By The Service Engineer
6 Maintenance by the service engineer Sirona Dental Systems GmbH 6.1 Inspection and maintenance Operating Instructions INTEGO Maintenance by the service engineer Inspection and maintenance In order to ensure the operational safety and reliability of your treatment center and to avoid damage due to natural wear, annual inspection and maintenance must be performed on your treatment center.
Page 293: Maintenance Manual
Sirona Dental Systems GmbH 6 Maintenance by the service engineer Operating Instructions INTEGO 6.3 Maintenance Manual Maintenance Manual Keep this Maintenance Manual near your treatment center. Any inspection and maintenance work as well as all safety tests are Documentation of the maintenance documented by the service engineer in the Maintenance Manual.
Page 294: Malfunctions
7 Malfunctions Sirona Dental Systems GmbH 7.1 Messages on the EasyPad Operating Instructions INTEGO Malfunctions Messages on the EasyPad Errors on the EasyPad display Messages are shown on the EasyPad display, such as: Safety switch triggered [ → 70] Days until next sanitation [ → 268] Days until next maintenance date [ →...
Page 295: Messages On The Easytouch
Sirona Dental Systems GmbH 7 Malfunctions Operating Instructions INTEGO 7.2 Messages on the EasyTouch 1. Press favorite key 3.  The next message is displayed. 2. Acknowledge the individual messages by pressing the favorite key / Setup or pressing the favorite key 3 several times until all the Setup messages have been shown.
Page 296: Error Messages
[ → 253]. Check whether the public drinking water supply has the necessary water pressure, see the document on INTEGO / INTEGO pro installation requirements. Emergency pump operation Malfunctioning of pump sensors in the Inform your service technician. water unit.
Page 297 Sirona Dental Systems GmbH 7 Malfunctions Operating Instructions INTEGO 7.3 Error Messages Code Error Description Measure Suction hose cleaning Too little water is used for suction Inform your service technician. hose cleaning. Instead, aspirate a glass of water regularly, see “Rinsing the suction system”...
Page 298: Remote Diagnosis
7 Malfunctions Sirona Dental Systems GmbH 7.4 Remote diagnosis Operating Instructions INTEGO Remote diagnosis Functional description With remote diagnosis, you enable the staff of your dental depot or our Customer Service Center, see "Contact data" [ → 11], to connect to the PC of your treatment center.
Page 299: Spare Parts And Consumables
8 Spare parts and consumables Operating Instructions INTEGO Spare parts and consumables Use only original accessories and original spare parts from Sirona! Please order the materials listed below from a specialized dental dealer. Care, cleaning, and disinfecting Care, cleaning agents, and disinfectants...
Page 300 8 Spare parts and consumables Sirona Dental Systems GmbH Operating Instructions INTEGO Miscellaneous Cover, TS dentist element Cover For sealing the instrument holder of the TS dentist element REF 64 55 823 Silicone isolation sleeve for endodontics with the ApexLocator REF 63 24 631 (5 pcs) 64 57 498 D3543 D3543.201.01.05.02 08.2016...
Page 301: Disposal
Sirona Dental Systems GmbH 9 Disposal Operating Instructions INTEGO Disposal In accordance with Directive 2012/19/EU and national disposal regulations regarding old electrical and electronic devices, please be advised that such items must be disposed of in a special way within the European Union (EU).
Page 302: Overview Of All Function Keys
10 Overview of all function keys Sirona Dental Systems GmbH 10.1 Fixed keys Operating Instructions INTEGO Overview of all function keys The following contains a brief description of the fixed keys on the dentist For Instructions for Use and assistant elements and the function keys on the touchscreen and to provide the reader with a quick overview of the significance of the symbols on the keys.
Page 303 Sirona Dental Systems GmbH 10 Overview of all function keys Operating Instructions INTEGO 10.1 Fixed keys Chair height Counterclockwise rotation/user profile Switches counterclockwise rotation ON/OFF Changes the user profile Switches AutoReverse function ON/OFF when the maximum torque is reached Counterclockwise rotation ON/OFF...
Page 304 10 Overview of all function keys Sirona Dental Systems GmbH 10.1 Fixed keys Operating Instructions INTEGO 10.1.2 Dentist element with EasyTouch Clean key Clean Deactivates the complete user interface of the dentist element. This is used to clean the surface and protect from interference from an external HF surgical device.
Page 305 Sirona Dental Systems GmbH 10 Overview of all function keys Operating Instructions INTEGO 10.2 Start dialog 10.1.3 Assistant element Chair program S Mouth rinsing position with last-position memory function (programmable) Chair program 0 Entry/exit position (programmable) Tumbler filling on/off Flushing the cuspidor...
Page 306 10 Overview of all function keys Sirona Dental Systems GmbH 10.3 Start dialog for removed instruments Operating Instructions INTEGO Purging water lines automatically Auto Starts the autopurge function Sanitizing Starts the treatment center sanitation program Stand-alone water supply Aqua The disinfection system switches to stand-alone water supply...
Page 307 Sirona Dental Systems GmbH 10 Overview of all function keys Operating Instructions INTEGO 10.3 Start dialog for removed instruments Setting the automatic motor stop of the ApexLocator Apex Stop Apex Stop When the key is pressed, the – and + keys are displayed. The Apex automatic motor stop can be switched off or set to four different levels.
Page 308 10 Overview of all function keys Sirona Dental Systems GmbH 10.4 Integrated torque control Operating Instructions INTEGO 10.4 Integrated torque control Integrated torque control Activation of the integrated torque control function Calibrating the burr drive A calibration must be performed each time you change or lubricate the contra-angle handpiece.
Page 309 Sirona Dental Systems GmbH 10 Overview of all function keys Operating Instructions INTEGO 10.5 Other dialogs 10.5 Other dialogs 10.5.1 Timer screen Time loop If the key is highlighted orange, the countdown will automatically be restarted when the set time has expired.
Page 310 10 Overview of all function keys Sirona Dental Systems GmbH 10.5 Other dialogs Operating Instructions INTEGO 10.5.5 Operating light setting program Sensor control for switching the operating light on/off If the key is highlighted orange, the operating light can be switched on/off or changed to the Composite function by a hand movement.
Page 311 Sirona Dental Systems GmbH 10 Overview of all function keys Operating Instructions INTEGO 10.6 SIVISION program 10.6 SIVISION program 10.6.1 Media Player Start Media Player M.player M.player Media Player is started on the external PC. The keys corresponding to the Media Player PC application are displayed on the right side of the...
Page 312 10 Overview of all function keys Sirona Dental Systems GmbH 10.6 SIVISION program Operating Instructions INTEGO Accepting an order Accepts an order that was placed and is waiting in SIDEXIS, e.g. for creating an intraoral image with the X-ray unit of the treatment center or a video recording with the intraoral camera.
Page 313 Sirona Dental Systems GmbH 10 Overview of all function keys Operating Instructions INTEGO 10.6 SIVISION program Display image in pseudocolors To enable better distinction of image details, an image can be displayed in a so-called pseudo color mode. The grayscale values of the image are replaced by colors which the human eye can distinguish better from one another than the corresponding gray levels.
Page 314 10 Overview of all function keys Sirona Dental Systems GmbH 10.6 SIVISION program Operating Instructions INTEGO 10.6.4 SI Video Start SI Video SI-Video SI Video is started on the PC, if SIDEXIS is not installed on it. The keys for the SI Video PC application are displayed on the right side of the...
Page 315 Sirona Dental Systems GmbH 10 Overview of all function keys Operating Instructions INTEGO 10.7 Setup program 10.7 Setup program 10.7.1 Date and time Date and time Date and Time Opens the setup program. Date 15 04 14 Time 12/24 hour display 12 h 10.7.2...
Page 316 10 Overview of all function keys Sirona Dental Systems GmbH 10.7 Setup program Operating Instructions INTEGO If this function is switched off, the display switches between a still or live image when the foot pedal is pressed. The knob on the camera is used to focus the image.
Page 317: Index
Sirona Dental Systems GmbH Index Operating Instructions INTEGO Index Numerical Standardization, 117, 126, 129 with integrated torque control, 117 4-way foot switch, 194, 200 Approvals, 23 4-way foot switch plate, 68 Armrest, 72 Articulating headrest, 34, 73 Accessories, 20, 299...
Page 318 Index Sirona Dental Systems GmbH Operating Instructions INTEGO Chemical suction hose cleaning, 235, 241 Dentist element with whip arms, 38 Chip blower, 66, 67, 88, 90 Deutscher Verein für Gas und Wasser (DVGW) = German Gas and Water Association, 24...
Page 319 Sirona Dental Systems GmbH Index Operating Instructions INTEGO Gold trap, 248 Standard wet suction, 263 Gold trap, 248 Firmware, 12, 197 Guide rollers on the CS dentist element, 85 fixed key Backrest tilt, 77 Handles on dentist element, 81, 210...
Page 320 Index Sirona Dental Systems GmbH Operating Instructions INTEGO Intensity, 130, 133 Load capacity Light, 95 Assistant element, 138 Mini L.E.D., 144, 232 Dentist element, 80 Motor versions, 99 Patient chair, 18 Save settings, 92, 119 Tray, 167 SIRONiTi, 105 Lock treatment center, 209...
Page 321 Sirona Dental Systems GmbH Index Operating Instructions INTEGO Mucosal electrode, 121 Multifunction syringe, 93 Remote access, 298 Municipal water, 154 Remote diagnosis, 298 RoHS Directive, 23 NaCl, 67 Name of the treatment center in the practice network, Safety checks, 292...
Page 322 Index Sirona Dental Systems GmbH Operating Instructions INTEGO SPRAYVIT, 93 Tray, 167, 211 Stand-alone water supply, 52, 56, 154 Treatment area light, 169 Standard 3-way syringe, 93 Tumbler filling, 139, 148 Standard wet suction, 263 Tumbler filling with automatic sensor control, 150...
Page 323 Sirona Dental Systems GmbH Index Operating Instructions INTEGO White balance for intraoral camera, 184 White screen on the SIVISION monitor, 168, 200 Working steps for integrated torque control, 115 X-ray image viewer, 168, 200 X-ray tube unit HELIODENT Plus, 174 64 57 498 D3543 D3543.201.01.05.02 08.2016...
Page 326 tÉ=êÉëÉêîÉ=íÜÉ=êáÖÜí=íç=ã~âÉ=~åó=~äíÉê~íáçåë=ïÜáÅÜ=ã~ó=ÄÉ=êÉèìáêÉÇ=ÇìÉ=íç=íÉÅÜåáÅ~ä=áãéêçîÉãÉåíëK «=páêçå~=aÉåí~ä=póëíÉãë=dãÄe= péê~ÅÜÉW ÉåÖäáëÅÜ mêáåíÉÇ=áå=dÉêã~åó aPRQPKOMNKMNKMRKMO MUKOMNS ûKJkêKW= NOO=SMR páêçå~=aÉåí~ä=póëíÉãë=dãÄe `çåí~Åí=áå=íÜÉ=rp^W páêçå~=aÉåí~äI=fåÅK SQ=RT=QVU=aPRQP c~Äêáâëíê~≈É=PN QUPR=páêçå~=aêáîÉ lêÇÉê=kç aJSQSOR=_ÉåëÜÉáã `Ü~êäçííÉI=k`=OUOTP dÉêã~åó ïïïKëáêçå~KÅçã...
