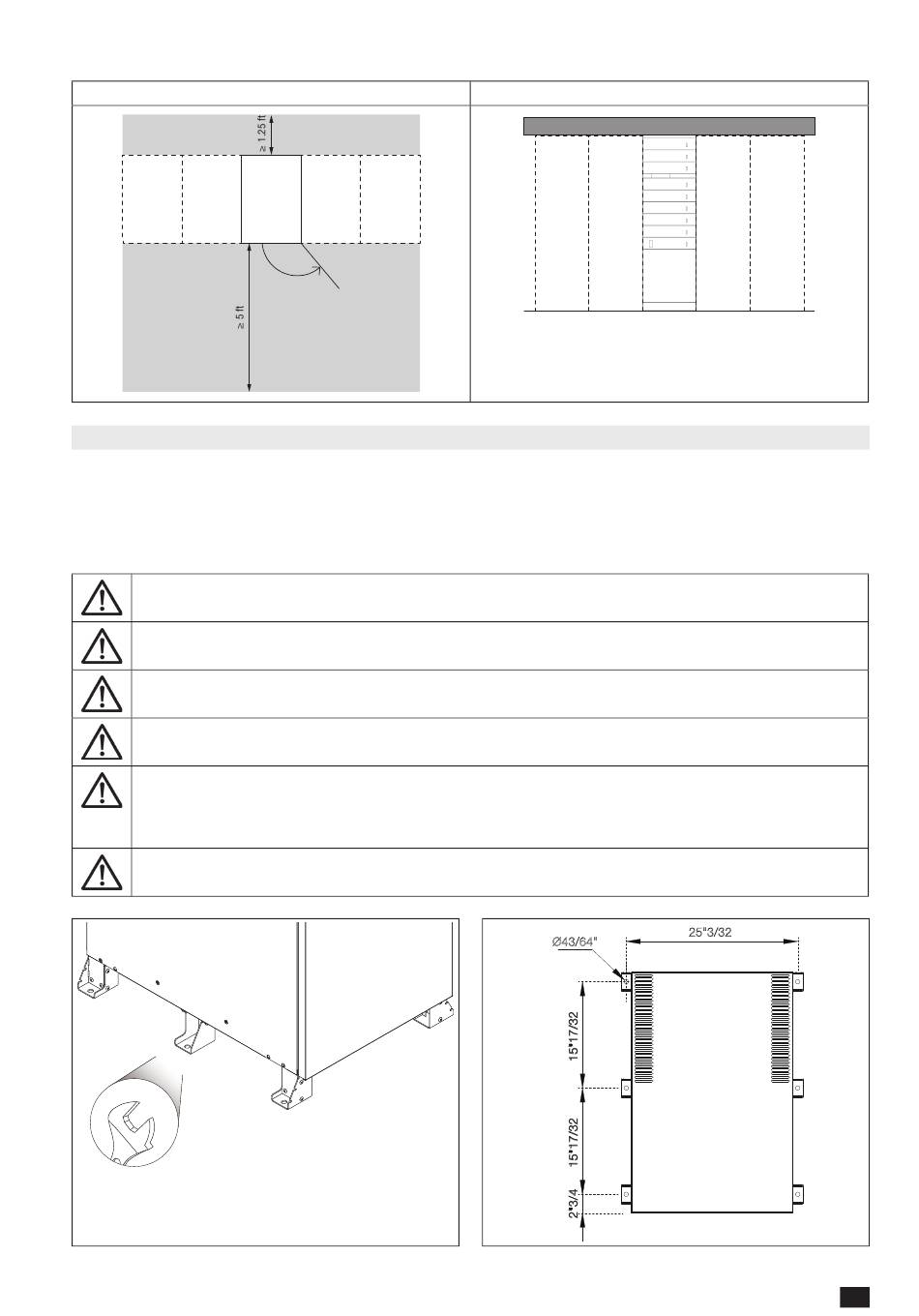

Handling - socomec Modulys GP Green Power 2.0 Series Installation And Operating Manual

IN-ROW CONFIGURATION
Top view
hot aisle
SERVER SERVER
OR OTHER OR OTHER
CABINET CABINET
cold aisle

2.2 HANDLING

• The packaging guarantees the stability of the unit during shipping and physical transfer.
• The unit must remain in a vertical position during all shipping and handling operations.
• Ensure that the floor is strong enough to support the weight of the unit.
• Carry the packaged unit as close as possible to the installation site.
WARNING! HEAVY WEIGHT!
Move the unit using a fork lift truck taking the utmost caution at all times.
The unit MUST be handled by at least two people. The people MUST take position at the sides of
the UPS with respect to the direction of movement.
Do not move the unit by putting pressure on the front door.
When moving the unit on even slightly sloping surfaces, use the locking equipment and braking
devices to ensure that the unit does not fall over.
WARNING!
The following instructions must be carried out prior to moving the unit (after initial positioning).
Failure to heed this warning could result in the unit falling over, equipment damage, injury and even
death
WARNING! RISK OF TIPPING OVER!
The six feet must be secured evenly to ensure the unit is stable.
Tightening torque 450 lb.in
Recommended diameter of screws
5/8"
Operating modes 'MODULYS GP' 100 kW UL - Ref.: IOMMODGPXX09-EN 03
free area
SERVER SERVER
UPS OR OTHER OR OTHER
CABINET CABINET
130°
door
free area
Front view
SERVER SERVER
OR OTHER OR OTHER
CABINET CABINET
Ø43/64"
SERVER SERVER
UPS OR OTHER OR OTHER
CABINET CABINET
25"3/32
EN 9
