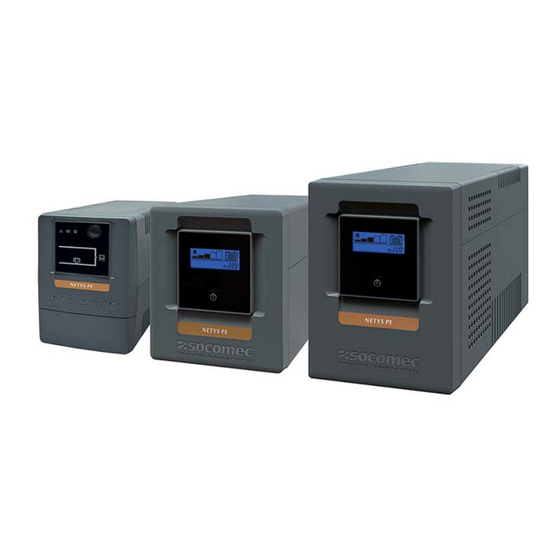

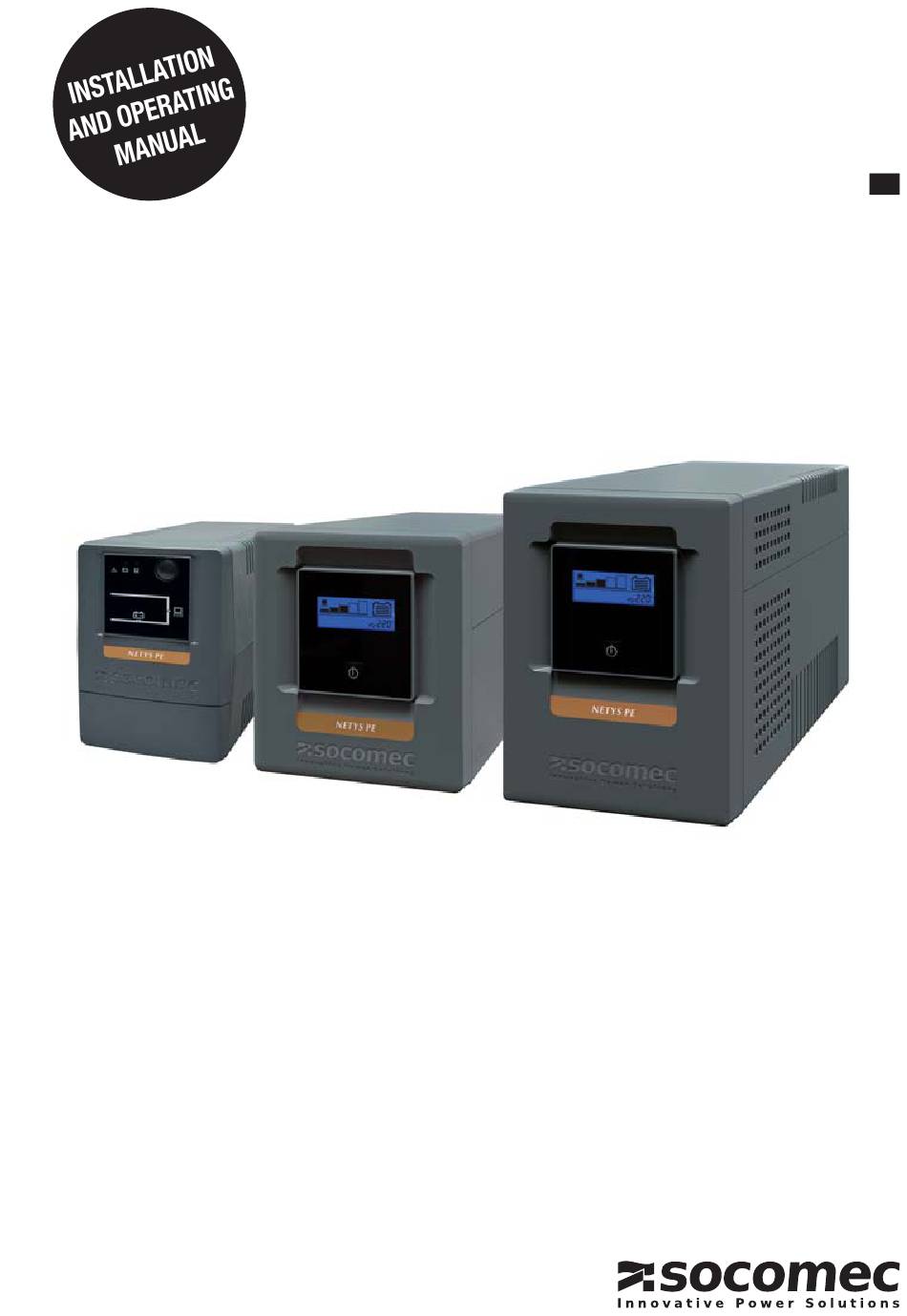

- Page 1 NETYS PE 600 - 2000 VA www.socomec.com...
- Page 2 These conditions are subject to Italian law. Disputes shall come under the jurisdiction of Court of Vicenza. SOCOMEC UPS retains the full and exclusive ownership rights over this document. Only a personal right to utilize the document for the application indicated by SOCOMEC UPS is granted to the recipient of such document. All repro- duction, modification, dissemination of this document whether in part or whole and by any manner are expressly prohibited except upon Socomec’s express prior written consent.
-
Page 3: Table Of Contents
CONTENTS 1. SAFETY STANDARDS 1.1 IMPORTANT INFORMATION ..........4 1.2 DESCRIPTION OF SYMBOLS . -
Page 4: Safety Standards
• Used batteries must be disposed of at authorised waste disposal centres. CAUTION Users should be aware that any changes or modifications not expressly approved by Socomec could void invalidate authorisation to operate the equipment. • If the appliance is to be scrapped contact a specialist waste disposal company which will dismantle and dispose of the various components in accordance with legislation in the country of purchase. -
Page 5: Description Of Symbols
CAUTION IF DAMAGED. NON-SPILLABLE BATTERIES. Crushed, damaged or ripped packages displaying their contents should be placed in an isolated area and inspected by a qualified person. If a package is unshippable the contents must be promptly gathered together, segregated, and the consignor or consignee contacted. All packaging material must be recycled in compliance with legislation in the country where the system is installed. -
Page 6: Requirements For Installation
2. REQUIREMENTS FOR INSTALLATION 2.1 ELECTRICAL REQUIREMENTS • Check the operating voltage and frequency settings are correct for the mains power supply at the installation site. Details on the technical specification page. • When using the UPS for the first time, it is advisable to leave the battery on charge for a minimum of 8 hours. •... -
Page 7: Front Rear View
4. FRONT REAR VIEW Input socket Output sockets NETYS PE 600 VA Input socket Output sockets NETYS PE 650-850 VA YELLOW LED flashing: BATTERY MODE (mains absent or abnormal) - load protected GREEN LED lit: NORMAL MODE - load protected (mains OK) Alarm Intermittent every 10 seconds: BATTERY MODE... - Page 8 USB port Input socket NTP data line suppressor Output sockets NETYS PE 1000 VA USB port NTP data line suppressor Input socket Output sockets NETYS PE 1500-2000 VA 1000 VA - LCD 1500 VA - LCD 2000 VA - LCD Load present Load level (5 steps) Battery level:...
-
Page 9: Modes Of Operation
5. MODES OF OPERATION 5.1 SWITCHING THE UPS ON Note: The UPS will only switch on if the battery has enough charge. 5.1.1 SWITCHING THE UPS ON WITH MAINS PRESENT Switch the UPS on by pressing the ON/OFF button on the front panel. All LEDs will light up and the buzzer will sound for few seconds before the green LED remains lit. -
Page 10: Solutions To Minor Problems
6. SOLUTIONS TO MINOR PROBLEMS Optimal unit operation is obtained by keeping it constantly powered (24 hours a day). This guarantees correct mainte- nance of the battery charge. WARNING! The UPS generates hazardous electrical voltages internally. All maintenance must only be performed by authorised personnel. If there is difficulty in getting the UPS to work, the reason may be among those listed below. -
Page 11: Battery Replacement
7. BATTERY REPLACEMENT For authorised personnel only! • Servicing of batteries should be performed or supervised by personnel knowledgeable about batteries and required precautions. • When replacing batteries, replace with the same type and number of batteries or battery packs. CAUTION Do not dispose of batteries in a fire. -
Page 12: Technical Specifications
11.2 kg 12 kg HEAD OFFICE YOUR DISTRIBUTOR / PARTNER SOCOMEC GROUP *IOMNETPEXX09-EN 00* SAS SOCOMEC capital 10 633 100 € R.C.S. Strasbourg B 548 500 149 B.P. 60010 - 1, rue de Westhouse F-67235 Benfeld Cedex IOMNETPEXX09-EN 06, 2018 Tel.
