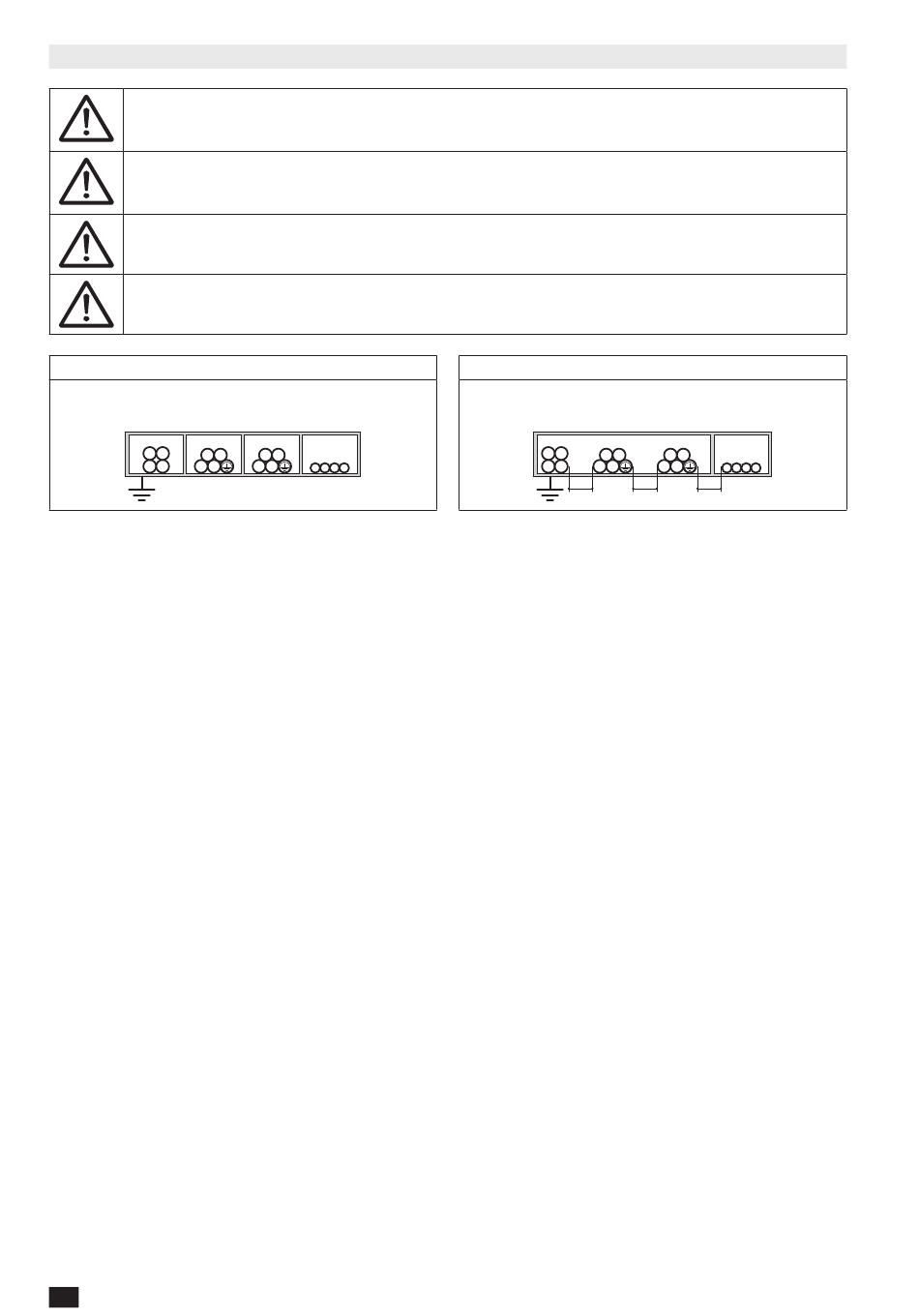

3.2 CABLE POSITIONING
WARNING!
The cables must be installed on trays according to the following diagrams. The trays must be
positioned near the UPS.
WARNING!
All metal and suspended ducts or those in raised flooring MUST be connected to earth and to
the various cabinets
WARNING!
Power cables and control cables MUST NEVER be installed in the same duct.
WARNING!
Risk of electromagnetic interference between battery cables and output cables.
Correct installation
Acceptable installation
Common
Control
Common
Control
(1)
(1)
Battery
Mains
Load
cables
Battery
Mains
Load
cables
N
N
N
N
≥0.3 ft
≥0.3 ft
≥0.3 ft
1. Control cables: connections between the cabinets and each unit, alarm signals, remote mimic panel, connection to the BMS
(Building Management System), emergency stop, connection to generator.
12
EN
Operating modes 'MODULYS GP' 100 kW UL - Ref.: IOMMODGPXX09-EN 03
