5.2 POWER AND BYPASS MODULE INSERTION

Note!
Before carrying out any operations on the unit read the 'Safety standards' chapter carefully.
WARNING! RISK OF TIPPING OVER!
Before carrying out any operations, ensure the UPS is secured at the feet.
WARNING! RISK OF TIPPING OVER!
The six feet must be secured evenly to ensure the unit is stable.
WARNING! RISK OF TIPPING OVER!
The modules must be inserted from the bottom upwards and removed from the top downwards
to ensure the unit remains stable.
WARNING!
Before removing any module, ensure that the remaining power modules can support the load.

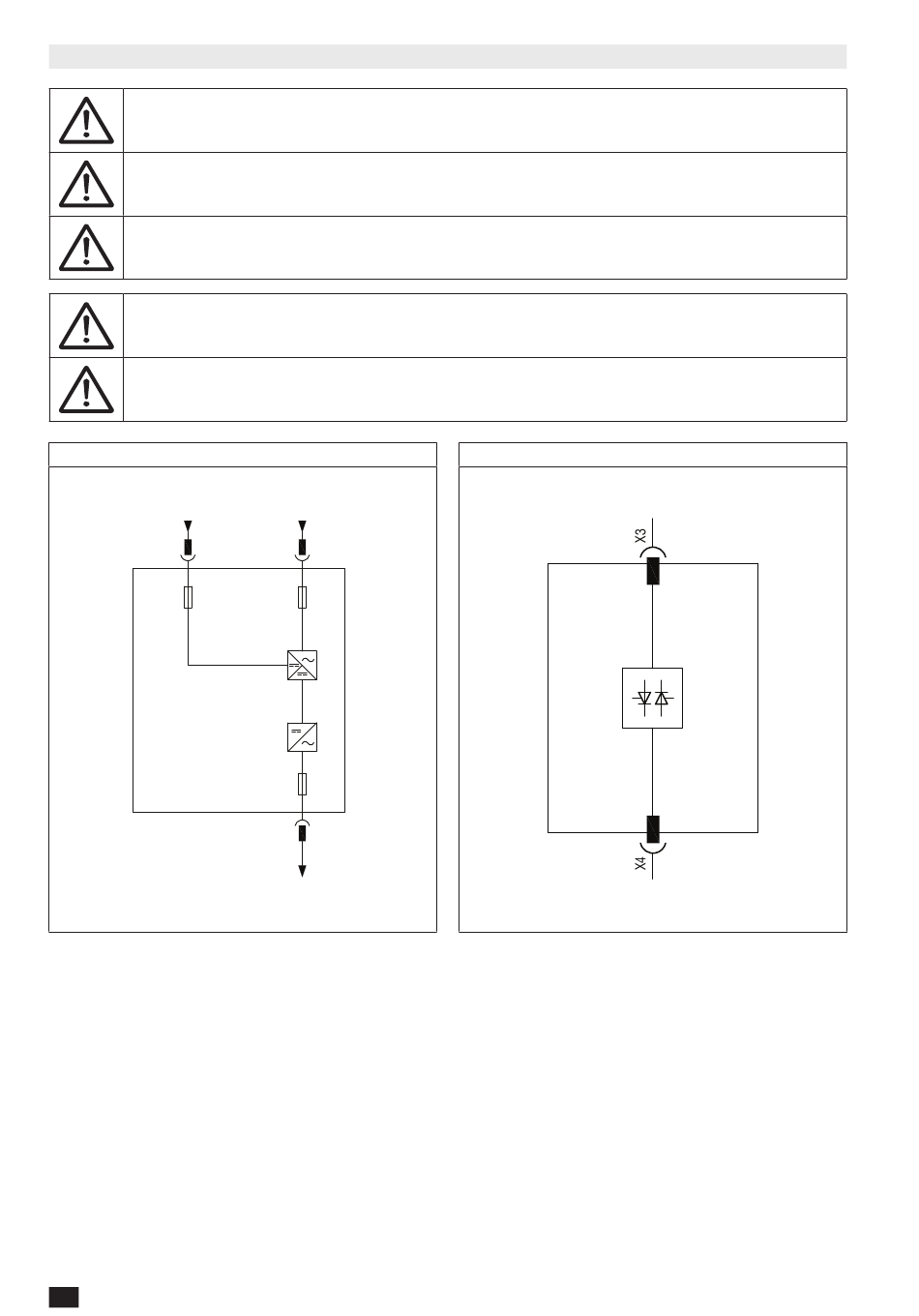

Power module electrical diagram
INPUT BATTERY
+/-400 Vdc 3 W
X1
F1/F2
80 A
18 EN
INPUT MAINS
400 Vac 3ph+N 50 Hz
X1
F3/F4/F5
80 A
F6/F7/F8
80 A
X2
400 Vac 3ph+N 50 Hz
UPS OUTPUT
Bypass module electrical diagram
AUXILIARY MAINS
400 Vac 3ph 50 Hz
400 Vac 3ph 50 Hz
UPS OUTPUT
