Summary of Contents for socomec PDU 16

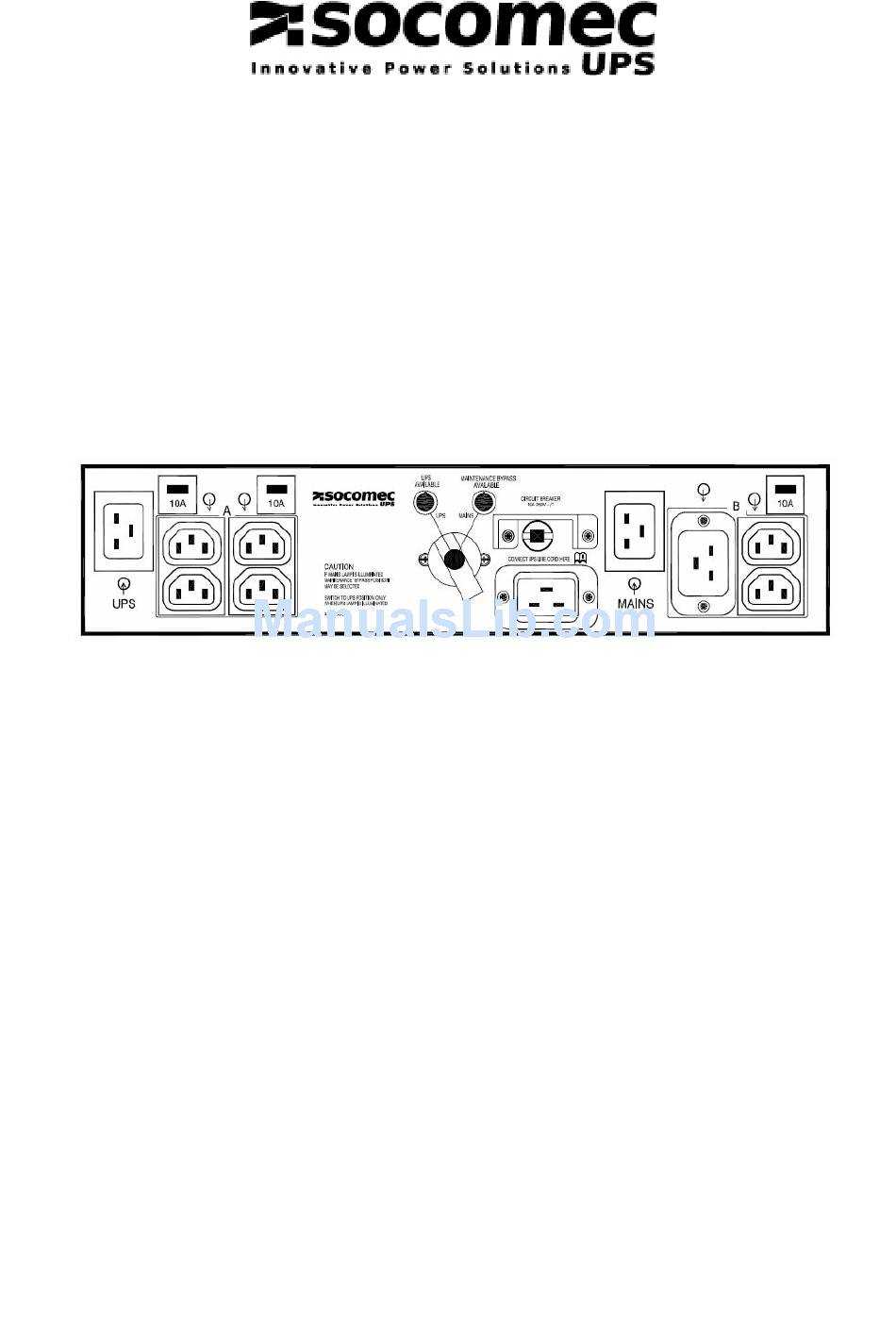

- Page 1 PDU 16 OPERATING MANUAL...
-
Page 2: Table Of Contents
INDEX CERTIFICATE AND CONDITIONS OF WARRANTY SAFETY INTRODUCTION AND SYSTEM DESCRIPTION RACK MOUNT INSTALLATION INDICATOR LAMPS OPERATION TECNICAL DATA TROUBLESHOOTING... -
Page 3: Certificate And Conditions Of Warranty
During the warranty period, SOCOMEC UPS may, at its discretion, decide to repair the product or replace the defective parts with new parts or with used parts that are equivalent to new parts in terms of functions and performance. -
Page 4: Safety
Adhere to all warnings on the unit and in this manual. Follow all operating and user instructions. Turn the UPS off and unplug the PDU 16 before cleaning. Use only a soft cloth, never liquid or aerosol cleaners. The UPS and PDU 16 are designed for data processing equipment. Do not plug laser printers or appliances, such as hair dryers, heaters, vacuum cleaners, or electrical drills, into the UPS output sockets. -
Page 5: Glossary Of Symbols
Consult the manual for additional information MAINS lamp indicates local power is available and the load may be MAINS transferred to bypass [A05] 5/11 SOCOMEC UPS - Chap. Page THIS MANUAL IS PROPERTY OF ANY TOTAL OR PARTIAL REPRODUCTION IS STRICTLY FORBIDDEN... -
Page 6: Introduction And System Description

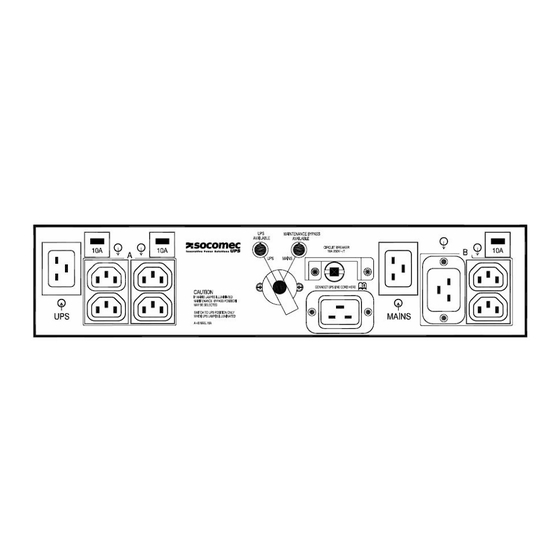

(pdu16.02.01) Congratulations on your choice of the PDU 16. The PDU 16 provides maintenance bypass capability as well as power output distribution. The PDU 16 can be used on UPSs in the rack mount or tower configuration. The PDU 16 provides an isolated path of power for your UPS system for preventive maintenance or service. -
Page 7: Rack Mount Installation
(shipped with the PDU) See Figure 4. The rack mount brackets allow you to rack mount the PDU 16 in a 19” enclosure (23” to 19” rack adapters would have to be purchased separately if you are using the 23” or equivalent cabinet). -
Page 8: Operation
Green lamp Orange lamp Output power available from UPS MAINS power present Rotary switch Figure 5 Indicator lamps on PDU 16 8/11 Chap. Page SOCOMEC UPS - THIS MANUAL IS PROPERTY OF ANY TOTAL OR PARTIAL REPRODUCTION IS STRICTLY FORBIDDEN... -
Page 9: Transfer To Maintenance Bypass
(pdu16.05.02) To transfer to UPS from maintenance bypass (mains), use the following steps: Reconnect the UPS to the PDU 16. Start the UPS according to the instructions in the UPS user manual. Verify that UPS lamp (green) on the PDU 16 is illuminated. If so, transfer the rotary bypass switch from MAINS to UPS. -
Page 10: Tecnical Data
Electrical Rating This PDU 16 is intended for use with a UPS meeting all the following requirements: • UPS input cord is compatible with the rating and type of socket on the PDU 16 labeled “CONNECT UPS LINE CORD HERE”. •... -
Page 11: Troubleshooting
Mains not present. Call qualified service personnel to restore power to socket. illuminated. Input cord not connected to mains. Refer to PDU 16 installation instructions in this manual. UPS Available lamp (green) not UPS output power not present. Turn on UPS. Refer to UPS user manual.
