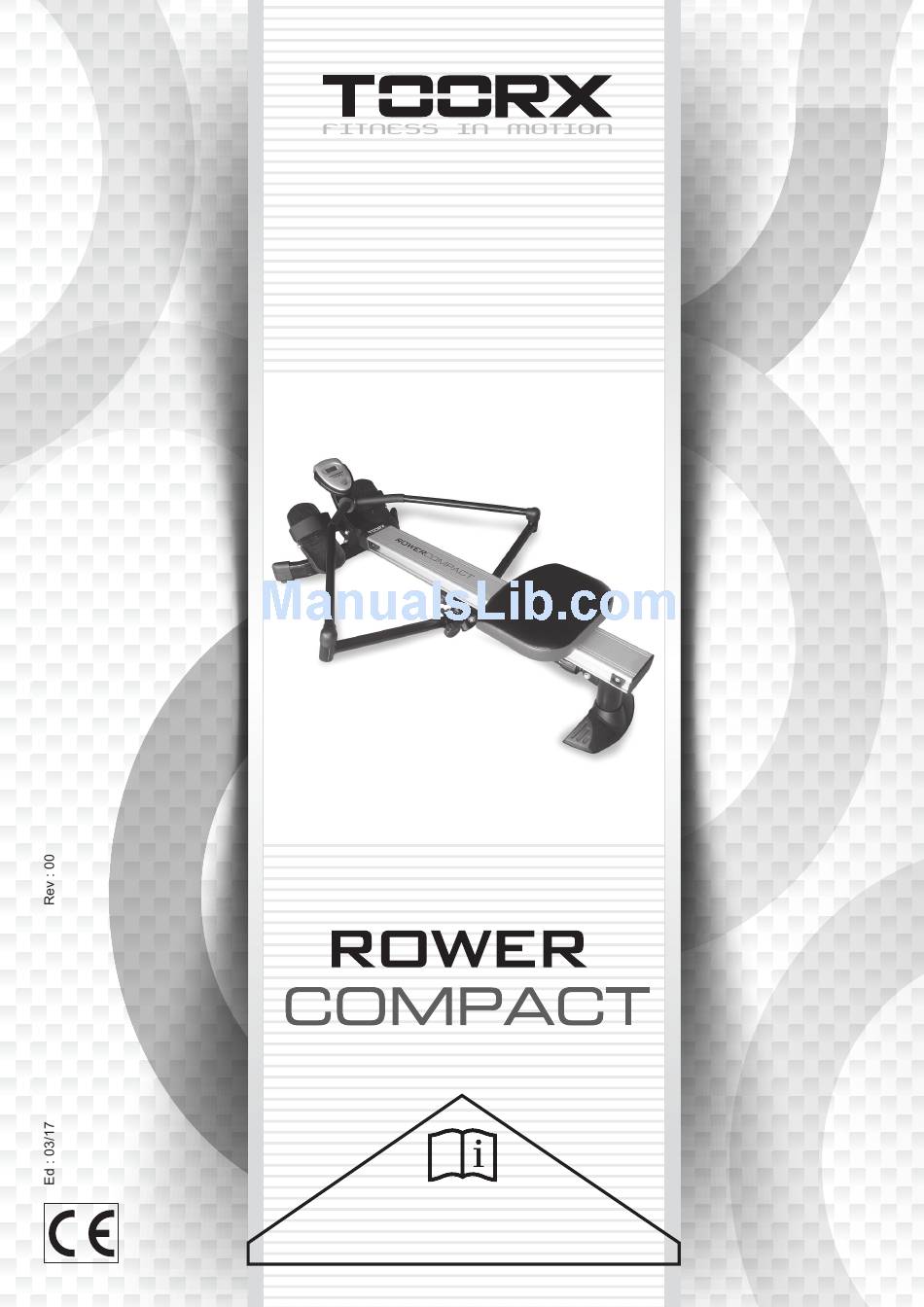

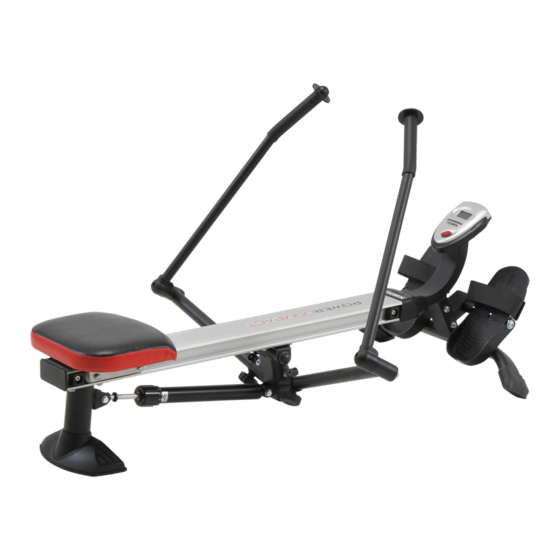

  • Page 1 INSTRUCTION...

  • Page 2: Center Beam

    BEFORE YOU BEGIN Thank you for choosing the RowerMachine. We take great pride in producing this quality product and hope it will provide many hours of quality exercise to make you feel better,look better, and enjoy life to its fullest. It's a proven fact that a regular exercise program can improve your physical and mental health.

  • Page 3: Seat Stopper

    ASSEMBLY INSTRUCTIONS STEP 1 Lay the Main Frame Assembly on the floor as shown in the illustration. Now refer to the inset drawing .Make sure the Key Rib in the STABILIZER CAP(5) aligns with the slot in the REAR SUPPORT(4), then press the STABILIZER CAP(5) onto the REAR SUPPORT(4). STEP 2 Connect the EXTENSION WIRE(39) to the SENSOR WIRE(40).
  • Page 4 ASSEMBLY INSTRUCTIONS STEP 4 Insert the Bracket on FRONT STABILIZER(28) into the FRONT SUPPORT(26) and secure with BUTTON HEAD BOLTS(M8x1.25x15mm)(51) and WASHERS(M8)(59). STEP 5 Press the FRONT COVER(24) onto the FRONT SUPPORT(26).

  • Page 5: Pivot Connector

    ASSEMBLY INSTRUCTIONS STEP 6 Insert the PEDAL SHAFT(32) through holes located on the FRONT SUPPORT(26). Slide a PEDAL SPACER(33) and a PEDAL CAP(34) onto each end of the PEDAL SHAFT(32). Then secure the PEDAL CAPS(34) with BUTTON HEAD BOLTS(M8x1.25x15mm)(51) and LARGE WASHERS(M8)(36) at both ends of the PEDAL SHAFT(32).

  • Page 6: Locking Knob

    ASSEMBLY INSTRUCTIONS STEP 8 Unfold the HANDLEBARS(17, 18) and the EXTENSION ARMS(14) as shown in the illustration. Attach the EXTENSION ARMS(14) to the PIVOT CONNECTOR(10) with the LOCKING KNOBS(13). STEP 9 Install two AA batteries into the METER(37). See page 12 for detailed battery installation instructions. Connect the EXTENSION WIRE(39) to the METER(37).
  • Page 7 ASSEMBLY INSTRUCTIONS STEP 10 Slide the SEAT ASSEMBLY(42, 43) into the CENTER BEAM(1). Attach the SEAT STOPPERS(3) to back end of the CENTER BEAM(1) with BUTTON HEAD BOLTS(M8x1.25x25mm)(53), WASHERS(M8) (59), and NYLOCK NUTS(M8x1.25)(38). STEP 11 Press the CENTER BEAM CAP(2) into the back end of the CENTER BEAM(1).
  • Page 8 OPERATIONAL INSTRUCTIONS USING THE FITNESS METER POWER ON : Seat movement or press the button. POWER OFF : Automatic shut off after four minutes of inactivity. MODE/RESET BUTTON: Press to select display functions, include SCAN, TIME, COUNT,TOTAL COUNT, and CALORIE. Press and hold for four seconds to reset all functions to zero, except TOTAL...
  • Page 9 LOAD ADJUSTMENT The resistance of the shocks can be adjusted by twisting the adjustment knob at the top of the shocks. There are settings from 1 to 12. Setting #1 will provide the lowest resistance. Setting #12 will provide the highest resistance. CAUTION: The shocks get HOT after a few minutes of use.

  • Page 10: Right Handlebar

    STORAGE To store the Rower Machine , simply keep it in a clean dry place. To avoid damage to the electronics meter, remove the batteries before storing the Rower Machine for one year or more. Grasp the Front and Rear Stabilizer to move the Rower Machine . Do not use the Seat to move the Rower Machine .
  • Page 11 PRODUCT PARTS DRAWING...

  • Page 12: Table Of Contents

    PART# PART NAME Center Beam Center Beam Cap Seat Stopper Rear Support Stabilizer Cap Stabilizer Pad Threaded Support Plate Handlebar Support Sensor Support Plate Pivot Connector Pivot Bushing Bumper Knob Locking Knob Extension Arm Extension Arm Bushing Large Washer (3/8”) Left Handlebar Right Handlebar Securing Cap...
  • Page 13 PART# PART NAME Screw, Round Head (M3.5 x 15mm) Screw, Round Head (M5 x 0.8 x 12mm) Bolt, Round Head (M6 x 1 x 14mm) Bolt, Button Head (M8 x 1.25 x 15mm) Bolt, Button Head (M8 x 1.25 x 20mm) Bolt, Button Head (M8 x 1.25 x 25mm) Bolt, Button Head (M8 x 1.25 x 55mm) Bolt, Hex Head (M8 x 1.25 x 32mm)
  • Page 14 GARLANDO SPA Via Regione Piemonte, 32 - Zona Industriale D1 15068 - Pozzolo Formigaro (AL) - Italy www.toorx.it - info@toorx.it...
