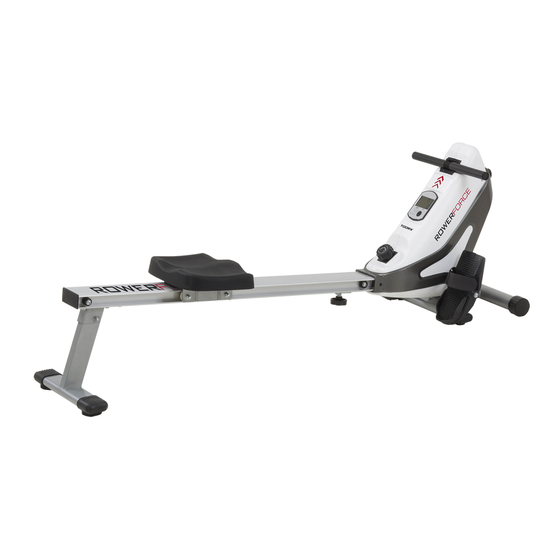

Summary of Contents for TOORX Rower Force

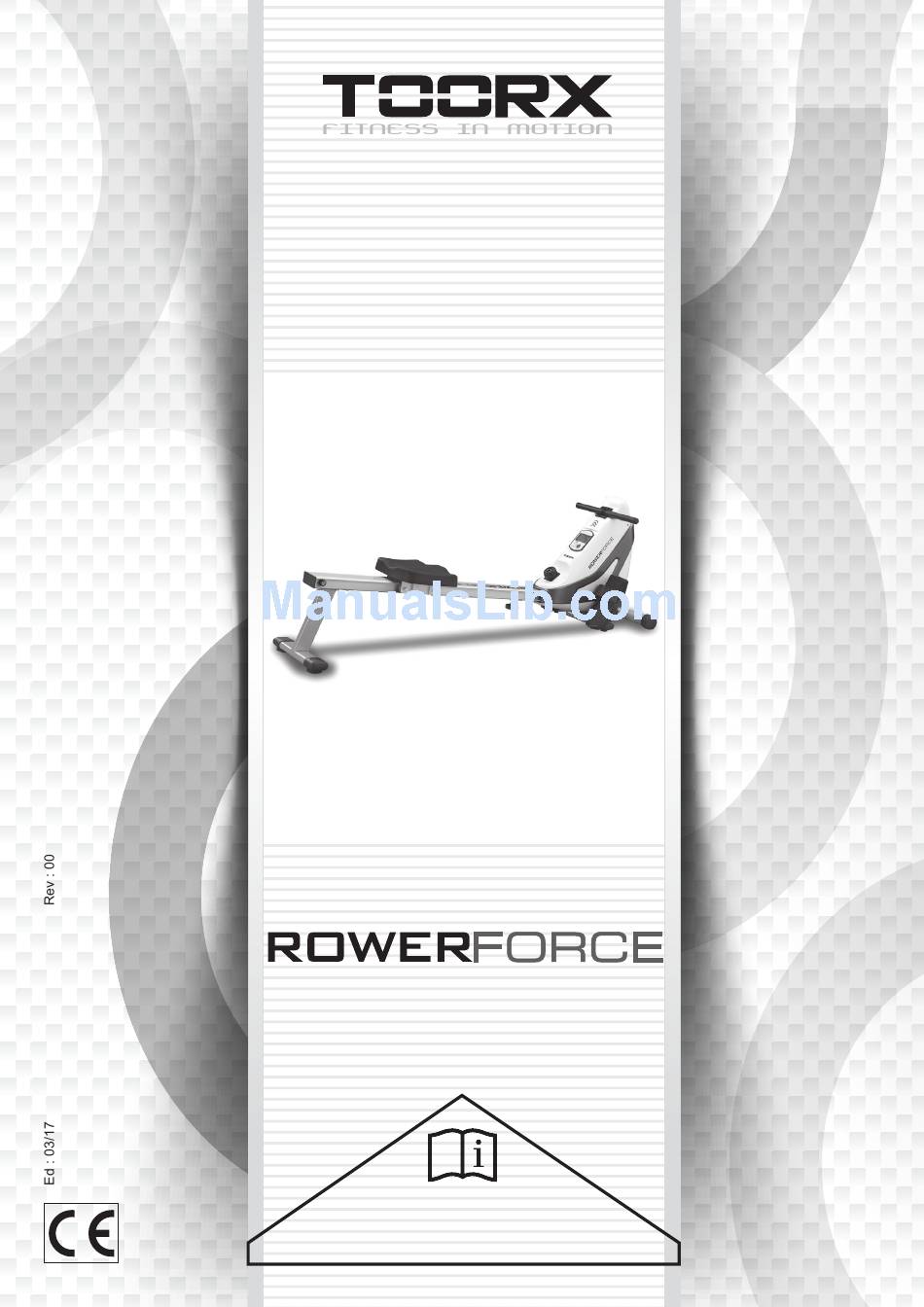

- Page 1 INSTRUCTION...
-
Page 2: Exploded Diagram
EXPLODED DIAGRAM... -
Page 3: Part List
PART LIST: DESCRIPTION Q'TY Bolt M8x40 Washer Bolt M8x15 Knob Rubber Cushion Bolt M8x40L Axle Wrench S5 Casing Main Frame Plate Bolt M8*15 Enforcement plate Plastic pad Bolt M8x55 Sleeve Plastic wheel Nut M8 Bolt M8*40 pully End cap Grip Heart rate transmitter Rowing handle bar Washer... - Page 4 Washer M8 Knob M8 x40 Enforcement plate Rear Stabilizer End cap Fasten plate Fasten plate End cap Main Rail Rubber Cushion Sensor wire of computer Bolt M8*30 Wheel Sleeve Magnet Screws M3*10 Bolt M6*12 Saddle Support frame Saddle Right plastics Cover( right) Left plastics Cover(left) Bolt M6*30L Bearing 6900Z...
- Page 5 EXPLODED DIAGRAM...
-
Page 6: Assembly Information
Assembly Information S5 2PCS NOTICE • Read this manual before assembly • Recognize the spare parts first. • Check the hardware. • Ensure that you have the right tool. • Prepare an area to assemble. • Follow the instruction accordingly. •... - Page 7 II. Identify your hardware...
-
Page 8: Assembly Steps
Assembly Steps STEP 1:... - Page 9 STEP 2: Upright the main frame onto the Style foam to prevent from scratch on the plastic cover while mounting the front stabilizer to the main frame.
- Page 10 STEP 3: Loosen the knob (#29), and pull out the rear stabilizer (#31) as the direction of the arrow shown in Figure. Then lock the knob(#29) tightly in order to prevent any accident.
- Page 11 STEP 4:...
- Page 12 STEP 5: BATTERY: 1. The monitor uses on “AA” battery. You can replace the battery through the back of the unit. 2. Battery must be correctly positioned and make sure the battery spring is properly contact with battery. 3. If the display is illegible or only partial segment appeared. Please take out the battery and wait for 15 seconds, then reinstall it.
- Page 13 STORAGE WAY HOW TO FOLDING THE ROWING MACHINE machine Store your in a dry area away from children and high traffic areas as the illustration shown. be sure it is secure and cannot fall forward onto small animals or children. 2 Loosen the knob (#29) first, then pull the rear stabilizer (#31) out and fold down as follow illustration.
- Page 14 Tension Knob adjustment: You could adjust the tension for varied resistance as below: NOTE: You should begin your “Exercise Period” at the resistance level and speed to suit your needs. Remember to start out slow and easy and work your way up to the fitness level you desire.
- Page 15 THE OPERATION OF COMPUTER MODE: Allow to select each function PULSE: It indicates your pulse rate during the workout. It is just a reference data. COUNT/MIN: It displays how many strides in every minute. TIME: It indicates how long you have exercised SCAN:Automatically scans each function sequence of the 5 functions.
- Page 16 II. “MODE” button： This button lets you select and lock on to a particular display function you want．The monitor will be reset by changing battery or keep pressing the button for 3~4 seconds． III. During or after the exercise, press the “Mode” function to select the display function like SCAN, TIME, TOTAL COUNT, CALORIES, COUNT/MIN, THE COMPUTER WILL DISPLAY THE FUNCTION “COUNT”...
- Page 17 Keep pressing the button “MODE”, until the pointer locks on to the function "COUNT/MIN". It tells how many steps you exercise per minute. Keep pressing the button “MODE”, until the pointer locks on to the function "PULSE ". WARNING! Heart rate monitoring systems may be inaccurate. Over exercise may result in serious injury or death.
- Page 18 TRANSMISSION LED INDICATOR For checking operation of transmitter, the red LED indicator will flash indicating the transmitter is in operation. Adjust the Transmitter position to keep the LED indicator flashing consistently for accurate readings. TRANSMITTER BATTERY INSTALLMENT Slide the CR2032 battery at an angle and make sure during battery installation that the battery is first pressed against the side contact (positive electrode) and then pressed into the battery compartment.
- Page 19 Correct position of battery cover Conductive rubber Apply water/conductive gel here NOTICE Use water, ECG gel to other conductive liquids to moisten the conductive rubber skin contact. But do not use Vaseline or oils which may insulate the Transmitter making it unable to detect the heart rate signals.
- Page 20 GARLANDO SPA Via Regione Piemonte, 32 - Zona Industriale D1 15068 - Pozzolo Formigaro (AL) - Italy www.toorx.it - info@toorx.it...
