Assembly - Maxxus RunMAXX 9.1 Installation & Operating Manual

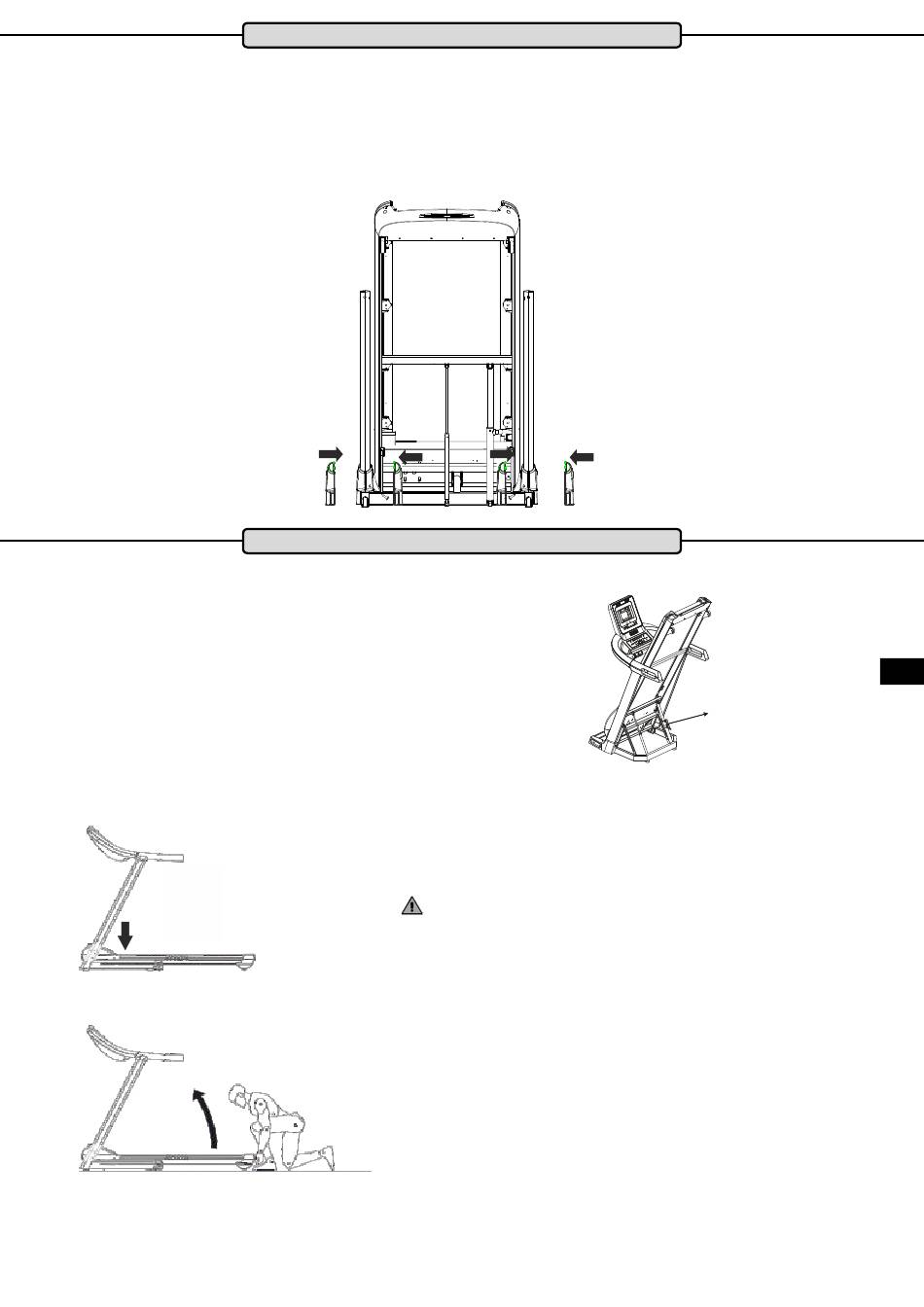

Step 5: Assembly of the Side-Frame Covers
Fold up the running deck on the base frame – see here also the section "Folding Up the Running Deck" in this
manual.
Now place the right and left side covers onto the left side-frame and fix them with a tapping screw 4x12.
Repeat this procedure with the right side-frame
Hydraulic Cylinder
The folding mechanism relies on hydraulic cylinders. These are
filled with oil and under high pressure. If a cylinder be damaged,
the safe folding of the treadmill deck is no longer guaranteed. It
must then be replaced before raising the treadmill deck again.
This treadmill is equipped with a folding mechanism. To save
space, fold the treadmill deck up and down as follows:
Incline = 0%
Figure similar to the treadmill!

Assembly

Folding Mechanism
Folding up the Treadmill Deck
Step 1:
Make sure that the deck incline level is at "0", switch the treadmill
off at the main switch and remove the mains plug from the socket.
CAUTION:
Never fold up the treadmill deck without the incline in "0" position
or without switching it off.
Step 2:
Hold onto the rear end of the treadmill deck and lift it upwards.
Make sure that you are standing with your feet firmly on the
ground.
7
ENG
Hydraulic Cylinder
