Assembly - Maxxus RunMAXX 9.1 Installation & Operating Manual

Carefully unpack all delivered parts. Have someone there to help you as some of the training device parts are
bulky and heavy.
Check that all the parts and fixing materials (screws, nuts, etc.) have been delivered.
Assemble the parts carefully as any damages or defects occurring due to mistakes made at the time of assem-
bly are not covered by the warranty or guarantee. Therefore, read through the assembly instructions carefully
before you start assembling, follow each assembly step exactly as described and keep to the correct sequence
of assembly as instructed. Assembly of the training device must be carried out thoroughly by adults only.
Assemble the training device in a location which is level, clean and clear of obstructions. 2 people are required
to carry out the assembly. Training can only start when the training device has been fully assembled.

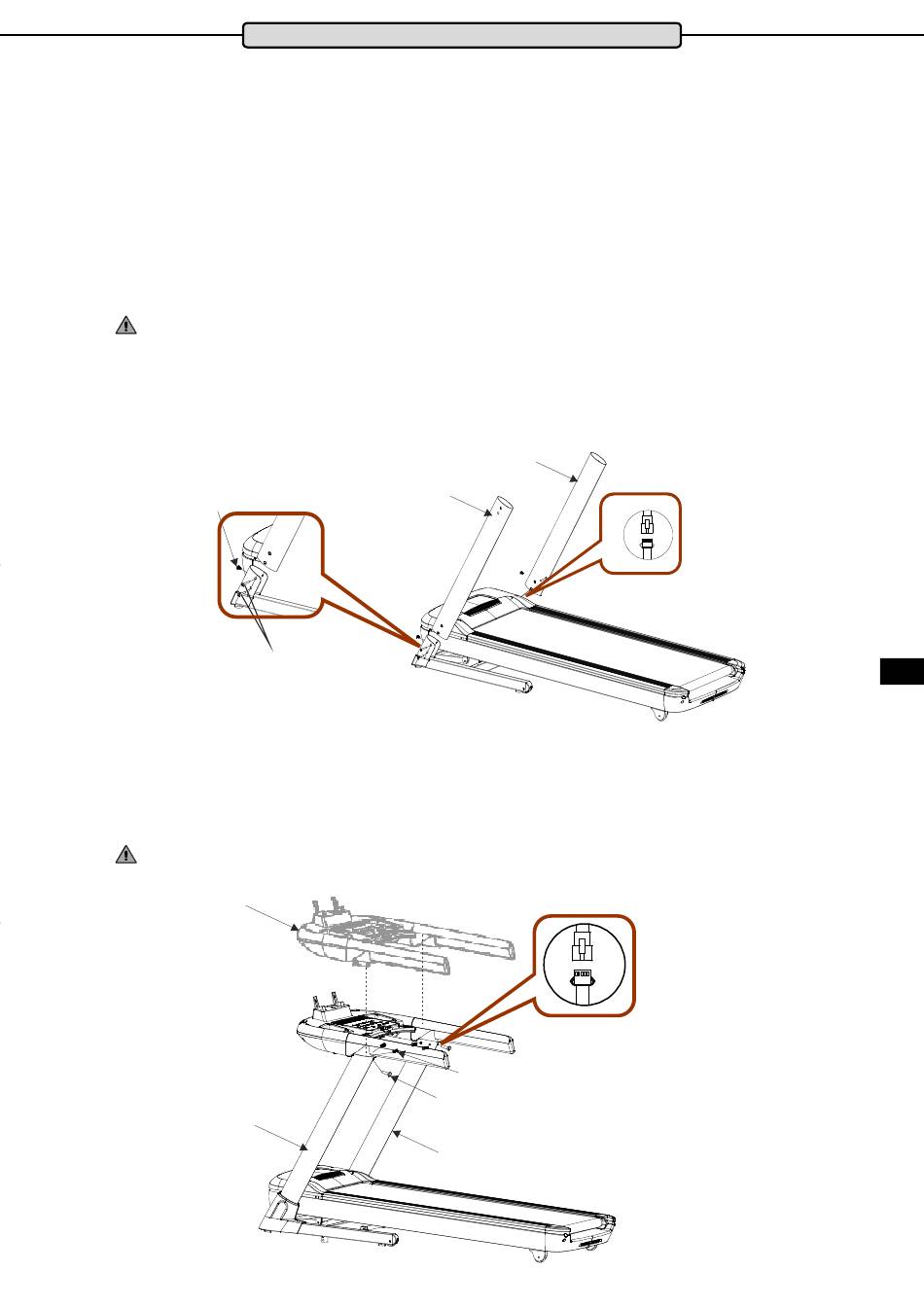

Step 1: Assembly of the Side Frames
Connect the cable that protrudes down from the right side-frame with the cable that comes out of the base
frame. Insert the right side-frame into the base frame and secure it laterally with two hexagon socket screws
M8x60 and from the front with a hexagon socket screws M8x20.
CAUTION: Make sure that the cable does not get damaged or jammed.
Repeat this procedure to assemble the left side frame (Note: there are no cable connections on this side).
Hexagon
Socket Screw
M8x20
Hexagon Socket Screw
M8x60
Step 2: Assembly of the Cockpit Frame
Connect the cables protruding out of the right side -frame with the cable protruding out of the right cockpit hand-
rail. Place the cockpit frame from above onto the side frames. Carefully fix this on the inside of the side-frame
using two hexagon socket screws M8x15 on each side Then also fix an M8x30 screw to the back of the side-
frames. Tighten these screws very carefully and not too tight so as not cause deformation to the side-frames.
CAUTION: Make sure that the cable does not get damaged or jammed.
Cockpit frame
Side Frame, left

Assembly

Side Frame, right
Side Frame, left
Hexagon Socket Screw, M8x15
Hexagon Socket Screw, M8x30
Side Frame, right
5
ENG
