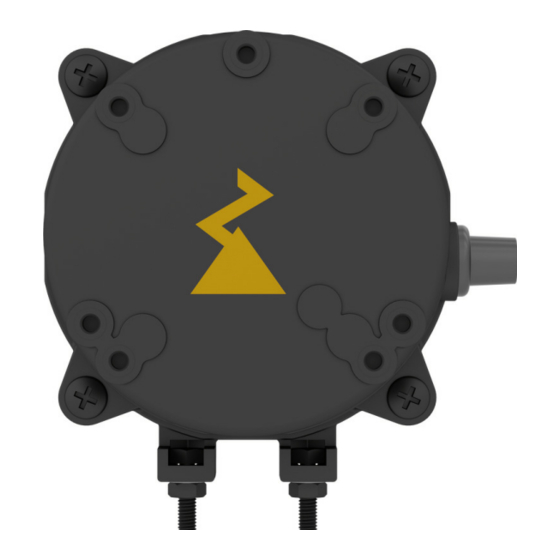

ECQ
Motor size U
Electronically commutated motors for the
drive of fans
Assembly instructions
L-BAL-F071-GB 1642 Index 001
Keep for reference!
Part.-No. 00703698-GB
english

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ECQ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ZIEHL-ABEGG ECQ

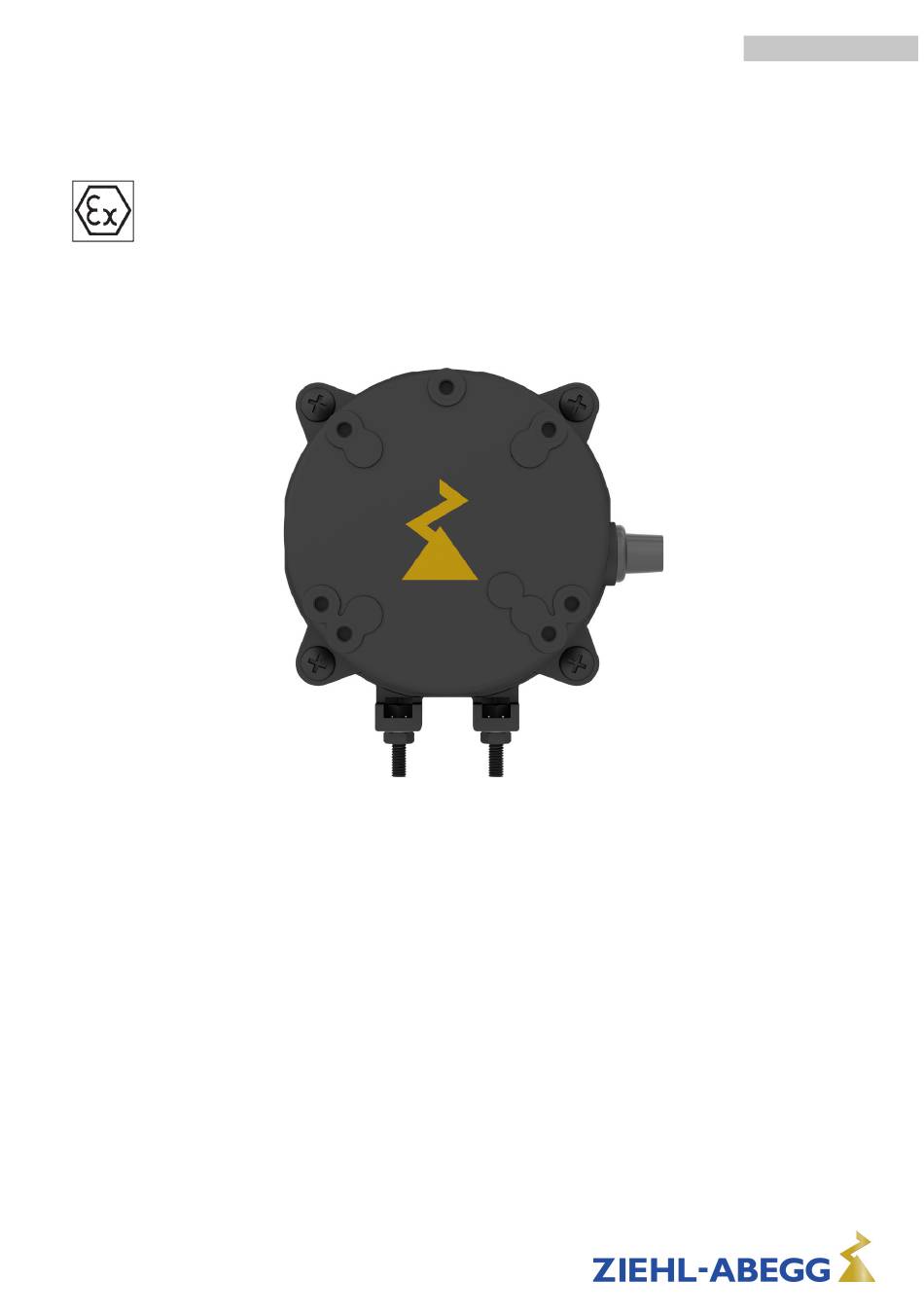

  • Page 1 english Motor size U Electronically commutated motors for the drive of fans Assembly instructions Keep for reference! L-BAL-F071-GB 1642 Index 001 Part.-No. 00703698-GB...
  • Page 2: Table Of Contents

    Assembly instructions ECQ Content General notes ..........
  • Page 3: General Notes

    General notes 1 General notes 1.1 Validity This document is valid for ECQ motors of motor size U (060) with the following type designations (see rating plate): MI060-4QN.05.N1, MI060-4QN.05.N2, MI060-4QN.05.N3, MI060-4QN.05.N4 In the case of motors with a quality mark (see rating plate), please note the related specifications depending on the application location!
  • Page 4: Safety Instructions

    Assembly instructions ECQ Safety instructions 2 Safety instructions This chapter contains instructions to prevent personal injury and property damage. These instructions do not lay claim to completeness. In case of questions and problems, please consult our company technicians. 2.1 Explanations of symbols Safety instructions are highlighted with warning triangles and are depicted according to the degree of hazard as follows.
  • Page 5: Requirements Placed On The Personnel / Due Diligence

    Assembly instructions ECQ Safety instructions 2.3 Requirements placed on the personnel / due diligence Persons entrusted with the planning, installation, commissioning and maintenance and servicing in connection with the frequency inverter must have the corresponding qual- ifications and skills for these jobs.
  • Page 6: Product Overview

    3.2 Functional description ECQ motors from ZIEHL-ABEGG are highly efficient, electronically commuted motors (EC) with an integrated controller. They are designed exclusively for driving axial fans. The motors are designed for continuous operation (S1-operation) and are thermally protected.
  • Page 7: Motor Protection

    Assembly instructions ECQ Product overview Motors with three speeds • Three pre-programmed speeds are possible ( rating plate) which are activated depending on the connection of the additional control input at “L1” or “N”. • With the “Motor Programmer” (accessory) and a PC with the appropriate software, individual speeds and the rotation direction can be programmed.
  • Page 8: Installation

    • The maximum permissible mass of the impeller or the component to be driven is 0.3 kg. Greater masses must be inquired about at ZIEHL-ABEGG and confirmed in writing. •...
  • Page 9: Connection Lead & Terminal Box

    Assembly instructions ECQ Installation Dimensions [mm] 03060-NN01 04.09.2014 Tightening torque of fixings: M4 nuts at through bolts: 1.2 – 1.6 Nm M4 impeller screw: 1.2 – 1.6 Nm M4 insert nuts: 1.1 - 1.5 Nm; screw depth max. 5.5 mm M4 nuts for bracket: 1.2 –...
  • Page 10: Connection Of The Motor

    Assembly instructions ECQ Installation 4.3 Connection of the motor Danger due to electric current • The mains voltage must comply with the EN 50160 quality characteristics and the defined standard voltages in IEC 60038! • Connect fan only to electrical circuits that can be disconnected with an all-pole isolating switch.
  • Page 11: Start-Up

    Assembly instructions ECQ Start-up Danger due to electric current • Connection to the 3 ~ 230 V line between two phases is not permitted! • A dangerous voltage (maximum line voltage) is applied at the black connecting wire (speed control input) when it is not used (speed 1). Therefore this wire must be connected to a terminal for insulation.
  • Page 12: Service Work

    – Maintenance interval in accordance with the degree of contamination of the impeller! • The connecting cable may only be changed by authorised ZIEHL-ABEGG SE personnel. Information The fan or motor is maintenance-free due to the use of ball bearings with “life-time lubrication”.
  • Page 13: Enclosure

    Assembly instructions ECQ Enclosure 7 Enclosure 7.1 Technical data Line voltage* 1 ~ 230 V, 50/60 Hz rating plate) 1 ~ 120 V, 50/60 Hz Power consumption (P1) Version with one speed: max 18 W Version with three speeds: max. 34 W...
  • Page 14 Assembly instructions ECQ Enclosure For motors with one speed and corresponding quality mark (see rating plate) Authorization: FILE No. UL 1004-7 E347018 Electronically-Protected Motor - Component For motors with three speeds and corresponding quality mark (see rating plate) Authorization: FILE No.
  • Page 15: Eu Declaration Of Conformity

    Assembly instructions ECQ Enclosure EU declaration of conformity - Translation - (english) ZA97ex-GB 1616 Index 001 Manufacturer: ZIEHL-ABEGG SE Heinz-Ziehl-Straße 74653 Künzelsau Germany The manufacturer is solely responsible for issuance of the declaration of conformity. The products: • Internal rotor motors MI060-4QN.05.N1, MI060-4QN.05.N2, MI060-4QN.05.N3 and MI060-4QN.05.N4...
  • Page 16 Assembly instructions ECQ Enclosure Compliance with the EMC Directive 2014/30/EU and the ATEX Directive 2014/34/EU only applies to these products if they have been connected and installed according to the assembly and operating instructions. If these products are integrated into a system or completed and operated with other components (e.g.
  • Page 17: Manufacturer

    If you have any questions about how to use our products or if you are planning special applications, please contact: ZIEHL-ABEGG SE Heinz-Ziehl-Straße D-74653 Künzelsau Phone 07940/16-0 Fax 07940/16-300 info@ziehl-abegg.de 7.4 Service address Please refer to the homepage at www.ziehl-abegg.com for a list of our subsidiaries worldwide. L-BAL-F071-GB 1642 Index 001 Part.-No. 00703698-GB 17/17...
