Hope Industrial Systems HIS-ML21 User Manual

21.3" panel mount industrial monitor
Hide thumbs Also See for HIS-ML21:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

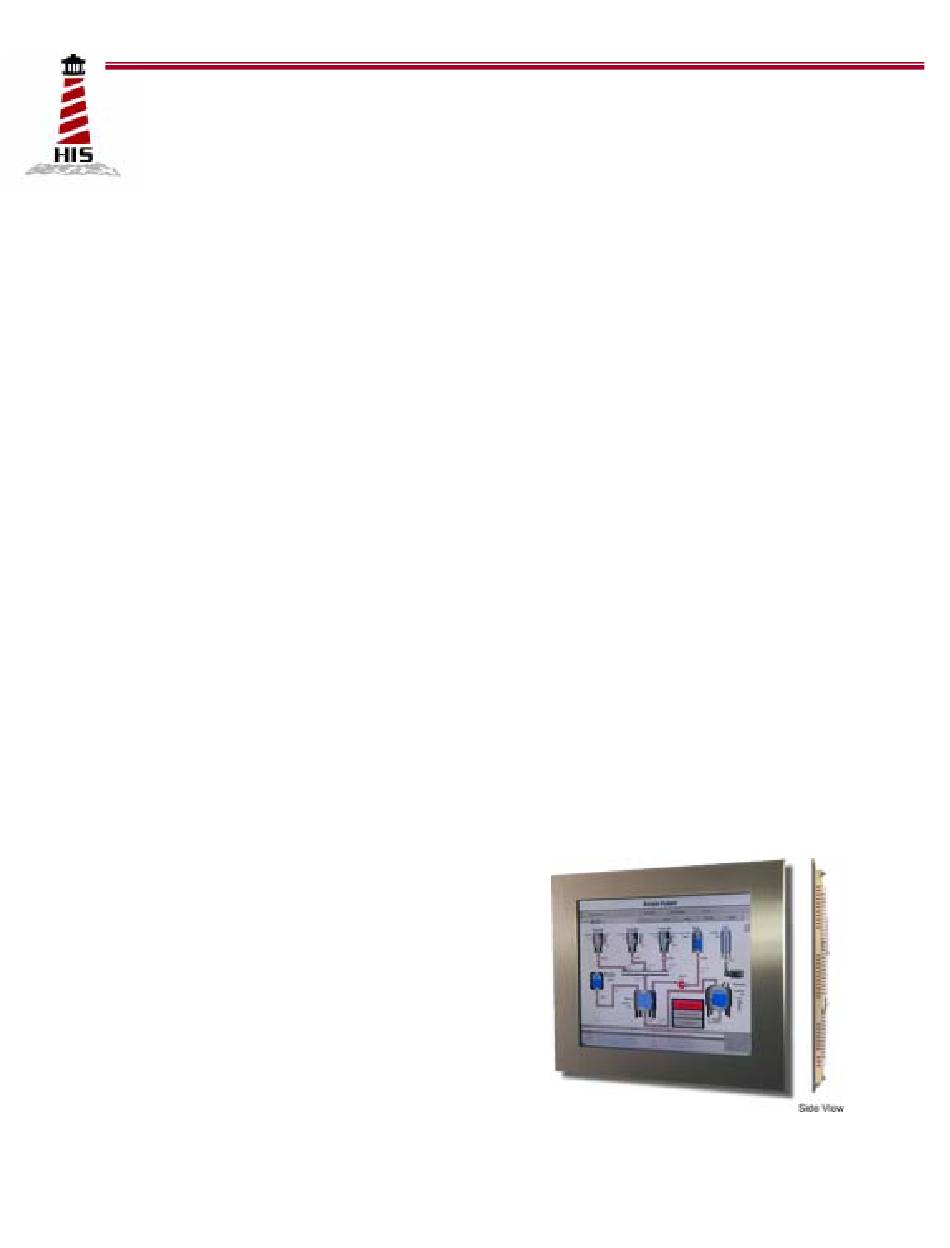

Hope Industrial Systems, Inc.
User Manual
21.3" Panel Mount Industrial Monitor
Model No. HIS-ML21
1
Copyright 2003 Hope Industrial Systems, Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HIS-ML21 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hope Industrial Systems HIS-ML21

Summary of Contents for Hope Industrial Systems HIS-ML21

  • Page 1 Hope Industrial Systems, Inc. User Manual 21.3” Panel Mount Industrial Monitor Model No. HIS-ML21 Copyright 2003 Hope Industrial Systems, Inc.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Safety and Regulatory Information ..........3 Using the LCD Display Setting the Timing Mode ............. 4 Self-Test Feature Check ............. 4 User Controls ..............5 Automatic Save..............6 Direct Access Features............6 OSD Lock/Unlock..............6 OSD Functions..............7 Power Saver ..............

  • Page 3: Safety And Regulatory Information

    Safety and Regulatory Information Warning To prevent fire or shock hazard, do not expose the unit to rain or moisture. Dan- gerously high voltages are present inside the unit. Do not disassemble the unit. Refer servicing to qualified personnel only. This equipment is not intended for use in critical applications where its failure to operate would create immediate life threatening circumstances.

  • Page 4: Using The Lcd Display

    Using the LCD Display Setting the Timing Mode Setting the timing mode on the PC is important for maximizing the quality of the screen image and minimizing eye strain. The timing mode consists of the resolution (example 1280 x 1024) and refresh rate (or vertical frequency; example 75 Hz). After setting the timing mode, use the controls to adjust the screen image.

  • Page 5: User Controls

    4. Turn off your monitor and reconnect the video cable; then turn on both your com- puter and the monitor. If your monitor screen remains blank after following the previous procedure, check your video controller and computer system; your monitor is functioning properly. User Controls Your LCD monitor allows you to easily adjust the characteristics of the image being dis- played.

  • Page 6: Automatic Save

    Automatic Save Whenever you open the OSD and allow an adjustment window to remain active for about 3 seconds without pressing other buttons, the monitor automatically saves any adjustment you have made. These changes are saved into a user area in the monitor. The monitor can save adjustments for up to 4 user modes.

  • Page 7: Osd Functions

    Accessing the menu system 1. Push the Menu button to display the main OSD menu. 2. Use the "– , +" buttons to move from one function to another. As you move from one icon to another, the Function Name changes. See the Table starting on the next page to view a complete list of all of the functions available for the monitor.
  • Page 8 Menus and Icon Function Descriptions Sub-menus Although “Auto Adjustment” automatically finds the optimum values of FINE and COARSE parameters as well as images position, it may be necessary for you to adjust those parameters manually. It is recom- mended for you to use “Auto Adjustment” first. If the adjustment results are not satisfactory, then use COARSE and FINE adjustment features to get the best adjustment results.
  • Page 9 Menus and Icon Function Descriptions Sub-menus Geometry Replace H-Position and V-Position values with the factory default values Color Replace R, G and B values with the factory default values. Mode 1, Mode 2 and User Mode will be initialized. Image Effect Performs digital image quality compensation.

  • Page 10: Powersaver

    Menus and Icon Function Descriptions Sub-menus PC Source 2: PC Video Signal Digital (DVI) Video Source 1: Normal Composite Video Signal (RCA) Video Source 2: Super Video Signal (S-Video) The method for changing source is the same as PIP. Information Shows information about the current video signal, including the fol- lowing Video signal type: Analog/Digital...

  • Page 11: Troubleshooting

    *This monitor is EPA ENERGY STAR® compliant and NUTEK compliant when used with a computer equipped with VESA DPMS functionality. For energy conservation, turn your monitor OFF when you are not using it or when leaving it unattended for long periods. NOTE: Maximum power consumption is measured after letting the monitor turned on for 30 minutes that is the time required for the unit to be thermally stable.

  • Page 12: Display Modes

    Display Modes If the signal from the computer system is the same as one of the monitor’s standard signal modes, the screen is adjusted automatically. If the signal from the computer is not the same as one of the standard signal modes, the screen may not display properly or it may not display at all.

  • Page 13: Installation Instructions

    3. Ensure that the air temperature around the unit (top and bottom) will not exceed the rated specifi- cations of the unit. ° ° " The maximum rated temperature of the HIS-ML21 is 50 C (122 F) with the fan kit installed and with use of an equally rated power supply.

  • Page 14: Cleaning

    Installation into Panel Refer to the drawing above. Locate position in panel for mounting of the monitor. Assure that there is adequate space begin the panel. Allow extra space (0.5 in. behind and on each side) for air ventilation. Cut a rectangular hole in the panel. Clean and deburr. Dimensions: 21.13”...

  • Page 15: Drawings

    Drawings Front View Bottom and Rear View (Showing cutout dimensions)

  • Page 16: Specifications

    Specifications Display Type Thin-film transistor (TFT) Active Matrix Liquid Crystal Size 21.3” diagonal Image size 17.00” (432mm) x 12.75” (324mm) Native resolution SXGA (1600 x 1200) @ 60 Hz Plug and Play DDC1/2B compatible Minimum resolution VGA (640 x 480), operation in native resolution will ensure best results Pixel pitch 0.27mm (H) x 0.27 mm (V)
  • Page 17 Functional Panel controls (rear ac- Power (soft), Menu, Exit, -, +, Auto, PIP, Source cess) OSD (On Screen Display) Auto image adjust, contrast, brightness, color adjust controls (9300K, 6500K-default, 5400K, 5000K, user color), manual image adjust (H/V size/position, fine tune, sharpness, scal- ing), setup menu (language, resolution notice, OSD posi- tion, OSD timeout, OSD background), memory recall) Touch screen option...

  • Page 18: Warranty Statement

    Warranty Statement Who is Covered? This warranty covers the purchaser of this product only and is not transferable without our written consent. What Does This Warranty Cover and What is the Period of Coverage? We warrant this product to be free from defects in material and workmanship, subject to the conditions set forth below. This warranty remains in force for a three-year period beginning on the date we invoice you for the product.
