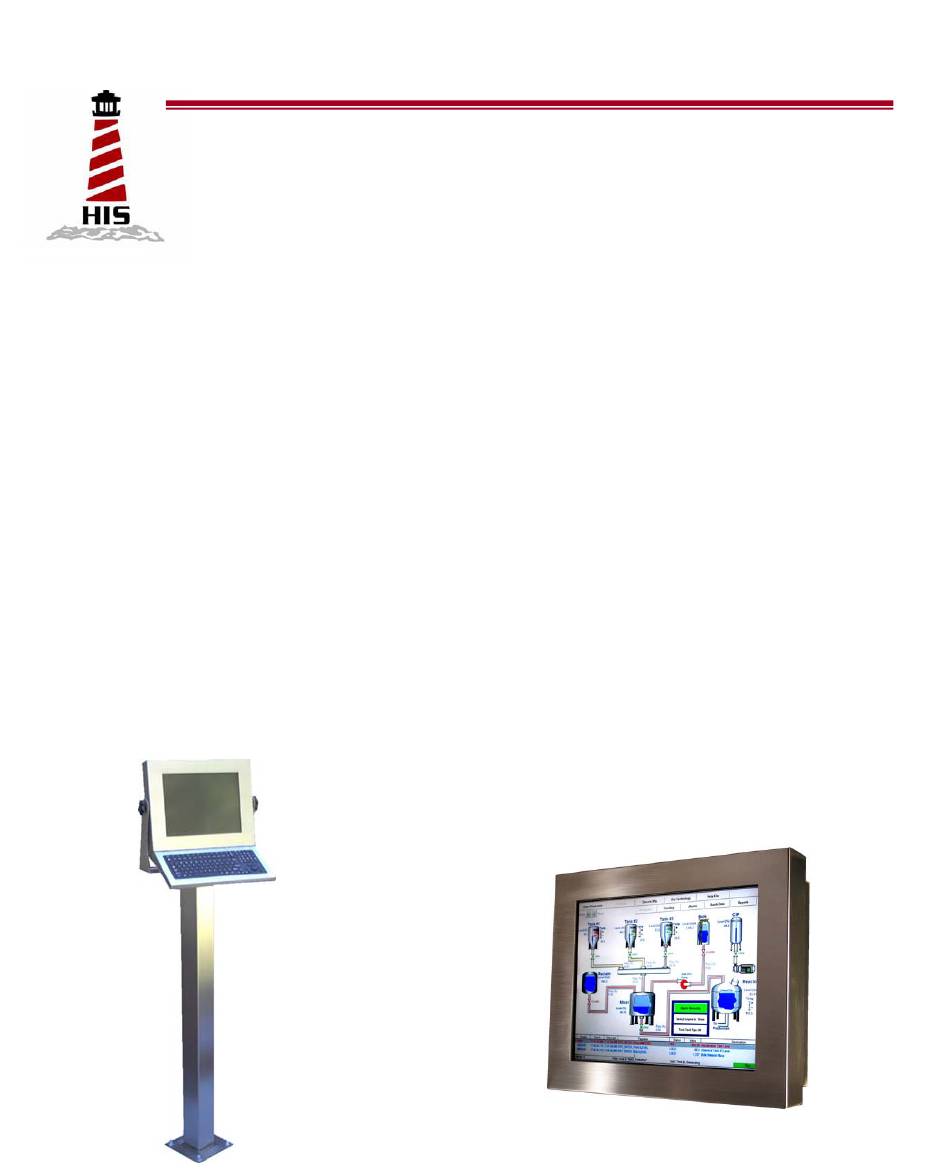

- Page 1 Hope Industrial Systems, Inc. User Manual 19” Universal Mount Industrial Monitor Model No. HIS-WL19-___A...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Safety and Regulatory Information ..........3 Using the LCD Display ..............4 Adjusting the Screen Image ............5 Main Menu Controls ............... 6 Installation Instructions ..............9 VESA Mounting ..............10 Yoke / Benchtop mounting ........... 11 Yoke / Pedestal mounting ............. -
Page 3: Safety And Regulatory Information
Safety and Regulatory Information Warning To prevent fire or shock hazard, do not expose the unit to rain or moisture. Dange- rously high voltages are present inside the unit. Do not disassemble the unit. Refer servicing to qualified personnel only. This equipment is not intended for use in critical applications where its failure to operate would create immediate life threatening circumstances. -
Page 4: Using The Lcd Display
Using the LCD Display Setting the Timing Mode Setting the timing mode is important for maximizing the quality of the screen image and minimizing eye strain. The timing mode consists of the r esolution (example 1280 x 1024) and r efr esh r ate (or vertical frequency;... -
Page 5: Adjusting The Screen Image
Adjusting the Screen Image Use the buttons on the rear control panel to display and adjust the On-Screen Display (OSD) controls which display on the screen. Do the following to adjust the screen image: To display the Main Menu, press button [1]. NOTE: All OSD menus and adjustment screens disappear automatically after about 30 seconds. -
Page 6: Main Menu Controls
Main Menu Controls ▲ and down ▼ buttons. Adjust the menu items shown below by using the up Control Explanation automatically sizes, centers, and fine tunes the video signal to Auto Image Adjust eliminate waviness and distortion. Press the [2] button to obtain a sharper image. NOTE: Auto Image Adjust works with most common video cards. - Page 7 displays the Manual Image Adjust menu. Manual Image Adjust controls are explained below: Manual Image Adjust adjusts the width of the screen image. Horizontal Size moves the screen image left or right. Horizontal Position moves the screen image up or down. Vertical Position sharpens focus by aligning the illuminated text and/or graphic characters.
- Page 8 displays the Resolution Notice menu shown below. Resolution Notice advises the optimal resolution to use. Resolution Notice allows you to move the on-screen display menus and control screens. OSD Position sets the length of time an on-screen display screen is displayed. For OSD Timeout example, with a “...
-
Page 9: Installation Instructions
Installation Instructions Preparing for Installation Important! Perform the following steps BEFORE Installation of the monitor into the panel. 1. Ensure that sufficient power is available. 2. Ensure that sufficient space is available to allow for proper airflow around the enclosure. 3. -
Page 10: Vesa Mounting
Installation using VESA mounting All units come standard with a 100mm square VESA mounting pattern with M4 threads. If this mounting method is used, consider the following: M4 screws should not protrude into the rear cover by more than ½”. ... -
Page 11: Yoke / Benchtop Mounting
Installation using the bench top mounting option 1. Prepare the mounting surface for installation of the bench mounting plate referring to the illustra- tion above. 2. Free the bench mounting plate from the assembly by removing the cotter pin, yoke locking nut and stainless steel washer. -
Page 12: Yoke / Pedestal Mounting
Installation using pedestal mounting option Prepare the mounting surface for installation of the pedestal by referring to the illustration above. Install the pedestal using appropriate hardware and methods for the mounting surface selected tak- ing strength, cable routing and sealing into consideration. - Page 13 Installation using pedestal mounting option (continued from previous page) Note: The ¾” conduit and other sealing hardware are not required for NEMA 12 monitors or NEMA 4/4X monitors with the 4-cable gland.
- Page 14 Installation using pedestal mounting option (Continued from previous page) Free the pedestal top plate from the assembly by removing the retaining screw, yoke locking nut, stainless steel washer and 4 ¼-20 screws. Position and support the monitor and yoke assembly so that cables exiting from the monitor can be easily routed into the top of the pedestal.
-
Page 15: Cleaning
Cleaning Resistive Touchscreen model Any standard glass cleaner can be used to clean the touchscreen. Always spray the glass cleaner on the cloth or towel and then clean the touchscreen. Glass cleaner sprayed directly on the monitor could possibly leak inside a non-sealed unit and cause damage. -
Page 16: Troubleshooting
Troubleshooting (when unit does not come with a KVM extender) Note: For troubleshooting with a KVM extender installed, please refer to the Instal- ler/User Guide that comes with that equipment. Blank Screen After installing the power adapter and connecting I/O cable to a PC, the monitor displays a blank screen. -
Page 17: Drawings
Drawings Front View... - Page 18 Bottom, Side and Rear View of NEMA 2 Model...
- Page 19 Bottom, Side and Rear View of NEMA 4/4X/12 Model...
-
Page 20: Specifications
Specifications Display Type Thin-film transistor (TFT) Active Matrix Liquid Crystal Size 19” diagonal Image size 14.8” (376mm) x 11.9” (301mm) Native resolution SXGA (1280 x 1024) @ 60 Hz Plug and Play DDC1/2B compatible Minimum resolution VGA (640 x 350), operation in native resolution (1280 x 1024) will ensure best results Pixel pitch 0.294mm (H) x 0.294 mm (V) - Page 21 Electrical Power Input 100 – 240 VAC, 50/60 Hz Power consumption Approximately 35 watts Power management DPMS/energy star, < 3W Compliance UL 1950, cUL 959; FCC Class A Environmental Temperature 0-45°C Humidity 20% to 90% non-condensing Shock 30g (1/2 sine, 11 msec.) Vibration 0.006 inch p-p 15-57Hz, 1.0g 57-640Hz sine Altitude...
- Page 22 Enclosure Type Self-contained, stainless steel Environmental rating NEMA 2 or NEMA 4/4X/12 (built to IP65 standards) Seal ¾” conduit or 4-cable gland Mounting VESA pattern 100mm square, M4 threads Optional Yoke mounting with ¼-20 internal thread interface Physical Depth 3.3” (84mm) for NEMA 2 and 5.7” (145mm) for NEMA 4/4X/12 Front bezel outside di- 18.4”...
-
Page 23: Warranty Statement
Warranty Statement Who is Covered? This warranty covers the purchaser of this product only and is not transferable without our written consent. What Does This Warranty Cover and What is the Period of Coverage? We warrant this product to be free from defects in material and workmanship, subject to the conditions set forth below. This warranty remains in force for a three-year period beginning on the date we invoice you for the product. - Page 24 Hope Industrial Systems, Inc. 1325 Northmeadow Parkway Suite 100 Roswell, GA 30076 www.HISmonitors.com 2005 Hope Industrial Systems, Inc. Publication UM-WL19-1.0 March, 2005...
