Hope Industrial Systems, Inc.
User Manual
21.3" Panel Mount Industrial
Monitor
Model No. HIS-ML21-SGAB, HIS-ML21-SRAB
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HIS-ML21-SGAB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Hope Industrial Systems HIS-ML21-SGAB

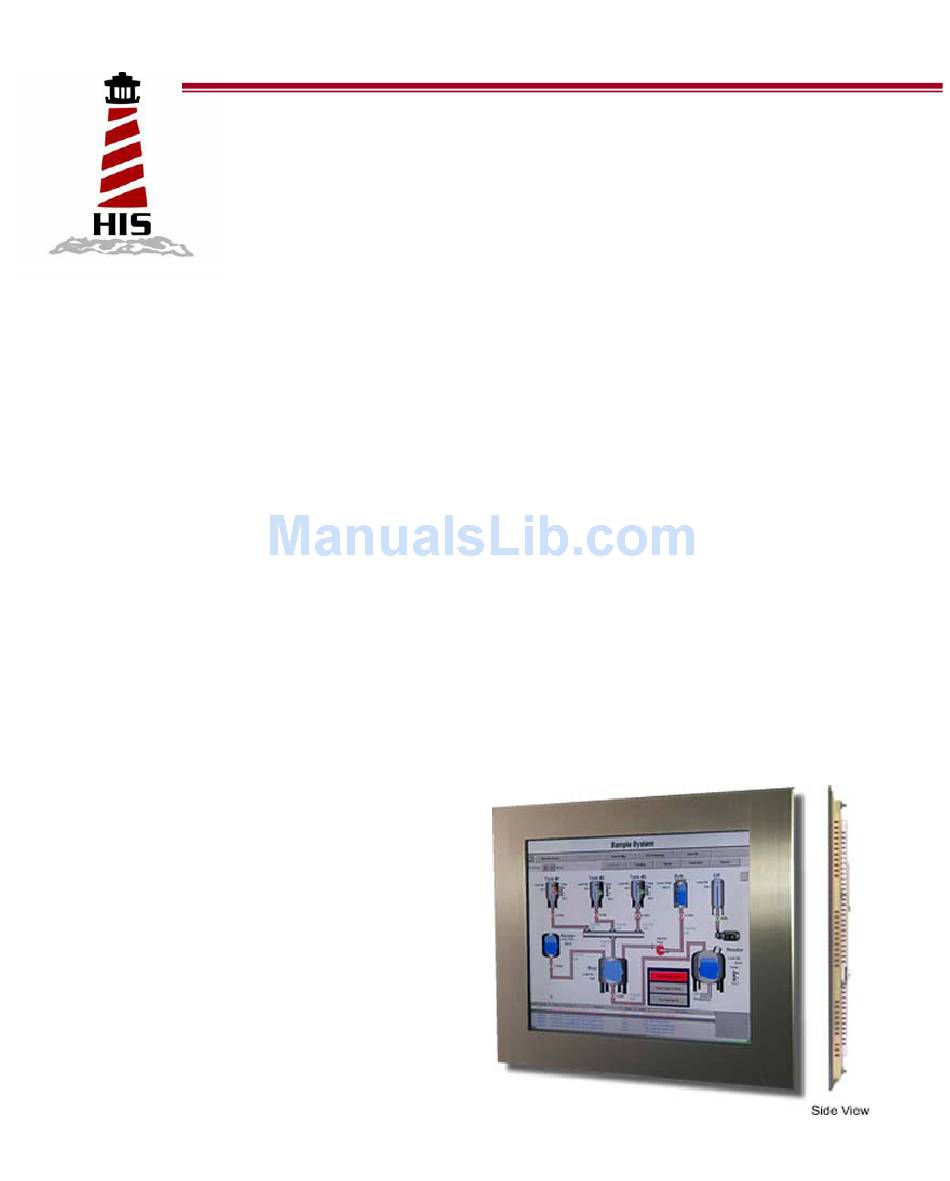

  • Page 1 Hope Industrial Systems, Inc. User Manual 21.3” Panel Mount Industrial Monitor Model No. HIS-ML21-SGAB, HIS-ML21-SRAB...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS Safety and Regulatory Information ......3 Using the LCD Display Setting the Timing Mode ........4 Self-Test Feature Check ........5 User Controls ............. 6 Automatic Save ..........7 Direct Access Features ........7 OSD Lock/Unlock ..........7 OSD Functions ...........
  • Page 3: Safety And Regulatory Information

    Safety and Regulatory Information Warning To prevent fire or shock hazard, do not expose the unit to rain or moisture. Dangerously high voltages are present inside the unit. Do not disassemble the unit. Refer servicing to qualified personnel only. This equipment is not intended for use in critical applications where its failure to operate would create immediate life threatening circums- tances.
  • Page 4: Using The Lcd Display

    Using the LCD Display Setting the Timing Mode Setting the timing mode on the PC is important for maximizing the quality of the screen image and minimizing eye strain. The timing mode consists of the resolution (example 1280 x 1024) and refresh rate (or vertical fre- quency;...
  • Page 5: Self-Test Feature Check

    Self-Test Feature Check (STFC) Your monitor provides a self-test feature that allows you to check whether your monitor is functioning properly. Make sure that PC is selected as a primary source by checking if the source indicator LED labeled “PC” is on. If your monitor and computer are properly connected but the monitor screen remains dark and the power indicator is blinking, run the monitor self-test by following the steps given below:...
  • Page 6: User Controls

    User Controls Your LCD monitor allows you to easily adjust the characteristics of the im- age being displayed. All of these adjustments are made using the control buttons on the rear of the monitor. While you use these buttons to adjust the controls, an OSD shows you their numeric values as they change.
  • Page 7: Automatic Save

    Automatic Save Whenever you open the OSD and allow an adjustment window to remain active for about 3 seconds without pressing other buttons, the monitor au- tomatically saves any adjustment you have made. These changes are saved into a user area in the monitor. The monitor can save adjustments for up to 4 user modes.
  • Page 8: Osd Functions

    OSD Functions Accessing the menu system 1. Push the Menu button to display the main OSD menu. 2. Use the "– , +" buttons to move from one function to another. As you move from one icon to another, the Function Name changes. See the Table starting on the next page to view a complete list of all of the functions available for the monitor.
  • Page 9 Menu How to adjust Adjust Brightness 1. Push the Menu button. 2. Push the Menu button to open the Brightness adjustment screen. 3. Use the [ + ] button to increase the brightness or [ - ] button to decrease the brightness.
  • Page 10 Menu How to adjust Removes noise such as vertical stripes. Coarse ad- justment may move the screen image area. You may relocate it to the center using the Horizontal Control menu. button 1. Push the Menu Image 2. Push the [ - ] button or [ + ] button until the screen is displayed.
  • Page 11 Menu How to adjust Follow these instructions to change the horizon- tal position of the monitor’s entire display. button 1. Push the Menu 2. Push the [ - ] button or [ + ] button until the Image screen is displayed. Push the Menu button to open the sub-menu selection screen.1...
  • Page 12 Menu How to adjust Image being displayed can be made to Sharpen, Medium or Soften. 1. Push the Menu button. 2. Push the [ - ] button or [ + ] button until the Image screen is displayed. 3. Push the Menu button to open the sub- menu selection screen.
  • Page 13 Menu How to adjust Bluish White button 1. Push the Menu 2. Push the [ - ] button or [ + ] button until the Color Control screen is displayed. Push the Menu button to open the sub- menu selection screen. 4.
  • Page 14 Menu How to adjust Follow these steps to adjust individual R,G,B color control. button 1. Push the Menu Color 2. Push the [ - ] button or [ + ] button until the Control screen is displayed. Push the Menu button to open the sub-menu selec- tion screen.
  • Page 15 Menu How to adjust Color parameters are replaced with the factory de- fault values. button 1. Push the Menu Color 2. Push the [ - ] button or [ + ] button until the Control screen is displayed. Push the Menu button to open the sub-menu se- lection screen.
  • Page 16 Menu How to adjust Change the horizontal position of the OSD menu button 1. Push the Menu OSD screen 2. Push the [ - ] button or [ + ] button until the is displayed. Push the Menu button to open the sub-menu selection screen.
  • Page 17 Menu How to adjust Change the opaqueness of the background of the OSD. button 1. Push the Menu 2. Push the [ - ] button or [ + ] button until the OSD screen is displayed. Push the Menu button to open the sub-menu selection screen.
  • Page 18 Menu How to adjust Change the color of the OSD. menu. button 1. Push the Menu 2. Push the [ - ] button or [ + ] button until the screen is displayed. Push the Menu button to open the sub-menu se- lection screen.
  • Page 19 Menu How to adjust Select Auto Source Select for the monitor to automatically select the signal source. Select Manual Source Select to manually select the signal source using the Source button. 1. Push the Menu button. 2. Push the [ - ] button or [ + ] button until the Source Select screen is displayed.
  • Page 20 Menu How to adjust Auto adjustment allows the monitor to self- adjust to the incoming video signal. The values of fine, coarse and position are adjusted auto- matically. 1. Push the Auto button. Menu How to adjust Push and hold in the Menu button for 5 seconds or more to Lock the OSD.
  • Page 21: Troubleshooting

    Troubleshooting If you have a problem setting up or using your LCD monitor, you may be able to solve it yourself. Before contacting customer service, try the suggested actions that are appropri- ate to your problem. What you see… Suggested Actions ...
  • Page 22: Display Modes

    Display Modes If the signal from the computer system is the same as one of the monitor’s standard signal modes, the screen is adjusted automatically. If the signal from the computer is not the same as one of the standard signal modes, the screen may not display properly or it may not display at all.
  • Page 23: Installation Instructions

    Installation Instructions Preparing for Installation Important! Perform the following steps BEFORE Installation of the monitor into the panel. 1. Ensure that sufficient power is available. 2. Ensure that sufficient space is available to allow for proper airflow into and out of the unit.
  • Page 24 Installation into Panel Refer to the drawing below. Locate position in panel for mounting of the monitor. Assure that there is adequate space begin the panel. Allow extra space (0.5 in. behind and on each side) for air ventilation. Cut a rectangular hole in the panel. Clean and deburr. Dimensions: 21.13”...
  • Page 25: Cleaning

    Cleaning Any standard glass cleaner can be used to clean the touch- screen or protective safety glass window. Always spray the glass cleaner on the cloth or towel and then clean the touch- screen. Glass cleaner sprayed directly on the monitor could possibly leak inside a non-sealed unit and cause damage.
  • Page 26: Drawings

    Drawings Front View Bottom and Rear View (Showing cutout dimensions)
  • Page 28: Specifications

    Specifications Display Type Thin-film transistor (TFT) Active Matrix Liquid Crystal Size 21.3” diagonal Image size 17.00” (432mm) x 12.75” (324mm) Native resolution SXGA (1600 x 1200) @ 60 Hz Plug and Play DDC1/2B compatible Minimum resolution VGA (640 x 480), operation in native resolution will ensure best results Pixel pitch 0.27mm (H) x 0.27 mm (V)
  • Page 29 Electrical 85-132 VAC / 170-265 VAC (47-63 Hz) Monitor input Power consumption 75 watts (max.) Power management DPMS/energy star, < 5W Compliance UL 1950, cUL 959; FCC Class A Environmental Temperature 0-50°C (with fan kit and equally rated power supply) Humidity 10% to 80% non-condensing Shock...
  • Page 30 Enclosure Type Panel mount; rear collar compresses gasket against panel, held by 14 10-32 studs Panel rating NEMA 12/4/4X (with proper installation) – built to IP65 stan- dards Physical Depth 2.01” (51mm) behind panel, fan kit adds another 1.1” Bezel Stainless Steel Front bezel outside di- 22.28”...
  • Page 31: Warranty Statement

    Warranty Statement Who is Covered? This warranty covers the purchaser of this product only and is not transferable without our written consent. What Does This Warranty Cover and What is the Period of Coverage? We warrant this product to be free from defects in material and workmanship, subject to the condi- tions set forth below.
  • Page 32 Hope Industrial Systems, Inc. 1325 Northmeadow Parkway Suite 100 Roswell, GA 30076 www.HISmonitors.com  2003 Hope Industrial Systems, Inc. Publication ML21-1.0 March 2003...
