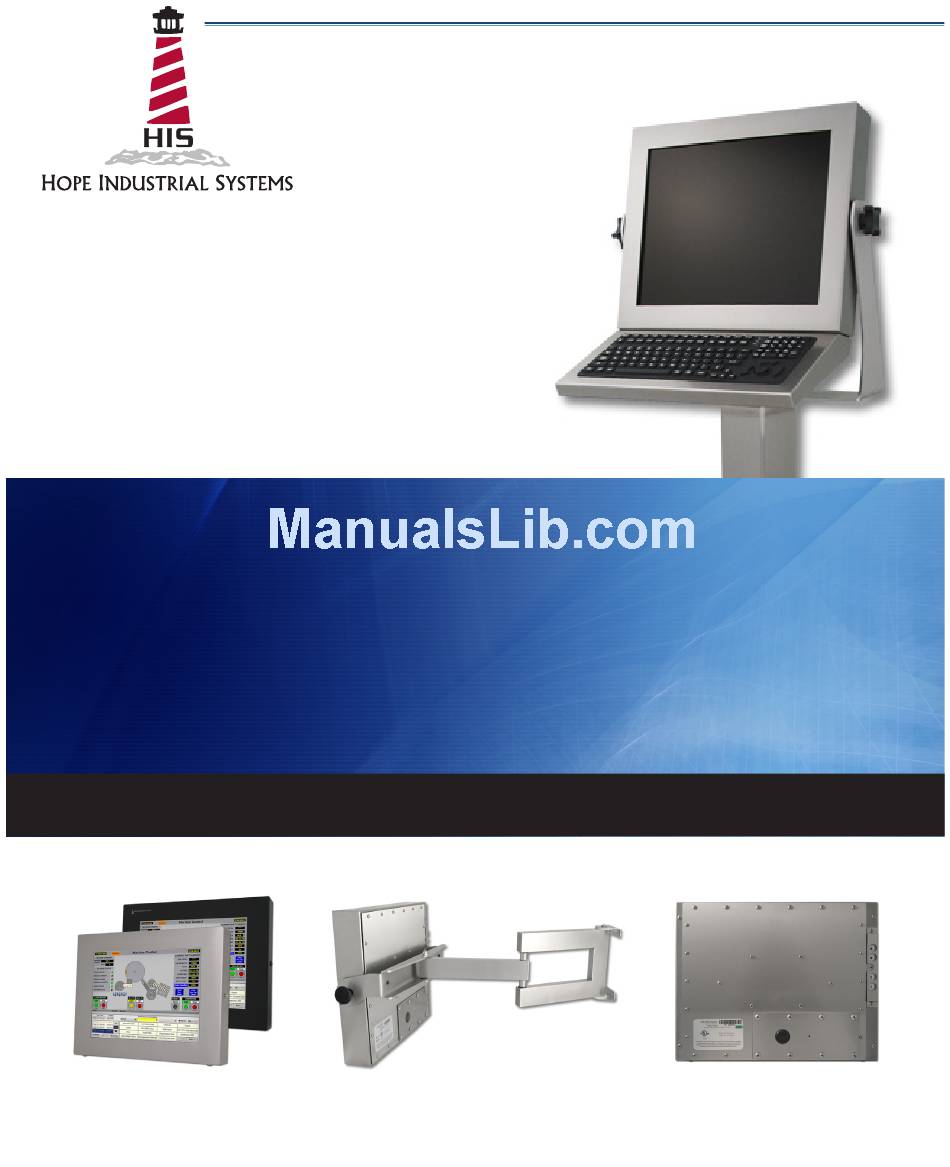

- Page 1 15" UNIVERSAL MOUNT INDUSTRIAL MONITOR REVISION H USER MANUAL Model No. HIS-UM15- _ _ _ H...
-
Page 2: Table Of Contents
Table of Contents Safety and Regulatory Information ��������������������������������������������������������������������������������3 FCC Notice ����������������������������������������������������������������������������������������������������������������������������� 3 Hazardous Locations �������������������������������������������������������������������������������������������������������������� 4 Waste Electrical and Electronic Equipment Directive (WEEE) ����������������������������������������������� 4 Mechanical Drawings ������������������������������������������������������������������������������������������������������5 Front View ������������������������������������������������������������������������������������������������������������������������������� 5 Rear View ������������������������������������������������������������������������������������������������������������������������������� 5 Side View �������������������������������������������������������������������������������������������������������������������������������� 6 Installation Instructions ��������������������������������������������������������������������������������������������������7 Step 1: Prepare for Installation ����������������������������������������������������������������������������������������������... -
Page 3: Safety And Regulatory Information
Safety and Regulatory Information Safety and Regulatory Information WARNING! To prevent fire or shock hazard, do not expose live components to rain or moisture. Dangerously high voltages are present inside the unit� Do not disassemble the unit� Refer servicing to qualified personnel only. This equipment is not intended for use in critical applications where its failure to operate would create immediate life threatening circumstances�... -
Page 4: Hazardous Locations
WARNING – EXPLOSION HAZARD – Substitution of any components may impair suitability for Class I, II & III, Division 2 Locations� NOTE: Hope Industrial Systems provides wiring and conduit that complies with the U.S. National Electric Code but cannot rate wiring or conduit methods for hazardous locations, as these must be locally inspected and approved�... -
Page 5: Mechanical Drawings
Mechanical Drawings Mechanical Drawings Front View 416.6 mm (16.40") 307.8 mm (12.12") 330.2 mm (13.00") 231.6 mm (9.12") Rear View 416.6 mm (16.40") 330.2 mm (13.00") 98.8 mm (3.89") CABLE ENTRY UM15H User Manual, 99142, July 2017... -
Page 6: Side View
Mechanical Drawings Side View 63.6 mm (2.50") 33.9 mm (1.34") 165.2 mm (6.50") Side Mounting Holes KVM EXTENDER 1/4"-20 Internal Thread (optional) x 0.625" Deep 116.8 mm (4.60") 168.8 mm (6.65") KEYBOARD (optional) UM15H User Manual, 99142, July 2017... -
Page 7: Installation Instructions
Installation Instructions Installation Instructions Step 1: Prepare for Installation IMPORTANT! Perform the following steps BEFORE installation of the monitor� 1� Ensure that sufficient power is available and a readily accessible disconnect device is incorporated in the building installation wiring. 2� Ensure that sufficient space is available to allow for proper air flow around the enclosure�... -
Page 8: Step 2: Bench-Test Configuration
If the video source has a 5 wire analog RGB video output, this can be converted for use with the VGA video port using a simple adapter� Certified adapters are available from Hope Industrial Systems. Contact our sales team for more information�... -
Page 9: Install Touch Screen Driver
Installation Instructions Power Connection The HIS-UM15 is available with either AC or DC power input. AC power input models are powered by 100 to 240 VAC, 1�0/0�5 A, 60/50 Hz� Loosen the retaining clip for the power cable on the rear of the monitor. Connect the AC power cable to the power input port on the monitor then retighten the retaining clip. - Page 10 Installation Instructions b� If using the included CD, insert it into the host computer's CD-ROM drive. If the CD does not automatically run, browse the contents of the CD and open the READ�ME�FIRST�htm file in a web browser. Select the appropriate driver�...
-
Page 11: Step 3: Install The Monitor
Installation Instructions Step 3: Install the Monitor Once you have completed the full bench-test configuration and confirmed that all components are working properly, you are ready for final installation and mounting of the monitor. WARNING! Hope Industrial will not assume liability for damage to internal electronics due to improper installation�... -
Page 12: Mount The Monitor
Installation Instructions Mount the Monitor Hope Industrial Systems offers a variety of mounting options for your Universal Mount Monitor. Individual installation instructions are shipped with the following products and may also be found on our website at the addresses listed below�... - Page 13 Installation Instructions Heavy Industrial Arm Mounts Our wall arm mounting options range from solid wall yoke to fully articulating arms. Complete installation instructions are shipped with the following products and may also be found on our website at the following addresses: Wall Mount Arms (for YA _ _ -15 and YA _ _ -24 Series): http://www�HopeIndustrial�com/Installations/99090�pdf Wall Yoke (for YW _ _ -07 Series):...
- Page 14 IMPORTANT! If using VESA mounting screws not supplied by Hope Industrial Systems, ensure they do not intrude into the enclosure more than 12�7 mm (0�5")� VESA MOUNTING...
-
Page 15: Video Settings
Video Settings Video Settings Setting the Timing Mode Setting the timing mode of your computer graphics adapter (or other video source) is important for maximizing the quality of the screen image and for minimizing eye strain. The timing mode consists of the resolution (e.g. 1024 x 768) and refresh rate (or vertical frequency; e.g. 60 Hz). After setting the timing mode, use the On-Screen Display (OSD) controls to adjust the screen image. -
Page 16: Control Panel Buttons
Video Settings Control Panel Buttons Use the control panel buttons located on the back of the monitor to display and adjust various settings on the On-Screen Display (OSD) menu. CONTROL PANEL BUTTONS 1� To open the OSD menu, press the Menu button� NOTE: All OSD menus and adjustments screens disappear automatically after 60 seconds. - Page 17 Video Settings Button Control Functions Power Turns the monitor on and off� Power Indicator • LED lit green – power is ON Light • LED not lit or lit red – power is OFF • LED lit orange – monitor is in Standby mode •...
-
Page 18: On-Screen Display (Osd) Menus
Video Settings On-Screen Display (OSD) Menus To open the OSD menu, press the Menu button once� Main Menu Description Picture Includes the Contrast, Brightness, Sharpness, and Color functions� VGA Settings Includes the Timing, Auto setup, H total, V position, H position, and Phase functions�... - Page 19 Video Settings Color Menu The Color submenu in the Picture menu includes the Auto color, Theme mode, Gamma, Color balance, and User color functions. Color Menu Description Auto color Auto color is an auto adjust routine to compensate, for example, analog signal level drops on long VGA cables.
-
Page 20: Vga Settings Menu
Video Settings Color Menu Description Color balance Provides several color adjustment modes, including preset color temperatures and a User color mode that allows individual adjustment of Red, Green, and Blue. The factory default setting for this product is Normal� • User color allows individual adjustment of Red, Green, and Blue�... -
Page 21: Setup Menu
Video Settings VGA Settings Menu Description H total Allows the user to fine tune the horizontal timing by increasing or decreasing the total horizontal pixels. H total affects how the image is stretched horizontally. V position (Vertical Moves the screen image up and down. Position) H position (Horizontal Moves the screen image left and right. - Page 22 Video Settings Setup Menu Description The OSD submenu provides several adjustments for the OSD menu settings. • Time out sets the length of time (in seconds) the OSD screen is displayed. For example, with a "60" setting, if a control is not pushed within 60 seconds, the display screen disappears�...
- Page 23 Video Settings Setup Menu Description Source scan Allows the user to turn source scan "On" or "Off�" When Source scan is enabled and there is no active video signal present, the display will cycle through video connections until a video source is detected�...
-
Page 24: Cleaning Instructions
Cleaning Instructions Cleaning Instructions CAUTION! DO NOT USE ABRASIVE MATERIALS, SUCH AS PAPER TOWELS OR DIRTY SHOP RAGS, ON THE DISPLAY AS IT WILL SCRATCH THE PROTECTIVE COATING. ALWAYS USE A SOFT CLOTH, PREFERABLY MADE OF COTTON. All displays may be cleaned using any standard glass cleaner as long as there is no abrasive or oily content. -
Page 25: Troubleshooting
If the problem still exists, try bypassing the KVM extender. If this fixes the problem and allows the monitor to work properly, then the KVM extender is the source of the problem� Please refer to the troubleshooting section of the KVM extender manual or contact Hope Industrial Systems for additional assistance. Symptom Causes... - Page 26 Troubleshooting Symptom Causes Solutions "Scanning Ports / No Video cable is not plugged Check the video cable connection at Signal" message box in correctly� the monitor, PC, and/or KVM extender� and no image on the PC is not powered on� Ensure PC is powered on�...
-
Page 27: Touch Screen Troubleshooting
Troubleshooting Touch Screen Troubleshooting Applies to touch screen monitors only� To be sure that you have the most current driver, please check the following Internet address: http://www�HopeIndustrial�com/Touchscreen_Drivers�htm Symptom Causes Solutions No response when Touch screen driver has Download and install the latest driver touching the touch not been installed�... -
Page 28: Specifications
Specifications Specifications Display Type Thin-film transistor (TFT) Active Matrix Liquid Crystal Size 15" diagonal Image Size (W x H) 304 mm x 228 mm (12�0" x 9�0") Native Resolution XGA (1024 x 768, 4:3 aspect ratio) Minimum Resolution 640 x 400 Pixel Pitch 0�297 mm x 0�297 mm Number of Colors... -
Page 29: Video
Specifications Video Input Connectors • HD-15, DVI-D • Compatible inputs using optional adapter (contact Hope Industrial Systems for details): • HDMI (via HDMI to DVI adapter) • DisplayPort (via DisplayPort to DVI adapter) • BNC (via HD-15 to 5-wire BNC adapter) Input Signal Formats •... -
Page 30: Physical
Specifications Physical Enclosure Type Self-contained enclosure Enclosure Rating Built to IP22 standards • NEMA/UL Type 2 (Black Powder-Coated or Stainless Steel) Built to IP65/IP66 standards • NEMA/UL Type 12/4 (Black Powder-Coated Steel) • NEMA/UL Type 12/4/4X (Stainless Steel) Enclosure Dimensions 416�6 mm x 330�2 mm x 73�9 mm (16�4"... -
Page 31: Warranty Statement
The warranty on all industrial display and keyboard products, KVM2 extender series, and ENCL-TC/ENCL-PC enclosure series remains in force for a three year period beginning on the date we invoice you� If Hope Industrial Systems repairs or replaces a product under warranty, its warranty term is not extended�... - Page 32 NR16 2JU United Kingdom Phone: +44 (0) 20 7193 2618 Fax: +44 (0) 20 7117 1194 Sales and Customer Service: sales@HopeIndustrial.co.uk Support and Returns: support@HopeIndustrial.co.uk Accounting Department: accounting@HopeIndustrial.co.uk www.HopeIndustrial.co.uk UM15H User Manual, 99142, July 2017 © 2017 Hope Industrial Systems, Inc.
