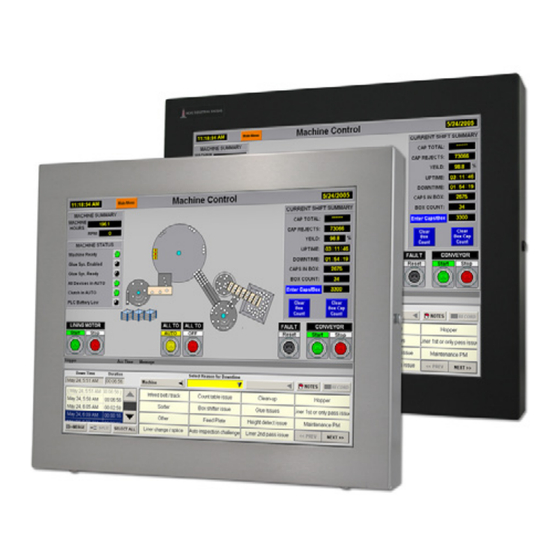

19" universal mount industrial monitor

Advertisement

Quick Links

19" UNIVERSAL MOUNT INDUSTRIAL MONITOR
REVISION H
USER MANUAL
Model No. HIS-UM19- _ _ _ H

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HIS-UM19-***H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Hope Industrial Systems HIS-UM19-***H

  • Page 1 19" UNIVERSAL MOUNT INDUSTRIAL MONITOR REVISION H USER MANUAL Model No. HIS-UM19- _ _ _ H...
  • Page 2: Table Of Contents

    Table of Contents Safety and Regulatory Information ���������������������������������������������������������������������������������������������� 3 FCC Notice ����������������������������������������������������������������������������������������������������������������������������� 3 Hazardous Locations �������������������������������������������������������������������������������������������������������������� 4 Waste Electrical and Electronic Equipment Directive (WEEE) ����������������������������������������������� 4 Mechanical Drawings �������������������������������������������������������������������������������������������������������������������� 5 Front View ������������������������������������������������������������������������������������������������������������������������������� 5 Rear View ������������������������������������������������������������������������������������������������������������������������������� 5 Side View �������������������������������������������������������������������������������������������������������������������������������� 6 Installation Instructions ����������������������������������������������������������������������������������������������������������������...
  • Page 3: Safety And Regulatory Information

    Safety and Regulatory Information Safety and Regulatory Information WARNING! To prevent fire or shock hazard, do not expose live components to rain or moisture. Dangerously high voltages are present inside the unit� Do not disassemble the unit� Refer servicing to qualified personnel only. This equipment is not intended for use in critical applications where its failure to operate would create immediate life threatening circumstances�...
  • Page 4: Hazardous Locations

    WARNING – EXPLOSION HAZARD – Substitution of any components may impair suitability for Class I, II & III, Division 2 Locations� NOTE: Hope Industrial Systems provides wiring and conduit that complies with the U.S. National Electric Code but cannot rate wiring or conduit methods for hazardous locations, as these must be locally inspected and approved�...
  • Page 5: Mechanical Drawings

    Mechanical Drawings Mechanical Drawings Front View 467.4 mm (18.40") 380.8 mm (14.99") 397.5 mm 305.6 mm (15.65") (12.03") Rear View 467.4 mm (18.40") 397.5 mm (15.65") CABLE ENTRY UM19H User Manual, 99155, May 2017...
  • Page 6: Side View

    Mechanical Drawings Side View 72.1 mm (2.84") 34.3 mm (1.35") 198.8 mm (7.82") KVM EXTENDER Side Mounting Holes (optional) 1/4"-20 Internal Thread x 0.625" Deep 124.5 mm (4.90") 176.6 mm (6.95") KEYBOARD (optional) UM19H User Manual, 99155, May 2017...
  • Page 7: Installation Instructions

    Installation Instructions Installation Instructions Step 1: Prepare for Installation IMPORTANT! Perform the following steps BEFORE installation of the monitor� 1� Ensure that sufficient power is available and a readily accessible disconnect device is incorporated in the building installation wiring. 2� Ensure that sufficient space is available to allow for proper air flow into and out of the unit�...
  • Page 8: Step 2: Bench-Test Configuration

    If the video source has a 5 wire analog RGB video output, this can be converted for use with the VGA video port using a simple adapter� Certified adapters are available from Hope Industrial Systems. Contact our sales team for more information�...
  • Page 9: Install Touch Screen Driver

    Installation Instructions Power Connection The HIS-UM19 is available with either AC or DC power input. AC power input models are powered by 100 to 240 VAC, 1�2/0�6 A, 60/50 Hz� Loosen the  retaining clip for the power cable on the rear of the monitor. Connect the AC power cable to the power input port on the monitor then retighten the retaining clip.
  • Page 10 Installation Instructions If the CD does not automatically run, browse the contents of the CD and open the READ�ME�FIRST�htm file in a web browser. Select the appropriate driver� 2� Click to "Run" the software when prompted� Follow on-screen instructions to download and execute the touch screen driver installation�...
  • Page 11: Step 3: Install The Monitor

    Installation Instructions Step 3: Install the Monitor Once you have completed the full bench-test configuration and confirmed that all components are working properly, you are ready for final installation and mounting of the monitor. WARNING! Hope Industrial will not assume liability for damage to internal electronics due to improper installation�...
  • Page 12: Mount The Monitor

    Installation Instructions Mount the Monitor Hope Industrial Systems offers a variety of mounting options for your Universal Mount Monitor. Individual installation instructions are shipped with the following products and may also be found on our website at the addresses listed below�...
  • Page 13 Installation Instructions Heavy Industrial Arm Mounts Our wall arm mounting options range from solid wall yoke to fully articulating arms. Complete installation instructions are shipped with the following products and may also be found on our website at the following addresses: Wall Mount Arms (for YA _ _ -15 and YA _ _ -24 Series): http://www�HopeIndustrial�com/Installations/99090�pdf Wall Yoke (for YW _ _ -07 Series):...
  • Page 14 IMPORTANT! If using VESA mounting screws not supplied by Hope Industrial Systems, ensure they do not intrude into the enclosure more than 12�7 mm (0�5")� VESA MOUNTING...
  • Page 15: Video Settings

    Video Settings Video Settings Setting the Timing Mode Setting the timing mode of your computer graphics adapter (or other video source) is important for maximizing the quality of the screen image and for minimizing eye strain. The timing mode consists of the resolution (e.g. 1280 x 1024) and refresh rate (or vertical frequency; e.g. 60 Hz). After setting the timing mode, use the On-Screen Display (OSD) controls to adjust the screen image.
  • Page 16: Control Panel Buttons

    Video Settings Control Panel Buttons Use the control panel buttons located on the back of the monitor to display and adjust various settings on the On-Screen Display (OSD) menu. CONTROL PANEL BUTTONS 1� To display the Main Menu, press button [1]� NOTE: All OSD menus and adjustments screens disappear automatically after 15 seconds.
  • Page 17: Osd And Power Lock Settings

    Video Settings Button Control Functions Power • Turns the monitor on and off� • The Power Indicator light glows blue during normal operation and orange when the monitor is in Power Saving mode. Up / View Mode When the OSD menu IS NOT displayed: •...
  • Page 18: On-Screen Display (Osd) Menus

    Video Settings On-Screen Display (OSD) Menus To open the OSD menu, press button [1] once. The following screen will appear: Main Menu Description Auto Image Adjust Automatically sizes, centers, and fine tunes the video signal to eliminate waviness and distortion� Contrast / Brightness Includes the Contrast and Brightness functions.
  • Page 19: Auto Image Adjust Menu

    Video Settings Auto Image Adjust Menu The Auto Image Adjust menu automatically sizes, centers, and fine tunes the video signal to eliminate waviness and distortion� Press button [2] outside of the OSD menu to activate Auto Image Adjust. NOTE: Auto Image Adjust works with most common video cards. If this function does not work on your display, lower the video refresh rate to 60 Hz and set the resolution to its pre-set value�...
  • Page 20: Color Adjust Menu

    Video Settings Color Adjust Menu The Color Adjust menu provides several color adjustment modes, including preset color temperatures and a User Color mode which allows independent adjustment of red (R), green (G), and blue (B). The factory setting for this product is Native. Color Adjust Menu Description sRGB...
  • Page 21: Information Menu

    Video Settings Information Menu The Information menu displays the timing mode (video signal input) coming from the graphics card in the computer. See your graphics card's user guide for instructions on changing the resolution and refresh rate (vertical frequency)� NOTE: VESA 1280 x 1024 @ 60 Hz (recommended) means that the resolution is 1280 x 1024 and the refresh rate is 60 Hz�...
  • Page 22: Setup Menu

    Video Settings Manual Image Adjust Description ECO Mode Provides lower power consumption by reducing the brightness. • Standard is the default brightness setting. • Optimize reduces brightness by 25%. • Conserve reduces brightness by 50%. View Mode Allows the user to select from five image modes to find the optimal screen setting for different applications, as well as the default "Standard"...
  • Page 23: Memory Recall Menu

    Video Settings Setup Menu Description Language Select Allows the user to choose the language used in the menus and control screens� Resolution Notice Advises the optimal resolution to use� OSD Position Allows the user to move the OSD menus and control screens� OSD Time Out Sets the length of time the OSD screen is displayed.
  • Page 24: Cleaning Instructions

    Cleaning Instructions Cleaning Instructions CAUTION! DO NOT USE ABRASIVE MATERIALS, SUCH AS PAPER TOWELS OR DIRTY SHOP RAGS, ON THE DISPLAY AS IT WILL SCRATCH THE PROTECTIVE COATING. ALWAYS USE A SOFT CLOTH, PREFERABLY MADE OF COTTON. All displays may be cleaned using any standard glass cleaner as long as there is no abrasive or oily content.
  • Page 25: Troubleshooting

    If the problem still exists, try bypassing the KVM extender. If this fixes the problem and allows the monitor to work properly, then the KVM extender is the source of the problem� Please refer to the troubleshooting section of the KVM extender manual or contact Hope Industrial Systems for additional assistance. Symptom Causes...
  • Page 26 Troubleshooting Symptom Causes Solutions "Out of Range" The source signal exceeds Adjust the computer settings to the message box the maximum resolution monitor's native resolution: and no image on and/or refresh rate that the 1280 x 1024 @ 60 Hz the screen monitor can handle ( >...
  • Page 27: Touch Screen Troubleshooting

    Troubleshooting Touch Screen Troubleshooting Applies to touch screen monitors only� To be sure that you have the most current driver, please check the following Internet address: http://www�HopeIndustrial�com/Touchscreen_Drivers�htm Symptom Causes Solutions No response when Touch screen driver has not Download and install the latest driver touching the touch been installed�...
  • Page 28: Specifications

    Specifications Specifications Display Type Thin-film transistor (TFT) Active Matrix Liquid Crystal Size 19" diagonal Image Size (W x H) 374�8 mm x 299�8 mm (14�8" x 11�8") Native Resolution SXGA (1280 x 1024, 5:4 aspect ratio) Minimum Resolution VGA (640 x 480) Pixel Pitch 0�293 mm x 0�293 mm Number of Colors...
  • Page 29: Video

    Specifications Video Input Connectors • HD-15, DVI-D • Compatible inputs using optional adapter (contact Hope Industrial Systems for details): • HDMI (via HDMI to DVI adapter) • DisplayPort (via DisplayPort to DVI adapter) • BNC (via HD-15 to 5-wire BNC adapter) Input Signal Formats •...
  • Page 30: Physical

    Specifications Physical Enclosure Type Self-contained enclosure Enclosure Rating Built to IP22 standards • NEMA/UL Type 2 (Black Powder-Coated or Stainless Steel) Built to IP65/IP66 standards • NEMA/UL Type 12/4 (Black Powder-Coated Steel) • NEMA/UL Type 12/4/4X (Stainless Steel) Enclosure Dimensions 467�4 mm x 397�5 mm x 82�6 mm (18�40"...
  • Page 31: Warranty Statement

    The warranty on all industrial display and keyboard products, KVM2 extender series, and ENCL-TC/ENCL-PC enclosure series remains in force for a three year period beginning on the date we invoice you� If Hope Industrial Systems repairs or replaces a product under warranty, its warranty term is not extended�...
  • Page 32: Um19H User Manual, 99155, May

    NR16 2JU United Kingdom Phone: +44 (0) 20 7193 2618 Fax: +44 (0) 20 7117 1194 Sales and Customer Service: sales@HopeIndustrial.co.uk Support and Returns: support@HopeIndustrial.co.uk Accounting Department: accounting@HopeIndustrial.co.uk www.HopeIndustrial.co.uk UM19H User Manual, 99155, May 2017 © 2017 Hope Industrial Systems, Inc.
