Summary of Contents for Hope Industrial Systems HIS-RL19C

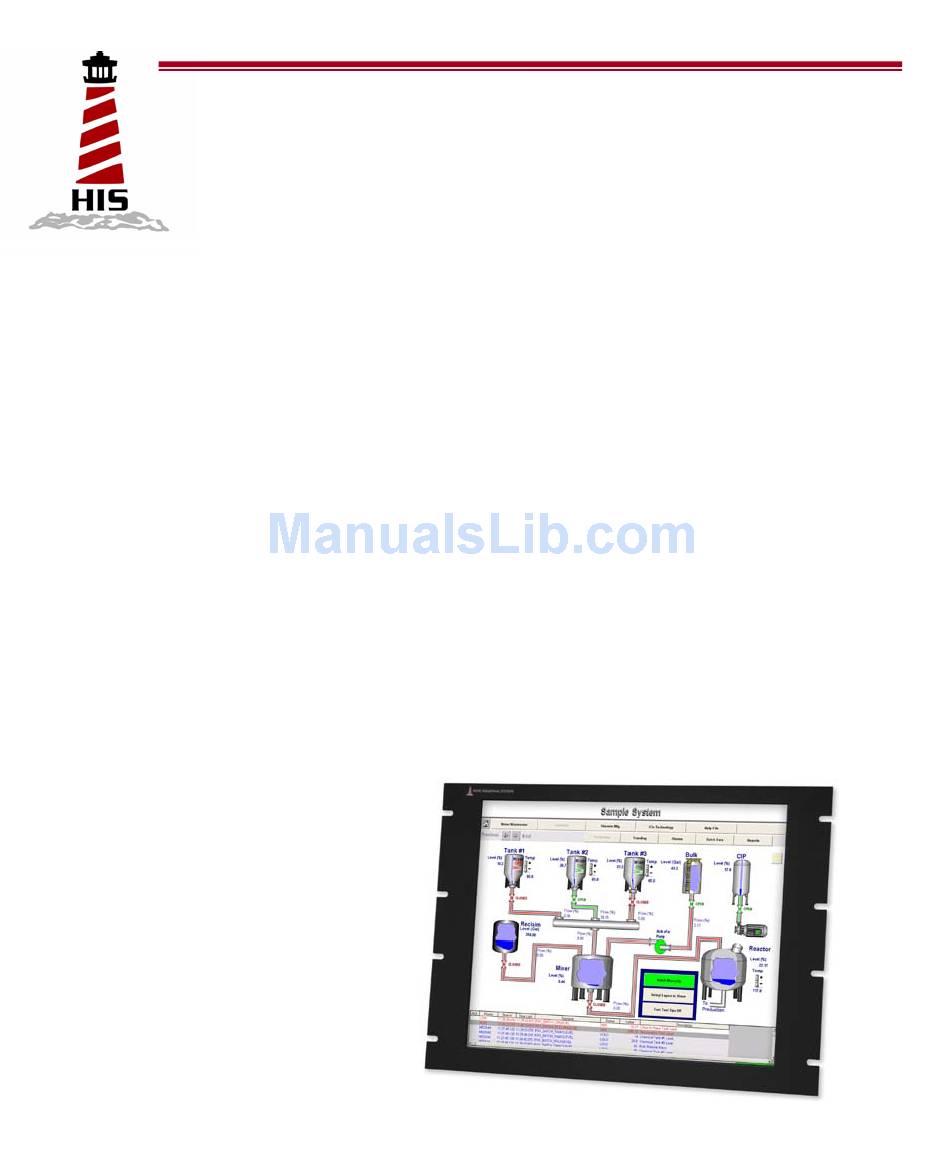

- Page 1 Hope Industrial Systems, Inc. User Manual 19” Rack Mount Industrial Monitor Model No. HIS-RL19-_ _ _C...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Safety and Regulatory Information ............. 3 Warning ..................... 3 FCC Notice ..................3 Using the LCD Display ................. 4 Setting the Timing Mode ..............4 OSD and Power Lock Settings ............4 Adjusting the Screen Image ................. 5 Main Menu Controls .................. -
Page 3: Safety And Regulatory Information
Safety and Regulatory Information Warning To prevent fire or shock hazard, do not expose the unit to rain or moisture. Dangerously high voltages are present inside the unit. Do not disassemble the unit. Refer servicing to qualified personnel only. This equipment is not intended for use in critical applications where its failure to operate would create immediate life threatening circumstances. -
Page 4: Using The Lcd Display
Using the LCD Display Setting the Timing Mode Setting the timing mode is important for maximizing the quality of the screen image and minimiz- ing eye strain. The timing mode consists of the resolution (example 1280 x 1024) and refresh rate (or vertical frequency;... -
Page 5: Adjusting The Screen Image
Adjusting the Screen Image Use the buttons on the rear control panel to display and adjust the On-Screen Display (OSD) con- trols which display on the screen. Do the following to adjust the screen image: 1. To display the Main Menu, press button [1]. NOTE: All OSD menus and adjustment screens disappear automatically after about 15 seconds. -
Page 6: Main Menu Controls
Main Menu Controls Adjust the menu items shown below by using the up ▲ and down ▼ buttons. Control Explanation Auto Image Adjust automatically sizes, centers, and fine tunes the video signal to eliminate waviness and distortion. Press the [2] button to obtain a sharper image. NOTE: Auto Image Adjust works with most common video cards. - Page 7 Control Explanation Information displays the timing mode (video signal input) coming from the graph- ics card in the computer. See your graphics card’s user guide for instructions on changing the resolution and refresh rate (vertical frequency). Manual Image Adjust displays the Manual Image Adjust menu. o H./V.
- Page 8 Control Explanation Setup Menu displays the menu shown below. o Language allows you to choose the language used in the menus and control screens. o Resolution Notice advises of the optimal resolution to use. o OSD Position allows you to move the on-screen display menus and control screens o OSD Timeout sets the length of time an on-screen display screen is dis- played.
-
Page 9: Installation Instructions
Installation Instructions Preparing for Installation Important! Perform the following steps BEFORE Installation of the monitor into the panel. 1. Ensure that sufficient power is available. 2. Ensure that sufficient space is available to allow for proper airflow into and out of the unit. 3. -
Page 10: Installation Into Rack
Installation into Rack Hope Industrial Systems’ Rack Mount Monitors conform to Electronic Industries Association stan- dard EIA-310-D. Our monitors will fit in a type A, B, or C rack with a width of 482.6mm (preferred EIA rack width). The HIS-RL19 has a panel height of 8U. -
Page 11: Touchscreen Driver Installation
Touchscreen Driver Installation The enclosed CD-ROM contains documentation and drivers for all major operating systems (touchscreen models only). To assure you have the most current information, check the following Internet address: http://HISmonitors.com/Touchscreen_Drivers.htm... -
Page 12: Cleaning
Cleaning CAUTION! DO NOT USE ABRASIVE MATERIALS SUCH AS PAPER TOWELS OR DIRTY SHOP RAGS ON THE DISPLAY AS IT WILL SCRATCH THE PROTECTIVE COATING. ALWAYS USE A SOFT CLOTH, PREFERABLY MADE OF COTTON. Resistive Touchscreen model Any standard glass cleaner can be used to clean the touchscreen. Always spray the glass cleaner on the cloth or towel and then clean the touchscreen. -
Page 13: Troubleshooting
Troubleshooting Blank Screen After installing the power cable and connecting video cable to a PC, the monitor displays a blank screen. • Press the power button and check to see if the power LED is lit. • If the LED is not lit, make sure the PC is powered on. Make sure all cables are connected. -
Page 14: Drawings
Drawings Front View... - Page 15 Bottom and Rear View (showing cutout dimensions)
-
Page 16: Specifications
Specifications Display Type Thin-film transistor (TFT) Active Matrix Liquid Crystal Size 19.0” diagonal Image size 14.8” (376mm) x 11.9” (301mm) Native resolution SXGA (1280 x 1024) @ 60 Hz Plug and Play DDC1/2B compatible Minimum resolution VGA (640 x 480), operation in native resolution (1280 x 1024) will ensure best results Pixel pitch 0.294mm (H) x 0.294 mm (V) -
Page 17: Compliance
Electrical Power Input 100–240 VAC, 50-60 Hz (autoswitch) Power consumption 33 watts, typical Power management DPMS/energy star, < 1W Environmental Temperature 0-45°C (consult factory for installation instructions when con- tinuous 24/7 operation exceeds 40°C) Humidity 20% to 90% non-condensing Shock 30g (1/2 sine, 11 msec.) Vibration 0.006 inch p-p 15-57Hz, 1.0g 57-640Hz sine... - Page 18 Rack Compatibility EIA Standard EIA-310-D Rack Width 482.6mm or 19” (preferred EIA width) EIA Type Rack A, B, or C Mounting 8 Slots, 7mm wide Panel Height 8U, 13.95” (354.3mm) Physical Depth 2.28” (57.6mm) behind bezel Bezel Powder Coated Carbon steel Front bezel outside dimensions 19.00”...
-
Page 19: Warranty Statement
Warranty Statement Who is Covered? This warranty covers the purchaser of this product only and is not transferable without our written consent. What Does This Warranty Cover and What is the Period of Coverage? The warranty remains in force for a three year period beginning on the date we invoice you for the product unless it is a keyboard, for which the warranty period is one year. - Page 20 Hope Industrial Systems, Inc. 1325 Northmeadow Parkway Suite 100 Roswell, GA 30076 www.HISmonitors.com 2008 Hope Industrial Systems, Inc. Publication RL19C February 2008...
