LED Descriptions

Label Name
PWR Power
STATUS Power Status
LS Link Status
A-B-C-D --
CD Carrier Detect
Signal Signal Strength
If a cellular radio such as EV3, H5, LAT1, LVW2, LAT3, LVW3, LNA3, or LDC3, is installed, the typical LS (Link Status)
LED behavior is the following:
OFF - No power to the cellular radio
Continuously Lit - Not registered
Slow Blink (-0.2Hz) - Registered or connected
® TM
MultiConnect Conduit

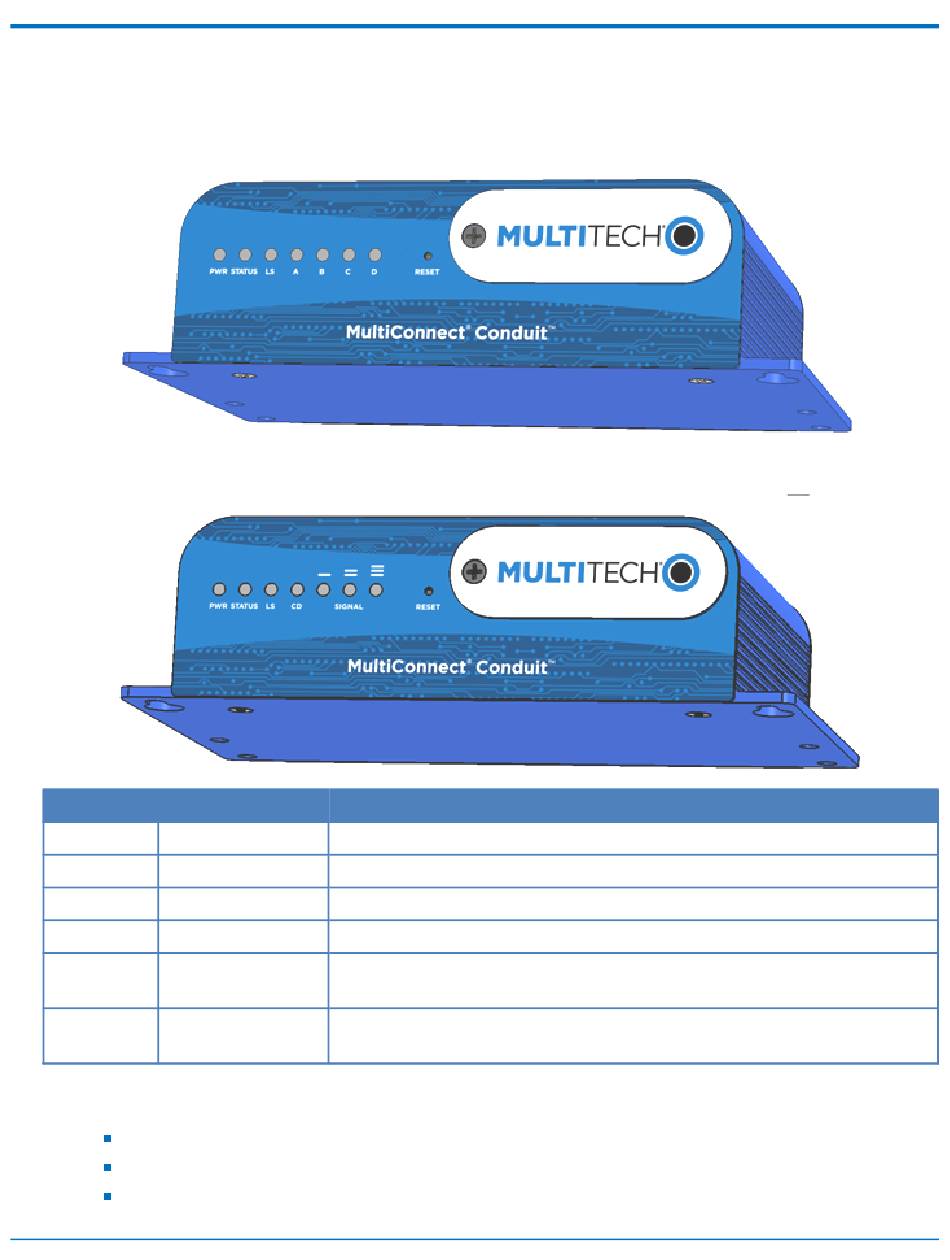

Conduit mLinux Model Front Panel
Conduit Application Model Front Panel
Description
Solid (constant) green if unit is on indicating that DC power is present.
Default condition: LED blinks when mLinux is fully loaded.
Varies with radio model.
These 4 LEDs are user-specified. Present on the Conduit mLinux model only.
This LED is on when a cellular data connection is made. Present on the
Conduit Application model only.
These 3 LEDs display the strength of the cellular signal. Present on the
Conduit Application model only.
