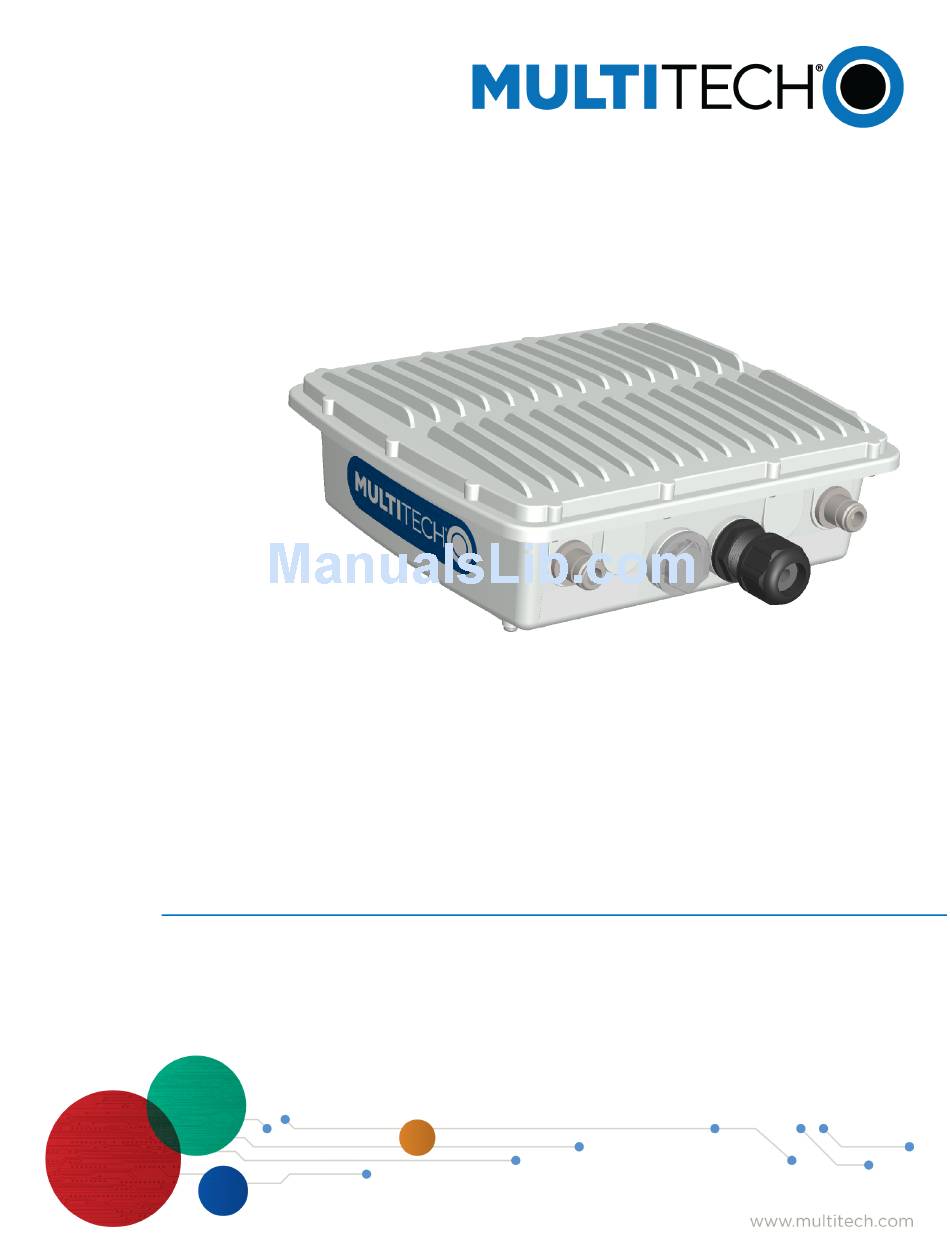

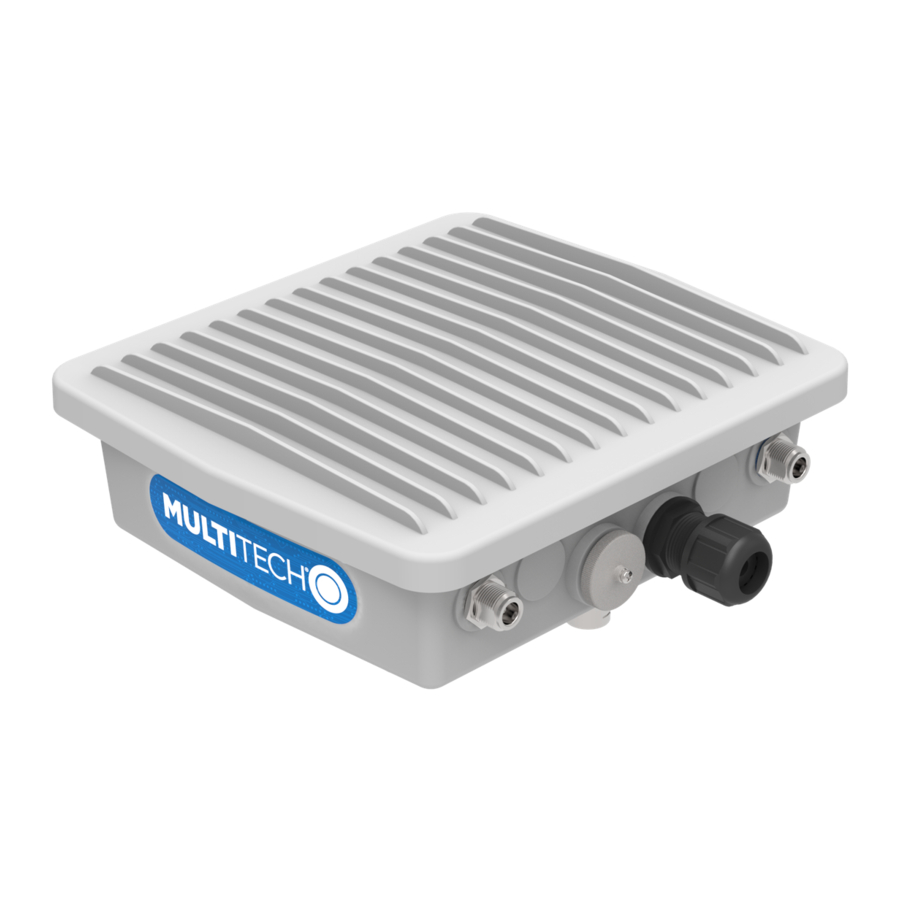

- Page 1 ® MultiConnect Conduit Base Station IP67 Getting Started Guide for Versions 1.5 and 2.1...
- Page 2 Legal Notices The MultiTech products are not designed, manufactured or intended for use, and should not be used, or sold or re-sold for use, in connection with applications requiring fail-safe performance or in applications where the failure of the products would reasonably be expected to result in personal injury or death, significant property damage, or serious physical or environmental damage.
-
Page 3: Table Of Contents
Configuring Access ..............................14 Finishing Configuration ............................... 15 Using DeviceHQ for Device Management........................15 Chapter 4 – Specifications and Related Information....................16 MultiConnect Conduit IP67 Base Station Specifications..................... 16 All Models ................................. 16 LoRa Specifications..............................16 -LAT1 Models ................................17 -LEU1 Models ................................ - Page 4 CONTENTS LoRa Transmission Output Power..........................25 868 Models ................................25 915 Models ................................25 I2C Addresses ................................25 IO Exp V2.1 Board ............................... 26 Chapter 5 – Regulatory Information........................27 47 CFR Part 15 Regulation Class B Devices ......................... 27 FCC Notice ...................................
-
Page 5: Chapter 1 - Multiconnect® Conduittm Ip67 Base Station
IP67 BASE STATION Chapter 1 – MultiConnect® Conduit IP67 Base Station The MultiConnect Conduit IP67 Base Station (MTCDTIP) is a LoRa IoT gateway device designed for outdoor deployments. Installation An installation guide ships with the MCDTIP and is also available at www.multitech.com... - Page 6 (which sends/receive packets to/from LoRa gateways) fails for V2.1 packets if the code has not been upgraded to handle them. Our MultiTech server code has not been upgraded yet, and therefore cannot be used to process LoRa V2.1 packets. Therefore, if the customer does not have additional server-layer support, the MultiTech LoRa V2.1 gateway can only be used as a packet forwarder.
-
Page 7: Chapter 2 - Getting Started With Mlinux Models
GETTING STARTED WITH MLINUX MODELS Chapter 2 – Getting Started with mLinux Models Accessing the Terminal Interface After connecting Ethernet and power, access the terminal interface: On your PC, configure a static IP address for the network interface that is connected to the device within the following range: 192.168.2.2 - 192.168.2.254 Open an SSH connection. - Page 8 GETTING STARTED WITH MLINUX MODELS date "2016-12-11 14:58:01" Update the hardware clock: hwclock -u -w ® MultiConnect Conduit Base Station IP67 Getting Started Guide for Versions 1.5 and 2.1...
-
Page 9: Setting The Custom Ip Address, Network Information, And Ethernet Internet Access
GETTING STARTED WITH MLINUX MODELS Setting the Custom IP Address, Network Information, and Ethernet Internet Access Network configuration is defined in /etc/network/interfaces. To change the static IP, change the address and netmask fields in /etc/network/interfaces, (use vi or nano). To apply changes, either reboot the device or issue: ifdown eth0 &&... -
Page 10: Starting Cellular Connection On Boot
GETTING STARTED WITH MLINUX MODELS $ route Kernel IP routing table Destination Gateway Genmask Flags Metri Iface default 33.140.12.1 0.0.0.0 ppp0 33.140.12.1 255.255.255.25 ppp0 192.168.2.0 * 255.255.255.0 ethp0 The Linux ifconfig utility can be used to inspect the ppp0 interface details. $ ifconfig ppp0 ppp0 Link encap:Point-to-Point Protocol... -
Page 11: Configuring The Lora Network Server
This section applies to LoRaWAN V1.5 devices only. To configure the LoRa Network Server: Install the LoRa mCard. Refer to http://www.multitech.net/developer/products/multiconnect- conduit-platform/accessory-cards/installing-an-accessory-card/. Attach the LoRa antenna to the LoRa mCard. Use the power cable to connect power to the Conduit and wait for the Conduit to boot up. -
Page 12: Configuring The Lora Packet Forwarder
For additional information, including how to configure LoRa devices to communicate with the MTCDTIP, visit http://www.multitech.net. For help using LoRa, go to: http://www.multitech.net/developer/software/lora/ For help using mLinux, go to: http://www.multitech.net/developer/software/mlinux/. For additional information regarding configuration, go to:http://www.multitech.net/developer/software/lora/getting-started-with-lora-conduit-mlinux/ For additional packet forwarder information, go to: http://www.multitech.net/developer/software/lora/conduit-mlinux-convert-to-basic-packet-forwarder/... -
Page 13: Chapter 3 - Getting Started With Aep Models
GETTING STARTED WITH AEP MODELS Chapter 3 – Getting Started with AEP Models Logging in to AEP Note: This chapter applies to LoRaWAN V1.5 devices only. After connecting and powering up your device, log in to AEP: Open an Internet browser. In the browser’s address field, enter the device's default address for the device: http://192.168.2.1 The login page appears. -
Page 14: Setting Up Ppp Authentication
GETTING STARTED WITH AEP MODELS If using two cellular antennas, check Diversity. Do not check this option if using one antenna. To enable dial-on-demand, check Dial-on-Demand. This tells the device to only make a PPP connection when there is outgoing IP traffic, and it brings the PPP connection down after a given idle timeout. The default Idle timeout is 180 seconds. -
Page 15: Finishing Configuration
Getting Started with LoRa Using DeviceHQ for Device Management DeviceHQ is a cloud-based device management tool for remote monitoring, upgrades, and configuration AEP devices. For information on creating and using a DeviceHQ account, go to the http://www.multitech.net/developer/software/devicehq/. ® MultiConnect Conduit... -
Page 16: Chapter 4 - Specifications And Related Information
SPECIFICATIONS AND RELATED INFORMATION Chapter 4 – Specifications and Related Information MultiConnect Conduit IP67 Base Station Specifications MultiConnect Conduit IP67 Base Station specifications depend on the hardware configuration for your model. All Models Category Description General USB Port with Type A Receptacle, USB Interface is CDC-ACM compliant... -
Page 17: Lat1 Models
SPECIFICATIONS AND RELATED INFORMATION Category Description EMC and Radio Compliance EN 55032:2012 RSS-210 FCC 15.247 FCC 15.109 FCC 15.109(g) FCC 15.107 ICES-003 EN 61000-3-3:2013 EN 61000-3-2:2006 (Amended by A1:2009 and A2:2009) EN 55022:2010 EN 300 220-1 v3.1.1 EN 300 220-2 v3.1.1 EN 301 489-1 v2.2.0 EN301 489-3 V2.1.1 (2017-3) Safety Compliance... -
Page 18: Leu1 Models
SPECIFICATIONS AND RELATED INFORMATION Category Description Certifications and Compliance EMC and Radio Compliance FCC Part 15 Class B FCC Part 22, 24, 27 Safety Compliance UL 60950-1 2nd ED cUL 60950-1 2nd ED IEC 60950-1 2nd ED Network Compliance PTCRB Carrier AT&T Environment... -
Page 19: Leu1 Frequency Bands
SPECIFICATIONS AND RELATED INFORMATION Category Description Safety Compliance IEC 60950-1 2nd ED AS/NZS 60950.1 Environment IEC/CSA/UL60950-22 and IP67 -LEU1 Frequency Bands Mode Freq. TX (MHz) Freq. RX (MHz) Channels TX - RX offset (MHz) EGSM900 890 - 915 935 - 960 0 - 124 880 - 890 925 - 935... -
Page 20: Lat3 Models
SPECIFICATIONS AND RELATED INFORMATION Category Description Point-to-Point messaging Mobile-Terminated SMS Mobile-Originated SMS Certifications and Compliance EMC and Radio FCC Part 15 Class B Compliance FCC Part 27 Safety Compliance UL 60950-1 2nd ED cUL 60950-1 2nd ED IEC 60950-1 2nd ED Carrier Verizon Environment... - Page 21 SPECIFICATIONS AND RELATED INFORMATION Category Description Standards LTE FDD Cat 1, 3GPP release 9 compliant Frequency Bands 4G: 1900 (B2) / 700 (B13) / AWS 1700 (B4) Speed Data Speed LTE: 10 Mbps downlink / 5 Mbps uplink Certifications and Compliance EMC and Radio FCC Part 15 Class B Compliance...
-
Page 22: Dimensions
SPECIFICATIONS AND RELATED INFORMATION Dimensions ® MultiConnect Conduit Base Station IP67 Getting Started Guide for Versions 1.5 and 2.1... -
Page 23: V1.5 Power Draw
SPECIFICATIONS AND RELATED INFORMATION V1.5 Power Draw Power draw for model MTCDTIP-LAT3-267A-915/2 with two LoRa cards and an LTE radio with power over Ethernet: Voltage Cellular Call Box Measured Current at TX Pulse (AVG) Total Inrush Charge Connection No Data Maximum Power Amplitude Current for Measured in... -
Page 24: Le910 Telit Transmission Output Power
SPECIFICATIONS AND RELATED INFORMATION LE910 Telit Transmission Output Power Band Power Class GSM 850/900 MHz 4 (2W) DCS 1800, PCS 1900 MHz 1 (1W) EDGE, 850/900 MHz E2 (0.5W) EDGE, 1800/1900 MHz Class E2 (0.4W) WCDMA/FDD 800/850/900, 1900/2100 MHz Class 3 (0.25W) LTE FDD 700/800/850/900, 1800/1900/2100/2600 Class 3 (0.2W) ®... -
Page 25: Lora Transmission Output Power
SPECIFICATIONS AND RELATED INFORMATION LoRa Transmission Output Power 868 Models Max output 25 dBm Power Frequency On Power-up (dBm) 18 Hours After Bandwidth Power-up (dBm) 869.525 MHz 24.18 125 kHz 869.525 MHz 24.18 24.83 250 kHz 915 Models Max output 27 dBm Power Frequency On Power-up (dBm) 18 Hours After... -
Page 26: Io Exp V2.1 Board
SPECIFICATIONS AND RELATED INFORMATION IO Exp V2.1 Board Pin Name Signal Name Direction Comments Where Used FPGA_nCE Output FPGA configuration chip V2.1 board enable (active low) FPGA_nCONFIG Output Pull low to begin FPGA configuration FPGA_RSTn Output Input to FPGA GPS_RSTn Output Input to FPGA FPGA_CONF_DONE... -
Page 27: Chapter 5 - Regulatory Information
US and Foreign compliance bodies including FCC, R&TTE and others. (e.g. FCC 15.247:2015 & IC RSS 247:2015) MultiTech provides software code meant to operate the radio to a level that maintains compliance with the operating modes under which these radio devices were certified. To ensure this level of compliance, the software code is provided in binary form only. - Page 28 REGULATORY INFORMATION the device may not cause interference, and this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: l'appareil ne doit pas produire de brouillage, et l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en...
-
Page 29: Chapter 6 - Safety Notices
Council Directive 2014/35/EU on the harmonization of the laws of Member States relating to Electrical Equipment designed for use within certain voltage limits. MultiTech declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. The declaration of conformity may be requested at https://support.multitech.com. -
Page 30: Lithium Battery
This battery has an estimated life expectancy of ten years. When this battery starts to weaken, the date and time may be incorrect. Battery is not user replaceable. If the battery fails, the device must be sent back to MultiTech Systems for battery replacement. -
Page 31: User Responsibility
Do not place the device alongside computer discs, credit or travel cards, or other magnetic media. The information contained on discs or cards may be affected by the device. Using accessories, such as antennas, that MultiTech has not authorized or that are not compliant with MultiTech's accessory specifications may invalidate the warranty. -
Page 32: Notice Regarding Compliance With Fcc, Eu, And Industry Canada Requirements For Rf Exposure
SAFETY NOTICES Notice regarding Compliance with FCC, EU, and Industry Canada Requirements for RF Exposure The antenna intended for use with this unit meets the requirements for mobile operating configurations and for fixed mounted operations, as defined in 2.1091 of the FCC rules for satisfying RF exposure compliance. This device also meets the European RF exposure requirements of EN 62311. -
Page 33: Interference With Pacemakers And Other Medical Devices
SAFETY NOTICES ne respecte pas cette consigne, le responsable peut voir son accès aux services cellulaires suspendu ou interdit, peut être poursuivi en justice, ou les deux. Éteignez votre appareil sans fil à proximité des pompes à essence ou de diesel avant de remplir le réservoir de votre véhicule de carburant. -
Page 34: Chapter 7 - Environmental Notices
Substances) complements the WEEE Directive by banning the presence of specific hazardous substances in the products at the design phase. The WEEE Directive covers all MultiTech products imported into the EU as of August 13, 2005. EU-based manufacturers, distributors, retailers and importers are obliged to finance the costs of recovery from municipal collection points, reuse, and recycling of specified percentages per the WEEE requirements. -
Page 35: Reach Statement
ENVIRONMENTAL NOTICES Hexavalent Chromium, [Cr+6] < 1000 PPM Cadmium, [Cd] < 100 PPM Polybrominated Biphenyl, [PBB] < 1000 PPM Polybrominated Diphenyl Ether, [PBDE] < 1000 PPM Environmental considerations: Moisture Sensitivity Level (MSL) =1 Maximum Soldering temperature = 260C (in SMT reflow oven) Lead usage in some components is exempted by the following RoHS annex, therefore higher lead concentration would be found in some modules (>1000 PPM);... -
Page 36: Information On Hs/Ts Substances According To Chinese Standards (In Chinese)
ENVIRONMENTAL NOTICES Information on HS/TS Substances According to Chinese Standards (in Chinese) 依 依 照 照 中 中 国 国 标 标 准 准 的 的 有 有 毒 毒 有 有 害 害 物 物 质 质 信 信 息 息 根据中华人民共和国信息产业部... -
Page 37: Information On Hs/Ts Substances According To Chinese Standards
ENVIRONMENTAL NOTICES Information on HS/TS Substances According to Chinese Standards In accordance with China's Administrative Measures on the Control of Pollution Caused by Electronic Information Products (EIP) # 39, also known as China RoHS, the following information is provided regarding the names and concentration levels of Toxic Substances (TS) or Hazardous Substances (HS) which may be contained in Multi-Tech Systems Inc.
