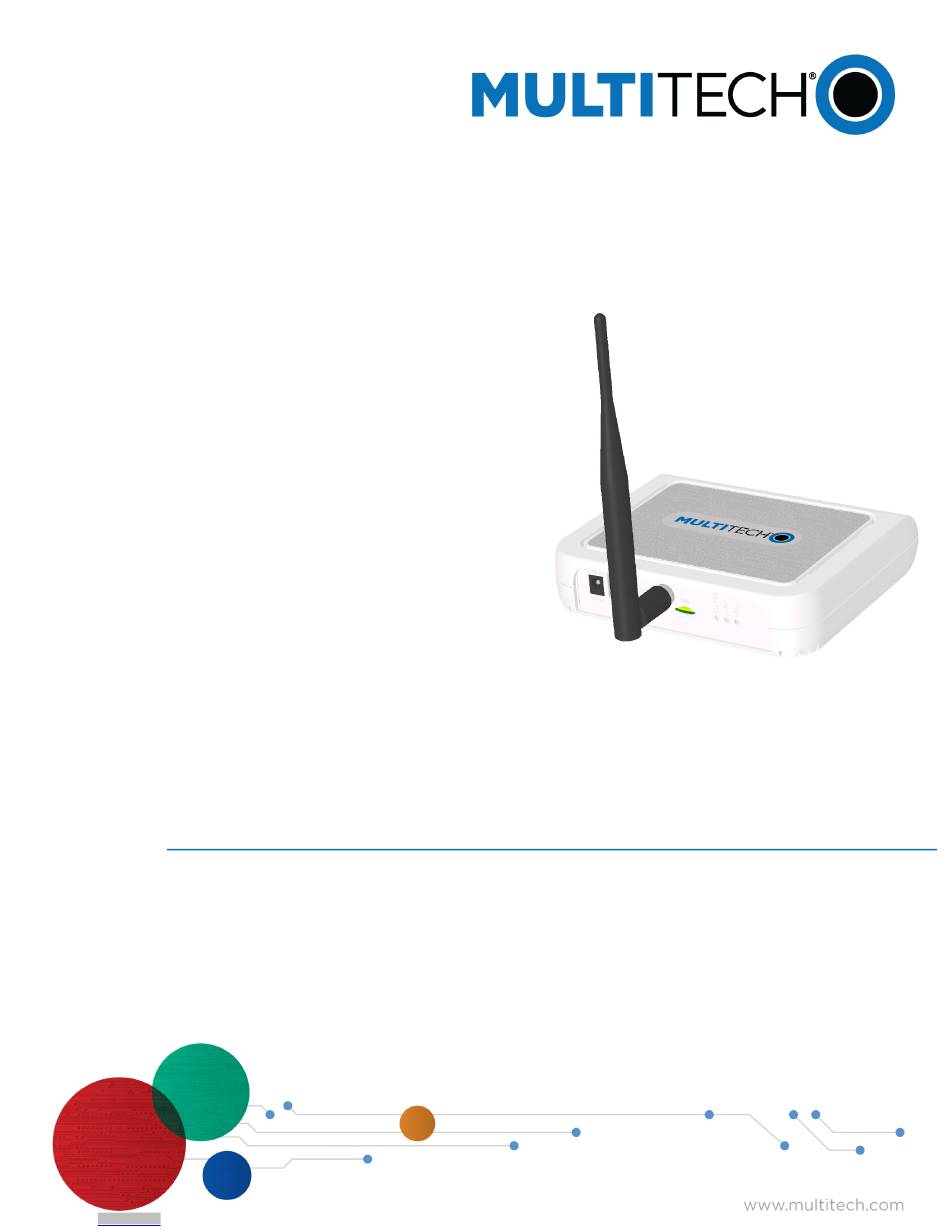

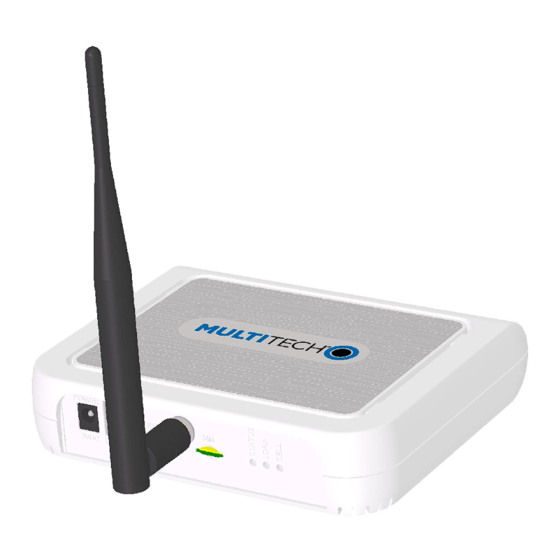

- Page 1 ® Conduit MTCAP-L4E1 User Guide for Europe Arrow.com. Downloaded from...
- Page 2 Legal Notices The MultiTech products are not designed, manufactured or intended for use, and should not be used, or sold or re-sold for use, in connection with applications requiring fail-safe performance or in applications where the failure of the products would reasonably be expected to result in personal injury or death, significant property damage, or serious physical or environmental damage.
-
Page 3: Table Of Contents
CONTENTS Contents Chapter 1 – Product Overview ..........................5 Overview ..................................5 Product Build Options ..............................5 Package Contents................................5 Documentation Overview ............................. 6 Developer Documentation............................6 Chapter 2 – Specifications and Hardware Information ..................... 7 Dimensions..................................7 Specifications ................................8 LoRa Transmission Output Power.......................... - Page 4 CONTENTS Chapter 5 – Setting Up Hardware........................... 19 Installing a SIM Card ..............................19 Removing a SIM Card..............................19 Cabling the Device............................... 19 Getting Started................................19 mPower Models ................................ 19 mLinux Models................................19 Chapter 6 – Mounting the Device........................... 20 Mounting the Device..............................
-
Page 5: Chapter 1 - Product Overview
1 – Mounting bracket 1 - Bumpon set 1 – Quick Start Important: Contact MultiTech Systems if a replacement power supply is needed. Using a different power supply may damage the device and voids the warranty. ® Conduit AP MTCAP-L4E1 User Guide for Europe Arrow.com. -
Page 6: Documentation Overview
PRODUCT OVERVIEW Documentation Overview The following documents are available at http://www.multitech.com/brands/multiconnect-conduit-ap. Select your model to find the documents specific for that device. Document Description Conduit AP MTCAP User Guide for Europe This document. Hardware, regulatory, and getting started information. Conduit AP MTCAP and MTCAP2 Quick Start Steps for getting started. -
Page 7: Chapter 2 - Specifications And Hardware Information
SPECIFICATIONS AND HARDWARE INFORMATION Chapter 2 – Specifications and Hardware Information Dimensions ® Conduit AP MTCAP-L4E1 User Guide for Europe Arrow.com. Downloaded from... -
Page 8: Specifications
SPECIFICATIONS AND HARDWARE INFORMATION Specifications Category Description General Standards LoRaWAN 1.0.2 specifications LTE FDD Cat 4, 3GPP release compliant (-L4E1 models only) HSPA+ with GPRS fallback (-L4E1 models only) 256MB Flash 256MB Radio Frequency ISM Band 868 MHz ISM band for Europe 4G/LTE 4G: B1, B3, B7, B8, B20, B28A (-L4E1 models only) 3G: B1, B3, B8 (-L4E1 models only) -
Page 9: Lora Transmission Output Power
SPECIFICATIONS AND HARDWARE INFORMATION LoRa Transmission Output Power 868 Models Max output 25 dBm Power Frequency On Power-up (dBm) 18 Hours After Bandwidth Power-up (dBm) 869.525 MHz 24.18 125 kHz 869.525 MHz 24.18 24.83 250 kHz Connectors and LEDs LoRa only models LoRa and cellular radio models Item Description... - Page 10 SPECIFICATIONS AND HARDWARE INFORMATION Item Description CELL Cellular models only. Lights when there is power to the radio. Blinks when the SIM is registered with the carrier. Ethernet Link Left LED on the Ethernet connector. Blinks when data is sent or received on the Ethernet link. Steady light when there is a valid Ethernet connection.
-
Page 11: Resetting The Device
LoRa Antenna Manufacturer: Pulse Electronics Description: 868-928 MHz RP-SMA Antenna, 8" Model Number: W1063 MultiTech ordering information: ® Conduit AP MTCAP-L4E1 User Guide for Europe Arrow.com. Downloaded from... -
Page 12: Power Measurements
SPECIFICATIONS AND HARDWARE INFORMATION Ordering Part Number Quantity AN868-915A-1HRA AN868-915A-10HRA AN868-915A-50HRA LoRa Antenna Specifications Category Description Frequency Range 868-928 MHz Impedance 50 Ohms VSWR < 2.0 Gain 3.0 dBi Radiation Omni Polarization Vertical Power Measurements MTCAP-L4E1-868-xx Note: Multi-Tech Systems, Inc. recommends that you incorporate a 10% buffer into the power source when determining product load. -
Page 13: Mtcap-868-Xx Mtcap-915-Xx
SPECIFICATIONS AND HARDWARE INFORMATION MTCAP-868-xx MTCAP-915-xx Note: Multi-Tech Systems, Inc. recommends that you incorporate a 10% buffer into the power source when determining product load. Maximum Power: MTCAP LoRa connection to MTXDOT running TXP =20 and at+txdr=2. The MTXDOT was initialized to send packets by joining MTCAP and rapidly sending packet to the MTCAP. Tx Pulse: The average peak current. -
Page 14: Chapter 3 - Safety Information
SAFETY INFORMATION Chapter 3 – Safety Information Power Supply Caution CAUTION: Do not replace the power supply with one designed for another product; doing so can damage the modem and void your warranty. Adapter shall be installed near the equipment and shall be easily accessible. CAUTION: Pour garantir une protection continue contre les risques d'incendie, remplacez les fusibles uniquement par des fusibles du même type et du même calibre. -
Page 15: Sécurité Relative Aux Appareils À Radiofréquence (Rf)
SAFETY INFORMATION Switch OFF your wireless device when in an aircraft. Using portable electronic devices in an aircraft may endanger aircraft operation, disrupt the cellular network, and is illegal. Failing to observe this restriction may lead to suspension or denial of cellular services to the offender, legal action, or both. Switch OFF your wireless device when around gasoline or diesel-fuel pumps and before filling your vehicle with fuel. -
Page 16: Device Maintenance
Do not place the device alongside computer discs, credit or travel cards, or other magnetic media. The information contained on discs or cards may be affected by the device. Using accessories, such as antennas, that MultiTech has not authorized or that are not compliant with MultiTech's accessory specifications may invalidate the warranty. -
Page 17: User Responsibility
SAFETY INFORMATION User Responsibility Respect all local regulations for operating your wireless device. Use the security features to block unauthorized use and theft. ® Conduit AP MTCAP-L4E1 User Guide for Europe Arrow.com. Downloaded from... -
Page 18: Chapter 4 - Labels
The label shown is not the actual size. 1 - MultiTech Model Identification. 2 - MultiTech Ordering Part Number. 3 - IMEI Number (cellular models only) 4 - Device Node Number 5 - UUID Example Device Label ®... -
Page 19: Chapter 5 - Setting Up Hardware
Models If your device uses the mPower platform, getting started information is in mPower Software Guide (S000727), available through your model's page at https://www.multitech.com/brands/multiconnect-conduit-ap mLinux Models If your device uses the mLinux platform, getting started information is at http://www.multitech.net/developer/software/mlinux/getting-started-with-conduit-mlinux/ ®... -
Page 20: Chapter 6 - Mounting The Device
MOUNTING THE DEVICE Chapter 6 – Mounting the Device Mounting the Device The device ships with a mounting bracket. You will need Device Mounting bracket Four #6 screws, with anchors (not provided) Screwdriver Drill Mounting Bracket Determining Location Follow these guidelines for best performance: For optimal performance, place the device at a level higher than the end devices. -
Page 21: Mounting The Device
MOUNTING THE DEVICE Select a location central to all devices to be connected to this device. Avoid obstructions. Important: Thick walls and reflective surfaces, such as metal, weaken the signal between the device and other devices. We recommend conducting a site survey to test the signal strength in different locations before you mount the device. - Page 22 MOUNTING THE DEVICE ® Conduit AP MTCAP-L4E1 User Guide for Europe Arrow.com. Downloaded from...
-
Page 23: Chapter 7 - Regulatory And Environmental
Substances) complements the WEEE Directive by banning the presence of specific hazardous substances in the products at the design phase. The WEEE Directive covers all MultiTech products imported into the EU as of August 13, 2005. EU-based manufacturers, distributors, retailers and importers are obliged to finance the costs of recovery from municipal collection points, reuse, and recycling of specified percentages per the WEEE requirements. - Page 24 REGULATORY AND ENVIRONMENTAL ® Conduit AP MTCAP-L4E1 User Guide for Europe Arrow.com. Downloaded from...
-
Page 25: Restriction Of The Use Of Hazardous Substances (Rohs)
2015/863 of the European Parliament (Restriction of the use of certain Hazardous Substances in electrical and electronic equipment - RoHS 3). These MultiTech products do not contain the following banned chemicals Lead, [Pb] < 1000 PPM Mercury, [Hg] <... -
Page 26: Information On Hs/Ts Substances According To Chinese Standards
REGULATORY AND ENVIRONMENTAL Information on HS/TS Substances According to Chinese Standards In accordance with China's Administrative Measures on the Control of Pollution Caused by Electronic Information Products (EIP) # 39, also known as China RoHS, the following information is provided regarding the names and concentration levels of Toxic Substances (TS) or Hazardous Substances (HS) which may be contained in Multi-Tech Systems Inc. -
Page 27: Information On Hs/Ts Substances According To Chinese Standards (In Chinese)
REGULATORY AND ENVIRONMENTAL Information on HS/TS Substances According to Chinese Standards (in Chinese) 依 依 照 照 中 中 国 国 标 标 准 准 的 的 有 有 毒 毒 有 有 害 害 物 物 质 质 信 信 息 息 根据中华人民共和国信息产业部... -
Page 28: Index
INDEX Index LEDs.................9 LORA LED.................9 antenna .................11 maintenance ..............16 build options ..............5 mLinux................19 modem safety ...............14 mounting device ............20 CELL LED ................9 mPower software............19 certifications..............8 Chinese hazardous substances Chinese version............27 English version ............26 package contents ............5 configuring ..............19 Ports Ethernet ...............14 connectors...............9 power jack...............9 power measurements ..........12 13... - Page 29 INDEX transmission ..............8 user responsibility............17 ® Conduit AP MTCAP-L4E1 User Guide for Europe Arrow.com. Downloaded from...
