Airmaster Airlinq Online (Ethernet)
®

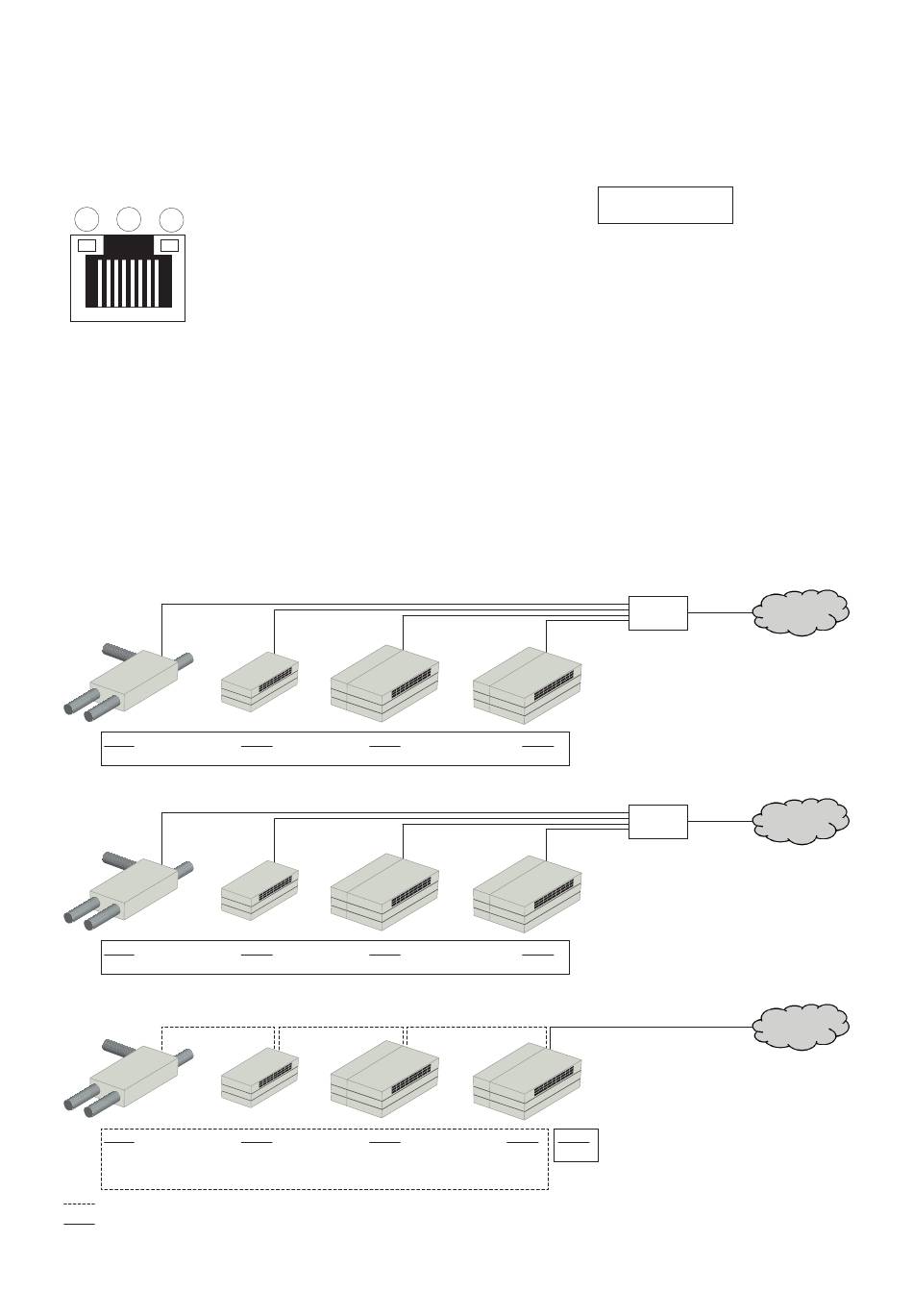

Connection
Status LED (1)
Port - Input (2)
Port LED (3)
1 2
3
Test
The status diode is orange when the unit is connected to
the power supply. When the module is connected to a local
network, the port diode is green.
Connection of Units
With AQC-L (black control box):
Unit 3 *
J18
With AQC-P (grey control box):
Unit 3 *
J5
Airlinq BMS + Airmaster Airlinq® Online
Unit 3
J3/J16
Airlinq BMS (See section "Airlinq BMS Installation")
Airmaster Airlinq® Online
* Airlinq Servie Tool: D-BMS Type = "Ethernet" (Parameter ID400)
Unit 2 * Unit 1 *
J18 J18
Unit 2 * Unit 1 *
J5 J5
Unit 2 Unit 1
J3/J16 J3/J16
Appendix 1 - 37
Identification
Each network module has a unique MAC address on delivery.
The MAC address is located on a label delivered with the
module/glued onto the control box in the unit. For example:
Ethernet MAC
00:1E:C0:DB:27:A3
The unit's serial number is transferred to the network
module. After it has been connected to the internet, you
can communicate with the unit via Airlinq Online.
Cable Recommendation
At least one AWG 24 CAT 5e STP (Shielded Twisted Pair)data
cable with RJ45 connector. The maximum recommended
length for an IP segment with AWG 24 cables is 70 metres.
Switch/
Hub
Unit 0 *
J18
Switch/
Hub
Unit 0 *
J5
Unit 0 Unit 0*
J3/J16 J5/J18
Master
ID0
Internet
Internet
Internet
