Bacnet Tm /Ip - airmaster AM 150 Installation Manual

BACnet /IP
TM

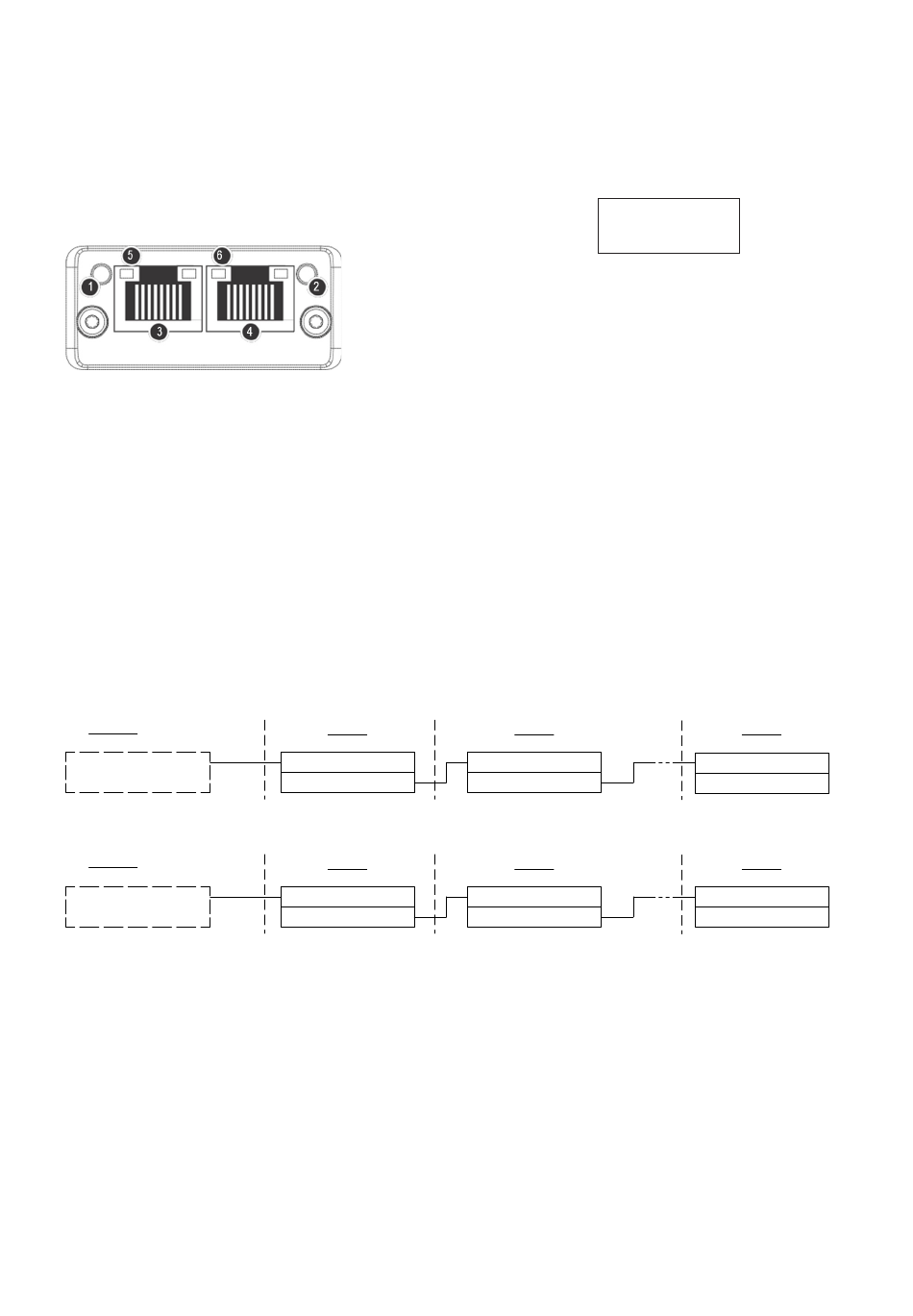

Connection
Port 1 INPUT (3)
Port 2 OUTPUT (4)
NS Network Status LED (1)
MS Module Status LED (2)
Link/Activity Port 1 (5) og Port 2 (6)
Test
Scanning of the network (e.g. using the Anybus IPconfig
program, which is available on Airmaster's website) using
a PC connected directly to the network module or control
of MS LED (green light).
Connection of Units
With AQC-L (black control box):
D-BMS
TM
BACnet IP
Network Connection
With AQC-P (grey control box):
D-BMS
TM
BACnet IP
Network Connection
Unit 1
J18
TM
P1 BACnet IP Input
TM
P2 BACnet IP Output
Unit 1
J5
TM
P1 BACnet IP Input
TM
P2 BACnet IP Output
Appendix 1 - 34
Identification
Each individual network module has a unique unit ID. The
ID number is located on a label delivered with the module/
glued onto the control box in the unit. For example:
AQC BACNET
1988169
The identification number can be read from the status
window, using the Airlinq Service Tool.
Cable Recommendation
At least one AWG 24 CAT 5e STP (Shielded Twisted Pair)data
cable with RJ45 connector. The maximum recommended
length for an IP segment with AWG 24 cables is 70 metres.
Unit 2
J18
TM
P1 BACnet IP Input
TM
P2 BACnet IP Output
Unit 2
J5
TM
P1 BACnet IP Input
TM
P2 BACnet IP Output
Unit X
J18
TM
P1 BACnet IP Input
TM
P2 BACnet IP Output
Unit X
J5
TM
P1 BACnet IP Input
TM
P2 BACnet IP Output
