5.

Airlinq BMS Installation

The Airlinq BMS (Master/Slave) installation allows up to 20
Airmaster air handling units (Unit) and 20 cooling modules
(CC Unit) to be controlled from one system control panel
and up to 19 group control panels.
Please note that all units must have an identical software
version. If units purchased at different times are connected
together the software will most probably have to be updated
in all units. Contact the manufacturer with regard to this.

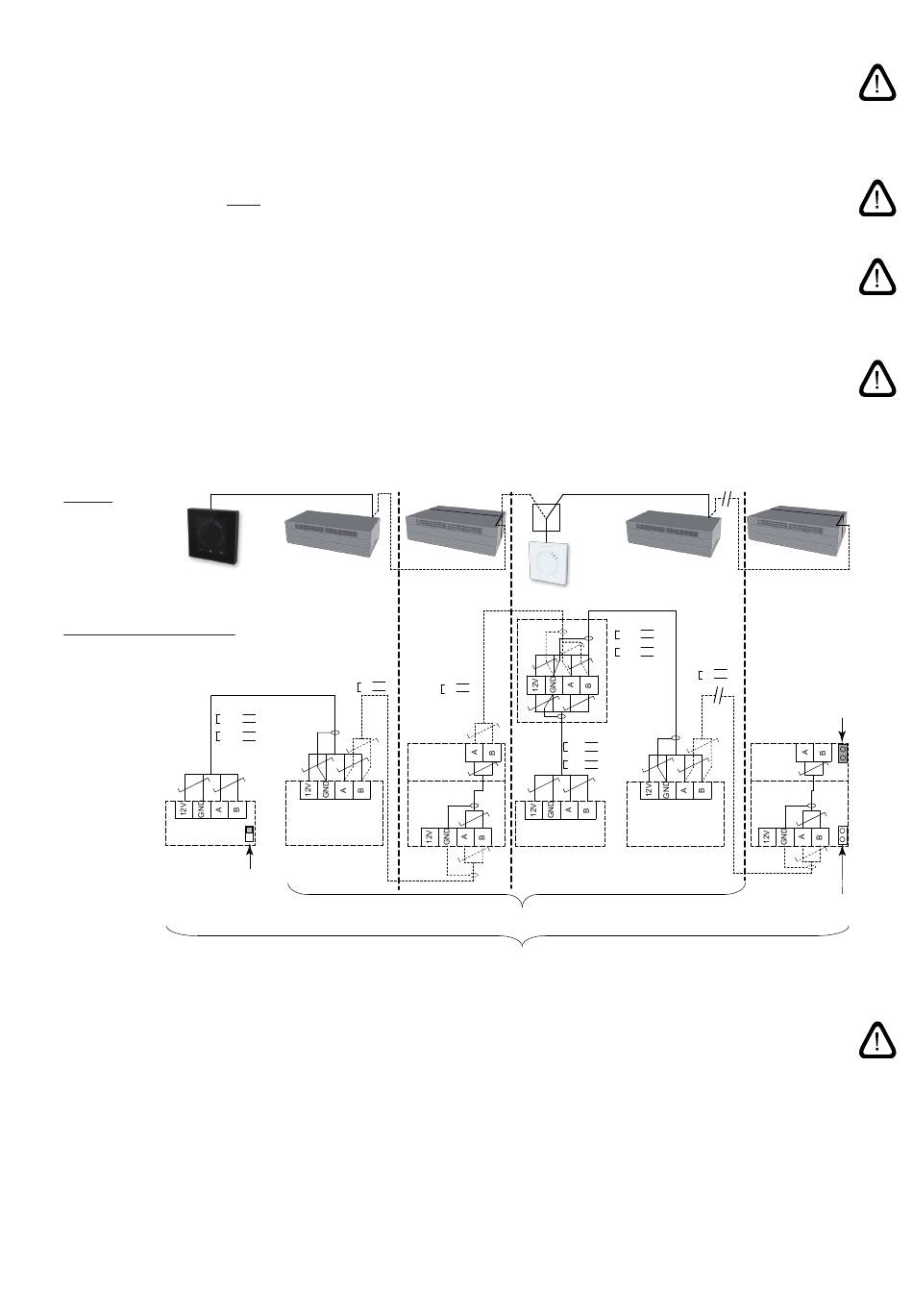

Connect the units (control panel, units and cooling modules)
as shown on the diagram. Maximum system cable length
is 1000 m.
System:
System
Control Panel
Wiring Diagram Data Cable:
max. 100 m
PTS 2x2x0,6
12V
GND
A
B
System Control
Panel (ID179)
DIP Switch
ON
5.1.

Connectors

See "Appendix 1 Wiring Diagrams".
5.2.

DIP Switch / Jumper

See "Appendix 1 Wiring Diagrams".
5.3. Wiring-diagram for typical Airlinq
BMS sytemes
See "Appendix 1 Wiring Diagrams".
CC Unit (101)
SLAVE, Unit (1)
MASTER, Unit (0)
PTS 2x0,6
A A
B B
12V
GND
A
B
CC Unit (101)
(ID101)
SLAVE
Unit (1)
MASTER
(ID1)
Unit (0) (ID0)
NB! Use a shielded twisted pair STP 2x2x0.6 data
cable from the control panel to the unit and a shielded
twisted pair data cable (PTS 2x0.6) from unit to unit!
The shield at each cable must only be connected at
one end!
NB! If over 100 m of data cable needs to be installed
on a control panel, please contact Airmaster before
connecting the cable.
NB! The first and last unit must be terminated in a DIP
Switch (control panel) or a jumper (control box). None
of the other units may be terminated. The control panel
can be connected as the first or last unit in the chain.
NB! The system is programmed using a PC running the
Airlinq Service Tool.
Junction
Box (2)
max. 21cm
Group
Control
Panel (2)
Junction
Box 2
PTS 2x0,6
A A
B B
PTS 2x2x0,6
max. 12V 12V
GND GND
21 cm
A A
B B
Group Control
Panel 2 (ID162)
DIP Switch / Jumper "OFF"
max. 1000 m
5.4.

Junction Box for Group Control Panels

NB! The junction box must be installed in the immediate
vicinity of the control panel. Cables longer than 21 cm
are not permitted and may lead to communication
errors.
15
CC Unit (y)
SLAVE, Unit (x)
SLAVE, Unit (2)
PTS 2x2x0,6
12V 12V
GND GND
A A
B B
PTS 2x0,6
A A
B B
CC Unit (y)
(IDy)
SLAVE
Unit (x)
SLAVE
(IDx)
Unit (2) (ID2)
Jumper
ON
Jumper
OFF
