5.5.4. Programming Cooling Modules ID1 to
ID19
NB! A cooling module installed on the unit with
communication identity "ID0" does not need to be
programmed.
1. Disconnect the power supply to the air handling
unit and the cooling module.
2. Open the cooling module and connect a USB to mini B
USB cable to the mini B USB port on the control box.
3. Switch on the power supply to the unit. Wait for
30 seconds.
4. Connect the USB to mini B USB cable to the PC.

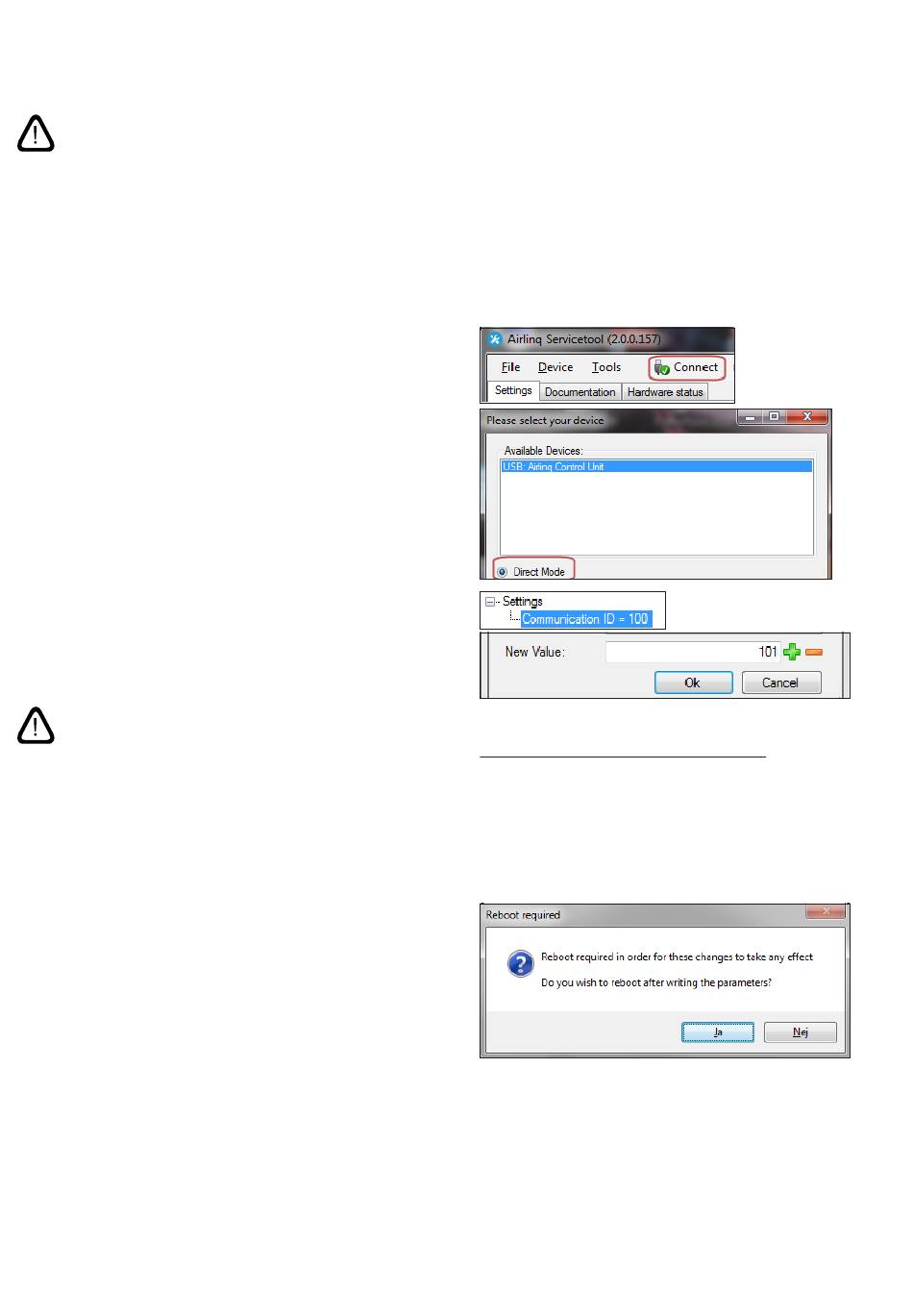

5. Press "Connect". The "Please select your device"
window opens.
6. Select "Direct Mode" and press "Enter" on the
keyboard of the PC.
The program establishes communication with the
control box from the cooling module. The "Please
select your device" window closes.
7. Select "Settings" - "Communication ID = 100" and
press "Enter". The "Set new value" window opens.
8. Enter the cooling module's identity, e.g. "101" for
ID101.
NB! The cooling module's identity is dependent on the
identity of the unit installed together with the cooling
module. Further details are available in the "System
programming" section.
9. Press "Enter". The "Reboot required" window opens.
10. Press "Enter". The control box restarts The "Reboot
required" window closes.
11. Remove the USB to mini B USB cable from the PC.
12. Wait for 60 seconds.
13. Disconnect the power supply to the unit and the
cooling module.
14. Remove the USB to mini B USB cable from the control
box.
15. Close the cooling module.
16. Switch on the power supply to the unit and the
cooling module.
Repeat the procedure for the rest of the cooling modules
(ID102, ID103, ID104, ... ID119).
Pairing of units with cooling modules:
Unit identity
(Communication ID)
ID0
ID1
ID2
...
ID18
ID19
20
Cooling module identity
(Communication ID)
ID100
ID101
ID102
...
ID118
ID119
