5.5.1. Programming Units ID1 to ID19

Begin with the unit that will be given the designation ID1.
1. Switch off the unit's power supply.
2. Open the unit and connect a USB to mini B USB cable
to the mini B USB port on the control box.
3. Switch on the power supply to the unit. Wait for
30 seconds.
4. Connect the USB to mini B USB cable to the PC. Start
the Airlinq Service Tool.

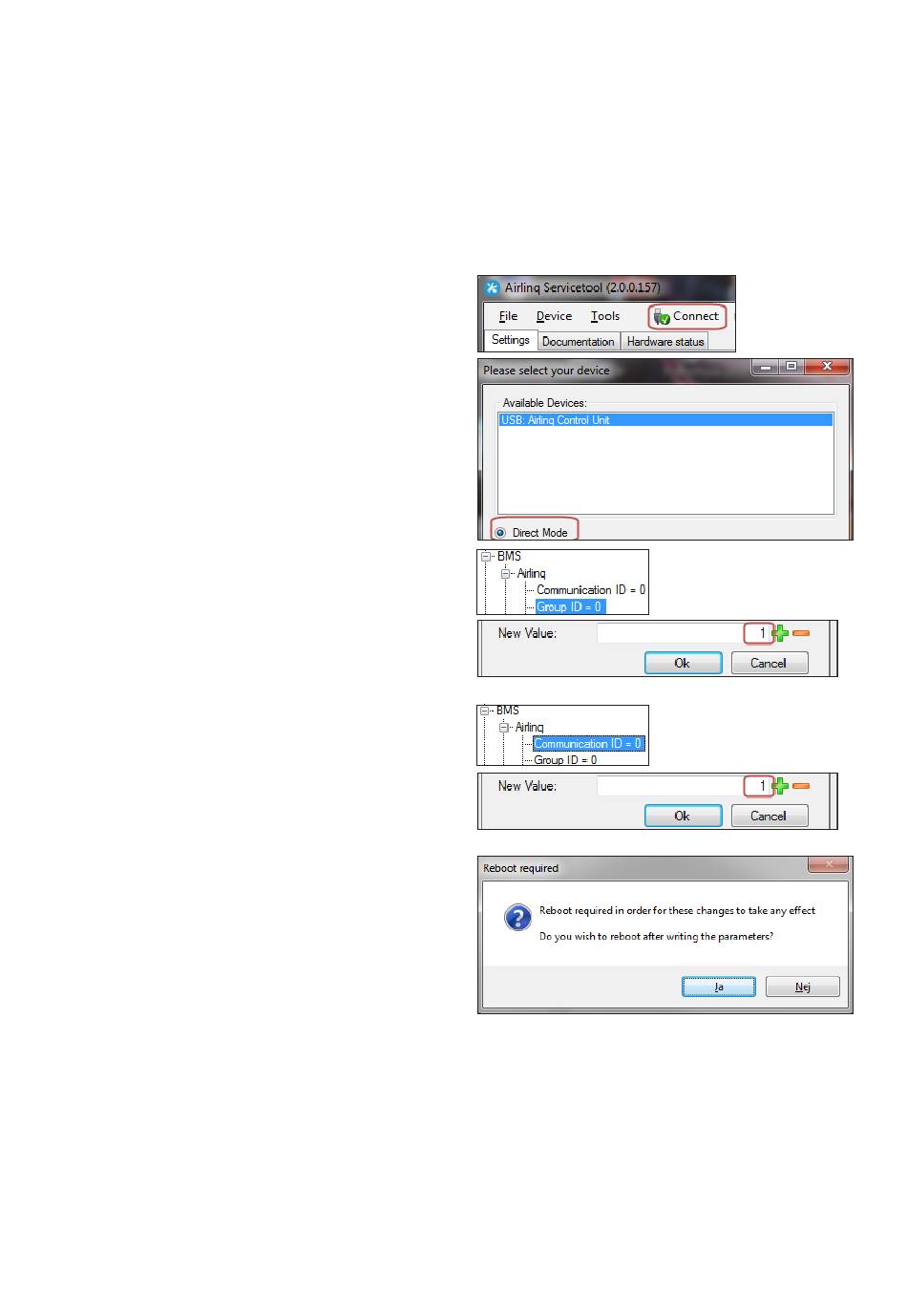

5. Press "Connect". The "Please select your device"
window opens.
6. Select "Direct Mode" and press "Enter" on the
keyboard of the PC.
The program establishes communication with the
control box. The "Please select your device" window
closes.
7. Select "BMS" - "Airlinq" - "Group ID = 0" and press
"Enter". The "Set new value" window opens.
8. Enter the group number you wish to allocate to the
unit, e.g. "1".
9. Press "Enter". The "Set new value" window closes.
10. Select "BMS" - "Airlinq" - "Communication ID = 0" and
press "Enter". The "Set new value" window opens.
11. Enter "1" for ID1.
12. Press "Enter". The "Reboot required" window opens.
13. Press "Enter". The control box will restart. The
"Reboot required" window closes.
14. Wait for 60 seconds.
15. Switch off the power supply to the unit.
16. Remove the USB to mini B USB cable from the control
box.
17. Close the unit.
18. Switch on the power supply to the unit.
Repeat the procedure for the rest of the units (ID2, ID3,
ID4, ... ID19) in numerical order.
