5.5.3. Programming Group Control Panels for
Groups 1 to 19
Begin with group 1.

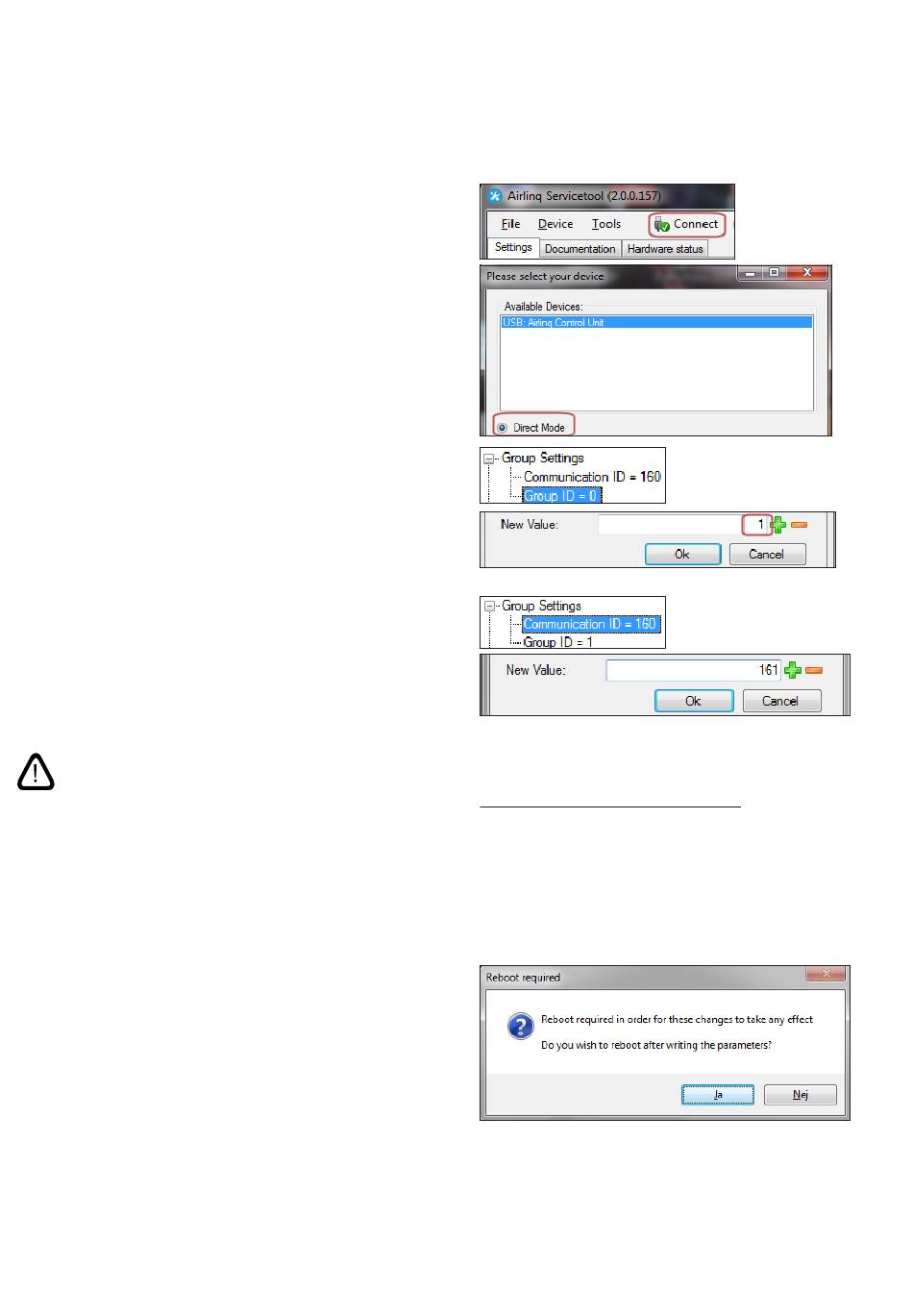

1. Connect a USB to mini B USB cable to the control
panel's mini B USB port. Start the Airlinq Service Tool.
2. Press "Connect". The "Please select your device"
window opens.
3. Select "Direct Mode" and press "Enter" on the
keyboard of the PC.
The program establishes communication with
the control panel. The "Please select your device"
window closes.
4. Select "Group Settings" - "Group ID = 0" and press
"Enter". The "Set new value" window opens.
5. Enter the group number to which you wish to con-
nect the control panel, e.g. "1" for group 1.
6. Press "Enter". The "Set new value" window closes.
7. Select "Group Settings" - "Communication ID = 160"
and press "Enter". The "Set new value" window
opens.
8. Enter "161" for ID161.
NB! The control panel's identity is dependent on the
identity of the group to which the control panel is
connected. Further details are available in the "System
programming" section.
9. Press "Enter". The "Reboot required" window opens.
10. Press "Enter". The control panel restarts. The "Reboot
required" window closes.
11. Remove the USB to mini B USB cable from the control
panel.
Repeat the procedure for the rest of the group control
panels (ID162, ID163, ID164, ... ID178).
Pairing of Airlinq Viva with groups:
Group identity
(Group ID)
G0
G1
G2
...
G17
G18
19
Viva identity
(Communication ID)
ID160
ID161
ID162
...
ID177
ID178
