QUICK START GUIDE

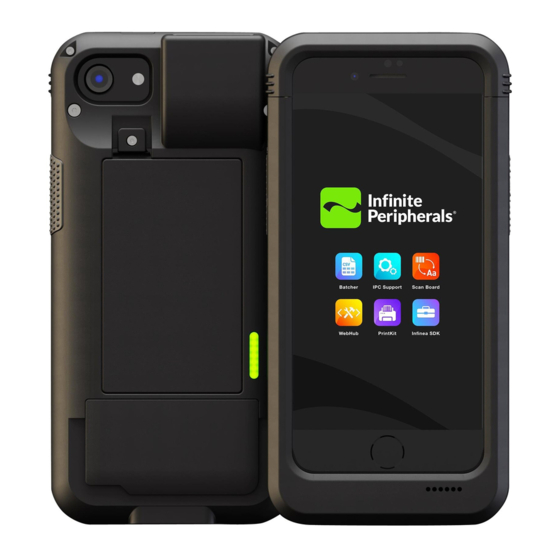

Linea Pro® 7 UHF
For iPhone® 6s/7/8
Getting Started
The Linea Pro 7 UHF enables you to improve efficiency with the
combination of a 1D/2D barcode reader and UHF RFID reader in
one device.
Note:
Bluetooth is not available.
1. Place your iOS device in the Linea Pro 7 UHF using your thumbs.
2. Ensure the iOS device is seated securely.
3. Plug the USB Type-C end of the charging cable into the bottom of the
unit.
Note:
Recommended 5V 2.4A power adapter is not included.
Barcode/UHF Reader
UHF tags may be read from a short-range distance of approximately
1m away.
1. Hold the scanner with the aimer facing the target barcode.
2. Ensure every bar and space between the bars are covered by the beam
during the scanning.
UHF/RFID Reader
Optional high-frequency RFID functionality is available.
1. Tap the contactless card reading option in your iOS application.
Note:
Keep the face of the tag/card flat and as close as possible against the
transmitter/receiver.
2. Place the RFID tag/card over the RFID label on the transmitter/receiver.
The data is read from the contactless reader to the iOS device.
Battery & Device Status
LEDs
Blue
• Rapid flashing indicates an active connection with the iOS
device.
• Slow flashing indicates there is no connection with the iOS
device.
Green
• Rapid flashing indicates the battery is charging.
• Solid green indicates the battery is fully charged.
Software Developers Kit (SDK)
You can simplify the software integration process using our SDK, which
can integrate your existing platforms. Contact your Infinite Peripherals
account representative or access
complete details.
Description
https://developer.ipcmobile.com for
