Eagle Access Control Systems X9S Installation & Owner's Manual page 27

See "Programming Travel Distance and Pause Time to Close Gate(s)" statements about DIP-Swich settings etc. on previous
page BEFORE programming Bi-Parting gates.
Almost full
open position
1
M1 M2
O G
P R
2
LD1
3
M1 M2
4
M1 M2
5
M1 M2
6
M1 M2
12
7
9 3
6
Start Pause
M1 M2
12
9 3
8
6
Stop Pause
M1 M2
9
M1 M2
10
End Program
M1 M2
X9 Slide Rev - H

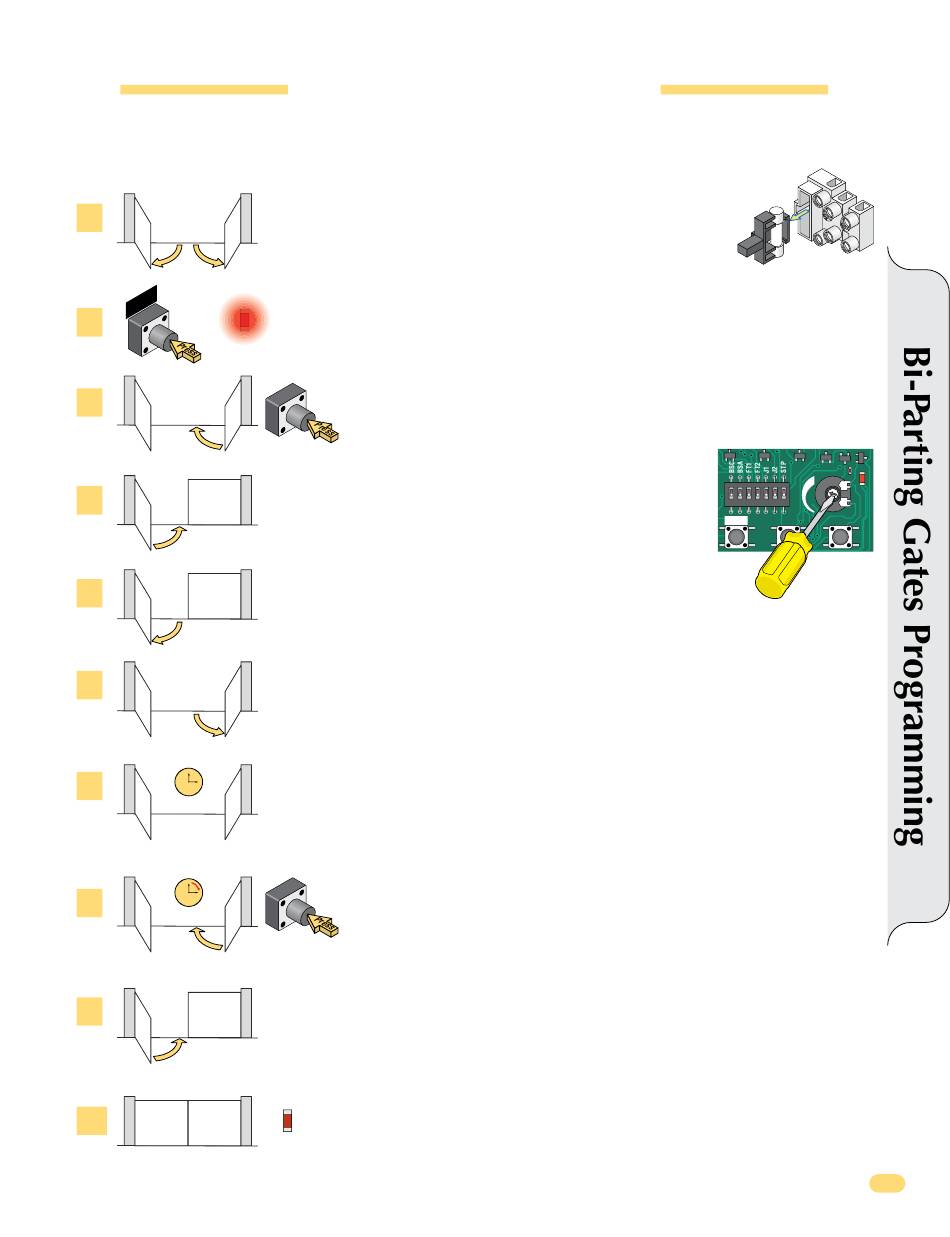

BI-PARTING Gates Programming
Shut-off the power and Manually release the gate leaves and move them to an
almost fully open position. Re-lock operator(s) and turn power back ON.
Hold down the PROG button for at least 3 seconds until
led LD1 lights up. "Programming mode" has been activated.
P / P
Press the P/P button. The gate with M2 Operator should
begin to CLOSE. If it opens instead, shut-off the power,
reverse motor M2 Red and Black wires and start again.
When gate leaf with M2 Operator has completely closed it
will stop and M1 Operator will begin to close. If it opens
instead, shut-off the power, reverse motor M1 Red and Black
wires and start again.
When the gate leaf with M1 Operator has completely closed it
will stop and start to open automatically.
When the gate with M1 Operator completely opens, M2 Operator will begin to open.
When the gate with M2 Operator has opened completely (reaching the mechanical stop),
PAUSE TIME memorization will start automatically.
NOTE: If automatic reclosing is not being used you may press P/P button immediately.
P / P
Once the desired PAUSE TIME has elapsed, Press P/P button and M2 Operator will begin
to close.
When the gate with M2 Operator completely closes, M1 Operator will begin to close.
Turns OFF
When the gate with M1 Operator has closed completely, the motor will stop,
led LD1 will turn OFF and programming mode ends.
LD1
ON / OFF
Pulling the 4 Amp fuse
will shut-off power.
NOTE: If the operator stops
before reaching the travel
limit, decrease the TR1
reversing sensitivity
adjustment (clockwise).
TR1
ON
LD1
1 2 3 4 5 6 7
P3 P/P
PROG
