Photo Eye Installation; Dip Switches - Eagle Access Control Systems X9S Installation & Owner's Manual

Remove Hood
Pull Out Pull Out
Lift Up
Remove cover
with 4 screws
Cover
Disassembly
Beam Adjustment
Beam is aligned with reflector when yellow ALIGN LED turns ON.
POWER ALIGN
Min. Max.
Switch Setting
Monitoring Method
SW1 SW2
Light ON OFF OFF
Dark ON ON OFF
2 Frequency (HB) OFF OFF
3 Frequency (HB) OFF ON
R. T. (NC) OFF OFF
R. T. (NO) ON OFF
Non-Polarity
Power NO COM
14

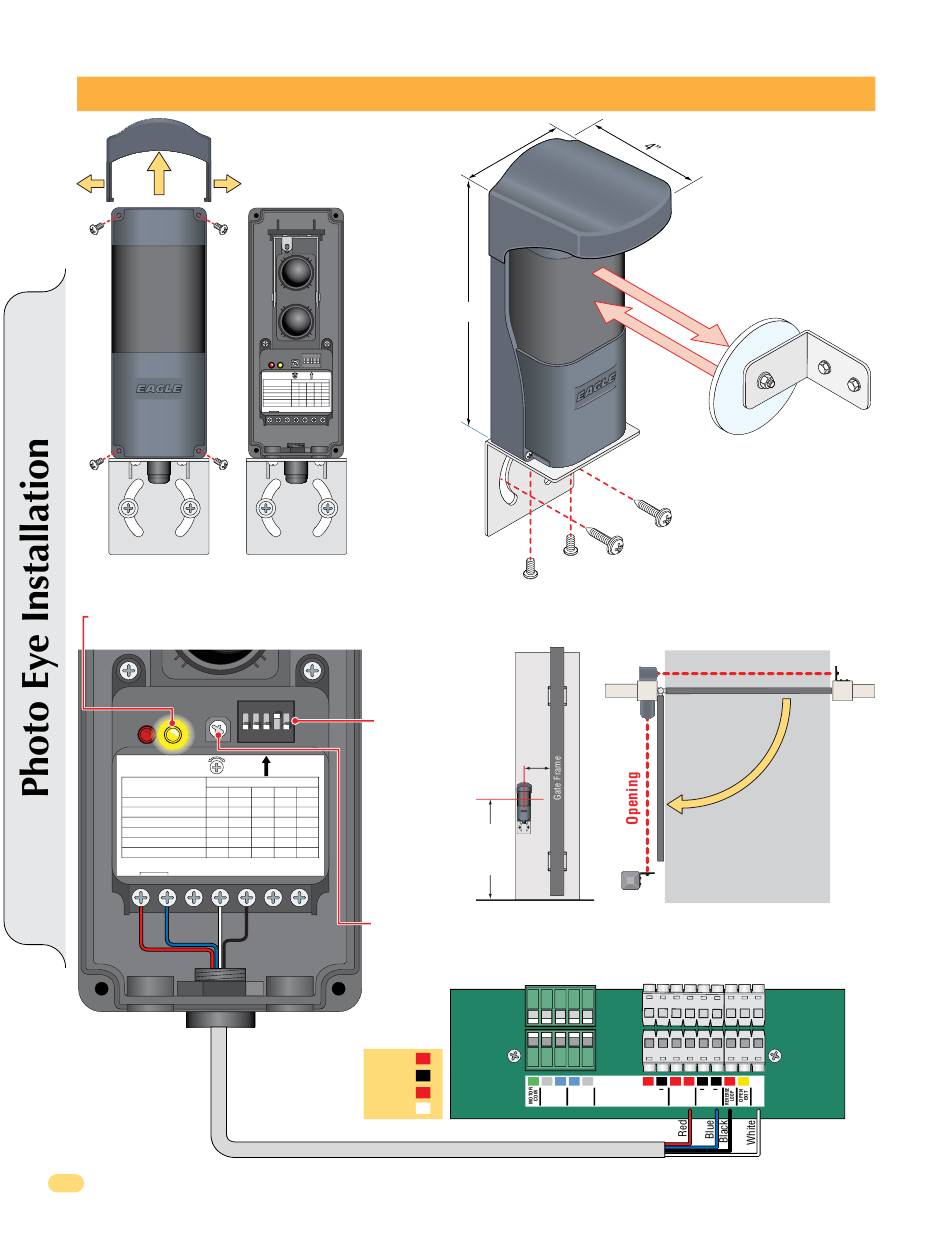

PHOTO EYE INSTALLATION

ON
1 2 3 4 5
POWER ALIGN R.T:
Resistive
Min. Max.
termination
Switch Setting
Monitoring Method
SW1 SW2 SW3 SW4 SW5
Light ON OFF OFF OFF OFF OFF
Dark ON ON OFF OFF OFF OFF
2 Frequency (HB) OFF OFF ON OFF OFF
3 Frequency (HB) OFF ON ON OFF OFF
R. T. (NC) OFF OFF OFF ON OFF
R. T. (NO) ON OFF OFF OFF ON
Non-Polarity
Power NO COM NC (HB+) (HB-)
ON
DIP-Switches
1 2 3 4 5
SW 1 = OFF
SW 2 = OFF
R.T:
Resistive
SW 3 = OFF
termination
SW 4 = ON
SW3 SW4 SW5
OFF OFF OFF
SW 5 = OFF
OFF OFF OFF
ON OFF OFF
ON OFF OFF
OFF ON OFF
OFF OFF ON
NC (HB+) (HB-)
Sensing Range Adjustment
Turning Clockwise: Range becomes longer.
Turning Counter-Clockwise: Range becomes shorter.
Red -
9
Blue -
11
Black -
12
White -
14
/ 4 "
2 3
H o
/ 4 "
7 3
v e r
C o
Wrap Around
Mounting Bracket
Typical Vehicular Gate Locations
Side View
5"
or less
21"
Typical
MAX
27.5"
1 2 3 4 5
1 2 3 4 5
MOTOR MOTOR
1 LIMITS 2 LIMITS
o d
Max Sensing Range:
49 ft (15m) / Outdoors
Wrap Around
Mounting Bracket
for Reflector
Mount with appropriate hardware
Top View
Closing
Open
6 7 8 9 10 11 12 13 14
6 7 8 9 10 11 12 13 14
+ + +
MAG LOCK 24VDC 24 COM COM
X9 Swing Rev - H
