Operator Must be in released position (Unlocked).
Cover MUST be removed.
Manually move gate to CLOSED position.
Slide CLOSE limit switch until it activates (clicks).
Spin mechanical stop until it touches limit switch and
tighten it down.
Manually move gate to OPEN position.
Slide OPEN limit switch until it activates (clicks).
Spin mechanical stop until it touches limit switch and
tighten it down.
Re-lock operator and reinstall cover.
Repeat process with second operator if installed.

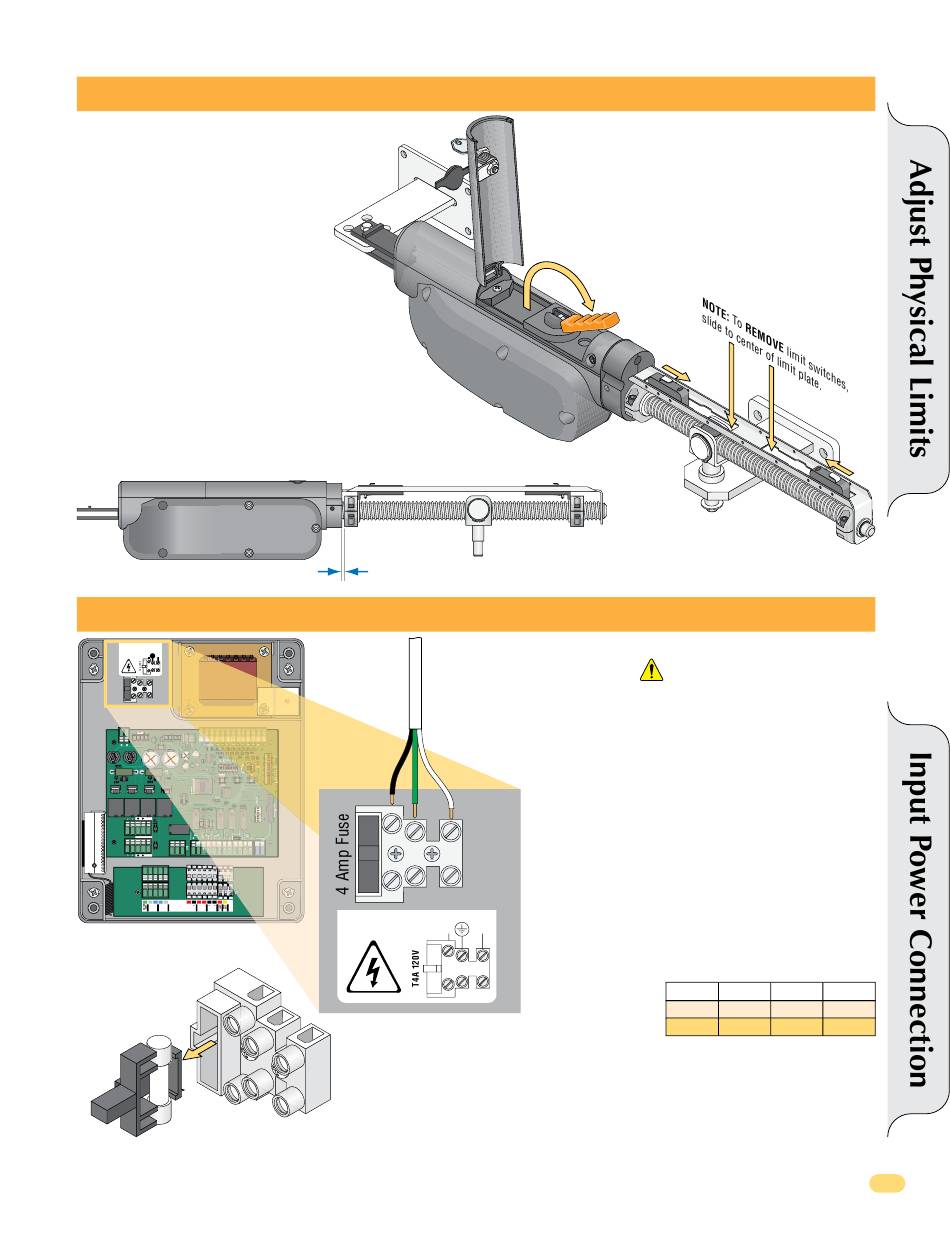

120 VAC INPUT POWER CONNECTION

120V 50/60Hz L N
SEC SEC
- +
F16A F3A
+
M2 - D
M2
1 2 3 4 5
POWER
ENCODER +
NO NC C
M1
1 2 3 4 5
POWER 1 2 3 1 2
- +
M1 D
6 7 8 9 10 11 12 13
1 2 3 4 5
1 2 3 4 5 6 7 8 9 10 11 12 13 14
+ + +
MOTOR MOTOR
MAG LOCK 24VDC 24 COM COM
1 LIMITS 2 LIMITS
Never run low voltage wires
in the same conduit as high
voltage wire.
ON / OFF
Pulling the 4 Amp fuse
will shut-off power.
X9 Slide Rev - H
ADJUST PHYSICAL LIMITS
Limit Switch
1/8" min gap for mechanical stop
120 VAC
Input Power Wire
Black White
Green
120V 50/60Hz
L N
IMPORTANT: DO NOT
the limit switches (see above) AND programming has been
completed (see pages 23-24). Damage or injury could occur.
Limit switches and mechanical stops MUST be
CORRECTLY positioned and secured with the
set screw BEFORE programming.
Released Position
(Unlocked)
Limit
Switch
Mechanical
Stop
Limit Switch
Stroke Pin
Assembly
Mechanical
Stop
CAUTION
Be sure that the circuit breaker for the input power is
turned OFF before connecting the input power to the
operator.
All operators MUST be properly grounded.
Installing surge protection is recommended.
WARNING: Eagle Access Control Systems, Inc. is not
responsible for researching and complying with local
building codes. Be sure to check all local building codes
before installation.
Wire Color Description
Black - 120 VAC input power
120 VAC
White - Neutral input
Green - Ground input
(from an approved grounding method)
120 VAC Input Power Wire Runs Maximums
14 AWG
Single Arm
400 ft
Dual Arms
300 ft
cycle the operator before physically setting
Limit
Switch
Mechanical
Stop
12 AWG 10 AWG 8 AWG
600 ft 1200 ft 2000 ft
500 ft 1000 ft 1700 ft
13
