Eagle Access Control Systems X9S Installation & Owner's Manual page 14

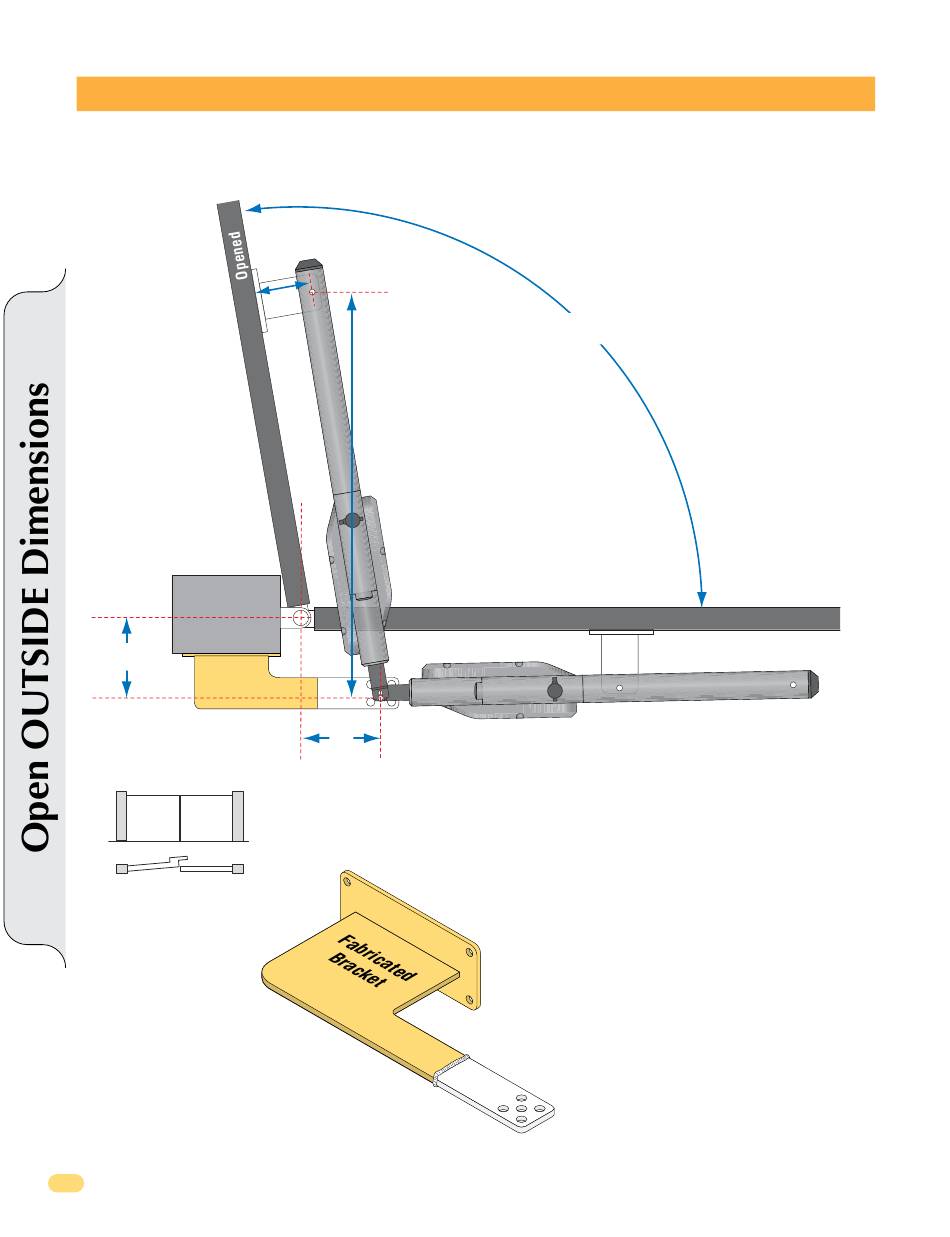

OPEN OUTSIDE MOUNTING DIMENSIONS
7 1/2"
Fabricated
Bracket
NOTE: Rear bracket
MUST be fabricated.
Bi-Parting Gates
M1 M2
M1 M2
Install gate overlap on M1 gate.
M1 opens first and closes last.
Install maglock accordingly.
12
Only to be used with the X9L – Long Arm
4 3/4"
Max Stroke = 38"
6"
The position of the brackets establishes the maximum opening angle and the length
of the actuator's linear stroke.
The longer the stroke, the greater the torque and smoother movements of the gate.
The shorter the stroke, the less the torque and more abrupt movements of the gate.
90°-105°
Supplied Rear Bracket
Closed
X9 Swing Rev - H
