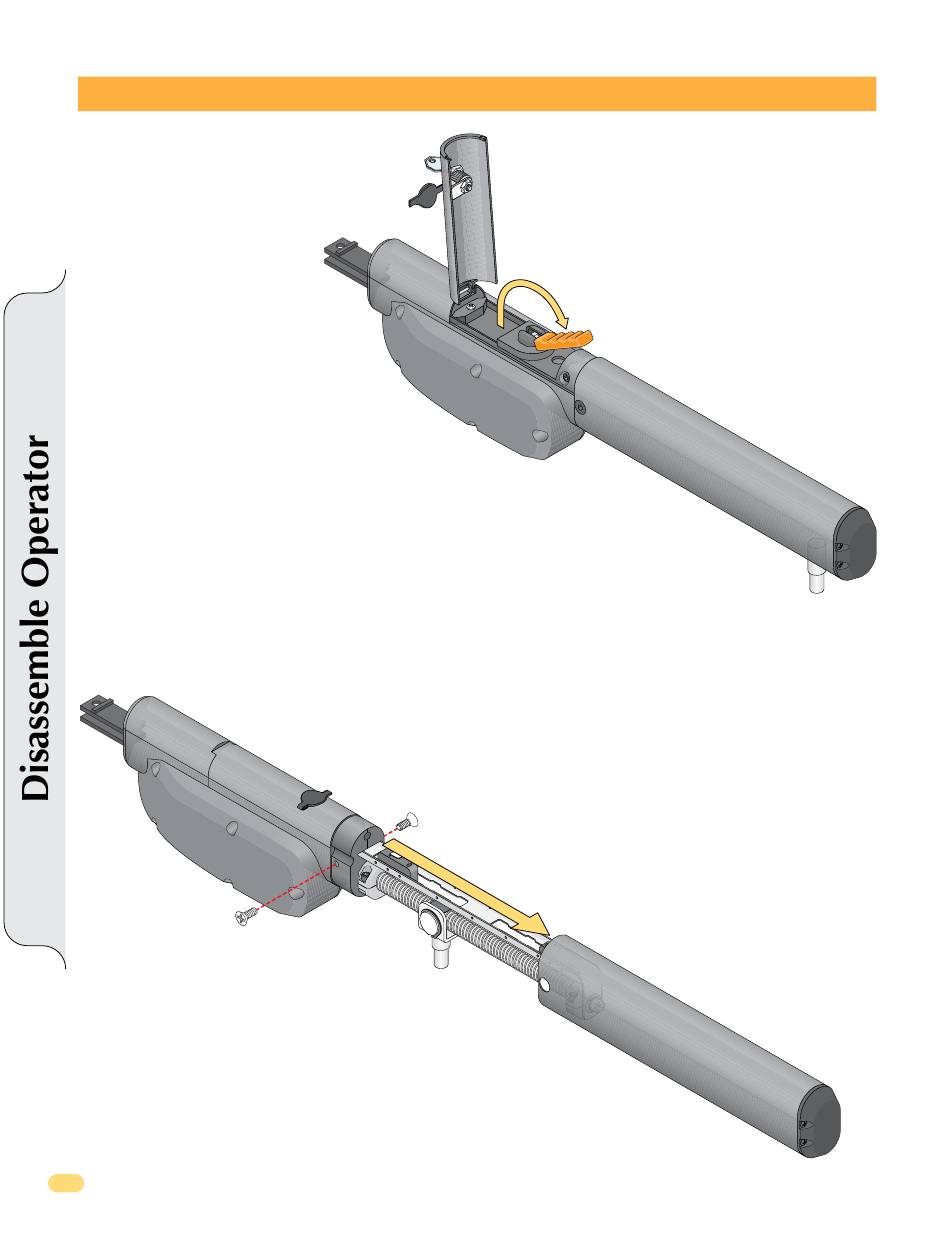

Step 1 - Release Stroke Pin
The stroke pin must be released before
installation.
1. Unlock with Key and open door.
2. Flip orange handle forward.
3. Stroke pin can now be moved.
NOTE: The stroke pin can REMAIN
UNLOCKED by simply removing
the orange handle in the released
position.
4. To Lock Stroke Pin again: Flip orange
handle back to original position.
5. Close and lock door.
Step 2 - Remove Cover to Access Limit Assembly
1. Remove two 5mm allen screws
2. Slide cover off.
