Mount Control Box - Eagle Access Control Systems X9S Installation & Owner's Manual

4 5/8"

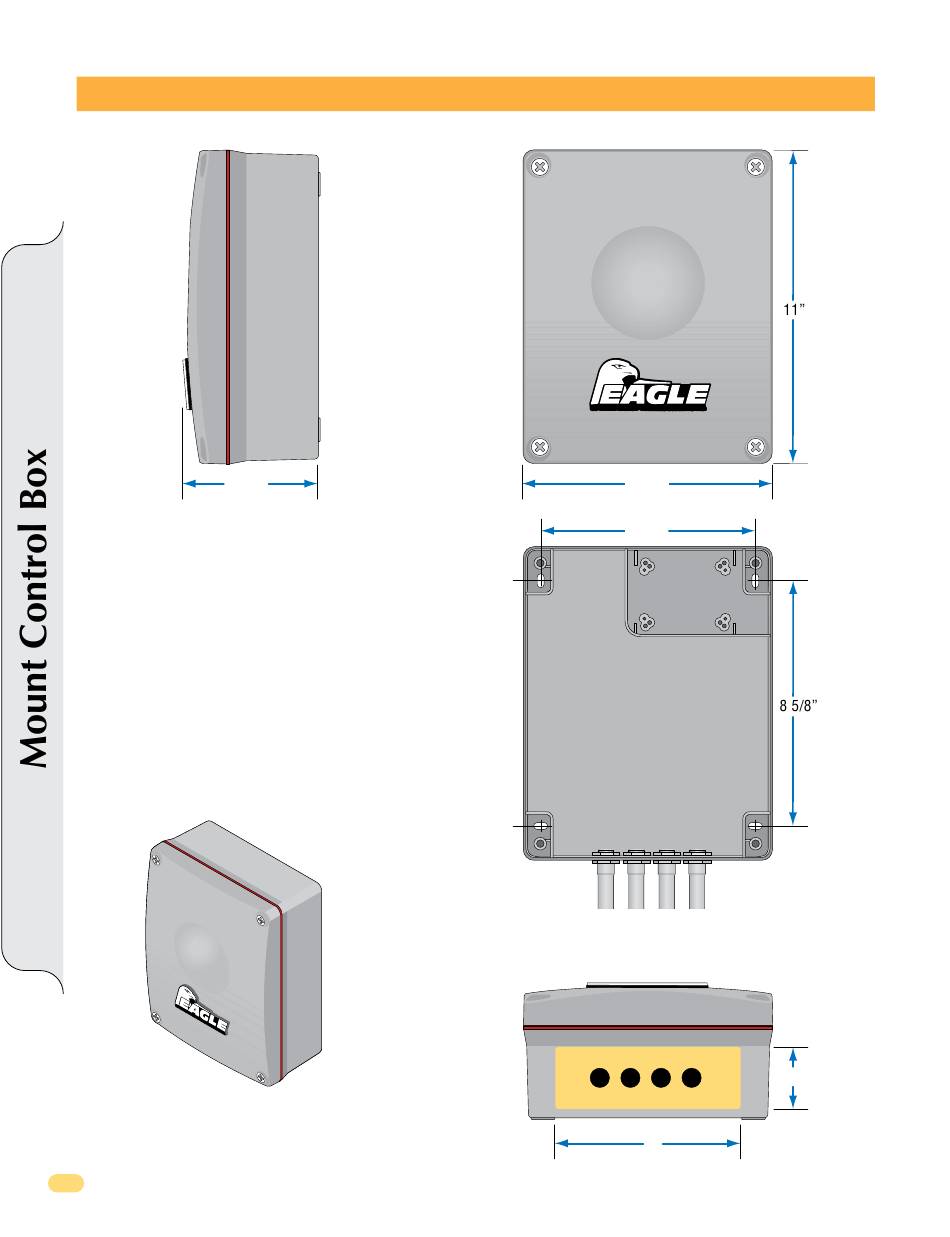

Mount the control box as near as possible to
the actuator arm. Keep the box high enough
above the ground to avoid landscape sprinklers
and such. Avoid drilling holes in the side or top
of the box. Seal any holes made in box to keep
out moisture. The antenna reception for the
radio receiver gets better the higher the box is
above the ground.
B Y
E A
G L
E A
C C
E S
S C
O N
T R
O L
S Y
S T
E M
S ,
IN C
.
10

MOUNT CONTROL BOX

Mounting Hole
Mounting Hole
Never run low voltage wires
in the same conduit as high
voltage wire.
BY EAGLE ACCESS CONTROL SYSTEMS, INC.
8 3/4"
7 1/2"
Mount control box using
4 existing mounting holes
with appropriate hardware
not included.
Conduit Runs
Conduit 1. Motor 1
Conduit 2. Motor 2
Conduit 3. Accessories
Conduit 4. Power
Area for Conduit Holes
6"
2"
