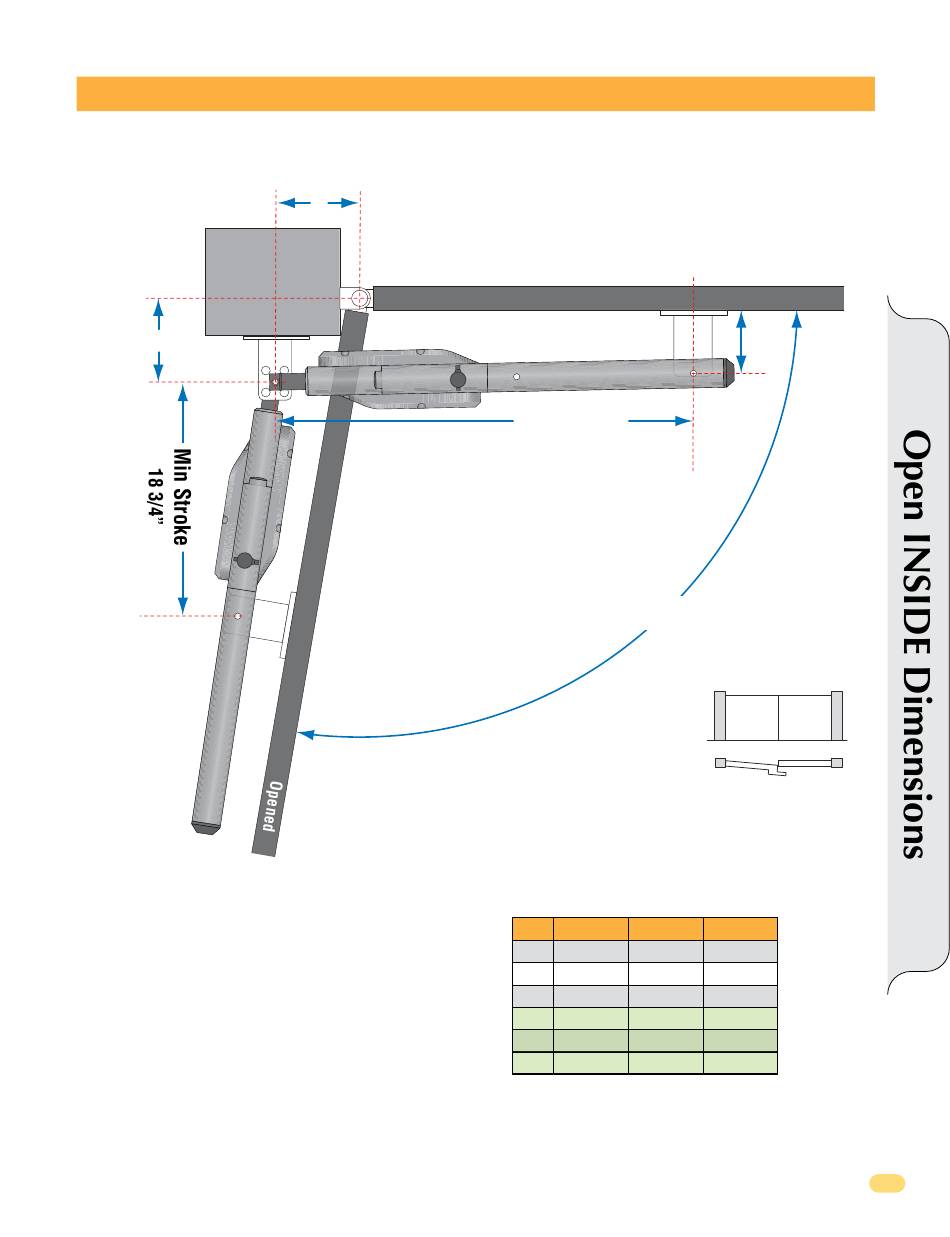

OPEN INSIDE MOUNTING DIMENSIONS
A
X9L-LONG Arm: MAX 16 ft per Gate
X9S-SHORT Arm: MAX 10 ft per Gate
X9 Slide Rev - H
B
The position of the brackets establishes the maximum opening angle and the length
of the actuator's linear stroke.
The longer the stroke, the greater the torque and smoother movements of the gate.
The shorter the stroke, the less the torque and more abrupt movements of the gate.
Max Stroke
X9L = 38 1/2"
X9S = 32 1/2"
90°-110°
Install gate overlap on M1 gate.
M1 opens first and closes last.
Install maglock accordingly.
(°) A" B"
90 6 3/4 7
90 7 1/4 7
90 8 5 1/4
110 6 3/4 6 3/4
110 5 1/2 6
110 6 6
Closed
C
Bi-Parting Gates
M1 M2
M1 M2
C"
4 3/4
4 3/4
4 3/4
4 3/4
4 3/4
4 3/4
11
