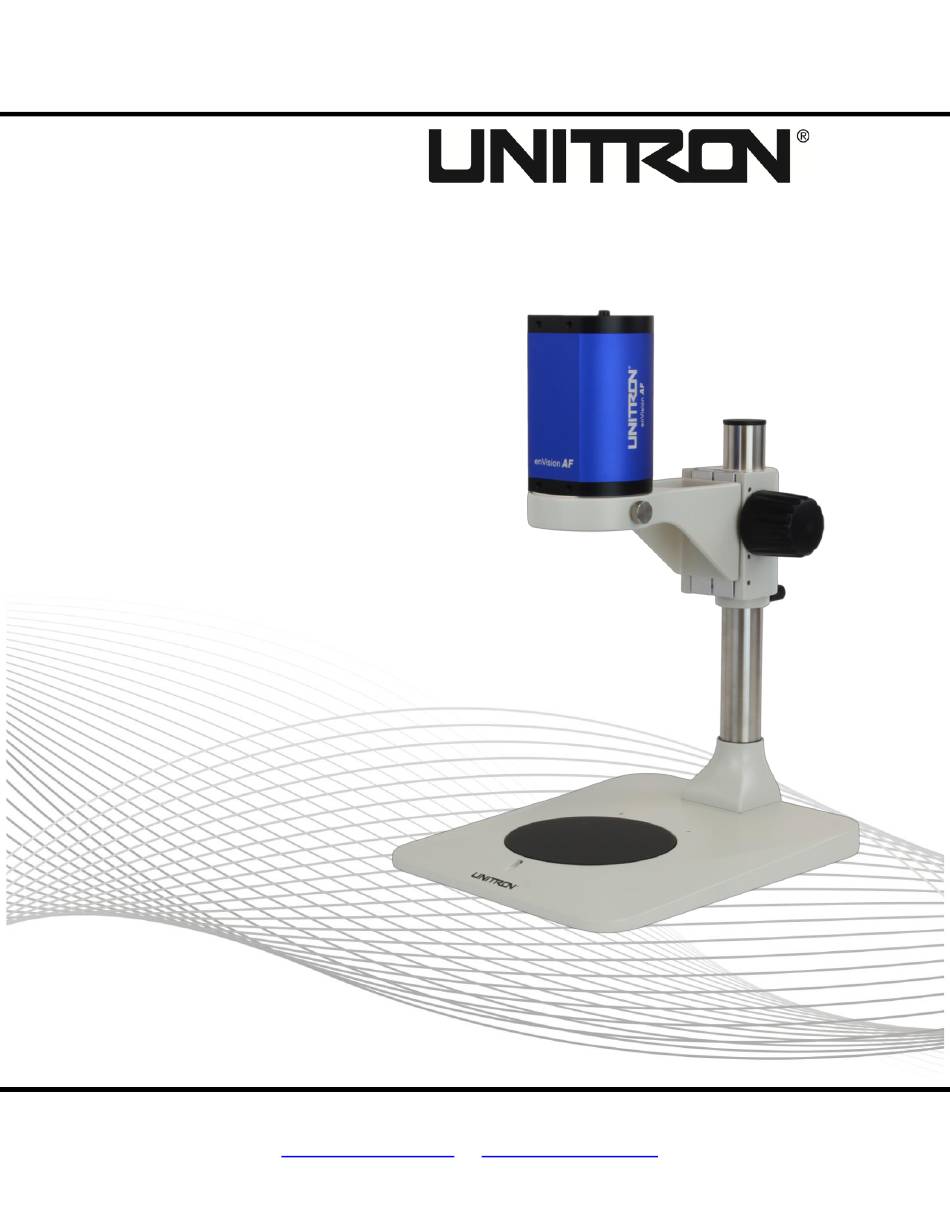

enVision AF
Autofocus
Inspection
Microscope
MANUAL
for Windows
PC Software
73 Mall Drive, Commack, NY 11725 • 631-543-2000 (P) • 631-589-6975 (F)
www.unitronusa.com
info@unitronusa.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the enVision AF and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Unitron enVision AF

  • Page 1 AF Autofocus Inspection Microscope MANUAL for Windows PC Software 73 Mall Drive, Commack, NY 11725 • 631-543-2000 (P) • 631-589-6975 (F) • www.unitronusa.com info@unitronusa.com...
  • Page 2: Table Of Contents

    Contents Connect enVision AF to PC by Ethernet (LAN) .................... 4 Main Software Interface..........................9 Main Menu ..............................10 Device ..............................11 General Settings ........................... 11 Advanced Device Settings ......................13 Acquire ............................... 14 Dynamic Stitching ........................14 Static Stitching ..........................15 EDF (Static) ...........................
  • Page 3 AF Mode ............................42 Full Screen Mode ......................... 42 Settings ..............................42 Language ............................42 Style Settings ............................43 Shortcut Setting ..........................43 Mouse Wheel Settings ......................... 43 Hotkey Settings ..........................43 UNITRON enVision AF PC Software Manual Ver. 241031...
  • Page 4 Page Editor ............................44 Help ..............................44 Contact Information ..........................45 UNITRON enVision AF PC Software Manual Ver. 241031...
  • Page 5: Connect Envision Af To Pc By Ethernet (Lan)

    Connect enVision AF to PC by Ethernet (LAN) To use the enVision AF with a Windows PC, you must first establish a network connection between the two. 1. Connect mouse and HDMI monitor to the microscope (enVision AF). 2. Connect microscope to LAN (Ethernet cable).
  • Page 6 8. Connect PC to LAN (shared Ethernet cable with enVision). 9. Launch the software. Note that the enVision microscope/camera will not be recognized in Device Manager. 10. Open Network Connections on PC. UNITRON enVision AF PC Software Manual Ver. 241118...
  • Page 7 11. Choose Ethernet Status (double-click Ethernet Network to open). Your Ethernet assignment may vary by computer and LAN. 12. Click Properties. 13. Select Internet Protocol Version 4 and choose Properties. UNITRON enVision AF PC Software Manual Ver. 241118...
  • Page 8 192.168.1. The fourth field can be any number from 2 – 254 (“100” is used in this example), but do not use the same number as is used in the fourth field of the microscope. 16. The Subnet mask should automatically populate as 255.255.255.0. If it does not, please manually UNITRON enVision AF PC Software Manual Ver. 241118...
  • Page 9 PC software. Using the PC software, the image file type, file name and storage location may be specified. UNITRON enVision AF PC Software Manual Ver. 241118...
  • Page 10: Main Software Interface

    Main Software Interface ❹ ❸ ❶ ❷ Main Menu ❶ Capture Bar ❷ ❸ Quick Bar ❹ Settings UNITRON enVision AF PC Software Manual Ver. 241118...
  • Page 11: Main Menu

    Annotate - Time Stamp Settings, Marking Tools, Text Tools, Auxiliary Tools. Report - Divided into Excel table template and PDF file template for exporting reports. UNITRON enVision AF PC Software Manual Ver. 241118...
  • Page 12: Device

    When the button is clicked, the screen freezes the live image. You can take pictures and measurements with this toggled on. Continuous shooting and video recording are not available when actively frozen. LAN port output can set the frame value. UNITRON enVision AF PC Software Manual Ver. 241118...
  • Page 13 Custom color settings are available for the ‘Local’ area frame. Zoom Control the camera’s optical magnification and digital zoom. On screen magnification controls are available on the screen in the lower right corner. UNITRON enVision AF PC Software Manual Ver. 241118...
  • Page 14: Advanced Device Settings

    Printer paper is an ideal white point of reference. Configuration Set your own custom configurations or default back to factory settings. Advanced Device Settings White Balance Control Red, Green, and Blue values for manual White Balancing. UNITRON enVision AF PC Software Manual Ver. 241118...
  • Page 15: Acquire

    Quick movement will blur the image. 3. The following window will be displayed, the black area in the window is the background area and the white box is the live video. UNITRON enVision AF PC Software Manual Ver. 241118...
  • Page 16: Static Stitching

    Use static stitching to manually stitch together images that were previously acquired. Static Stitching Key Terms: Available Images: List of images that have been opened in the current program from the PC. UNITRON enVision AF PC Software Manual Ver. 241118...
  • Page 17 4. After the parameters are adjusted, click Start. Wait for a success prompt and then view the picture. 5. The [Reset] button helps the user restore the parameters back to their default state. UNITRON enVision AF PC Software Manual Ver. 241118...
  • Page 18 Color Map Cut. Exposure Compensation: Exposure Compensation includes None, Gain or Block Gain. The default is Gain. Bundle Adjustment: Bundle Adjustment can be defined as the simultaneous definition of 3D coordinates UNITRON enVision AF PC Software Manual Ver. 241118...
  • Page 19: Edf (Static)

    4. Click [End] to end Depth of Field Fusion. Image saving related settings are associated with the Snap - Set Parameters. Guide Filter Method: When selecting the Guided Filtering method, you can adjust the detail sharpness. It has a default value of 3 and a range of 2-17. UNITRON enVision AF PC Software Manual Ver. 241118...
  • Page 20: Edf (Dynamic)

    Adjust the end position slider or manually enter a value to focus the image to the start position plane. Click on the capture interval (range 1-99): starting focus value – ending focus value range. Choose UNITRON enVision AF PC Software Manual Ver. 241118...
  • Page 21: Color Composite

    3. You can enable or disable the coloring of images. After selecting an image, click on a dye to re-color the selected image. -Images that have been set as background cannot be colored. UNITRON enVision AF PC Software Manual Ver. 241118...
  • Page 22: Count

    4. The new processed image is generated as a new Tab “Tabx*” and can be saved. 5. Color adjustments and image alignment adjustments are available as needed. Count UNITRON enVision AF PC Software Manual Ver. 241118...
  • Page 23 Therefore, the segmentation that maximizes the inter-class variance implies that the probability of misclassification is minimized. UNITRON enVision AF PC Software Manual Ver. 241118...
  • Page 24 3. Perimeter: The segmented object is labelled with the length of the contour envelope of the segmented object. Area: Minimum: Determines the lower limit of the area of the object to be divided, i.e., objects smaller than the lower limit are not divided and counted. UNITRON enVision AF PC Software Manual Ver. 241118...
  • Page 25: Measure

    -Increase the efficiency and accuracy of the measurement and plotting. The larger the range value, the larger the recognizable edges. Common Tools You can customize your commonly used tools in the settings for quick access. UNITRON enVision AF PC Software Manual Ver. 241118...
  • Page 26: Calibration Tool

    4. Fill in the calibration menu bar to match the scale you are viewing. -Different magnifications and working distances need to be re-calibrated, otherwise it will affect the accuracy of measurement data. 5. The drop-down allows you to select different units of measurement. UNITRON enVision AF PC Software Manual Ver. 241118...
  • Page 27: Measuring Tools

    6. Click on Settings to customize the color and size of the calibration tool. Measuring Tools Select from the full list of tools you need to measure with. Specific tools can be removed in settings. UNITRON enVision AF PC Software Manual Ver. 241118...
  • Page 28: Exporting Data

    Property Click on any measurement drawn using the Select Measuring Object cursor. The software will automatically switch to the corresponding column of that measurement. Adjust and customize the current parameters as needed. UNITRON enVision AF PC Software Manual Ver. 241118...
  • Page 29: Data Sheet

    Available with the expandable icon located at the bottom of the screen. Measurement results Can be customized to display desired values. Show Last Toggle the user's last measurement in the preview window. The rest of the metadata will be hidden automatically. UNITRON enVision AF PC Software Manual Ver. 241118...
  • Page 30: Annotate

    The user can edit the watermark effect displayed on the screen and in the photos. Toggle the time or date to display the watermark on the screen. Scroll down to adjust the format, color, and position of the watermark. UNITRON enVision AF PC Software Manual Ver. 241118...
  • Page 31: Marking Tool

    Crosshairs are horizontal and vertical lines centered in the middle of the screen. Click to select the color, type, and size of the crosshairs. Click to restore the crosshairs to the center position. The user can show/hide the crosshair tool. UNITRON enVision AF PC Software Manual Ver. 241118...
  • Page 32 The number in the lower part of the scale can be modified via the Setup menu. This displayed magnification corresponds to the magnification set by the user during calibration. UNITRON enVision AF PC Software Manual Ver. 241118...
  • Page 33: Report

    • Batch Export: Check Batch Export to select multiple opened images and export multiple reports. • Export Report: Export the report of the currently selected images to a table in .xlsx format. UNITRON enVision AF PC Software Manual Ver. 241118...
  • Page 34: Report

    Report Export the completed metadata as a PDF file to your desired storage location. UNITRON enVision AF PC Software Manual Ver. 241118...
  • Page 35: Capture Bar

    If Auto-save is toggled "No", taking an image will open a temporary file window. Users can customize the name and format in the Save File pop-up window after clicking the Save button. UNITRON enVision AF PC Software Manual Ver. 241118...
  • Page 36: Save Graphics

    -With Merge, the drawn metadata (e.g., graphics) cannot be modified again. The text, however, can be scaled during fusion. Text Scaling Text scaling is only available to adjust the size ratio of text when Merge is selected. Below are examples of 200% and 300%. UNITRON enVision AF PC Software Manual Ver. 241118...
  • Page 37: Naming

    4 image formats are supported: jpg, bmp, png, tiff Sample In auto-naming mode, names can be previewed based on the criteria selected. Timing When toggled on, an image will be captured automatically whenever set by the user. UNITRON enVision AF PC Software Manual Ver. 241118...
  • Page 38: Time Lapse

    After clicking Record, the software starts recording video. When recording is active, a red dot flashes in the lower right corner of the screen. Click Record again to stop recording. You can set the recording parameters in the menu page: UNITRON enVision AF PC Software Manual Ver. 241118...
  • Page 39: Format

    Users can set up three naming methods for video files: • Automatic naming by time and date (prefixes can be added) • Automatic number naming (prefixes can be added) • Manual naming The Time format has four options. UNITRON enVision AF PC Software Manual Ver. 241118...
  • Page 40: Sample

    Set the length of the video; the maximum length of the video file can be set to 23 hours, 59 minutes and 59 seconds. Quick Bar When metadata is drawn in the preview screen, the Fusion Meta button is added to the toolbar. UNITRON enVision AF PC Software Manual Ver. 241118...
  • Page 41: Save & Quick Save

    After finishing the measurement, you can click the Save button again to save the image with the measurement. Comparison View Click on the Compare View button to compare two previously captured images, or a captured image UNITRON enVision AF PC Software Manual Ver. 241118...
  • Page 42: Crop

    Click on the drop-down icon to directly select the current screen magnification. Focus Traceability Mode Click the Trace Mode button to enter Trace Mode. You can now drag and drop the image using the mouse. UNITRON enVision AF PC Software Manual Ver. 241118...
  • Page 43: Measurement Object Mode

    Click the full screen button to display the current image view in full screen. Press esc to exit the full screen interface. Settings Language Simplified Chinese, English, and Traditional Chinese languages can be selected. UNITRON enVision AF PC Software Manual Ver. 241118...
  • Page 44: Style Settings

    You can choose the operation of your mouse wheel. Choose Focus or Zoom (Zoom Video Window is not available with an autofocus camera). Hotkey Settings You can assign actions to function keys on your keyboard. UNITRON enVision AF PC Software Manual Ver. 241118...
  • Page 45: Page Editor

    -Customize the page modules as desired (page layout, function module hiding, etc.). -Main interface exchange controls settings may need a software reset to take effect Help Click the Help button to open this software manual. UNITRON enVision AF PC Software Manual Ver. 241118...
  • Page 46: Contact Information

    Contact Information If the enVision system does not function as expected and/or if the system malfunctions, contact UNITRON Customer Care. Before you call, please have the following information so that Customer Care can provide you with the highest level of service: 1.
