Selecting Programmable Switch Functions; Selecting The Low Frequency Roll-Off - Lectrosonics Digital Hybrid Wireless DBu Quick Start Manual

Selecting Frequency

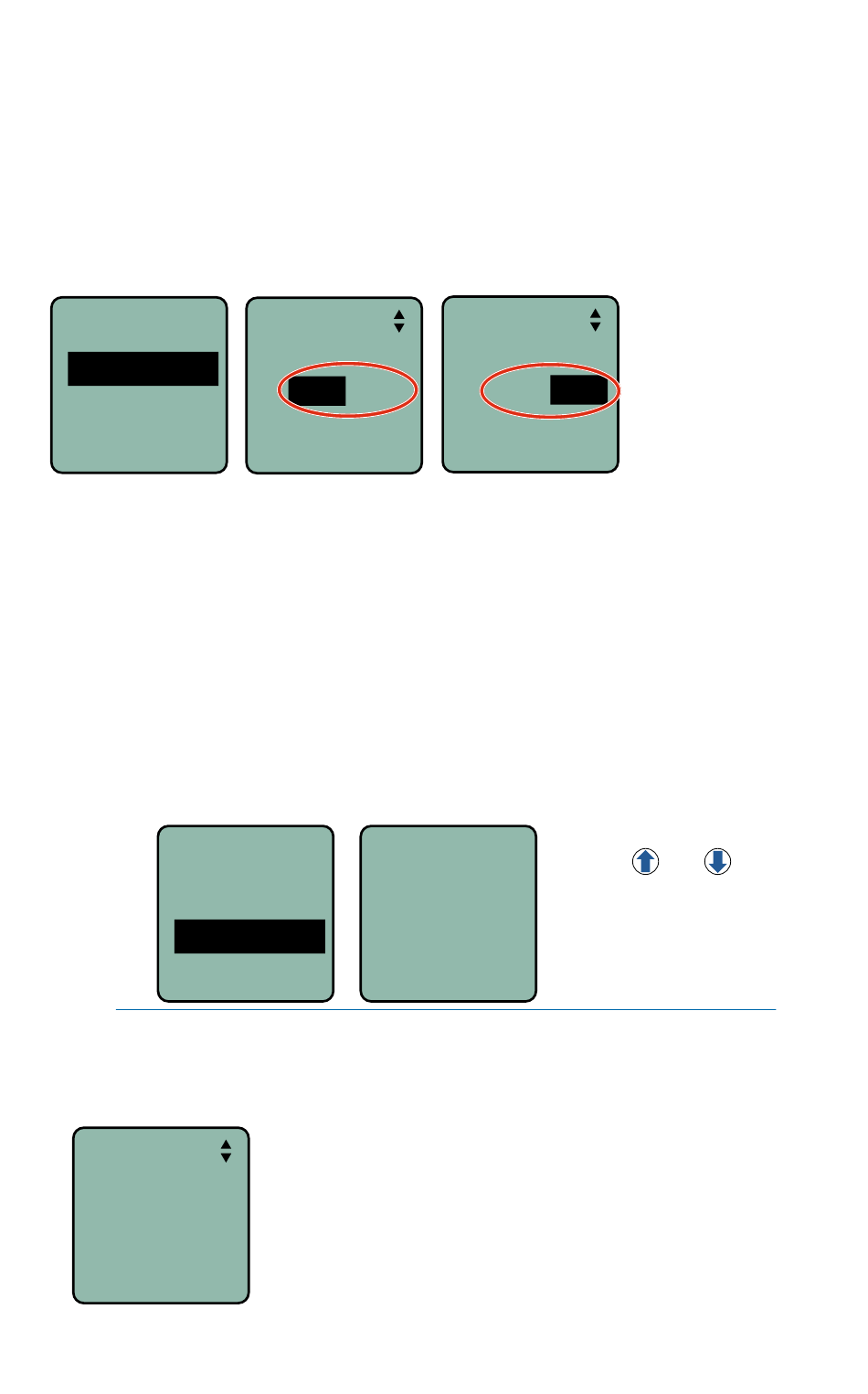

The setup screen for frequency selection offers two ways to browse the avail-
able frequencies.
Frequency groups are also able to be received via IR (Inrared) port sync.
The group options are set by the receiver, and will show at the bottom of the
screen as No Grp, Grp x, Grp w, Grp v, or Grp u.
Use the MENU/SEL button to toggle between options and UP and DOWN
arrows to adjust.
Gain
Freq.
ProgSw
Rolloff

Selecting Programmable Switch Functions

The programmable switch on the top panel can be configured using the menu
to provide several functions:
(none) - disables the switch
•
• Mute - mutes the audio when switched on; LCD will blink a message and
-10 LED will glow solid red.
Power - turns the power on and off
•
TalkBk - switches the audio output on the receiver to a different channel
•
for communication with the production crew. Requires a receiver with this
function enabled.
Gain
Freq.
ProgSw
Rolloff
NOTE: The programmable switch will continue to operate whether or
not keypad changes are locked.

Selecting the Low Frequency Roll-off

Rolloff
70 Hz
www.lectrosonics.com
Freq
628.200
Gr p x
ProgSw
Power
The low frequency audio roll-off is adjustable to
optimize performance for ambient noise conditions
or personal preference.
Low frequency audio content may be desirable or
distracting, so the point at which the roll-off takes
place can be set to 20, 35, 50, 70, 100, 120
or 150 Hz.
Freq
628.200
Gr p x
Use the
arrow buttons to
select the desired
function or disable
the switch
and
11
