Programmable Switch
The transmitter can also be configured as a "one button" device by locking the
ability to make changes with the keypad, and configuring the top panel switch
as either power on/off or a mute function.
Modulation Indicator LEDs
When the transmitter is set to MUTE, the -10 Modulation Indicators LED will
glow solid red. Otherwise, the -10 Modulation Indicators LED will glow solid
green when transmitter is on.
Belt Clips
The wire belt clip may be removed by pulling the ends out of the holes in the
sides of the case. Be sure to have a firm grip to avoid scratching the surface
of the housing.
An optional spring-loaded, hinged belt clip (model number BCSLEBN) is also
available. This clip is attached by removing the plastic hole cap on the back of
the housing and mounting the clip with the supplied screw.
IR (infrared) Port
The IR port is available on the top of the transmitter for quick setup using a
receiver with this function available. IR Sync will transfer the settings for fre-
quency from the receiver to the transmitter.
www.lectrosonics.com

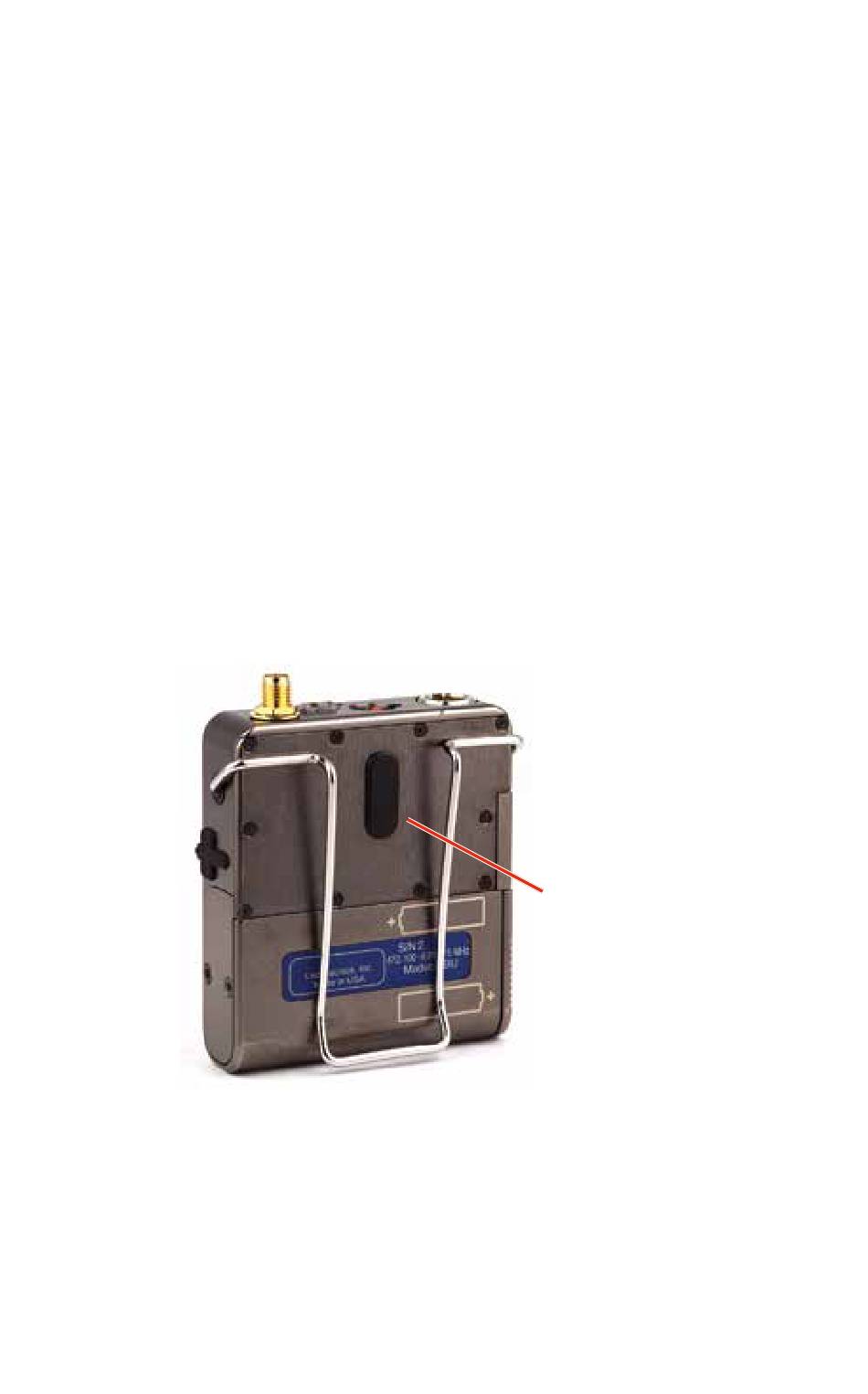

Remove hole cap to
attach spring loaded
belt clip
