Greenlee GATOR EK6IDLX Service Manual page 16

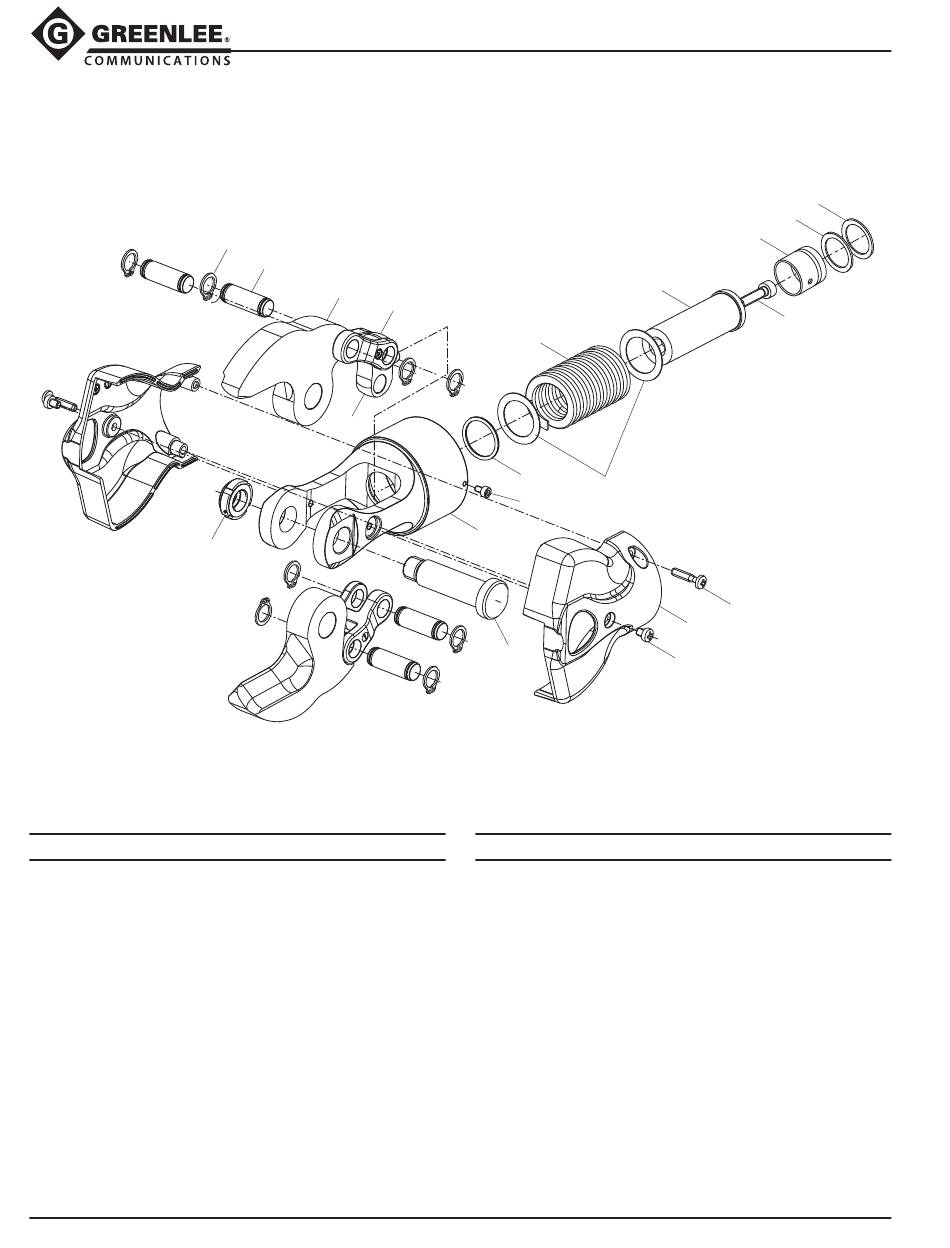

Head and Ram Illustration and Parts List—ESC35L
17
Key Part No. Description
52081523 Head assembly (includes 4–20)
1* Backup ring (included in 50047957) .......... 1
2* O-ring (included in 50047957) ................... 1
3 52020648 Piston cup ................................................. 1
4 52081532 Screw ........................................................ 1
5 52081526 Piston rod .................................................. 1
6 50058398 Spring ........................................................ 1
7 52080214 Shim .......................................................... 2
8 50058380 O-ring ........................................................ 1
9 52081525 Base .......................................................... 1
10 52057106 Screw ........................................................ 1
Greenlee / A Textron Company
14
13
15
12
11
Battery-powered In-line X Tools
6
8
10
9
16
Qty Key Part No.
11 52081524
12 52081528
13 52081529
14 50034308
15 52081521
16 52081527
17 52081530
18 52081531
19 52024232
20 50019767
16
4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
3
5
T=5.5 Nm
7
19
T=2.5 Nm
18
20
T=2.5 Nm
Description
Block ......................................................... 1
Link ............................................................ 1
Pin ............................................................. 4
Ring ........................................................... 8
Blade ......................................................... 2
Pivot pin .................................................... 1
Nut ............................................................. 1
Cover ......................................................... 2
Screw ........................................................ 2
Screw ........................................................ 2
1
2
4
Qty
