Greenlee GATOR EK6IDLX Service Manual page 10

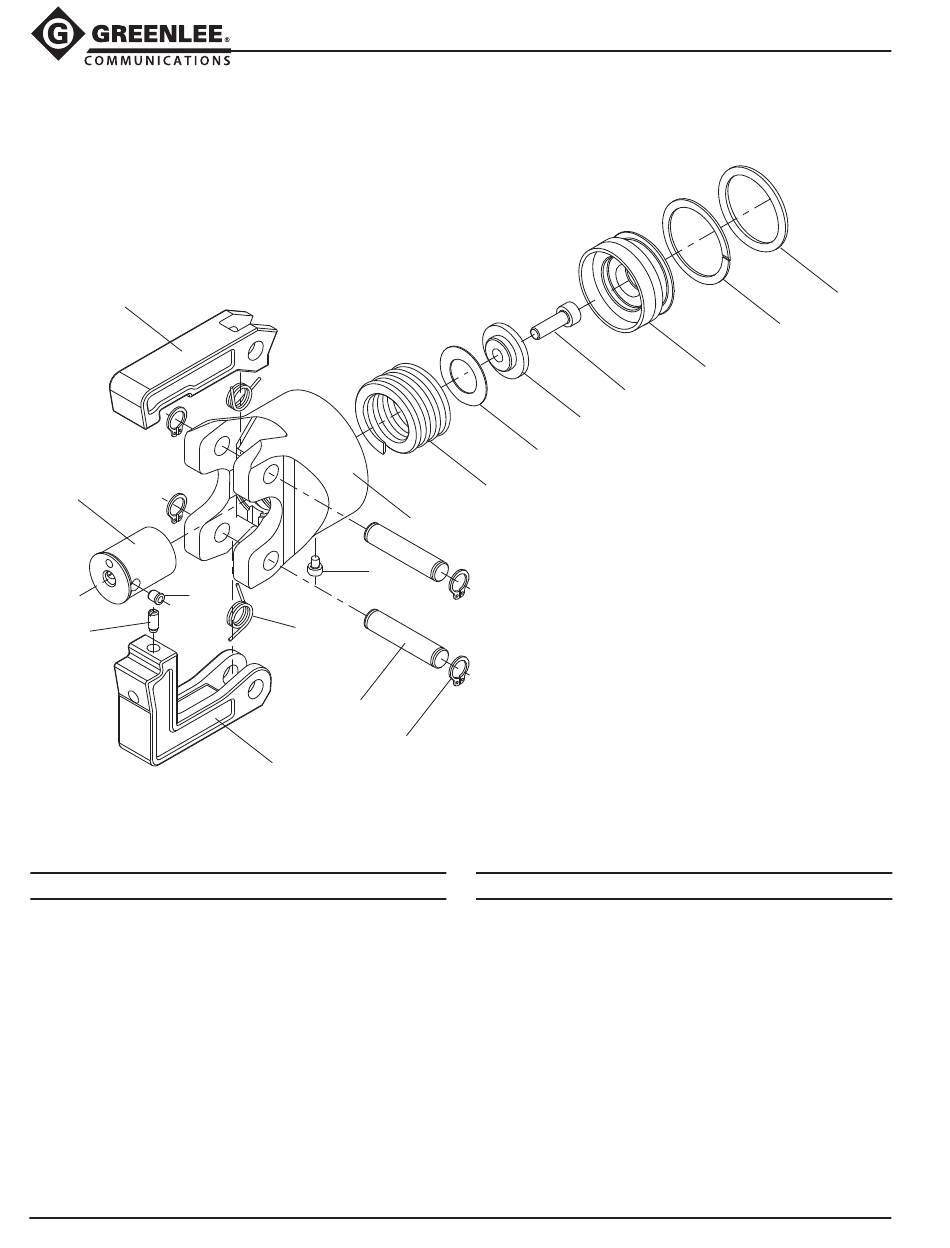

Head and Ram Illustration and Parts List—EK410L
16
15
14
13
T=2 Nm
Key Part No. Description
50018981 Head and ram (includes 4–18)
52055863 Ram kit (includes 4–6, 14, 15, 18)
4 Shoulder bolt ............................................. 1
5 Disc ........................................................... 1
6 Spring ........................................................ 1
7 50019180 Fixed head ................................................. 1
52055864 Hardware kit (includes 8–11, 13, 14)
8 Screw ........................................................ 1
9 Retaining ring ............................................ 4
10 Pin ............................................................. 2
11 Spring ........................................................ 2
Greenlee / A Textron Company
7
8
11
10
9
12
Qty
10
Battery-powered In-line X Tools
4
T=2 Nm
5
18
6
Key Part No. Description
52040994 Head and latch kit (includes 12, 16)
12 Movable head ............................................ 1
13 Screw ........................................................ 1
14 Pin ............................................................. 1
15 Ram adapter.............................................. 1
16 Latch head ................................................ 1
18 Washer ...................................................... 1
19* O-ring (included in 50047957) ................... 1
20* Piston backup ring
(included in 50047957) .............................. 1
21 50019082 Bushing ..................................................... 1
4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
19
20
21
Qty
