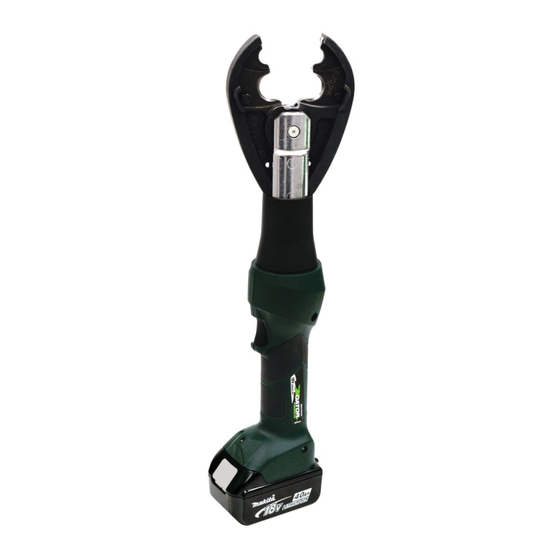

- Page 1 Serial Number (ES20LX shown) GATOR ® Battery-powered In-line Cutters Read and understand all of the instructions and safety information in this manual before operating or servicing this tool. Register this product at www.greenlee.com 52080507 REV4 © 2019 Greenlee Tools, Inc. 1/19...
-
Page 2: Table Of Contents
Important Safety Information..........3–4 4957A-MS42 Identification ................. 5–6 USA requirements: Specifications ..............7–11 Responsible party: Greenlee Tools, Inc. Operation ................12–14 Rockford, IL 61109 USA LCD Screen ................15 Note: This equipment has been tested and found to comply with the limits for a Class A digital device, Maintenance ................ -
Page 3: Safety
For recycling information, go to www.greenlee.com. All specifications are nominal and may change as design improvements occur. Greenlee Tools, Inc. shall not be liable for damages resulting from misapplication or misuse of its products. GATOR is a registered trademark of Greenlee Tools, Inc. -
Page 4: Important Safety Information
Failure to observe this warning could result in severe Failure to observe this warning injury from harmful fumes or burns from flying could result in severe injury or death. debris. Greenlee Tools, Inc. 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... -
Page 5: Important Safety Information
• Do not place a battery on moist ground or grass. Moisture may create a short circuit and damage the battery. Failure to observe these precautions may result in injury or property damage. Greenlee Tools, Inc. 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... -
Page 6: Identification
3. LCD Screen 4. Battery Cartridge 5. LED Indicator (red) 6. Lanyard Ring 7. LED Work Light (white) EK425LXCJACSR EK425LXCJCUAL 8. Trigger ES20LX ES32LX ES32FLX ESC25LX ESC35HLX ESC35LX Greenlee Tools, Inc. 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... -
Page 7: Identification
5. LED Indicator (red) ESC50LX 6. Lanyard Ring 7. LED Work Light (white) 8. Trigger 9. Cutting Blades (ETS8X and ETS12X) 10. Pull Pin (ESG45X) ESG25LX ETS12LX ESG45LX Greenlee Tools, Inc. 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... -
Page 8: Specifications
Maximum Cable Size with 2 Cutting Cycles ......500 kcmil (MCM) (300 mm (aluminum and copper) Maximum Cable Size with 1 Cutting Cycle ......400 kcmil (MCM) (240 mm (aluminum and copper) Greenlee Tools, Inc. 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... - Page 9 Depth ......................4.92" (125 mm) Weight ......................5.77 lb (2.62 kg) Cutting Capacity Maximum Cable Cutting Diameter (copper and aluminum, regular and fine) ............1.38" (35 mm) Greenlee Tools, Inc. 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070...
- Page 10 Cable Tray (stainless steel) .............. 1/16", 1/8", 3/16", 1/4" Threaded Rods ..............1/16", 1/8", 3/16", 1/4", 5/16" Grade 2 Bolt ................. 1/16", 1/8", 3/16", 1/4", 5/16" Grade 8 Bolt .....................1/16", 1/8", 3/16" Greenlee Tools, Inc. 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070...
- Page 11 Guy Strand (not EHS) ................5/8" (16 mm) dia. Ground Rod ....................3/8" (9 mm) dia. Rebar (Schedule 60) ................... 3/8" (9 mm) dia. Wire Rope ....................1/2" (13 mm) dia. Greenlee Tools, Inc. 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070...
- Page 12 Battery Charger ........Read the instructions supplied with the battery charger Battery Technology .................MAKITA Lithium ion ® ® BL1815, BL1820, BL1830, BL1840, BL1850 MAKITA is a registered trademark of Makita Corporation. Greenlee Tools, Inc. 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070...
-
Page 13: Operation
Circuit has become too hot Flashing light for 20 seconds Send tool in for service at end of cycle * Running the battery below 16 V can damage the battery. Greenlee Tools, Inc. 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... - Page 14 • If the tool is unable to reach the factory preset force, the red LED, work light, and an audible beep will pulse until after the trigger is released. Greenlee Tools, Inc. 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070...
- Page 15 Note: If it is necessary to retract the ram before a cutting cycle is completed, push the retract button. Pushing the retract button will result in the complete retraction of the ram. Greenlee Tools, Inc. 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070...
-
Page 16: Lcd Screen
Tool deactivated Service necessary Real-time clock not found Bluetooth unit not found ® Pressure sensor not found Burst pressure exceeded Battery temperature too low Greenlee Tools, Inc. 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... -
Page 17: Maintenance
3. Inspect the rotation of the head assembly. Fully result in serious eye injury from retract the ram. The head should rotate no more flying debris or hydraulic oil. than 360°. If damage is detected, contact Greenlee customer service at 800-435-0786 for warranty service or repair. After use: 1. -
Page 18: Troubleshooting
Air in hydraulic system. Pull trigger and hold retract button simultaneously. Run for approximately 10 seconds, and then attempt to cut. If unsuccessful, contact Greenlee customer service at 800-435-0786 for warranty service or repair. Cold oil. Pull trigger and hold retract button simultaneously to warm oil. - Page 19 Battery-powered In-line Cutters Greenlee Tools, Inc. 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070...
