Greenlee GATOR EK6IDLX Service Manual page 12

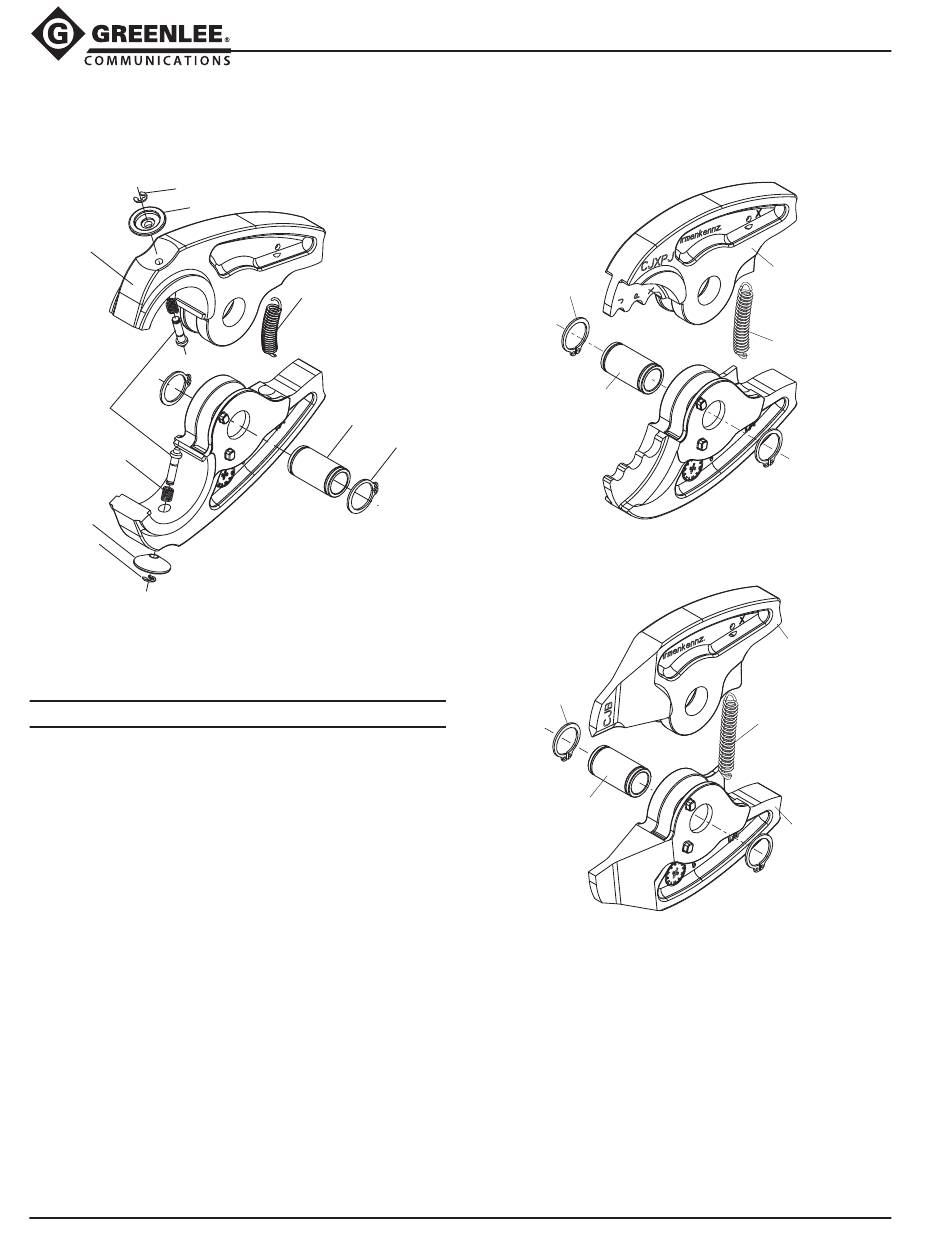

Jaw Units Illustration and Parts List
130
129
124C
127
128
129
130
Key Part No. Description
52024683 CJ22 crimping jaw unit for cUL and UL
classified crimps
52025649 CJXPJ crimping jaw unit
(includes 122-125)
52025648 CJB single-use lock cutter
(includes 122-126)
52049402 Jaw pivot kit (includes 122, 123)
122 Retaining ring ............................................ 2
123 Pivot pin .................................................... 1
124A Jaw, sharp—CJB ...................................... 1
124B Jaw, CJXPJ ............................................... 2
124C Jaw, CJ22 .................................................. 2
125 52022544 Extension spring ........................................ 1
126 Jaw, flat—CJB ........................................... 1
52023623 Die retaining pin kit (includes 127–130)
127 Die retaining pin ........................................ 2
128 Compression spring .................................. 2
129 Release button .......................................... 2
130 Retaining ring ............................................ 2
