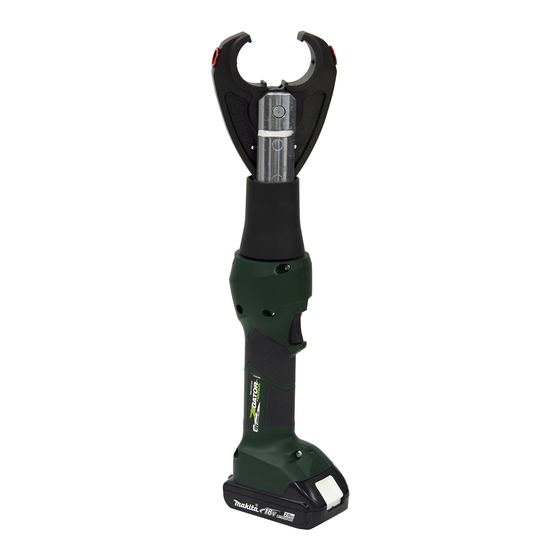

- Page 1 Serial Number EK628LX GATOR Battery-powered ® Crimping Tools Read and understand all of the instructions and safety information in this manual before operating or servicing this tool. Register this product at www.greenlee.com 52080012 REV 2 © 2017 Greenlee Textron Inc. 3/17...
-
Page 2: Table Of Contents
For recycling information, go to www.greenlee.com. All specifications are nominal and may change as design improvements occur. Greenlee Textron Inc. shall not be liable for damages resulting from misapplication or misuse of its products. GATOR is a registered trademark of Textron Innovations Inc. -
Page 3: Important Safety Information
• Keep hands away from the crimp- ing tool head when crimping. Failure to observe these warnings could result in severe injury or death. Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... - Page 4 Failure to observe this precaution may result in injury injury or property damage. and property damage. Note: Keep all decals clean and legible, and replace when necessary. Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070...
-
Page 5: Identification
Hydraulic Oil ............52057878 biodegradable hydraulic fluid Recommended Operating Temperature Range ....5 °F to 122 °F (–15 °C to 50°C) Battery Charger ................ Read the instructions supplied with the battery charger Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... -
Page 6: Operation
Flashing light for 20 seconds Send tool in for service at end of cycle * Running the battery below 16 V can damage the battery. Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... - Page 7 First Compression Crimping Direction SIDE B (evenly spaced) First Compression SIDE A First Compression SIDE B Crimping Direction SIDE A (evenly spaced) Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070...
-
Page 8: Die And Connector Selection
Note: This tool will provide 53 kN (6 tons) of crimping force when used with the CJ22 jaws. Crimps made on copper cable with Greenlee KC22-type dies and the copper connectors listed here are cUL and UL classified. Crimps made on copper or aluminum cable with Greenlee KA22-type dies and the dual-rated aluminum connectors listed here are cUL and UL classified. -
Page 9: Lcd Screen
Tool deactivated Service necessary Real-time clock not found Bluetooth unit not found ® Pressure sensor not found Burst pressure exceeded Battery temperature too low Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... -
Page 10: Maintenance
3. Inspect the rotation of the head assembly. Fully debris or hydraulic oil. retract the ram. The head should rotate no more than 360°. If damage is detected, contact Greenlee customer service at 800-435-0786 for warranty service or repair. After use: 1. -
Page 11: Troubleshooting
800-435-0786 for warranty service or repair. Air in hydraulic system. Pull trigger and hold retract button simultane- ously. Run for approximately 10 seconds, and then attempt to crimp. If unsuccessful, contact Greenlee customer service at 800-435-0786 for warranty service or repair. Cold oil. - Page 12 4455 Boeing Drive • Rockford, IL 61109-2988 • USA • 815-397-7070 USA Tel: 800-435-0786 Canada Tel: 800-435-0786 International Tel: +1-815-397-7070 An ISO 9001 Company • Fax: 800-451-2632 Fax: 800-524-2853 Fax: +1-815-397-9247 Greenlee Textron Inc. is a subsidiary of Textron Inc. www.greenlee.com...
