Greenlee GATOR EK6IDLX Service Manual page 11

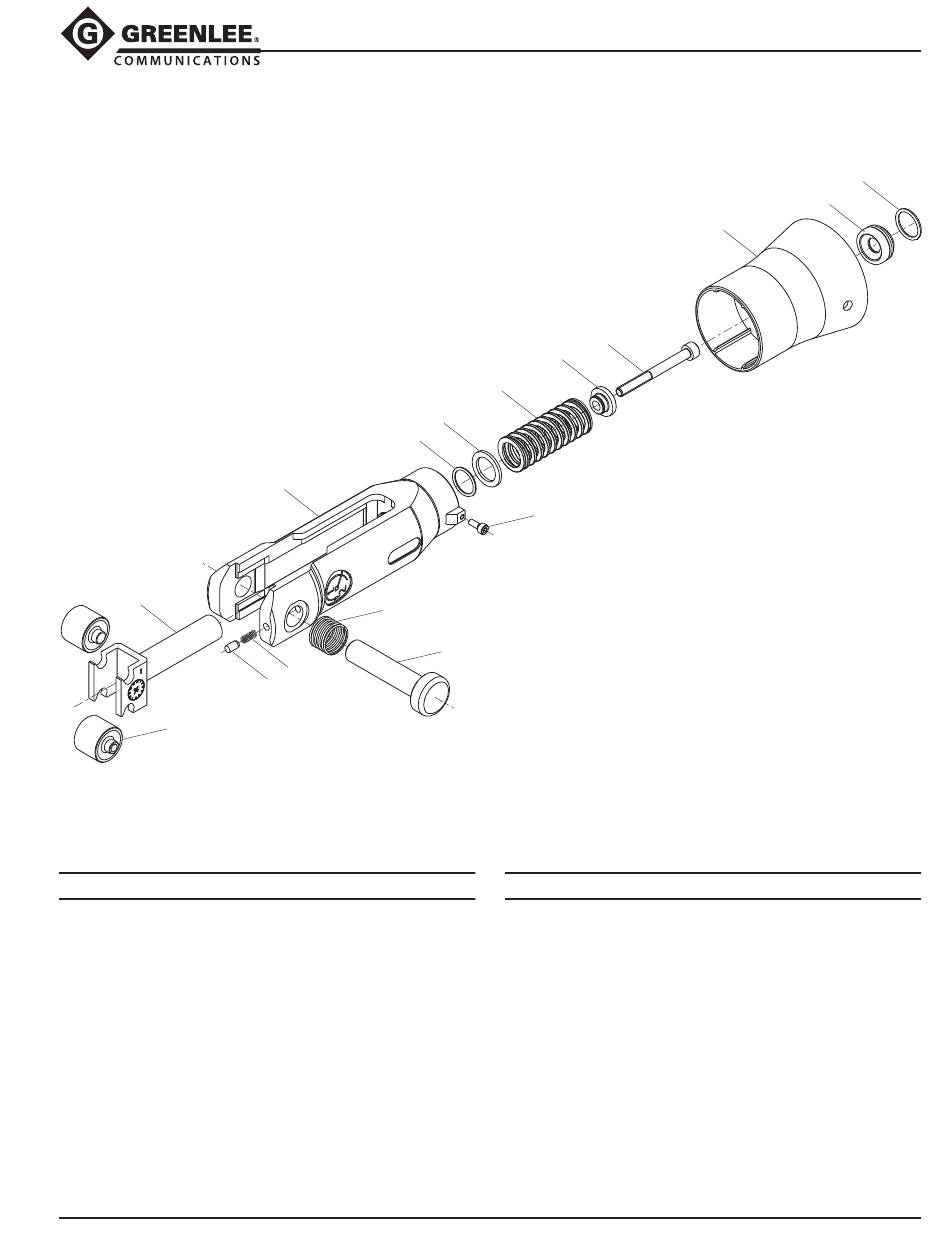

Ram Illustration and Parts List—EK425L and EK628L
14
13
Key Part No. Description
52080600 Ram unit (includes 1–14) .......................... 1
1 52080623 Sheath ....................................................... 1
52049399 Spring kit (includes 2–6)
2 Shoulder bolt ............................................. 1
3 Disc ........................................................... 1
4 Compression spring .................................. 1
5 Washer ...................................................... 1
6* O-ring (included in 50047957) ................... 1
7 52057496 Screw ........................................................ 1
8 Jaw holder ................................................. 1
Greenlee / A Textron Company
5
6
8
9
10
11
12
Battery-powered In-line X Tools
T=2 Nm
2
3
4
7
Qty Key Part No.
52049400
9
10
11
12
52049401
13
14
15 50120050
16*
11
4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
1
Description
Latch kit (includes 9–12)
Compression spring .................................. 1
Locking pin ................................................ 1
Compression spring .................................. 1
Pin ............................................................. 1
Roller kit (includes 13, 14)
Roller ......................................................... 2
Ram ........................................................... 1
Bushing with seal ...................................... 1
Seal bushing (included in 50047957) ........ 1
16
15
Qty
