Type 3360, 3361,
AE3360, AE3361
Electromotive control valve
Quickstart
English

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3360 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Burkert 3360

Summary of Contents for Burkert 3360

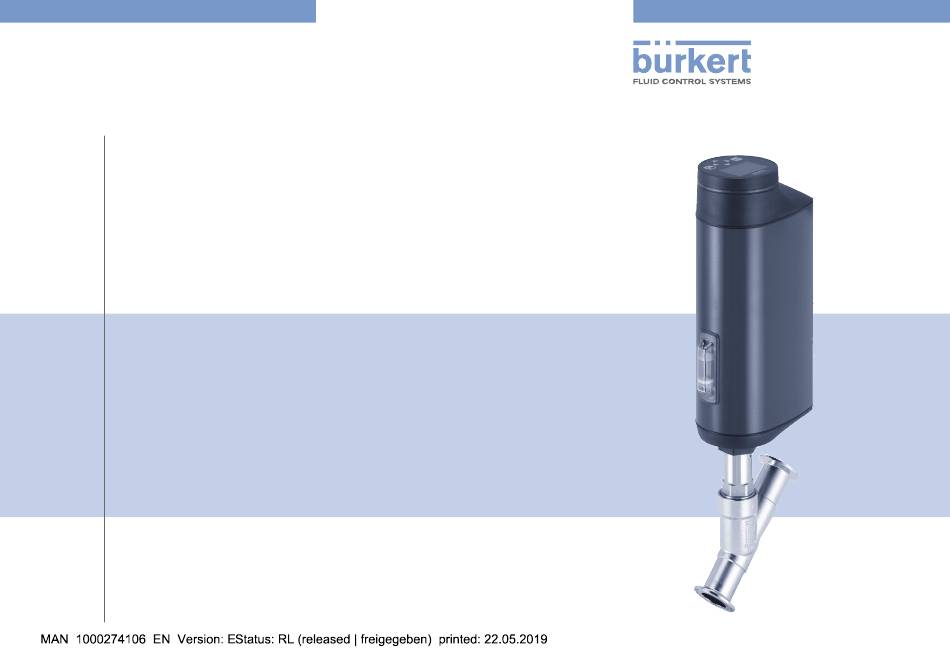

  • Page 1 Type 3360, 3361, AE3360, AE3361 Electromotive control valve Quickstart English...
  • Page 2 We reserve the right to make technical changes without notice. Technische Änderungen vorbehalten. Sous réserve de modifications techniques. © Bürkert Werke GmbH & Co. KG, 2016 – 2019 Operating Instructions 1905/07_EU-ML_00810487 / Original DE...

  • Page 3: Table Of Contents

    Type 3360 and 3361 Contents  1 THE QUICKSTART ..................4 8 ELECTRICAL INSTALLATION ............... 22 Definition of the term "device" ..........4 Electrical installation with circular plug-in connector ..22 Symbols ..................5 Electrical connection fieldbus gateway ......25 Electrical installation with cable gland ........26 2 INTENDED USE .

  • Page 4: The Quickstart

    12.2 Actuating valve mechanically ..........48 regarding the use of the device. A detailed description can be found in the operating instructions for Type 3360 and 3361. 13 INDUSTRIAL ETHERNET ............... 50 Keep the quickstart in a location which is easily accessible to every 13.1 Feldbus gateway ..............50...

  • Page 5: Symbols

    Type 3360 and 3361 Intendeduse Symbols INTENDED USE The following symbols are used in these instructions. Non-authorized use of the electromotive control valve DANGER! Type 3360 and 3361 may be a hazard to people, nearby equipment and the environment. Warns of an immediate danger. The electromotive control valve Type 3360 and 3361 is ▶ Failure to observe the warning will result in fatal or serious injuries. designed to control the flow of liquid and gaseous media. WARNING! ▶ Standard devices must not be used in the potentially explosive area.

  • Page 6: Basic Safety Instructions

    Type 3360 and 3361 Basicsafetyinstructions BASIC SAFETY INSTRUCTIONS ▶ If the valve position is relevant as regards safety in the event of a power failure: Use only those devices which have the These safety instructions do not consider any contingencies or incidents SAFEPOS energy-pack (optional energy pack).

  • Page 7: General Information

    Operating instructions and data sheets for Types 3360 and 3361 can be found on the Internet at: • Do not touch electronic components while the supply voltage is switched on.

  • Page 8: Structure And Function

    Flow direction Flow direction Angle seat control valve Globe control valve Type 3360 Type 3361 Fig. 2: Structure, electromotive control valve Type 3360 and 3361 Fig. 1: Incoming flow under the seat, flow direction english...

  • Page 9: Display Of The Device State

    • Flow direction Conformity open yellow* orange yellow blue The electromotive control valves Type 3360 and 3361 are compliant between white with EC directives as stated in the EC Declaration of Conformity. closed green* Standards * F actory setting; colors can be changed (see software description with The applied standards, which are used to demonstrate compliance reference to Type 3360-3361 at www.burkert.com).

  • Page 10: Rating Plate

    Type 3360 and 3361 Technicaldata Rating plate 6.4.1 Additional type label for UL approval (example) Flow direction, actuator size (nominal force) Material valve body, Type AE3360 port connection Da (ø outer) Di (ø inner), Power Supply flow capacity SELV / PELV only!
  • Page 11 Type 3360 and 3361 Technicaldata 6.5.1 Permitted temperature ranges WARNING! Minimum temperatures Reduced sealing function if medium pressure too high. Environment: –25 °C (–13 °F) Medium: –10 °C (14 °F) (–40 °C on request) As the valve seat is closed against the medium flow, the medium pressure may become too high and prevent the valve seat from Maximum temperatures closing tightly.

  • Page 12: General Technical Data

    Type 3360 and 3361 Technicaldata General technical data Materials Actuator: PPS and aluminum powder-coated Valve body: 316L Body connection: 316L / 1.4401 Spindle: 1.4401 / 1.4404 Spindle guide: 1.4401 / 1.4404/316L with carbon-filled PTFE Packing gland: PTFE V-rings with spring com-...
  • Page 13 Operating current [A]**: max. 3 A, (at 25 °C / 77 °F) including actuator at max. load and charging current of the optional SAFEPOS energy- pack (charging current approx. 1 A) for the Medium pressure in [bar] design of the power supply unit Fig. 6: Energy consumption actuator Type 3360 english...
  • Page 14 Type 3360 and 3361 Technicaldata SAFEPOS energy-pack Type 3361, globe control valve Charging time: maximum 100 seconds (depending on the condi- tions of use) Service life: up to 10 years (depending on the conditions of use). The determined service life of 5 years was determined under the...

  • Page 15: Installation Of The Valve

    Type 3360 and 3361 Installationofthevalve INSTALLATION OF THE VALVE Pt 100: Measuring range –20...+220 °C Precision 0.01 °C WARNING! Measurement 1 mA current Risk of injury from improper assembly. ▶ The assembly may be carried out only by trained technicians Analog output (optional) and with the appropriate tools.

  • Page 16: Installation Of Devices With Threated Socket Connection, Flange Connection Or Clamp Connection

    Type 3360 and 3361 Installationofthevalve Installation of devices with Installation position: any position; preferably with actuator facing up. threated socket connection, flange Pipelines: Ensure that the pipelines are aligned. connection or clamp connection Flow direction: is specified on the rating plate by an arrow and the numbers 1 and 2.

  • Page 17: Installation Of Devices With Welded Connection

    Type 3360 and 3361 Installationofthevalve Installation of devices with welded 7.2.2 Removing actuator from valve body connection Preconditions: MANUAL operating state, valve position at least 1/3 open, supply voltage switched off. NOTE! Damage to valve body, valve seat seal. WARNING! ▶ To avoid damage, the valve should only be mounted in the Risk of injury due to electric shock.
  • Page 18 Type 3360 and 3361 Installationofthevalve 7.2.3 Installation requirements Mechanical position Installation position: any position indicator Flow direction: is specified on the rating plate by an arrow and the numbers 1 and 2. The 1 and the 2 stand for identification also on the Valve position valve body.
  • Page 19 Type 3360 and 3361 Installationofthevalve 7.2.5 Mounting actuator on the valve body NOTE! Preconditions: MANUAL operating state, valve position at least 1/3 Note the following when installing the device in the plant. open, supply voltage switched off. The device and the relief bore must be accessible to allow inspection →...
  • Page 20 Type 3360 and 3361 Installationofthevalve → Grease the external thread of the body connection (e.g. with Holding device Klüber paste UH1 96-402 from Klüber). To protect the valve actuator from damage due to forces → and vibrations, a holding device is recommended. This is Place the internal thread of the valve body on the external thread available as an accessory.

  • Page 21: Rotating The Actuator

    Type 3360 and 3361 Installationofthevalve Rotating the actuator If the actuator is installed in such a way that it can be turned in a counter-clockwise direction only, observe the following safety warning: The position of the connections can be aligned by rotating the actuator through 360°.

  • Page 22: Holding Device

    Type 3360 and 3361 Electricalinstallation Holding device ELECTRICAL INSTALLATION → Attach holding device to the pipe between valve body and actuator The electromotive control valve is available with one of 2 different as shown in the diagram. connections: If there is a relief bore: •...
  • Page 23 → Connect the device according to the tables. Using the set-point value input 4...20 mA If several devices of Type 3360 or 3361 are connected in series and the power supply to a device in this series con- 8.1.2 X1 – M12 circular plug, 8-pole nection fails, the input of the failed device becomes highly resistive.
  • Page 24 Type 3360 and 3361 Electricalinstallation 8.1.3 X2 – M12 socket, 5-pole, input signals On the Signal Wire External process actual value (for process Assignment device type* color circuit side controller function only) Frequency 1 brown not used On the Signal Wire External...

  • Page 25: Electrical Connection Fieldbus Gateway

    Type 3360 and 3361 Electricalinstallation 8.1.4 X3 – M12 circular plug, 4-pole or 5-pole, Electrical connection fieldbus operating voltage (Devices without büS/ gateway CANopen network) The fieldbus gateway is connected with a circular plug-in connector A 4-pole female connector can be used as a counterpart.

  • Page 26: Electrical Installation With Cable Gland

    ATEX approval Using the set-point value input 4...20 mA. and IECEx approval. If several devices of Type 3360 or 3361 are connected in → series and the power supply to a device in this series con-...
  • Page 27 Type 3360 and 3361 Electricalinstallation 8.3.2 Connecting the cables Device version with display module: → → Disconnect the connection cable from the HMI interface. Push the cables through the cable gland. 2. Removing LED and storage module: NOTE! Removing LED and storage module: Removing actuator cover: Allow for connection to spring-type terminals.
  • Page 28 Type 3360 and 3361 Electricalinstallation 8.3.4 Terminal assignment – input signal Connection terminals from the control center (e.g. PLC) Terminal Assignment (From point of view of the device) Set-point value + (0/4...20 mA or 0...5/10 V) galvanically isolated for the operating voltage Set-point value –...
  • Page 29 Type 3360 and 3361 Electricalinstallation 8.3.6 Terminal assignment – process actual On the Signal value input (for process controller Terminal Assignment device External circuit type* side function only) Frequency not used On the Signal - externally PV1: clock input + Clock+ Terminal Assignment...

  • Page 30: After Electrical Installation

    Type 3360 and 3361 Electricalinstallation 8.3.7 Closing the device 1. Attaching the actuator cover → Place actuator cover on the actuator housing. ATTENTION! → Slightly screw in the 4 fastening screws (hexalobular-internal Damage or malfunction due to ingress of dirt and moisture. screws T25) crosswise, firstly by hand and then tighten (tight- Before closing the device, comply with the degree of protection ening torque: 5.0 Nm (3.7 lbf ft)).

  • Page 31: Start-Up

    Type 3360 and 3361 Start-up START-UP Setting options for start-up • Setting with the PC software “Bürkert Communicator” on the WARNING! PC or tablet This type of setting is possible for all device types and device Risk of injury from improper operation. variants. Improper operation may result in injuries as well as damage to the device and the environment.
  • Page 32 4...20 mA automatic optimization of the process parameters. actual value The fine adjustment of the process parameters is described in the software description with reference to Type 3360, 3361. d) Scale process actual value Minimum 0 %, maximum 100 % english...

  • Page 33: Setting Safety Position

    Type 3360 and 3361 Start-up → Setting safety position Select safety position. Setting option: Using the PC software “Bürkert Communi- Input of the freely defined safety position (applicable only when cator” or on the display of the device (option) selecting safety position User-Defined). → Display operation: Key functions Select Position. → select, activate...

  • Page 34: Adjust The Position Control - Running X.tune

    Type 3360 and 3361 Start-up Adjust the position control – running 9.5.1 Adjustment of the position control using the buttons in the device X.TUNE The 2 buttons for running the X.TUNE are located under the dummy When the X.TUNE function is running, the position control is adjusted cover.
  • Page 35 Type 3360 and 3361 Start-up → 9.5.2 Adjustment of the position control via Select seal material. PC or display on the device The following question appears: “Do you really want to start the X.TUNE? The setting is made on the PC via the büS Service interface and by using the “Bürkert Communicator”...

  • Page 36: Set Standard Signal For Set-Point Position

    Type 3360 and 3361 Start-up Set standard signal for set-point Select physical unit for process position control Setting option: Setting option: Using the PC software “Bürkert Communicator” or on the Using the PC software “Bürkert Communicator” or on the display of the device (option)

  • Page 37: Parameterize Process Values

    Type 3360 and 3361 Start-up Parameterize process values Scaling the process set-point value: → Select SP .scale. Setting option: → Using the PC software “Bürkert Communicator” or on the Input minimum and maximum. display of the device (option) You have parameterized the process set-point value. Display operation: Key functions 9.8.2...

  • Page 38: Scaling Process Control

    Type 3360 and 3361 Start-up Scaling process control 9.10 Setting dead band of the process control The scaling of the process control affects the following functions: • Dead band of the process control Setting option: Using the PC software “Bürkert Communicator” or on the •...

  • Page 39: Set Up Process Control - Run P.lin

    Type 3360 and 3361 Start-up 9.11 Set up process control – run P.LIN, 9.11.2 For devices without a display - activate the correction characteristic P.TUNE The correction characteristic is activated with DIP switch 2 which is Setting option: Using the PC software “Bürkert Communi- located under the dummy cover.

  • Page 40: Setting Operating State

    Type 3360 and 3361 Start-up 9.12 Setting operating state Setting operating state for devices with display module: The operating state is set on the display in home screen. Setting operating state for devices without display module: The setting is made in the MANU / AUTO layout. The DIP switch for the setting is located under the dummy cover.

  • Page 41: Operation

    Type 3360 and 3361 Operation OPERATION 10.1.1 LED illuminated ring The transparent LED illuminated ring, which transmits the light of the WARNING! LEDs outwards, is attached to the dummy cover or display module. The device status is indicated by a lit, flashing or rapidly flashing Danger due to improper operation.

  • Page 42: Control Elements

    Type 3360 and 3361 Operation 10.2 Control elements 10.2.2 OPEN button and CLOSE button Electrical manual Open valve: Press OPEN button control: Close valve: Press CLOSE button SIM card Running X.TUNE For description see chapter “9.5 Adjust the (Autotune): position control – running X.TUNE”.

  • Page 43: Display Operation (Option)

    Type 3360 and 3361 Displayoperation(option) DISPLAY OPERATION (OPTION) 11.2 Description of the keys The device is operated and set via a display with a touch-screen. Functions 11.1 User interface Press briefly: Back Digital Back key Jump back to home position...

  • Page 44: Display Views

    Type 3360 and 3361 Displayoperation(option) 11.3 Display views 11.4 Description of the symbols You go from the home screen to the following views: Symbols for user rights • Configuration view, using the left navigation key . Symbol Description • View 2...4 created by the user, using the right navigation The setting is write-protected and can be changed with the appropriate user right/user code only.
  • Page 45 Type 3360 and 3361 Displayoperation(option) Symbols for indicating the device status according to NAMUR Symbols for indicating the operating states NE 107 Priority Symbol Description If several device statuses exist simultaneously, the device status with the highest priority is displayed. Device has stopped control mode due to a serious error. The valve remains in its...

  • Page 46: Manual Actuation Of The Valve

    Type 3360 and 3361 Manualactuationofthevalve MANUAL ACTUATION OF THE Switch to MANUAL operating state: VALVE → To switch to MANUAL operating state, briefly press the menu The control valve can be manually actuated in different ways: key. electrically or mechanically. The HAND symbol can be seen on the information bar.
  • Page 47 Type 3360 and 3361 Manualactuationofthevalve 12.1.2 Actuate valve electrically for devices Remove dummy cover: without display module Devices with ATEX approval or IECEx approval are secured NOTE! with a magnetic lock. Damage to the valve seat seal by electrical manual control. The removal of the cover is described in the additional manual ▶ Do not press the CLOSE button when the valve is closed, oth- for electromotive control valves with ATEX approval and IECEx erwise the valve seat seal may be damaged.

  • Page 48: Actuating Valve Mechanically

    Type 3360 and 3361 Manualactuationofthevalve 12.2 Actuating valve mechanically Release dummy cover or display When the supply voltage is not applied, e.g. during installation or in module the event of a power failure, the valve position can be changed using the mechanical manual control.
  • Page 49 Type 3360 and 3361 Manualactuationofthevalve The valve position must be detected on the mechanical position NOTE! indicator. Carefully remove display module ensuring that the connection cable and the HMI interface are not damaged. Mechanical position indicator Valve open → To release the display module or the dummy cover, rotate counter-clockwise and remove.

  • Page 50: Industrial Ethernet

    Type 3360 and 3361 IndustrialEthernet INDUSTRIAL ETHERNET büS Service interface 13.1 Feldbus gateway Fieldbus gateway for integration into an Ethernet network. Supported fieldbus protocols: EtherNet/IP, PROFINET, Modbus TCP. Fig. 33: büS Service interface for fieldbus gateway version Display module CANopen...

  • Page 51: Maintenance, Troubleshooting

    (M12 to büS service interface micro USB) Tab. 18: Components USB büS interface set CLEANING Information on Type 3360, 3361 can be found on the ▶ The surfaces of the device must not be cleaned with alkaline clean- Internet at www.burkert.com ing agents.

  • Page 52: Disassembly

    Type 3360 and 3361 Disassembly DISASSEMBLY PACKAGING, TRANSPORT, STORAGE DANGER! NOTE! Risk of injury from high pressure and discharge of medium. Transport damage. If the device is under pressure when removed, there is a risk of a Inadequately protected devices may be damaged during sudden pressure release and discharge of medium.
