Type 33xx

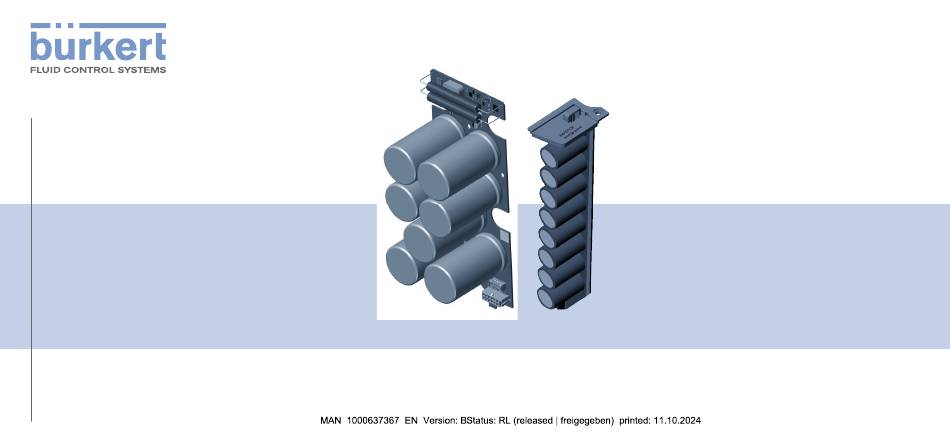

Changing the SAFEPOS energy-pack
Wechsel des SAFEPOS energy-packs
Remplacement de SAFEPOS energy-pack
Replacement Instructions
Austauschanleitung
Instructions de remplacement
Address / Adresse
Germany / Deutschland / Allemagne:
Bürkert Fluid Control Systems
Sales Center
Christian-Bürkert-Str. 13-17
D-74653 Ingelfingen
Tel. + 49 (0) 7940 - 10 91 111
Fax + 49 (0) 7940 - 10 91 448
E-mail: info@burkert.com
International: www.burkert.com
Manuals and data sheets on the Internet:
www.burkert.com
Bedienungsanleitungen und Datenblätter im
Internet:
www.buerkert.de
Instructions de service et fiches techniques sur
Internet : www.buerkert.fr
© 2016-2023 Bürkert Werke GmbH & Co. KG
Replacement Instructions 2311/02_EU-ml_00810508 /
Original DE
