Summary of Contents for Atmos Chair 21 P

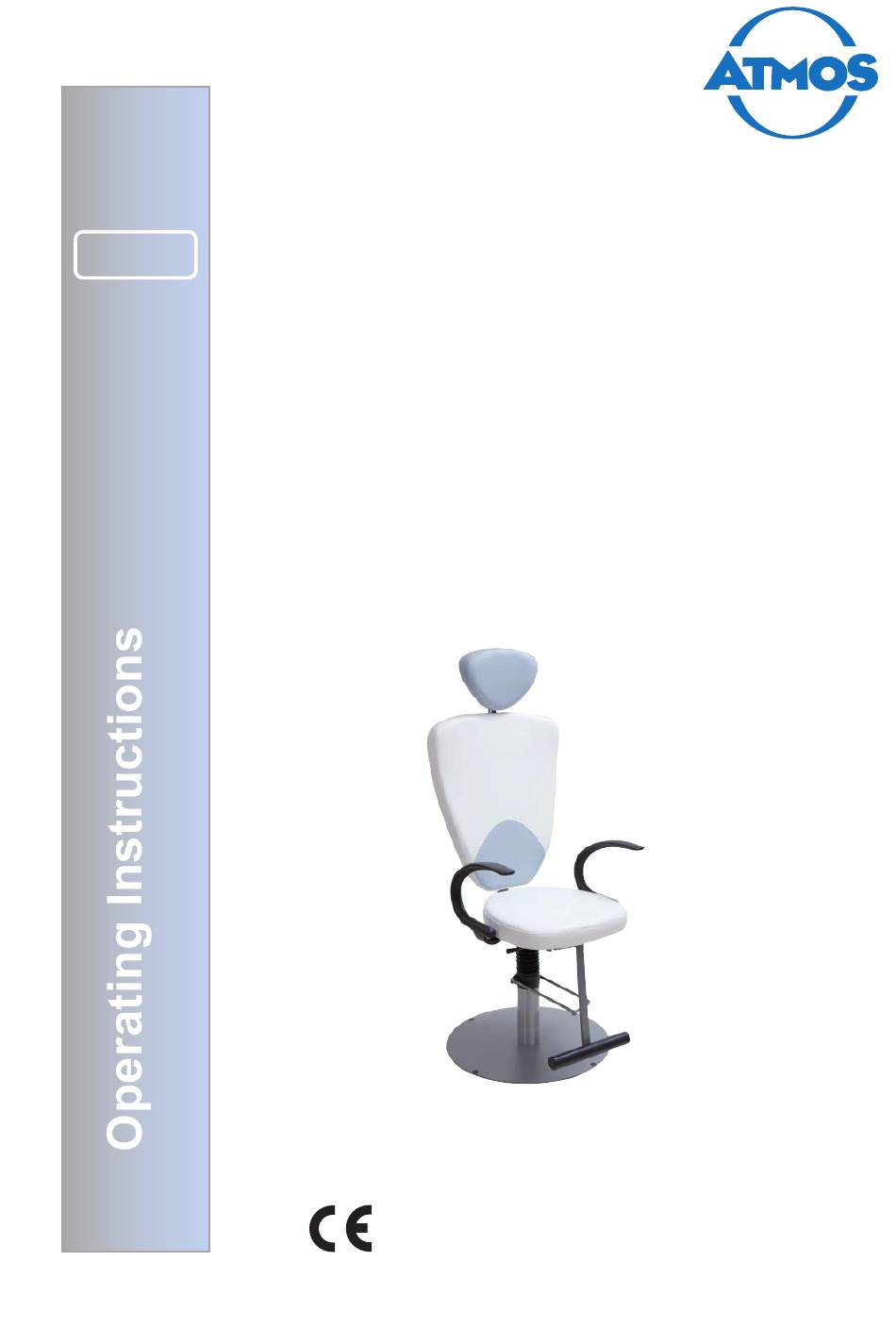

- Page 1 MedizinTechnik English ATMOS ® Chair 21 P GA1GB.130201.0 2018-03 Index: 13...
-
Page 2: Table Of Contents
Options and spare parts ........12 Options..............12 Spare parts ............12 Technical data ...........13 10.0 Checking / Disposal ..........14 ATMOS 10.1 Checking ATMOS devices ........14 10.2 Disposal ..............14 MedizinTechnik GmbH & Co. KG Ludwig-Kegel-Str.16 79853 Lenzkirch Germany Phone: + 49 7653 689-0... -
Page 3: Introduction
Chair 21 P and are therefore a must besides regular cleaning. ® Repair work and safety inspections may be carried out only by expert personnel authorised by ATMOS. By applying only original spare parts you will have the guarantee that operational safety, readiness for work and the value of your ATMOS Chair 21 P will be preserved. -
Page 4: Function
® optimum examination position. • The ATMOS Chair 21 P is equipped with a mechanical height adjustment. The seat height can be varied between 46 and ® 66 cm. • The upper part of the chair can be rotated by 360° and can be locked at any height and rotary position by a fixing brake. -
Page 5: Scope Of Supply
1.0 Introduction 1.4 Scope of supply Prior to dispatch, this ATMOS patient chair was subjected to an extensive functional test and has been carefully packed. Nevertheless, please compare the contents of the shipment on completeness immediately upon receipt (see delivery note). -
Page 6: For Your Safety
• There are no warranty claims whatsoever on defects which arise from the use of third party accessories or consumables. • ATMOS neither guarantees for fault-free operation nor for personal injuries and damage to property if: - no original ATMOS parts are being used,... -
Page 7: Setting Up And Starting Up
Lever for adjusting the backrest Lever for adjusting the seat height Rigid foot support (optional) Fig. 1. ATMOS Chair 21 P with selectable option rigid foot ® support 3.2 Fixing the patient chair To guarantee safe operation of the ATMOS Chair 21 P, it ®... -
Page 8: Fixing The Backrest
3.0 Setting up and starting up 3.4 Fixing the backrest Insert the backrest into the provided opening. The round bolts are locked into place by slightly tilting the backrest forward , Fig. 4), tighten the bolts with the cylinder head screw M 8x20 and the spring washer Ø... -
Page 9: Operation
4.0 Operation 4.1 Positioning the patient Ensure that the patient sits in the middle of the seat. A constant unilateral strain on the seat can damage the surface. 4.2 Adjusting the seat height The chair must always be in the lowermost position to accommodate the patient when he / she sits down / stands up. -
Page 10: Cleaning And Care
5.2 Cleaning and disinfection of the device surface and upholstery • The surfaces of the ATMOS Chair 21 P are resistant against all the recommended surface disinfectants stated in chapter 5.3 ® and 5.4. Nevertheless after a longer period of use discolouration could occur. -
Page 11: Maintenance And Service
7.0 Troubleshooting The ATMOS Chair 21 P was subjected to a thorough quality control in the factory. If, however, any problems should occur ® please contact an ATMOS service technician. Error indication... -
Page 12: Options And Spare Parts
8.0 Options and spare parts 8.1 Options Description ..............................REF Footrest, rigid, made of silver-coloured metal tube and hard rubber ............... 503.0731.0 8.2 Spare parts Backrest complete, white/dove-blue ........................503.0712.0 Backrest complete, basic/dove-blue ........................503.0713.0 Cylinder head screw, inner edge 8 x 20 ......................051.0087.0 Washer 8.4 form B ............................053.0012.0 Seat cushion, white ............................503.0714.0 Seat cushion, basic ............................503.0715.0... -
Page 13: Technical Data
9.0 Technical data Height adjustment Manual, pump hydraulics Ambient conditions for transport/storage • Temperature -20...+50 °C • Humidity without condensation 5...95 % • Pressure 700...1060 hPa Ambient conditions operation • Temperature +5...+35 °C • Humidity without condensation 30...95 % • Pressure 700...1060 hPa Seat height 46 - 66 cm... -
Page 14: Checking / Disposal
10.1 Checking ATMOS devices ® The ATMOS devices are maintenance-free when they are used according to the operating instructions. Regular, thoroughly cleaning and disinfection of the chair and the application parts respectively the operation in line with the operating instructions is assumed. - Page 15 For your notes...
- Page 16 MedizinTechnik ATMOS MedizinTechnik GmbH & Co. KG Ludwig-Kegel-Straße 16 79853 Lenzkirch / Germany Phone: +49 7653 689-370 atmos@atmosmed.de www.atmosmed.com...
