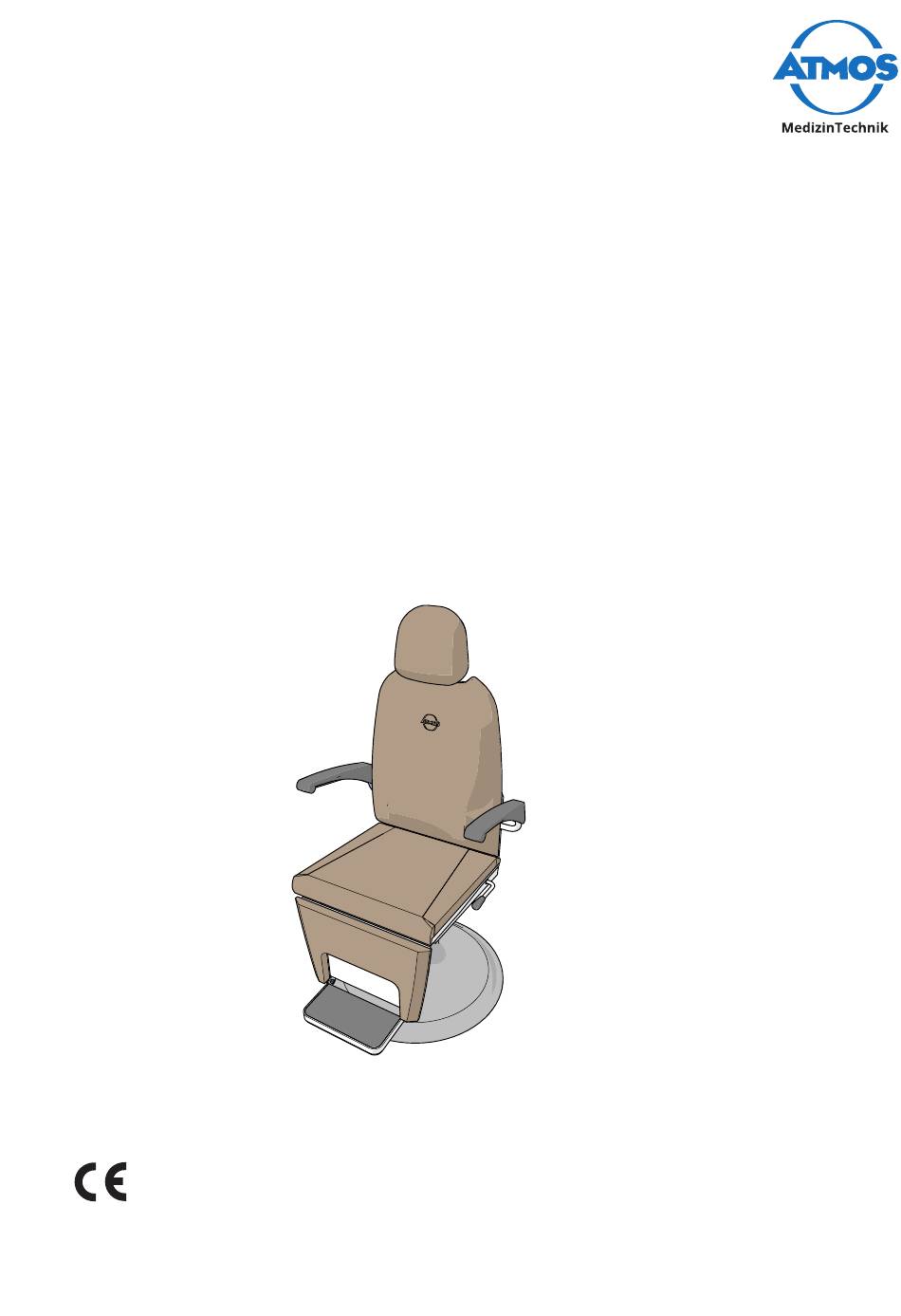

- Page 1 Operating Instructions ATMOS® Chair Comfort English GA1GB.130210.0 2018-11 Index 01...
-
Page 2: Table Of Contents
Table of contents Introduction.......................3 Notices on the operating instructions ..............3 Explanation of pictures and symbols ..............4 Intended use .......................5 Function ........................5 Intended users ......................5 Scope of delivery ......................6 Transport and storage ....................6 Notices for your safety ..................7 General safety information ..................7 Danger for users, patients and third parties ............7 Avoid damage to the device..................8 Setting up and starting up ................9... -
Page 3: Introduction
The Declaration of Conformity and our general standard terms and conditions can be viewed on our website at www.atmosmed.com. The quality management system at ATMOS has been certified according to international standard EN ISO 13485. These operating instructions are valid for the following devices: •... -
Page 4: Explanation Of Pictures And Symbols
1.2 Explanation of pictures and symbols In the operating instructions DANGER Warning of a danger that results in immediate fatal or serious injury. Observe the necessary measures. WARNING Warning of a danger that can cause fatal or serious injury. Observe the necessary measures. -
Page 5: Intended Use
• As a substitute for a bed 1.4 Function The ATMOS® patient chair can be adjusted to suit the individual patient. The seat height can be adjusted hydraulically using a pump lever, and the height and angle of the headrest can be altered manually. The backrest can be tilted back manually up to a fully horizontal position. -
Page 6: Scope Of Delivery
If damage occurs during transport: 1. Document and report the transport damage. 2. Send the device to ATMOS, see Chapter “3. Check whether all the fixing screws are fully tightened.” on page 15. Ambient conditions for transport and storage: •... -
Page 7: Notices For Your Safety
If any signs are missing from your device or no longer legible, contact ATMOS and replace the signs in question. 2.2 Danger for users, patients and third parties Keep the device fully functional at all times. -
Page 8: Avoid Damage To The Device
2.3 Avoid damage to the device Damage due to excessive load. There is a risk of damage to the foot support. • Do not allow patients to place their full weight on the foot support. Notices for your safety... -
Page 9: Setting Up And Starting Up
3 Setting up and starting up 3.1 Device overview Front view Basic Sync Headrest Equipotential bonding connection Backrest Base Arm rest Foot support Backrest release lever Leg rest (Sync version) Seating surface Rear view Backrest release lever Seat height pump lever Headrest locking screw (height) Headrest locking screw (angle) 3.2 Connecting the device... -
Page 10: Operation
4 Operation 4.1 Ambient conditions during operation The product is intended exclusively for use in buildings and under normal ambient conditions. Do not subject the upholstery to high temperatures. • Temperature: +10...+35°C • Relative humidity: 20...95% without condensation • Air pressure: 700...1060 hPa 4.2 Positioning the patient Ensure that the patient sits in the middle of the seating surface. -
Page 11: Adjusting The Foot Support (Sync Version)
4.3.2 Adjusting the foot support (Sync version) Unfolding the foot support 1. Pull the handle and fold the foot support down. Folding the foot support away 1. Fold the foot support up. 4.3.3 Adjusting the backrest 1. Push the backrest release lever down, pushing or pulling on the backrest at the same time. -
Page 12: Adjusting The Seat Height
4.3.5 Adjusting the seat height Upwards 1. Pump the pump lever to raise the seat height. Downwards 1. Push the pump lever as far as it will go. 4.3.6 Turning the Patient Chair 1. Turn the top section of the chair. 2. -
Page 13: Cleaning And Disinfection
5 Cleaning and Disinfection We recommend that you always document all maintenance work and part replacements in writing. It is the responsibility of the user to ensure that the required results for cleaning and disinfection are adhered to. Validation and routine monitoring of the procedure will generally be necessary. -
Page 14: Recommended Disinfectants
5.3 Recommended disinfectants ATTENTION Unsuitable cleaning agents and disinfectants. Risk of damage to the device surface, corrosion damage and stress cracks. • Do not use cleaning agents or disinfectants that contain the following ingredients: • Irritants • Substances that may damage plastics or steel components or dissolve lubricants. ATTENTION Unsuitable cleaning agents and disinfectants. -
Page 15: Maintenance And Service
ATMOS recommends: Work should be carried out by an authorised ATMOS service partner. This ensures that the repairs and testing are carried out professionally, that original spare parts are used and that warranty claims remain unaffected. -
Page 16: Troubleshooting
7 Troubleshooting The product has been subjected to a thorough quality control in the factory. Should a fault occur despite this care, contact an authorised ATMOS service partner. 16 Troubleshooting... -
Page 17: Disposal
1. Clean and disinfect the device. 2. In Germany: Send the product in to ATMOS or your specialist dealer. They will dispose of the device professionally. 3. In other countries: Dispose of the product professionally and according to the country-specific laws and regulations. -
Page 18: Technical Data
9 Technical data Seat height 56 cm (rigid seat upholstery) Max. lifting capacity 150 kg (safe working load) Height of backrest 600 mm (without headrest) 780 mm (headrest in bottom position) Rotation 360° Backrest inclination +7° up to -90° Ambient conditions for transport/ storage •... -
Page 19: For Your Notes
10 For your notes For your notes... - Page 20 ATMOS MedizinTechnik GmbH & Co. KG GREINER GmbH Ludwig-Kegel-Straße 16 Wettestrasse 1 79853 Lenzkirch/Germany 74385 Pleidelsheim, Germany Phone: +49 7653 689-0 Phone: +49 7144 8112-0 atmos@atmosmed.de info@greiner-gmbh.de www.atmosmed.com www.greiner-gmbh.de...
