Atmos C 451 Operating Instructions Manual
Surgical suction unit
Hide thumbs
Also See for C 451:
- Operating instructions manual (30 pages) ,
- Operating instructions manual (40 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Atmos C 451
Summary of Contents for Atmos C 451

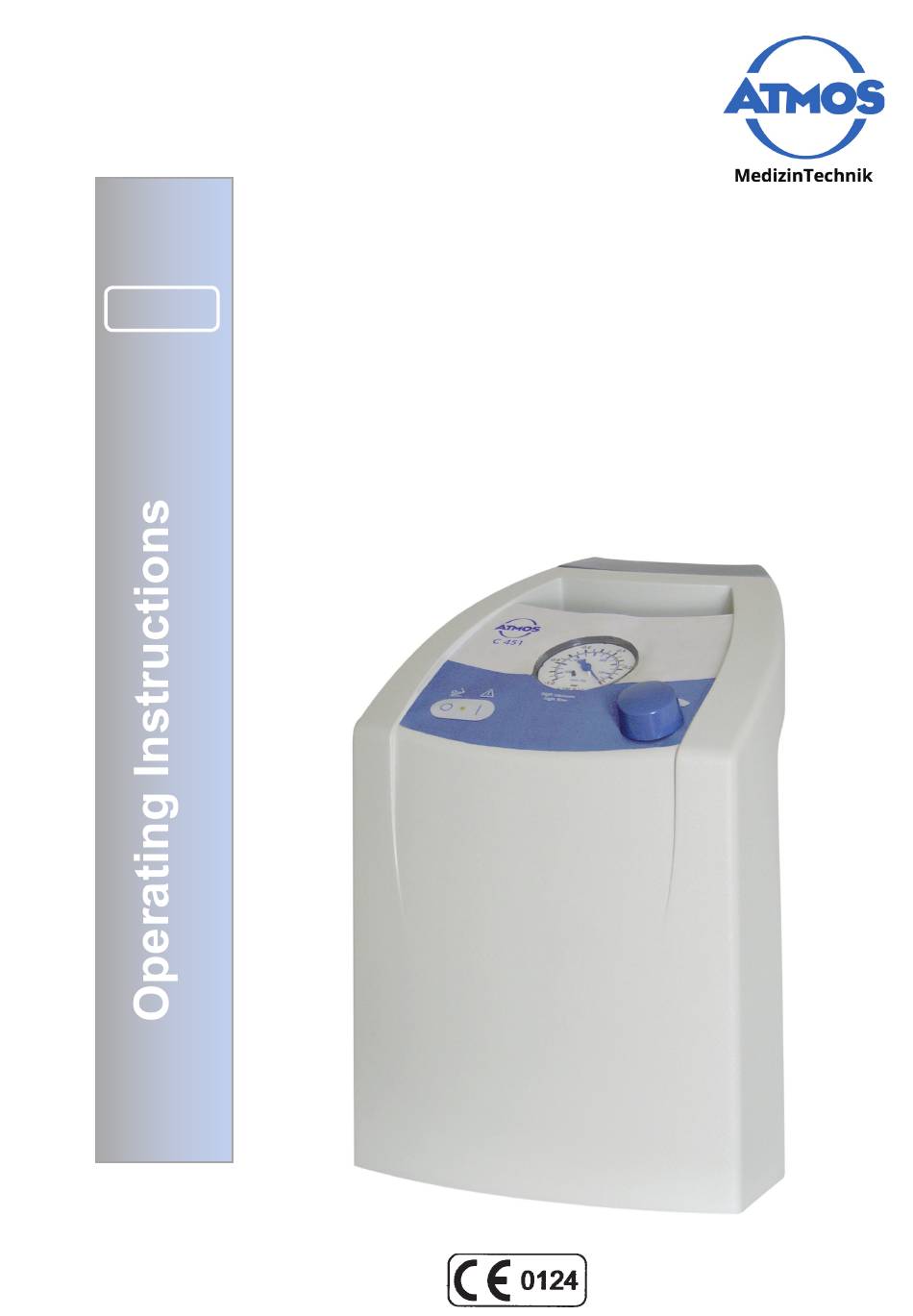

- Page 1 English ATMOS C 451 Surgical Suction Unit 340.0300.B USA 2013-08 Index: 17...
-
Page 2: Table Of Contents
Trouble-shooting ..........16 Accessories, consumables and spare parts........... 18-18 10.0 Technical specifications ........19 11.0 Checking / Reprocessing / Disposal ....20 11.1 Checking ATMOS suction devices ......20 11.2 Reprocessing ............20 11.3 Disposal ..............20 12.0 Notes on EMC ..........21-23 General Standard Terms and Conditions ATMOS MedizinTechnik GmbH &... -
Page 3: Introduction
Care and safety inspections in conjunction with professional execution provide for operational safety and readiness for use of your ATMOS C 451 and are therefore a must besides regular cleaning. Repair work and safety inspections may be carried out only by expert personnel authorised by ATMOS. -
Page 4: Explanation Of Pictures And Symbols
Pictures contained in this manual Warning, especial diligent Observe operating instructions Important information notice Keys on the control panel / symbols at the ATMOS C 451 Application part type BF Potential equalization Alternating current Serial number Protection against penetration of... -
Page 5: Scope Of Supply
1.5 Scope of supply ● Prior to dispatch, this ATMOS device was subjected to an extensive functional test and has been carefully packed. Nevertheless, please compare the contents of the shipment on completeness immediately upon receipt (see delivery note). In addition to the basic device, the scope of delivery comprises the following parts:... -
Page 6: For Your Safety
(IEC 60601-1/EN 60601-1). For your safety The ATMOS C 451 may be operated only in rooms used for medical purposes, but not in areas (zones M and G) subject to explosion hazards and in oxygen rich envi- ronments. Explosion harzards may result from the use of combustible anaesthetic agents, skin cleansing agents or disinfectants. -
Page 7: Setting Up
3.0 Setting up Always set the equipment up on a secure, level surface. Fig. 1. Operating elements On/Off switch with pilot lamp Vacuumgauge Vacuum controller Fig. 2. -
Page 8: Connection Area In Unit Base
3.0 Setting up Connection area in unit base Connect mains cable Use only mains cables with angled inlet connector for non-heating appliances! Check that the voltage and frequency ratings of the power line are similar to those indicated on the device. Fig. -
Page 9: Operating
4.0 Operation On/off switch Press the ”I” symbol to switch the unit on. Press the ”0” symbol to switch the unit off. The unit is ready for optional footswitch operation in the „0“ position (see options). Fig. 8. Set vacuum ... -
Page 10: Suction
4.0 Operation Suction Use appropriate suction tubes, catheters, suction tips or suction instruments, containers and hoses. Prior to starting suction, containers must be checked for cracks. Damaged containers may not be used. Keep an eye on the level of liquid in the collection jar during suction. -
Page 11: Options
5.0 Options Foot switch (REF 340.0060.0) The foot switch works pneumatically and is therefore sui- table for use in connection with fl ammable anaesthetics (class AP). Connect the foot switch as shown in section 3.2. Set the unit to ”0” off at the main switch (foot switch mode). -
Page 12: Securing The Unit
5.0 Options 5.2.1 Securing the unit It is only possible to ensure safe operation as a mobile suction unit by using the special system trolley available for use with the unit! The suction unit is placed on the system trolley so that its feet lock into place in the holes of the unit carrier and it can be firmly attached to the unit carrier from underneath by means of a knurled screw. -
Page 13: Tray In Foot Of System Trolley
Installation of the board is performed in accordance with the attached installation instructions. Make sure to combine the ATMOS C 451 only with Medical Grade UPS in clinical environment. Follow the instructions of the user manual of the UPS. -
Page 14: Cleaning
6.0 Cleaning 6.1 General information on cleaning and disinfection Prior to cleaning Medical devices must always offer a maximum in safety and function. We therefore recommend: Prior to each application: necessary The measures described herein regarding cleaning and disinfection do not replace the regulations valid for operating the device! ... -
Page 15: Recommended Disinfectants For Instruments
Airtight packing Please enclose a detailed error description. Warranty ATMOS cannot guarantee an error-free function nor can ATMOS be held liable for damage to people or goods if non-original ATMOS parts are used, the information in these operating instructions are disregarded, ... -
Page 16: Change Fuse
REF 008.0749.0 Fig 21. 8.0 Trouble shooting The ATMOS C 451 was subjected to a thorough quality control before shipment. If there is, nevertheless, some malfunction, you possibly might solve this problem yourselves if you observe the following instructions: Problem... -
Page 17: Accessories, Consumables And Spare Parts
Accessories for ATMOS C 451 340.0081.0 Standard rail set for system trolley (instead of DDS-docking system for 2 system jars) 340.0070.0 System trolley, basic version for ATMOS C 451 340.0082.0 Potential equalization for system trolley 320.0070.1 Trolley with standard rail 340.0058.0... - Page 18 Accessories, consumables and spare parts Description Bellows, silicone rubber ........000.0739.0 Fuse 230 V T 0,63 A/H ........008.0634.0 Fuse 115 V T 1,25 A/H........008.0720.0 Mains cable angle-angle, 5 m......008.0818.0 Push-in foot for housing........505.0337.0 Fixing screw for system trolley (star handle) ......
-
Page 19: Technical Specifications
10.0 Technical specifications Air flow rate of pump 45 l/min +3/-5 l/min Max. vacuum -91kPa ( -910 mbar oder 682,5 mmHg)*@ NN Vacuum readout -1...0 bar ± 16 mbar (Klasse 1,6) ø 63 mm Additional air regulation mechanical regulating valve Voltage 230 V~ (+/-10%) 50/60 Hz (REF 340.0300.0) Current input (max.) max. -
Page 20: Checking / Reprocessing / Disposal
11.1 Checking ATMOS suction devices The ATMOS suction devices are maintenance-free in the case they are used according to the operating instructions. Ho- wever, every 2 years an inspection and a safety-related check according to EN/IEC 62353 have to be performed. -
Page 21: Notes On Emc
12.1 Guidelines and Manufacturer´s Declaration - Emissions The ATMOS C 451 is intended for use in the electromagnetic environment specifi ed below. The customer or user of the ATMOS C 451 should ensure that it is used in such an environment. Emissions Test Compliance Electromagnetic Environment - Guidance... - Page 22 12.3 Guidelines and Manufacturer´s Declaration - Immunity The ATMOS C 451 is intended for use in the electromagnetic environment specified below. The customer or user of the ATMOS C 451 should ensure that it is used in such an environment. IEC 60601- Electromagnetic Environment - Immunity Test...
- Page 23 ATMOS C 451 The ATMOS C 451 is intended for use in electromagnetic environment in which ratiated disturbances are con- trolled. The customer or user of the ATMOS C 451 can help prevent electromagnetic interference by maintai- ning a minimum distance between portable and mobile RF Communications equipment and the ATMOS C 451 as recommended below, according to the maximum output power of the communications equipment.
- Page 24 Declaration of Conformity...
- Page 25 Any and all present or future government charges, clusive remedy will be the repair or, at ATMOS’s sole levies, or taxes on the products shall be added to option, the replacement of the defective product. At...
