6.3 LCD panel overview

Operation of the UPS is indicated on the monitor panel with a LCD screen. This display is also
capable of alerting the user with audible alarms. Status of the UPS, measurements and alarms are
all indicated on the LCD screen.
Rack Display
Display Function Description
Connected to Mains
Battery Remaining 0-24%,
25-49%, 50-74%, 75-100%
Battery Test
Battery Fail
Generator Mode
Silence Mode
High Efficiency Mode
Bypass
© All rights reserved. All trademarks are property of their respective owners.

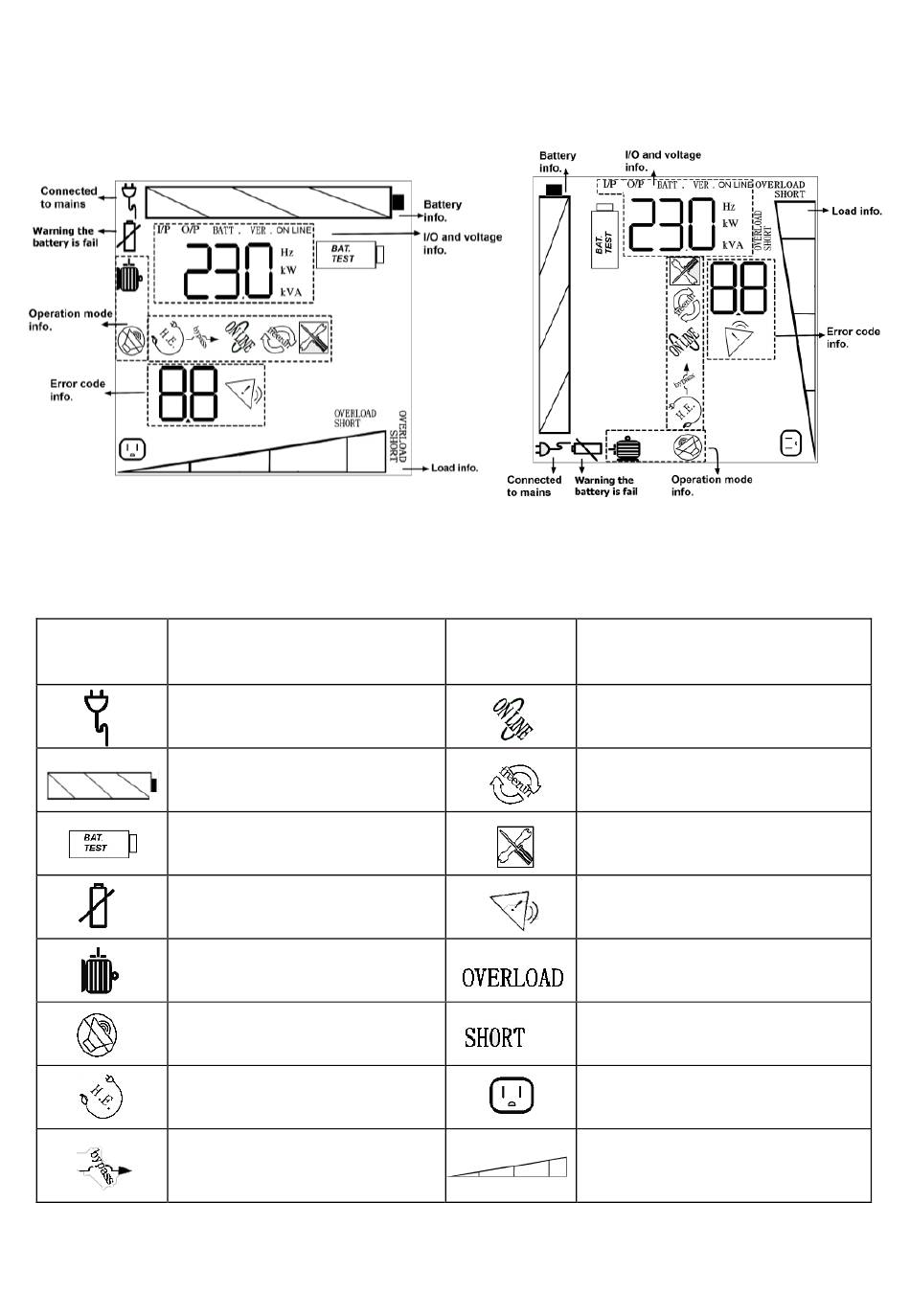

Fig.6 LCD display
Display
8
Tower Display
Function Description
System Normal
Free Run Mode
Manual Bypass Mode
(MAINTENANCE ONLY)
Fault Occurs
UPS Overload
Output Short
Output Working Normally
Load level by 0-24%,
25-49%, 50-74%, 75-100%
